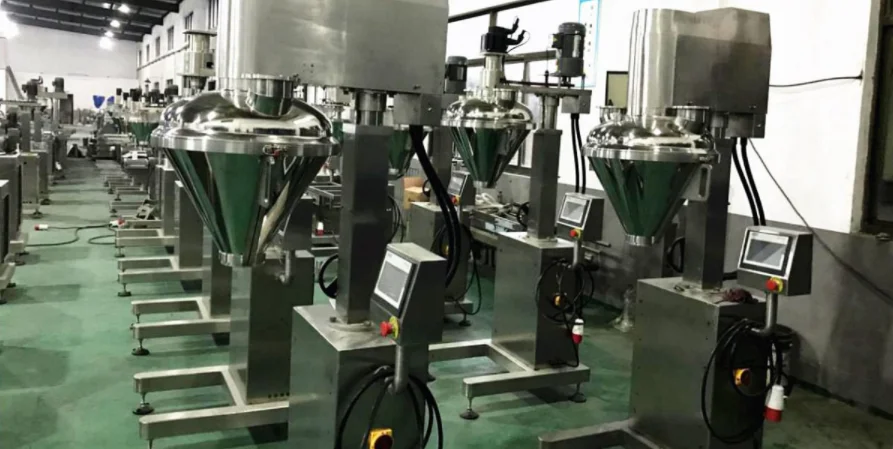

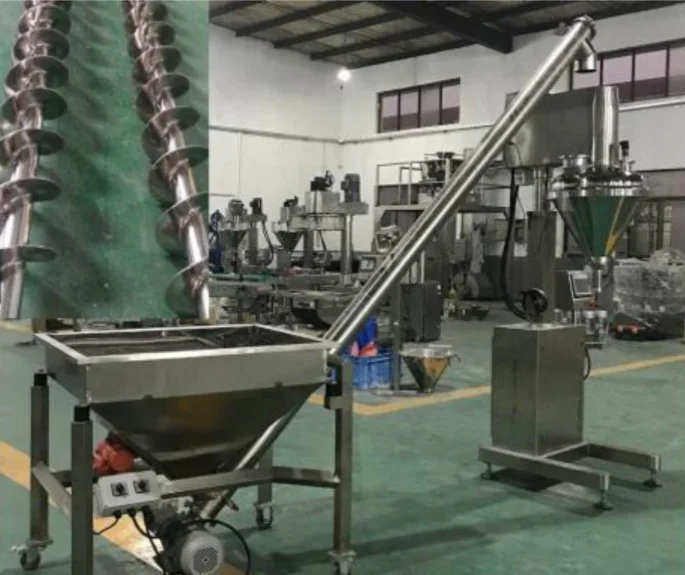

Semi automatic Servo Motor Auger Filler / Dry Powder Net Weight Intelligent Weighing Filling Machine
- Category: >>>
- Supplier: Shanghai Tops Group Co. Ltd.
Share on (1600577706695):
Product Overview
Description
Product Description
General description
Semi-automatic auger filling machine is used in dosing and filling work. Its special professional design is suitable for coffee powder, flour, condiments, solid beverages, veterinary drugs, glucose, medicine, powder additives, talcum powder, agricultural pesticides, dyes and other fluid or low-flow materials.
Features

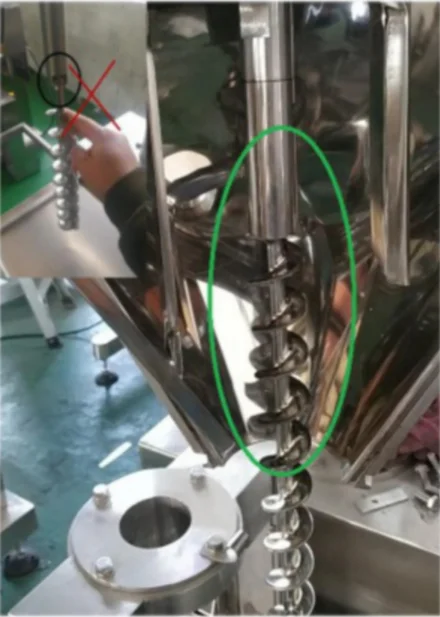

1. Lathing auger screw to guarantee the precise filling accuracy
2. PLC control and touch screen display
3. Servo motor drives screw to guarantee stable performance

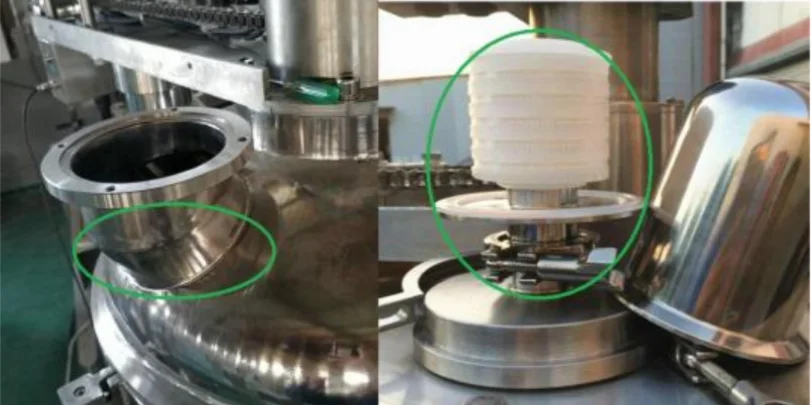

4. Quick disconnecting hopper could be washed easily without tools
5. Full stainless steel 304 material
6. weight feedback and proportion track to materials, which overcomes difficulties of filling weight changes due to
2. PLC control and touch screen display
3. Servo motor drives screw to guarantee stable performance
4. Quick disconnecting hopper could be washed easily without tools
5. Full stainless steel 304 material
6. weight feedback and proportion track to materials, which overcomes difficulties of filling weight changes due to
materials’ density change.
7. Save 20 sets of formula inside the machine for later use
8. Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
9. Multi language interface
7. Save 20 sets of formula inside the machine for later use
8. Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
9. Multi language interface
Specification
Model | TP-PF-A10 | TP-PF-A11 | TP-PF-A11S | TP-PF-A14 | TP-PF-A14S | ||
Control system | PLC & Touch Screen | PLC & Touch Screen | PLC & Touch Screen | ||||
Hopper | 11L | 25L | 50L | ||||
Packing Weight | 1-50g | 1 - 500g | 10 - 5000g | ||||
Weight dosing | By auger | By auger | By load cell | By auger | By load cell | ||
Weight Feedback | By off-line scale (in picture) | By off-line scale (in picture) | Online weight feedback | By off-line scale (in picture) | Online weight feedback | ||
Packing Accuracy | ≤ 100g, ≤±2% | ≤ 100g, ≤±2%; 100 – 500g, ≤±1% | ≤ 100g, ≤±2%; 100 – 500g, ≤±1%; ≥500g,≤±0.5% | ||||
Filling Speed | 40 – 120 times per min | 40 – 120 times per min | 40 – 120 times per min | ||||
Power Supply | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | 3P AC208-415V 50/60Hz | ||||
Total Power | 0.84 KW | 0.93 KW | 1.4 KW | ||||
Total Weight | 90kg | 160kg | 260kg | ||||
Overall Dimensions | 590×560×1070mm | 800×790×1900mm | 1140×970×2200mm | ||||

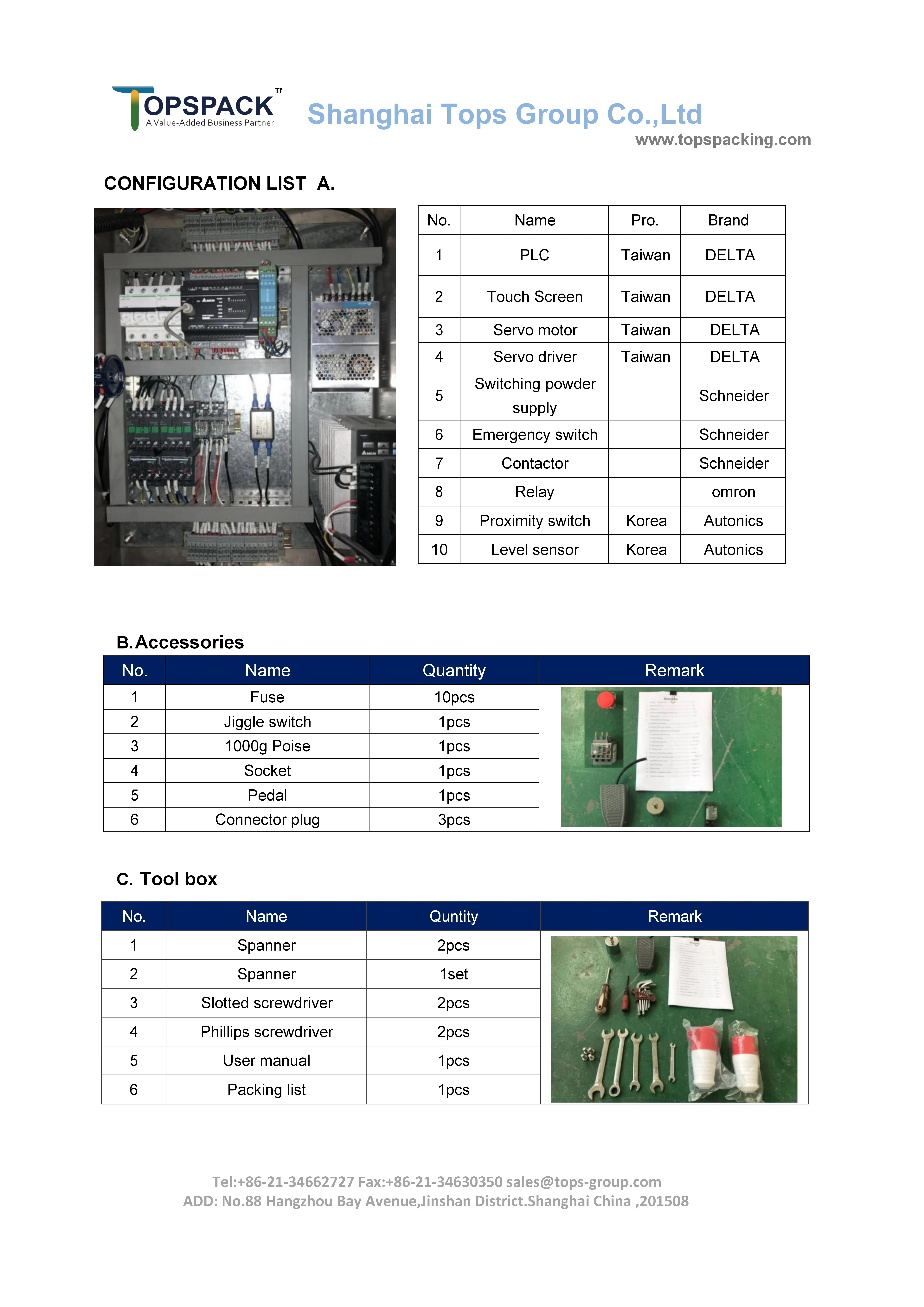

No. | Name | Pro. | Brand |
1 | PLC | Taiwan | DELTA |
2 | Touch Screen | Taiwan | DELTA |
3 | Servo motor | Taiwan | DELTA |
4 | Servo driver | Taiwan | DELTA |
5 | Switching powder supply | Schneider | |
6 | Emergency switch | Schneider | |
7 | Contactor | Schneider | |
8 | Relay | omron | |
9 | Proximity switch | Korea | Autonics |
10 | Level sensor | Korea | Autonics |

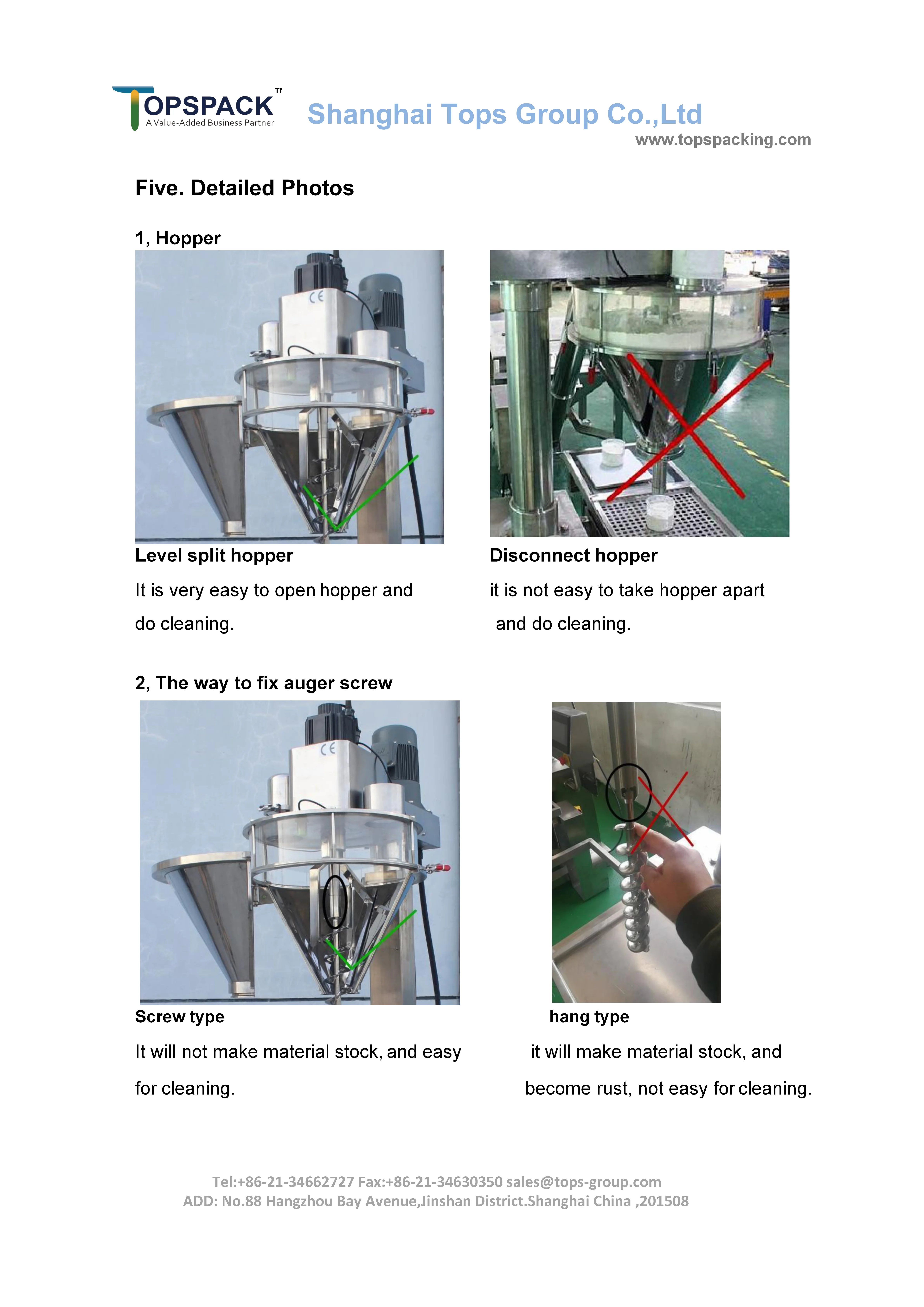

Details Images

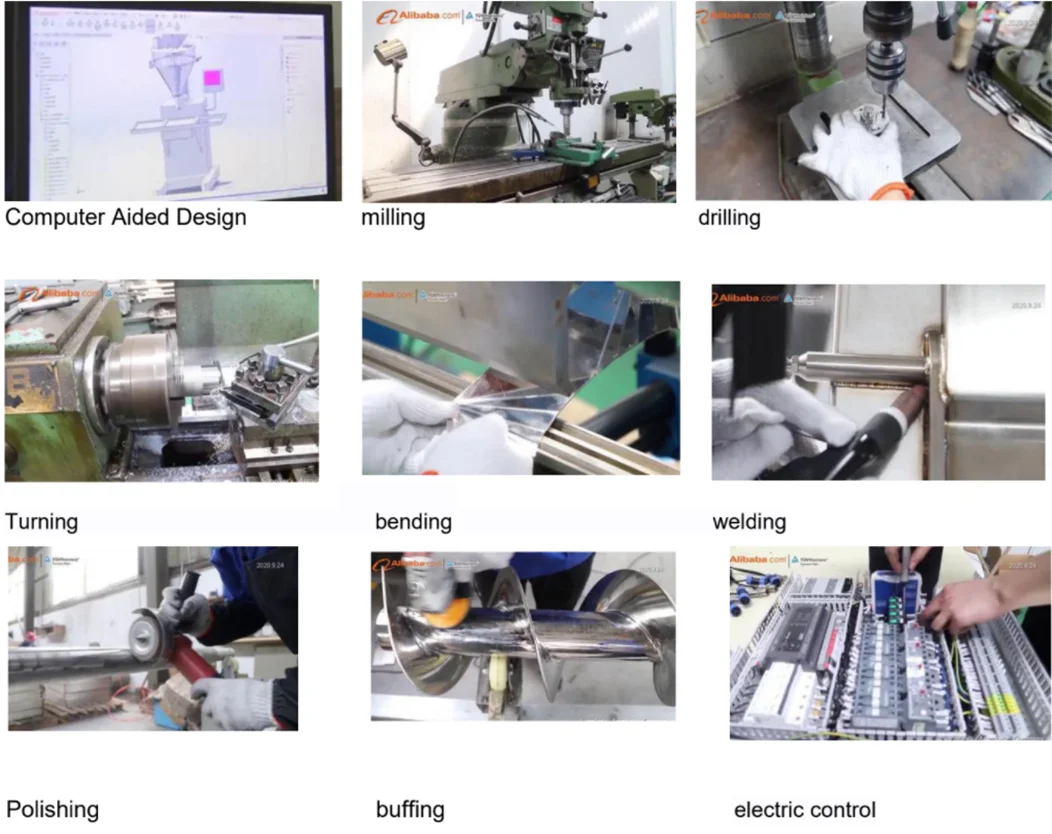

Production & Processing
