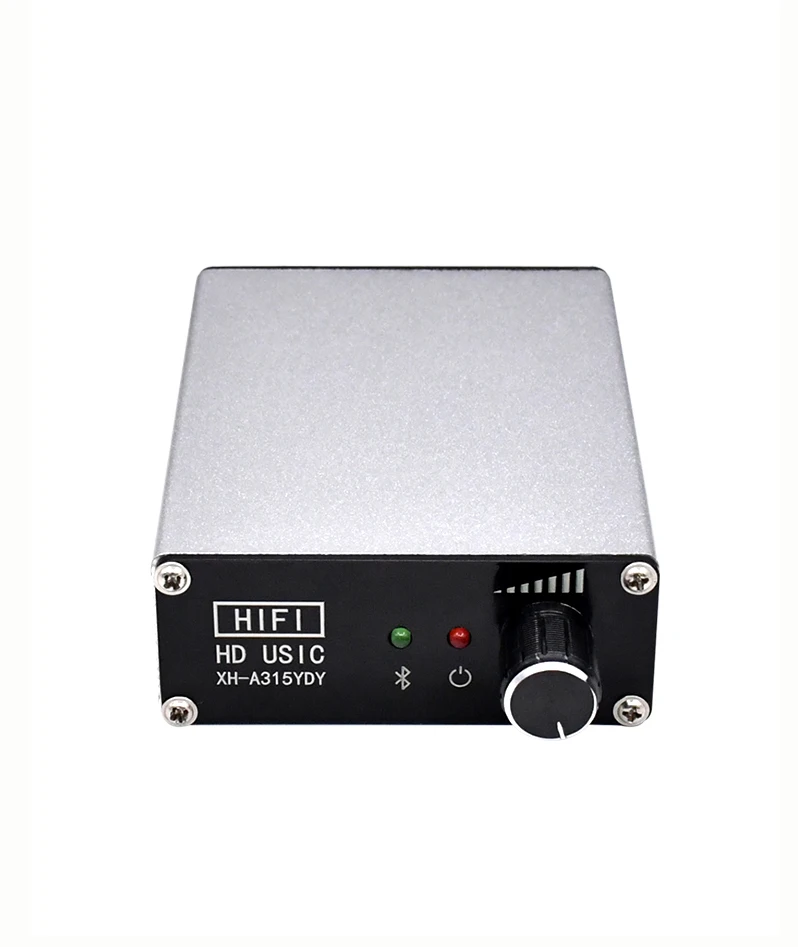

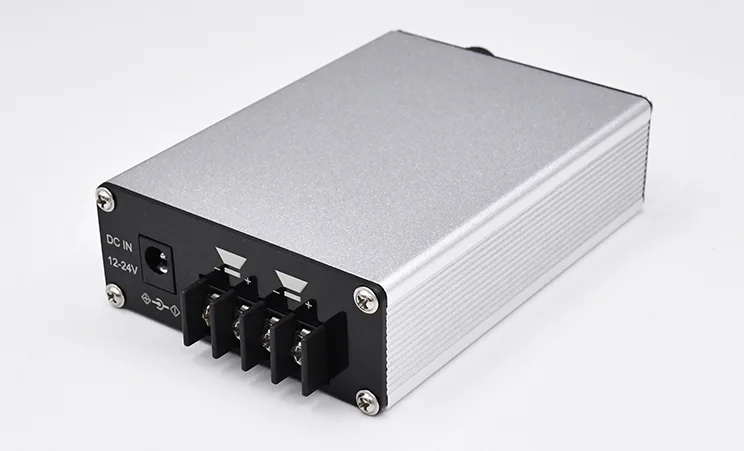

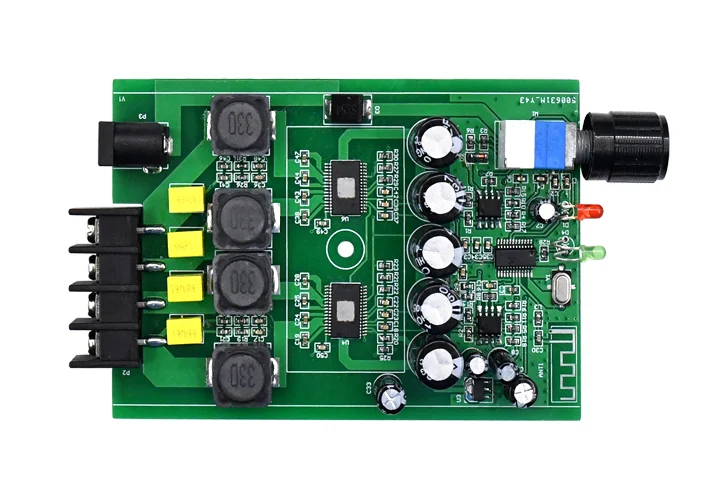

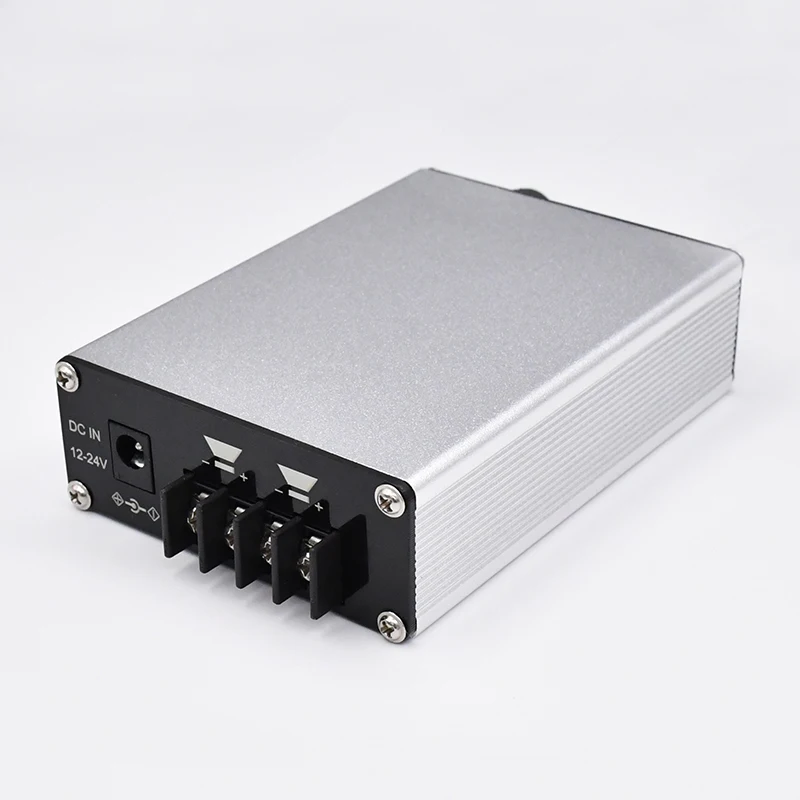

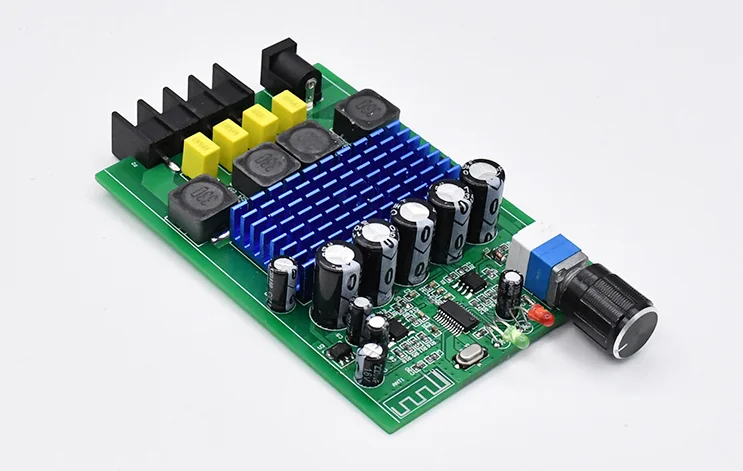

Customized XH A315 Bluetooth 5.0 high definition audio amplifier high power TPA3116D2 dual chip digital power amplifier board
- Category: >>>
- Supplier: Shanghai Belite Technology Co. Ltd.
Share on (1600577711854):
Product Overview
Description
Products Description
Total harmonic distortion:
380w (±65 power 4 ohm speaker, distortion <0.1%)
280w (±65 power 8 ohm speaker, distortion <0.1%)
Frequency range: 20Hz-20kHz
Speaker: 4-8ohm
Voltage magnification: 36 times
Input sensitivity 1.5v (RMS)
Output short circuit protection: yes
Output DC bias protection Speaker protection: yes
Overheat protection: Yes, the temperature of the radiator is higher than 100°C, turn off the output!
Product size: about 100×50×30mm / 3.93×1.96×1.18”
Net weight: approx.100g
380w (±65 power 4 ohm speaker, distortion <0.1%)
280w (±65 power 8 ohm speaker, distortion <0.1%)
Frequency range: 20Hz-20kHz
Speaker: 4-8ohm
Voltage magnification: 36 times
Input sensitivity 1.5v (RMS)
Output short circuit protection: yes
Output DC bias protection Speaker protection: yes
Overheat protection: Yes, the temperature of the radiator is higher than 100°C, turn off the output!
Product size: about 100×50×30mm / 3.93×1.96×1.18”
Net weight: approx.100g
