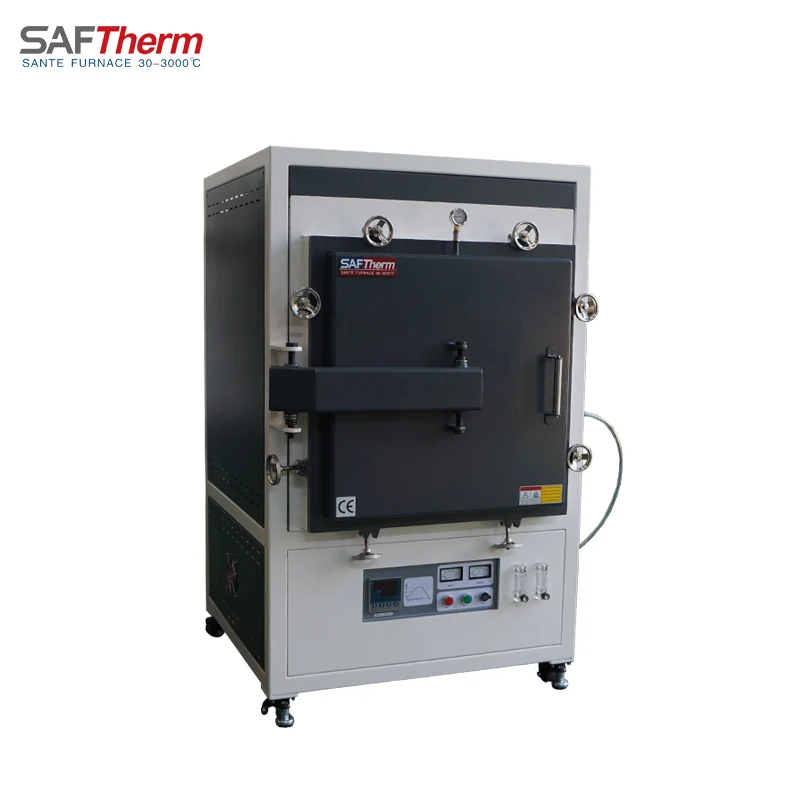

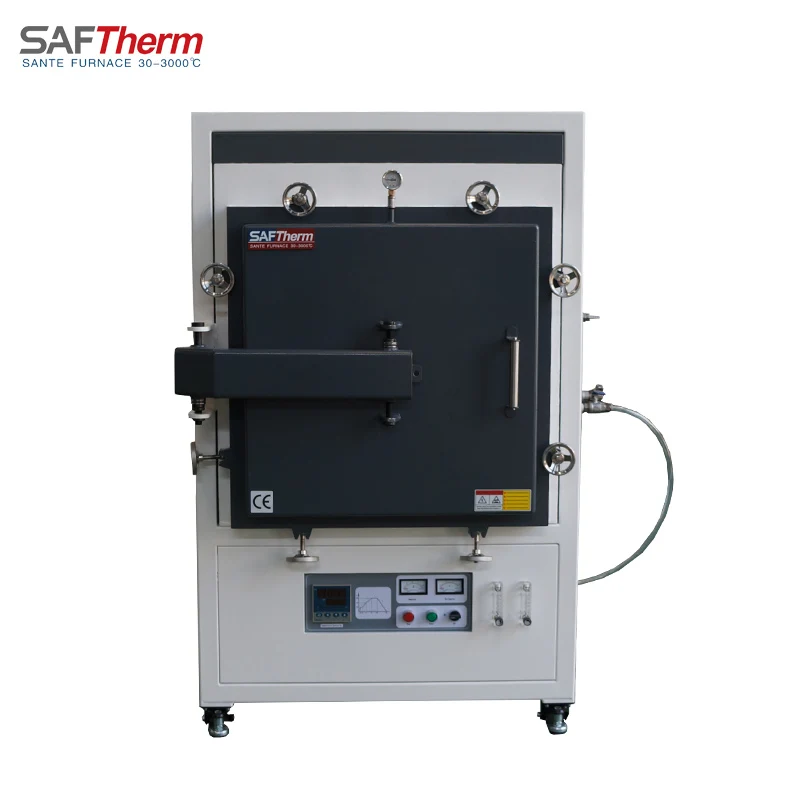

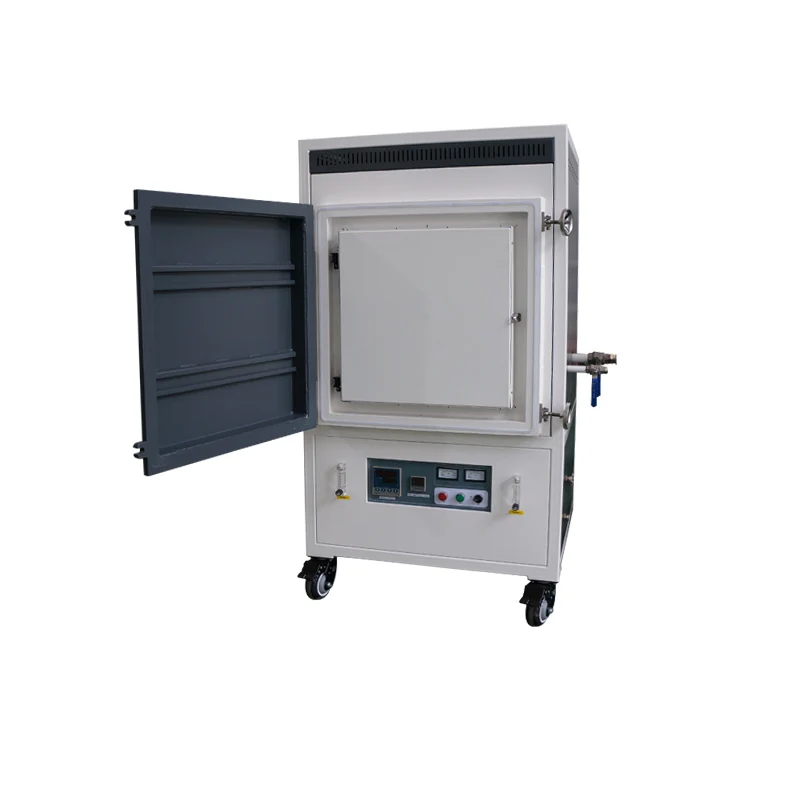

1700C high temperature atmosphere oven kiln vaccum muffle furnace
- Category: >>>
- Supplier: Henan Sante Furnace Technology Co. Ltd.
Share on (1600577752962):
Product Overview
Description
Product Description

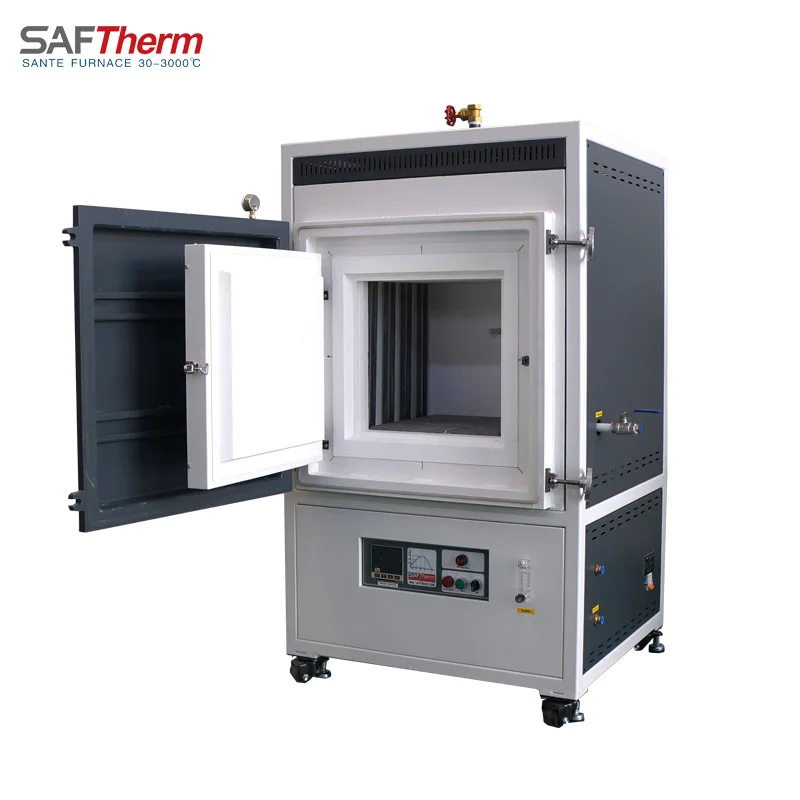

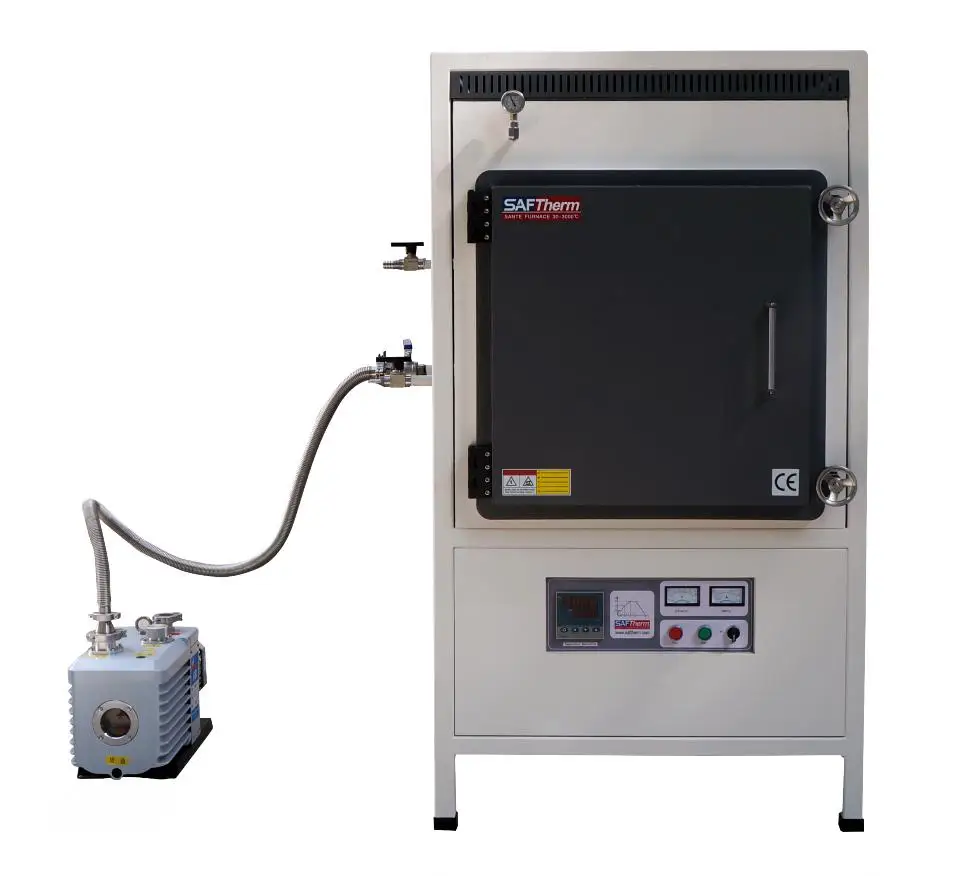

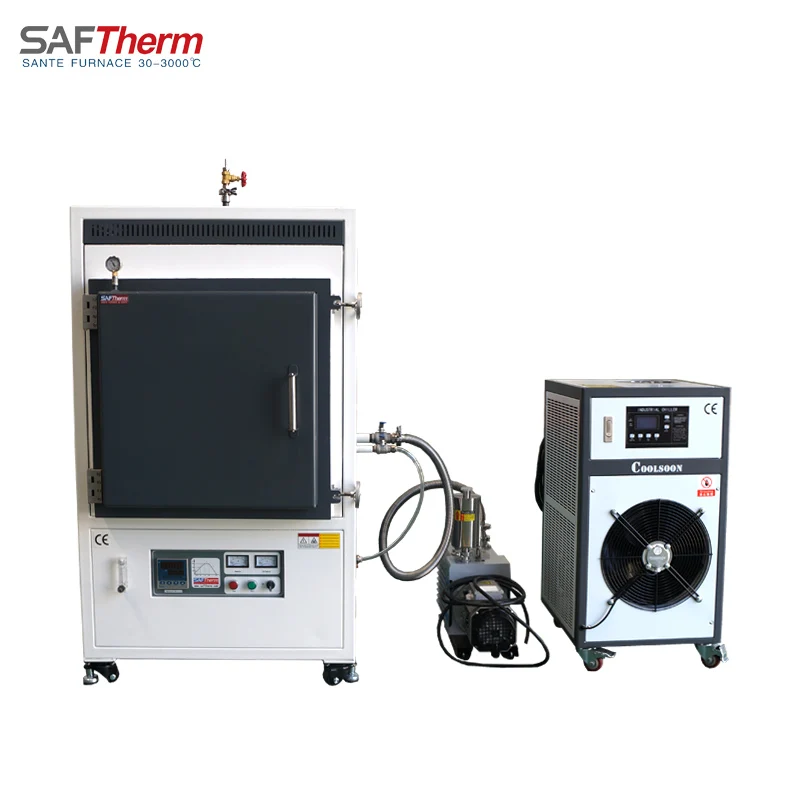

Atmosphere Furnace
The Nitrogen/ Argon 1600c vacuum atmosphere furnace is mainly for the daily application development of the laboratory,
high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the
product uses high-purity alumina material as the furnace material, and the high-quality MoSi2 rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.
high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the
product uses high-purity alumina material as the furnace material, and the high-quality MoSi2 rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.
Model No. | STQ-45-17 | STQ-96-17 | STQ-150-17 | STQ-288-17 | |||
chamber size W*D*H (mm) | 300*500*300 | 400*600*400 | 500*600*500 | 600*800*600 | |||
power supply | 380V/12KW | 380V/18KW | 380V/20KW | 380V/30KW | |||
Max temperture | 1700 ℃ | ||||||
Continue working temperature | 1600 ℃ | ||||||
Heating rate | ≤ 25℃/min ( suggest 15℃/min for longer life using of furnace ) | ||||||

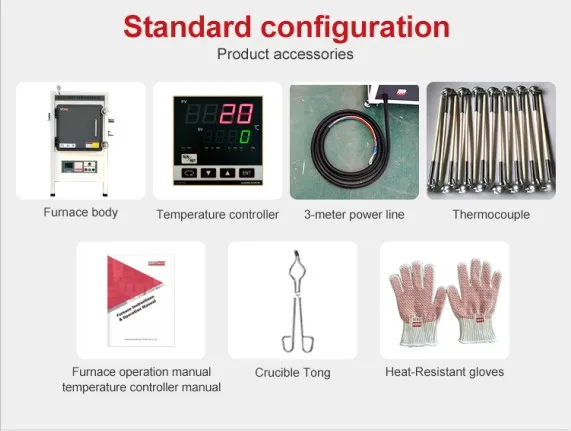

Accessories | One pair of high temperature furnace gloves; One pair of crucible stongs | ||||||
Optional devices | Paperless recorder Stainless steel exhaust chimney Alumina crucible | ||||||
Main Features
1.Vacuum atmosphere furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature,
heat capacity is small, energy saving above 50%

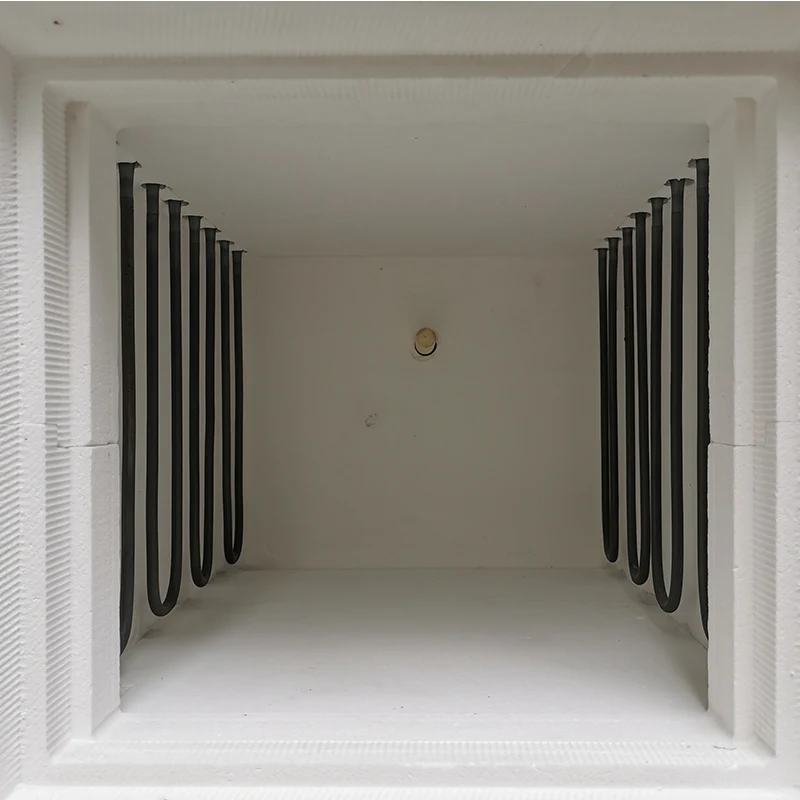

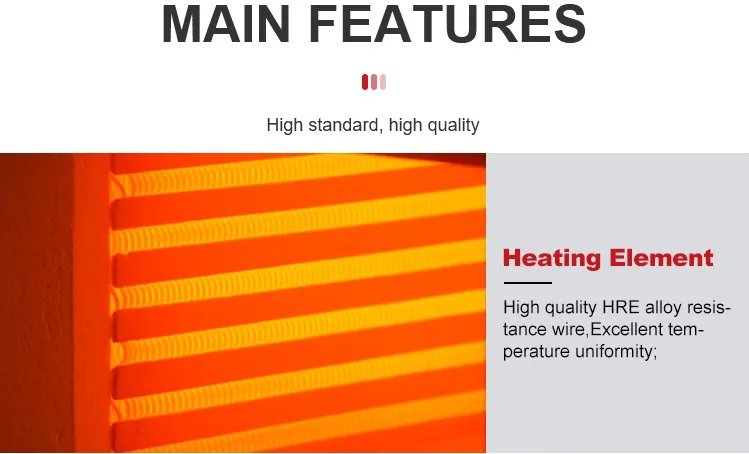

2. The heating element is made of high-quality MoSi2 rods, which can bear large load, stable and long service life; the resistance
wire is evenly arranged on both sides of the furnace, and the temperature field uniformity is good
3.Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1700℃ within 150 minutes,
more than 3 times higher than the same specification electric furnace sintering efficiency in the industry, safe and efficient
4.High temperature control accuracy, small temperature compensation and temperature accuracy ± 1 ° C

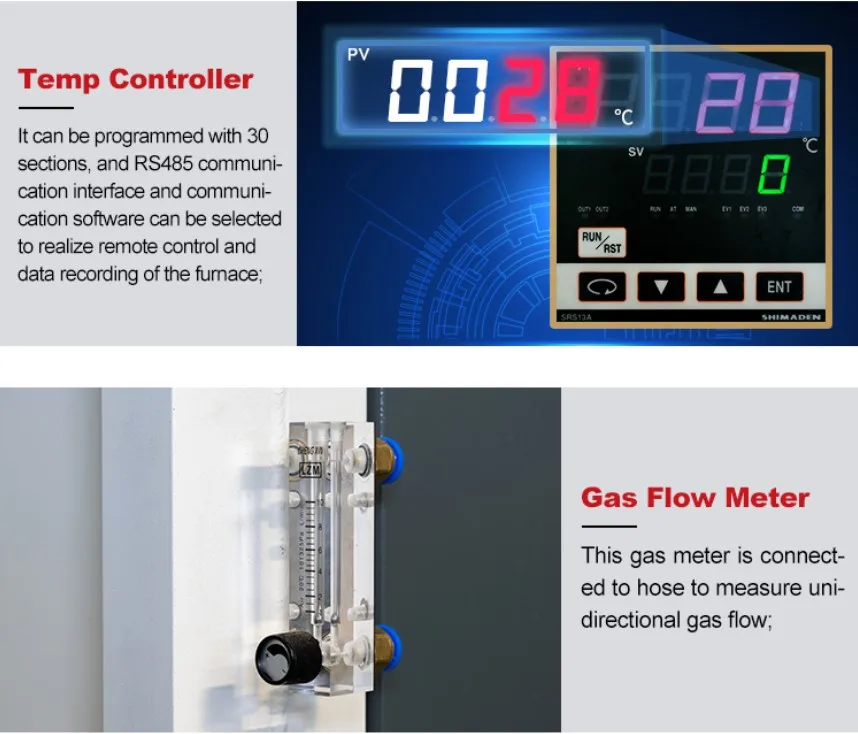

5. Using SHIMADEN intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can
be programmed 32 segments
6. Electronic components are used Schneider products, with leakage protection, safe and reliable
7. The atmosphere muffle furnace will send out an alarm signal to the over-temperature during the working process, and
automatically complete the protection action.
8. When the atmosphere muffle furnace program is set, just press the run button and the next work will be completed automatically
9. Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves,
with memory card for analysis and printing of experimental data.
heat capacity is small, energy saving above 50%
2. The heating element is made of high-quality MoSi2 rods, which can bear large load, stable and long service life; the resistance
wire is evenly arranged on both sides of the furnace, and the temperature field uniformity is good
3.Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1700℃ within 150 minutes,
more than 3 times higher than the same specification electric furnace sintering efficiency in the industry, safe and efficient
4.High temperature control accuracy, small temperature compensation and temperature accuracy ± 1 ° C
5. Using SHIMADEN intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can
be programmed 32 segments
6. Electronic components are used Schneider products, with leakage protection, safe and reliable
7. The atmosphere muffle furnace will send out an alarm signal to the over-temperature during the working process, and
automatically complete the protection action.
8. When the atmosphere muffle furnace program is set, just press the run button and the next work will be completed automatically
9. Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves,
with memory card for analysis and printing of experimental data.
Details Images
Packing & Delivery
Safe Packing:
1.The Argon Gas Sintering Furnace was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet.
2.Tailored polywood case, coupled perfectly with the pallet.
3.Filled with polyfoam between the furnace body and the case in all sides.
4.Easy-to-identify double-sided outer box print logos and shippment marks.
1.The Argon Gas Sintering Furnace was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet.
2.Tailored polywood case, coupled perfectly with the pallet.
3.Filled with polyfoam between the furnace body and the case in all sides.
4.Easy-to-identify double-sided outer box print logos and shippment marks.
Company Profile
Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan. China Free Trade Zone. SANTE products cover 1000-1800 degree Box furnace,Tube furnace, Vacuum furnace, High Temperature Furnace, 2000 degree Ultra-High Temperature Furnace,Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace etc. The company provides heating treatment equipment for laboratory, domestic and overseas institutions of higher education, scientific research institutes, factory and petrochemical, smelting, casting, machinery manufacturing, military industry etc.
Our company has passed ISO9001 quality certification, CE certification and SGS factory certification. It also has got a number of technical honors like "Scientific and Technologic Enterprise of Henan Province", "National Small and Medium-Sized Sci-Tech Enterprise", "Refractory Material Technology Sintering R&D Center" issued by Science and Technology Department of Henan Province.
Our goal is to continuously meet the various demands of customers during the process of technology innovation and breakthroughs and to be the domestic first-class enterprise with providing excellent service and high quality products for our cooperation partners!
Welcome to our company and we sincerely hope to establish a good cooperation relationship with you!
Our company has passed ISO9001 quality certification, CE certification and SGS factory certification. It also has got a number of technical honors like "Scientific and Technologic Enterprise of Henan Province", "National Small and Medium-Sized Sci-Tech Enterprise", "Refractory Material Technology Sintering R&D Center" issued by Science and Technology Department of Henan Province.
Our goal is to continuously meet the various demands of customers during the process of technology innovation and breakthroughs and to be the domestic first-class enterprise with providing excellent service and high quality products for our cooperation partners!
Welcome to our company and we sincerely hope to establish a good cooperation relationship with you!
Certifications
FAQ
1: Are you a factory?
Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.
2: Do you have customization or OEM service?
We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
3: What is the delivery time?
Normally within 15 working days after receiving the advanced payment or depends on order quantity.
4: How can you guarantee the production quality?
We have QC department who perform strictly in each producing process including package.
5: How long is your furnace warranty period?
One year (expect thermocouple and heating element), lifetime support
6: What payment terms does SAFTHERM support?
T/T, L/C and so on.
Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.
2: Do you have customization or OEM service?
We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
3: What is the delivery time?
Normally within 15 working days after receiving the advanced payment or depends on order quantity.
4: How can you guarantee the production quality?
We have QC department who perform strictly in each producing process including package.
5: How long is your furnace warranty period?
One year (expect thermocouple and heating element), lifetime support
6: What payment terms does SAFTHERM support?
T/T, L/C and so on.
