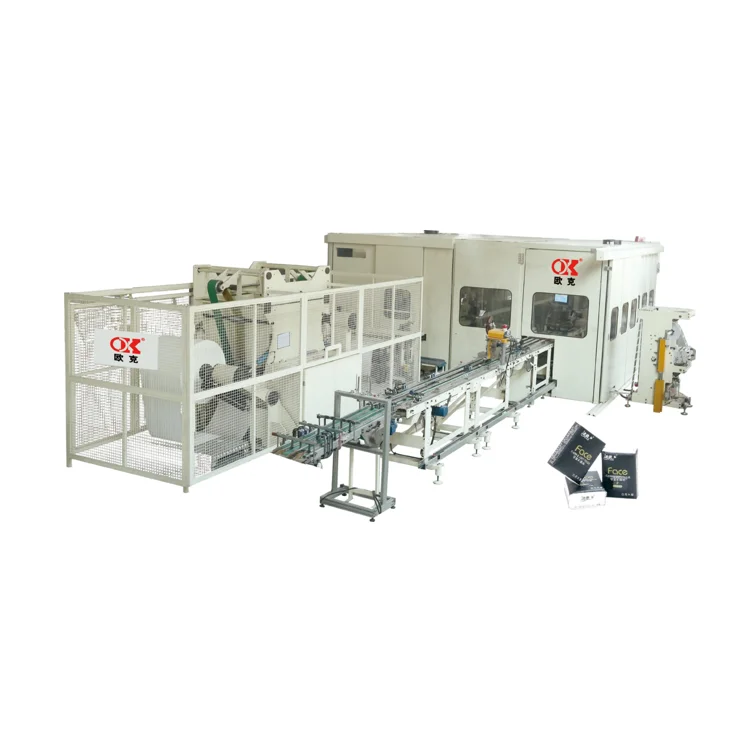

Automatic production line pocket tissue embossing folding packing handkerchief paper products machine
- Category: >>>
- Supplier: Ok Science And Technology Co. Ltd.
Share on (1600577768875):
Product Overview
Description
Product Description

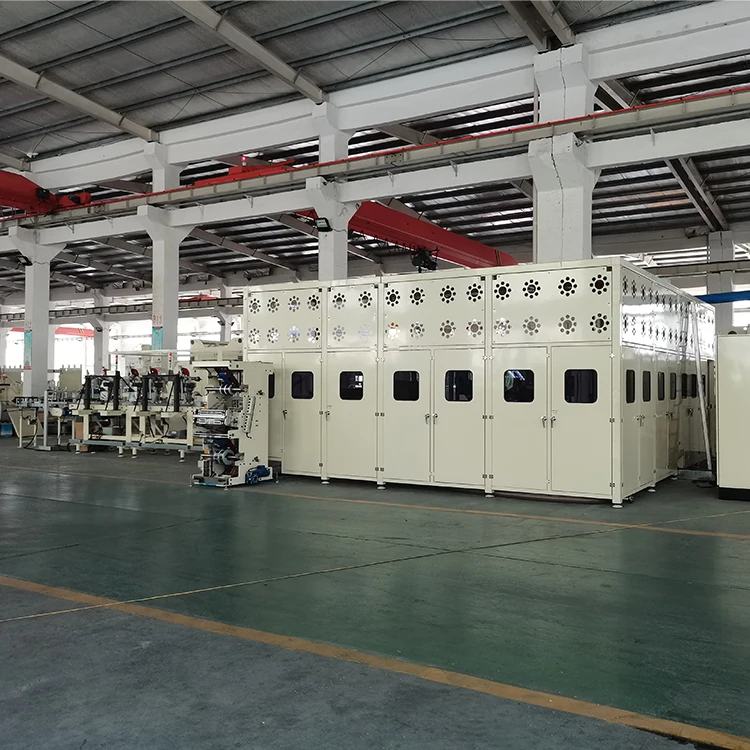

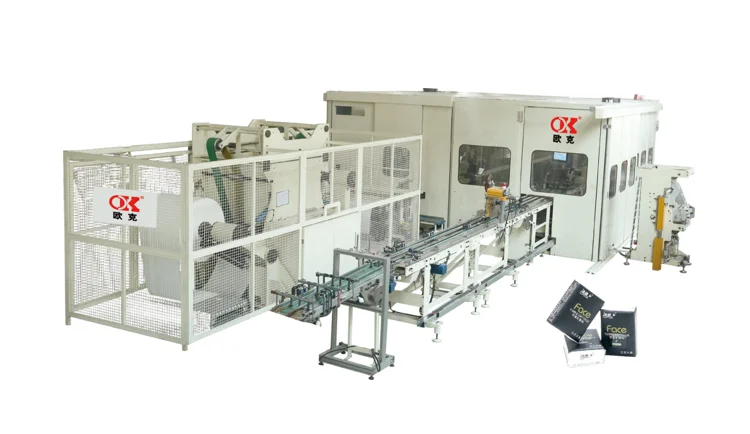

OK-800 Type Four Lanes Handkerchief Tissue Production Line
Main Performance and Structure Features:
1,Adopt U type structure layout, Automatic paper splicing, continuous folding, packing, beautiful appearance, smooth packing, stable and reliable structure.
2,Consistent tension control for parent paper unwinding; step-less regulation for paper calendaring speed.
3,Adopt America FIFE parent paper automatic traverse rectifying
4,Programmable controller to control intensively, operate by touch screen, with the function of displaying failure and warning, automatically stopping and protection, statistics data.

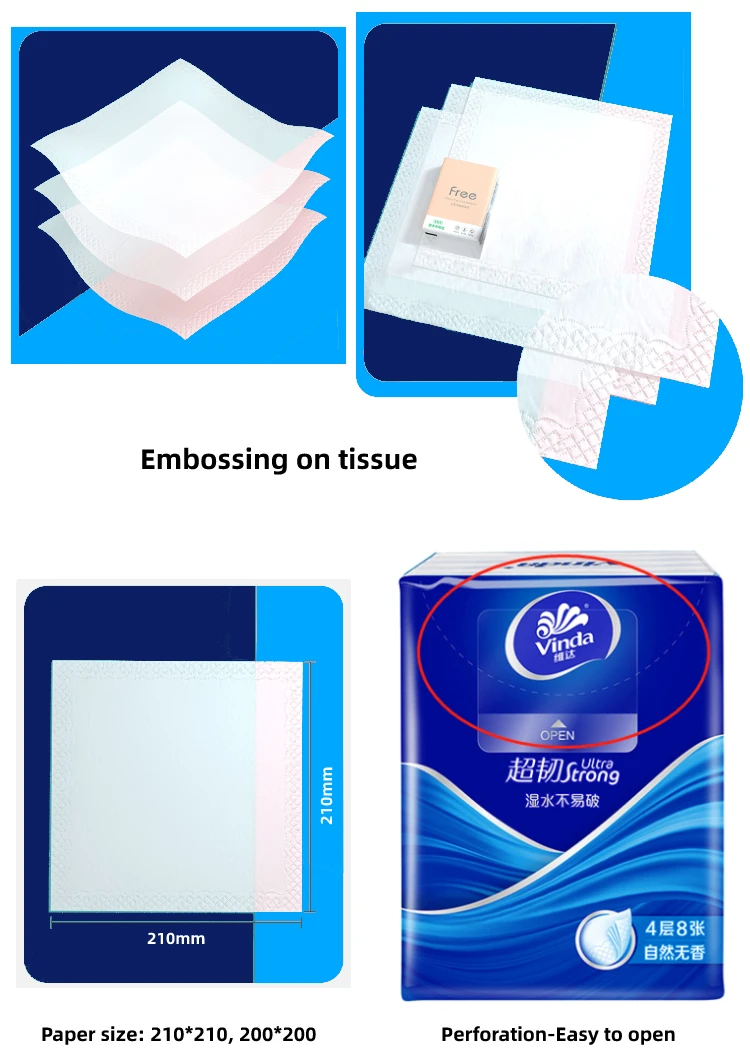

5,Paper size and quantity of each bag can be made according to the customer’s demand. Such as paper size can be 200mm×200mm, 210 ×210mm etc, quantity of each bag 8,10,12 pieces etc.
6,Include packing film automatic splicing unit
7,Other selective functions: embossing roller, perforation device and automatic labeling machine, can be matched our handkerchief tissue bundling packing machine.
Supply scope
Supply scope of single equipment: include unwind stand, automatic paper splicing unit, calendaring unit,embossing(pin to flat), folding, counting, packing film automatic splicing unit, single packing, labeling and convey unit, bundling packing machine

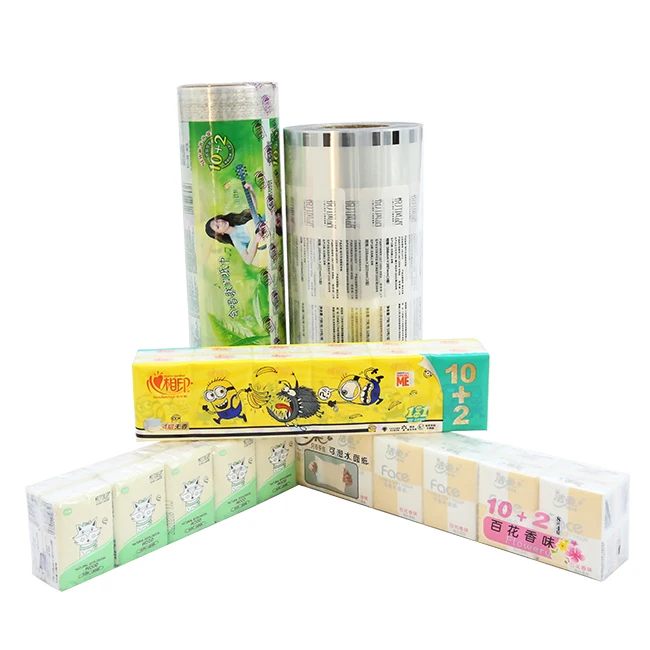

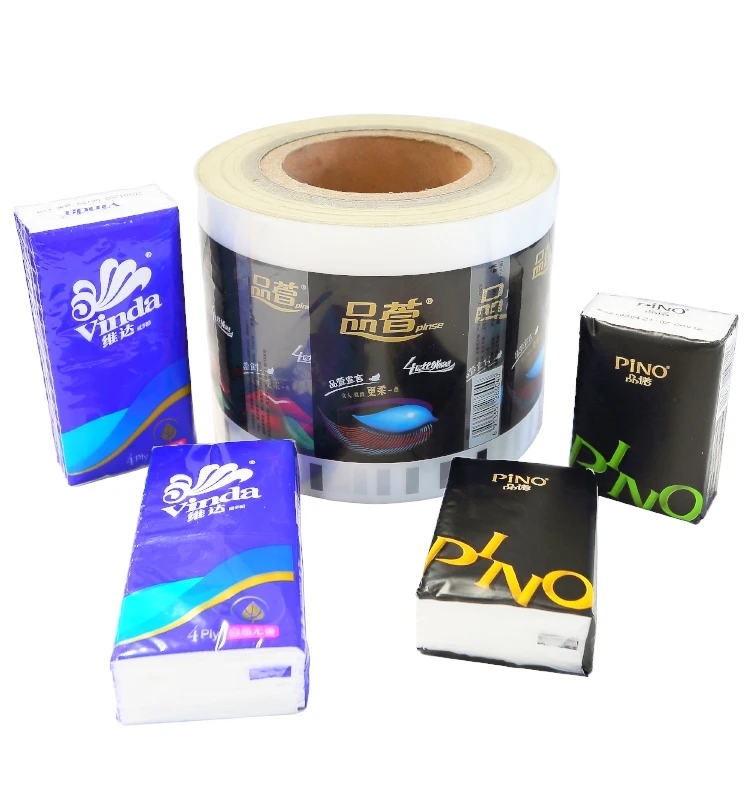

Packing Material
Model | OK-800 |
Design speed | 6500 sheets/min, 800 packs/min |
Working speed | 6000 sheets/min,700 packs/min (depending on packing specification, sheets/pack) |
Raw paper specification(mm) | width 840mm, can also be customized |
Raw paper diameter | Raw paper diameter ≤1800mm, Raw paper inner diameter 152.4mm |
Raw paper(mm) | Parent paper gsm: 2 ply(15-18.5gsm), 3 ply(13-15.3gsm), 4 ply(13-15.3gsm) |

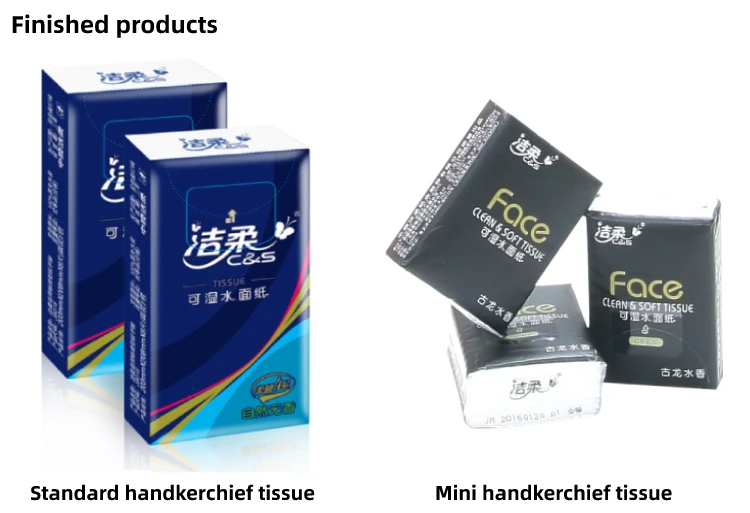

Packing Specification(mm) | Ultra mini size:(62mm±2mm)×(47mm±2mm)×(20mm±2mm) Mini size:(72mm±2mm)×(53mm±2mm)×(24mm±2mm) Standard size:(105mm±2mm)×(53mm±2mm)×(24mm±2mm) |
sheets/bag | 6, 7, 8, 9, 10 |

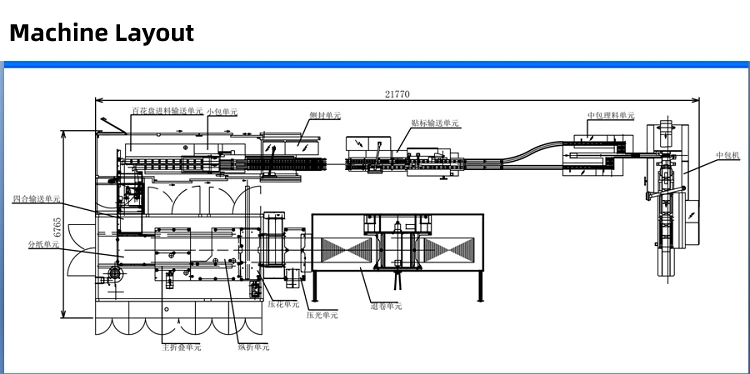

Outline dimension(mm) | 22000×6750×1900 |
Machine's weight(KG) | 12000 |
Total power supply(KW) | 55 |
Packing film | CPP, PE, BOPP and double-side heat sealing film |

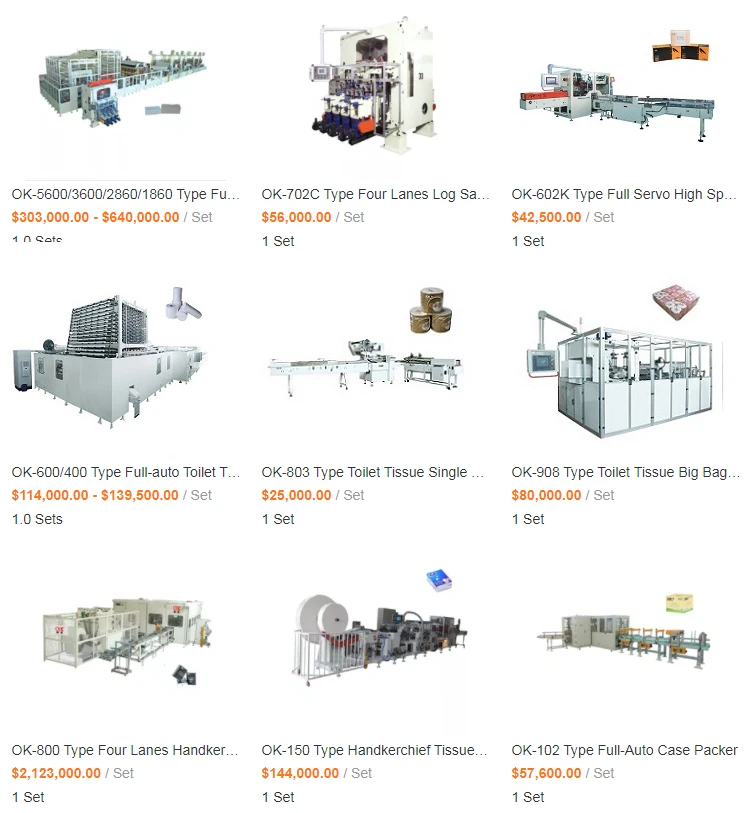

Related Products

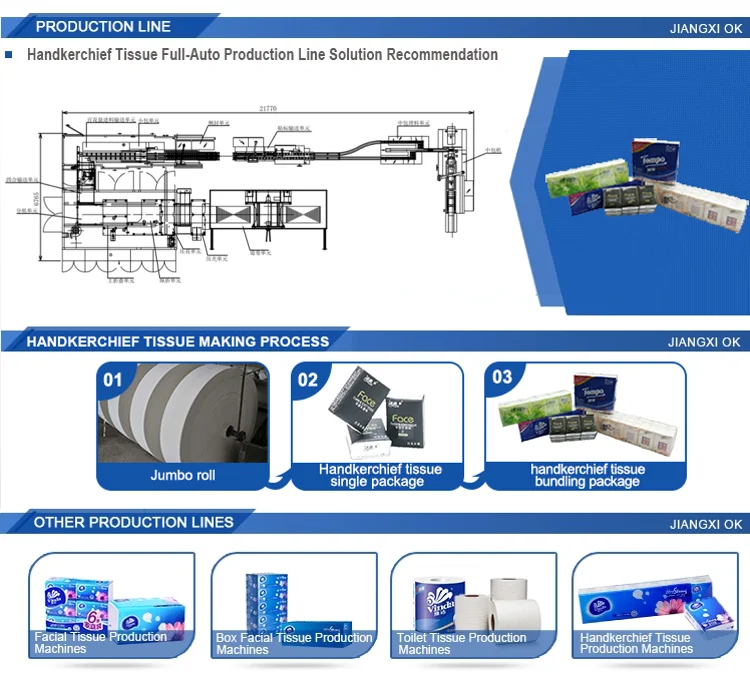

Production Line
Trade Shows

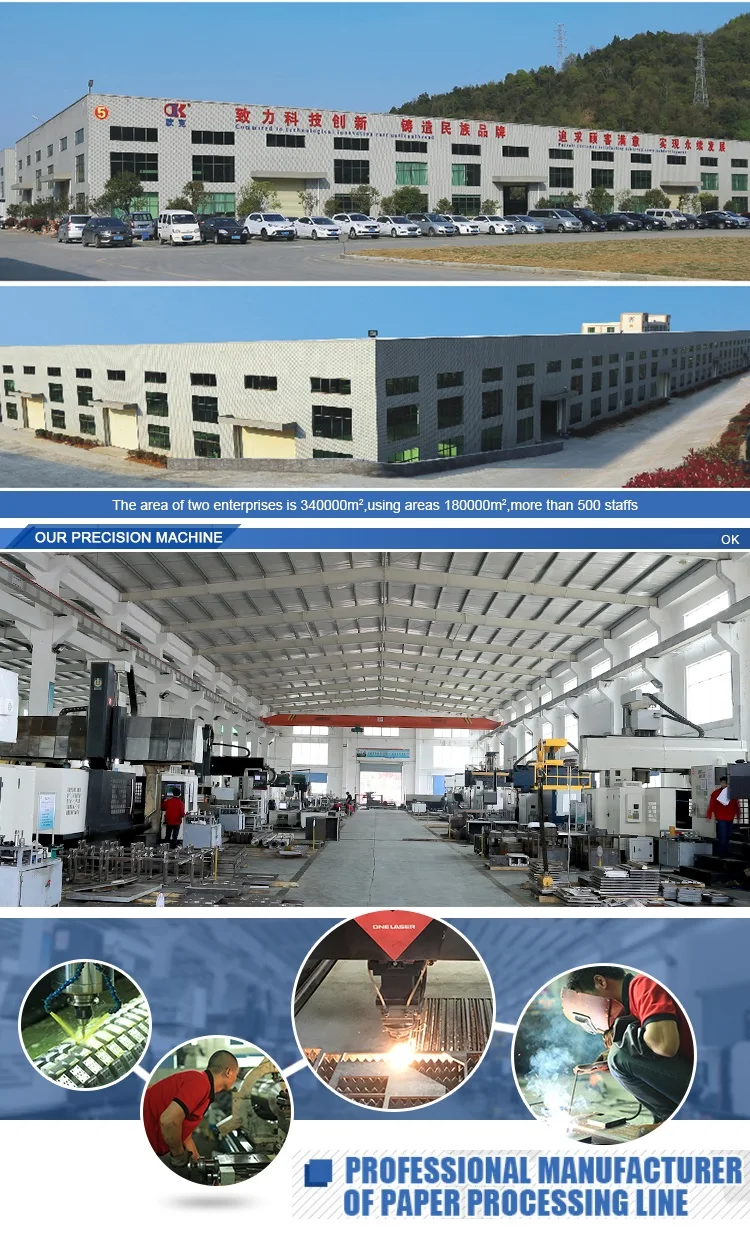

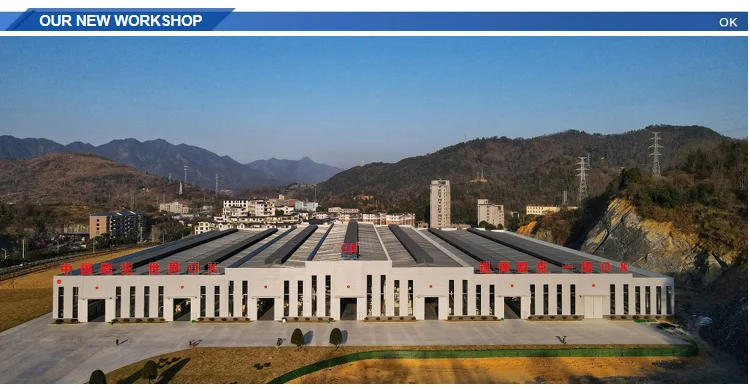

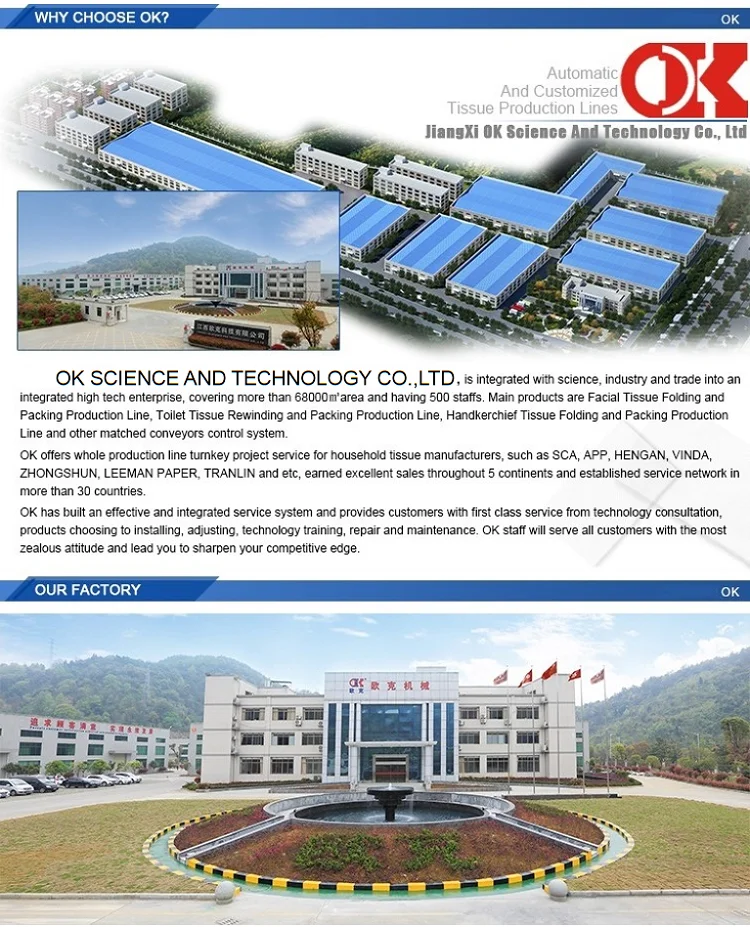

Company Information

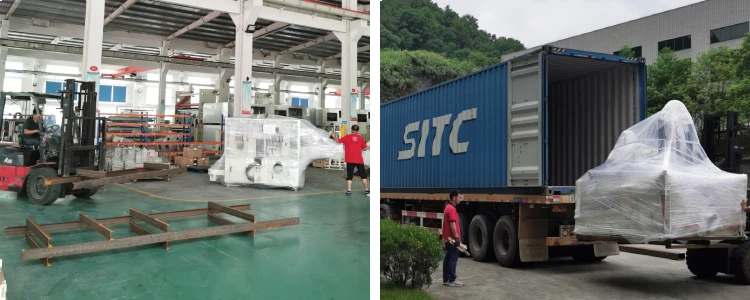

Packaging & Shipping

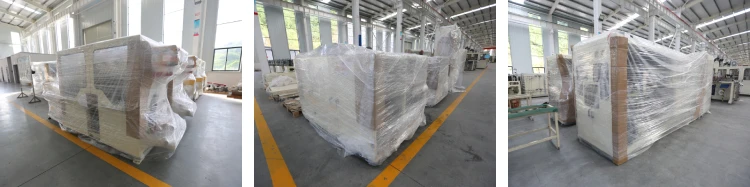

Packaging:
• Cover with plastic film.
• Packed with steel pallets.
FAQ
Question: What is the guarantee period for your machine?
Answer: One year from the date of shipment. During the warranty period, if the product has quality problems (under the normal operating state), the supplier is responsible for replacement for the broken parts, and free of charge. The following situations within the warranty period are not free: A. If the parts are damaged due to the illegal operation of the buyer or environmental factors, the buyer shall purchase and replace the parts from the supplier and bear the corresponding costs; B. The replacement of consumable parts within the warranty period does not belong to the free scope, and the free spare parts delivered with machine belong to consumable parts
Question: which machine model should i choose from your product series.
Answer: We make tissue paper converting and packing machines, disposable mask making machines.
If you need tissue converting machine, please provide your jumbo paper specification, the finished tissue product specification.
If you need tissue packing machine, please provide your tissue package form and package specication.
If you need complete line from tissue converting to packing, please provide your factory space layout, jumbo paper roll specification, production capacity, the finished tissue package form, we will make the complete line drawing including our tissue converting and packing machine and all necessary conveyor control system.
If you need mask making machines, please provide your mask pictures and request.
We will recommend and offer the most suitable model of our machine base on above information.
Question: what is the after sales service after we receive machines?
Answer: Under normal situation, after the machines arrive, the buyer must connect electric and air into the machines, then the sellers shall send technician to install the production line. The buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food transportation and accommodation. And the working time of technicians is 8 hours per day with daily salary USD60/person.
The buyer shall also provide an English-Chinese translator who will give help to technicians
During worldwide epidemic period, Buyer should know that seller will be not able to send engineer for machine installation and commissioning. Our sales manager and engineer will guide/support you by video/picture/phone communication. After the virus ends and global environment become safe , with visa and international flights and entry policy permitting, if the buyer requires engineer to travel for support, the sellers shall send technician to install the machine. And the buyer shall pay visa charge, round-trip air tickets from China factory to buye’s factory, food transportation and accommodation in buyer’s city. The salary of technician is USD60/day/person.
