Harxon Aviation Antenna Millimeter Accuracy High Gain Wideband GPS GNSS Antenna
- Category: Telecommunications >>>
- Supplier: Harxon,Corporation
Share on:
Product Overview
Description
Product Description
Specification
PERFORMANCE | |
Signal Received | GPS L1 Galileo E1 GLONASS L1 BDS B1 |
Nominal Impedance | 50Ω |
Polarization | RHCP |
Axial Ratio | ≤3dB |
Gain at Zenith (90°) | 1164-1300MHz 3dBi (maximum) 1525-1615MHz 4dBi (maximum) |
LNA | |
LNA Gain | 36dB (typical) |
Noise Figure | ≤2dB |
Output/Input VSWR | ≤2.0 |
Operation Voltage | +3.3VDC to +12VDC |
Operation Current | 35mA (maximum) |
Group Delay Ripple | ＜5ns |
MECHANICAL | |
Dimensions | ¢90*36.3mm |
Connector | SMA female |
Weight | ≤130g |
Mounting | 4 M4 screws installation |
ENVIRONMENTAL | |
Operating Temperature | -40℃ to +85℃ |
Storage Temperature | -55℃ to +85℃ |
Humidity | 95% non-condensing |

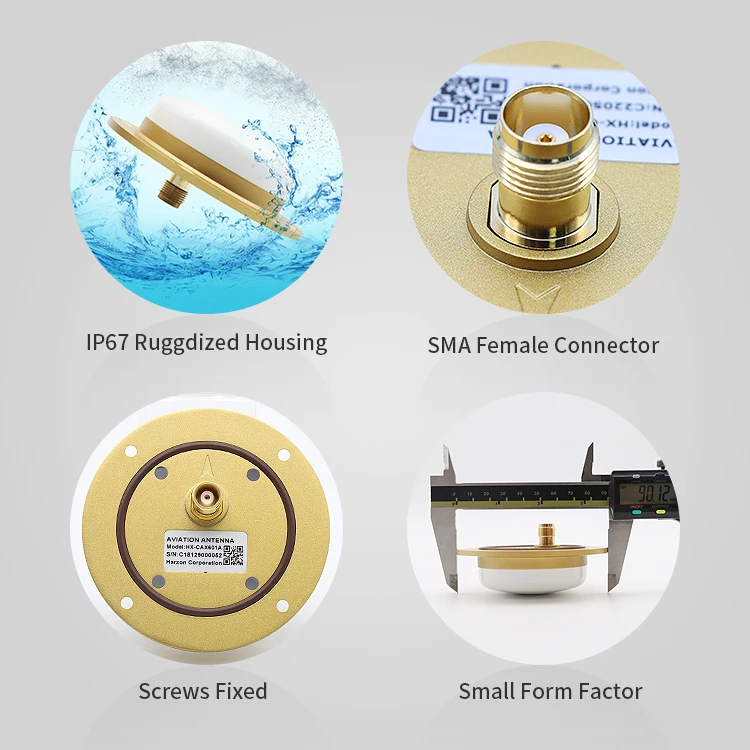

Water/Dust Resistance | IP67 |
Regulatory Compliance | CE, FCC, RoHS, REACH |
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via [email protected] if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
