Lab Equipment Tablet Disintegration tester BJ 1
- Category: >>>
- Supplier: Want Balance Instrument Co. Ltd.
Share on (1600577794973):
Product Overview
Description
Product Description
DISINTEGRATION TESTER
* BJ series of in struments are used for detecting disintegration of solid in prescriptive conditions.Applicable standards:
* National standard (Chinese codex) /2015
* Industry Standard (Disintegration tester)
* National standard (Chinese codex) /2015
* Industry Standard (Disintegration tester)

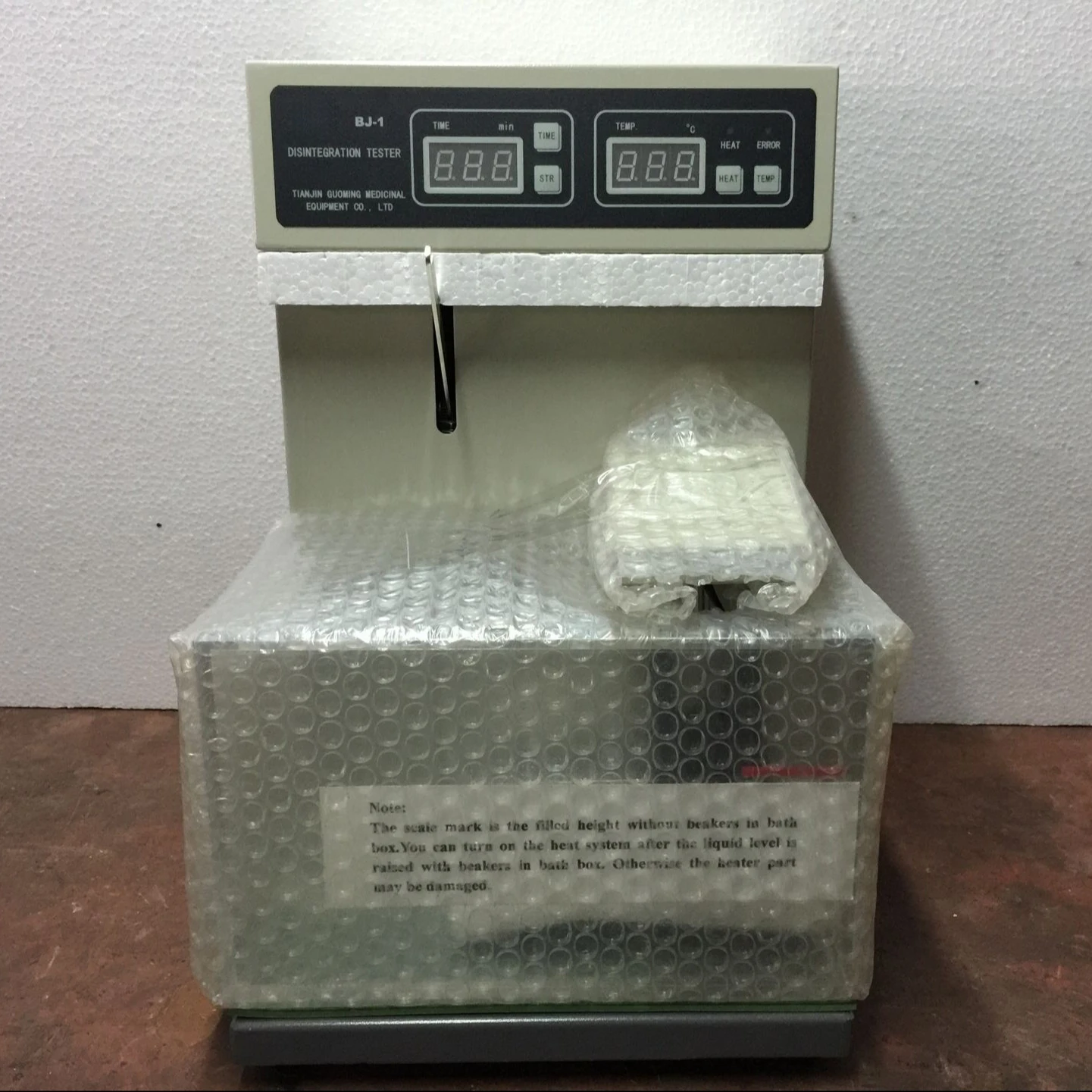

BJ-１Disintegration tester
Features:
* There are six tubes in one basket assembly.
* Auto stop at timing point.
* The bath liquid can achieve an even temperature.
* A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
* The time parameters can be preset at anytime. The preset and real time data can be displayed alternately in time.
* Automation: auto-test, auto-diagnose, auto-alarm.
* There are six tubes in one basket assembly.
* Auto stop at timing point.
* The bath liquid can achieve an even temperature.
* A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
* The time parameters can be preset at anytime. The preset and real time data can be displayed alternately in time.
* Automation: auto-test, auto-diagnose, auto-alarm.

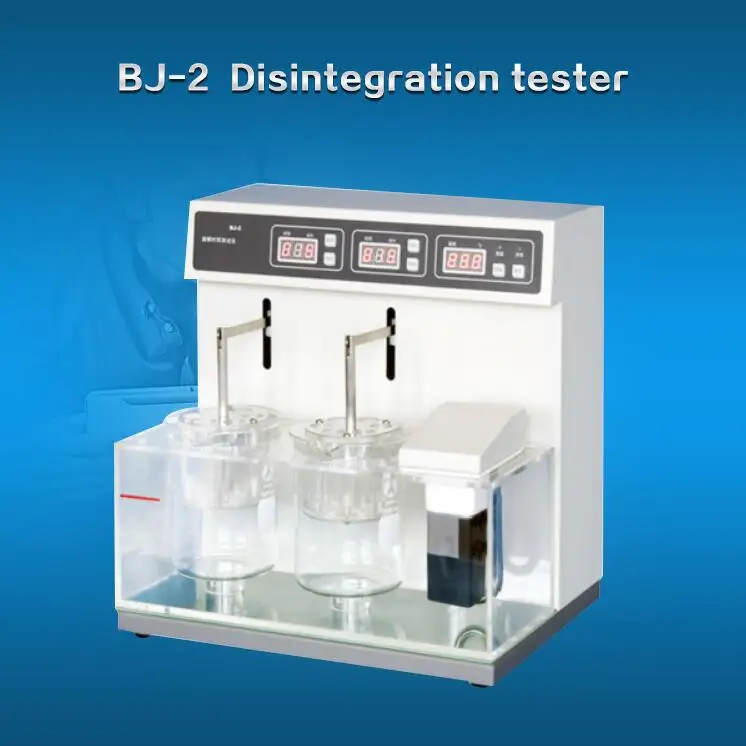

BJ-2 Disintegration tester
Features:
* There are twelve tubes in two basket assembly.
* Each test station is driven independently. Auto stop at timing point.
* The bath liquid can achieve an even temperature.
* A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
* The time parameters can be preset at anytime. The preset and real time data can be displayed alternately in time.
* Automation: auto-test, auto-diagnose, auto-alarm.
* There are twelve tubes in two basket assembly.
* Each test station is driven independently. Auto stop at timing point.
* The bath liquid can achieve an even temperature.
* A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
* The time parameters can be preset at anytime. The preset and real time data can be displayed alternately in time.
* Automation: auto-test, auto-diagnose, auto-alarm.

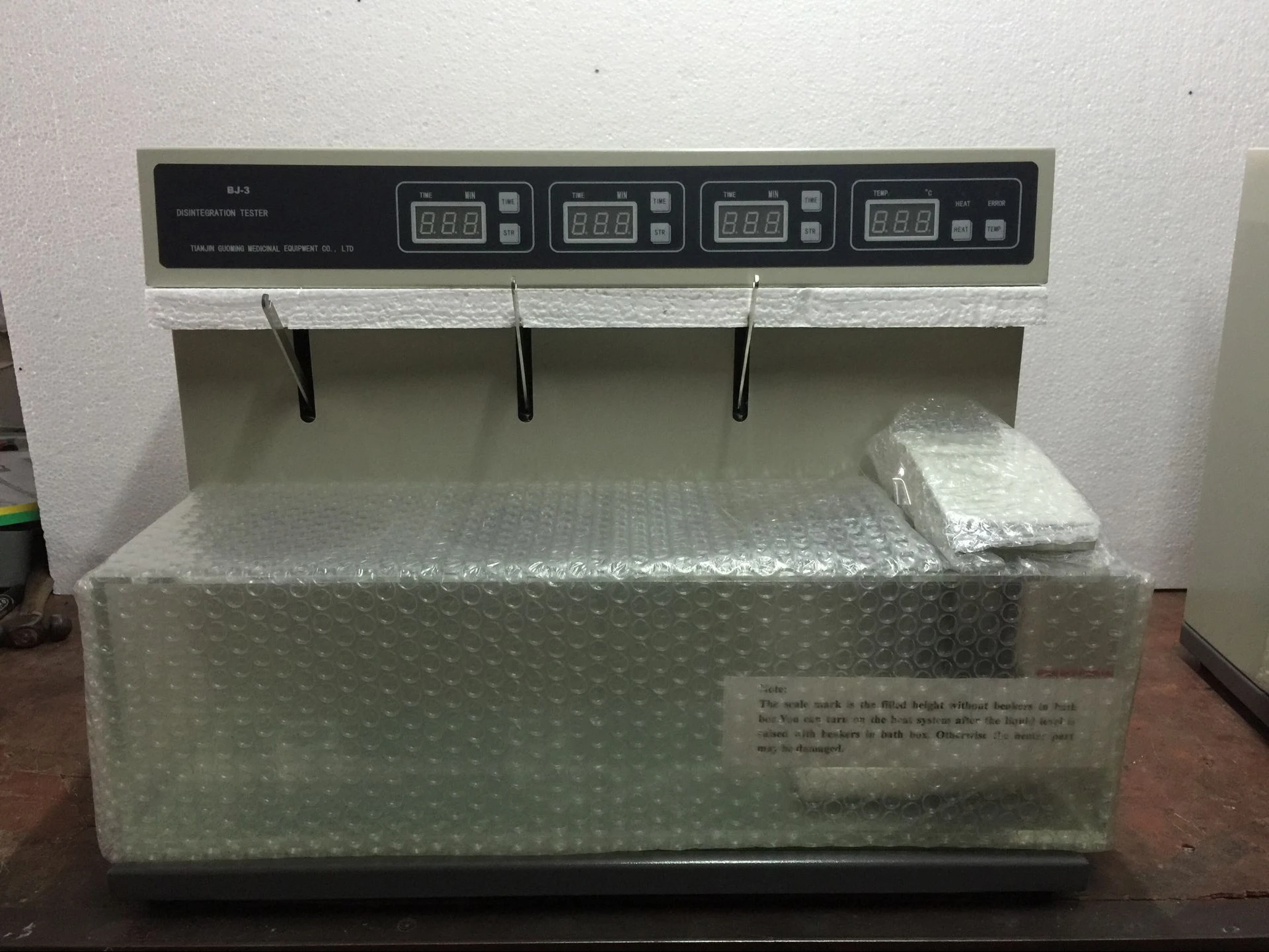

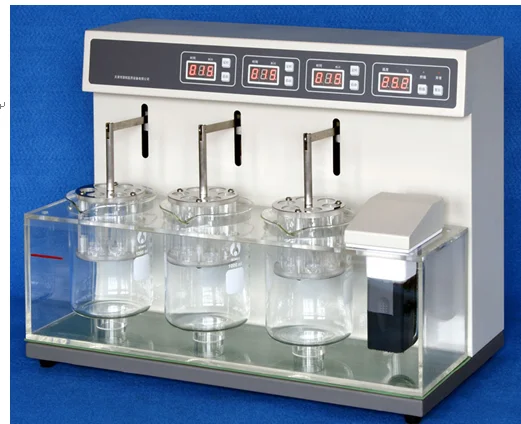

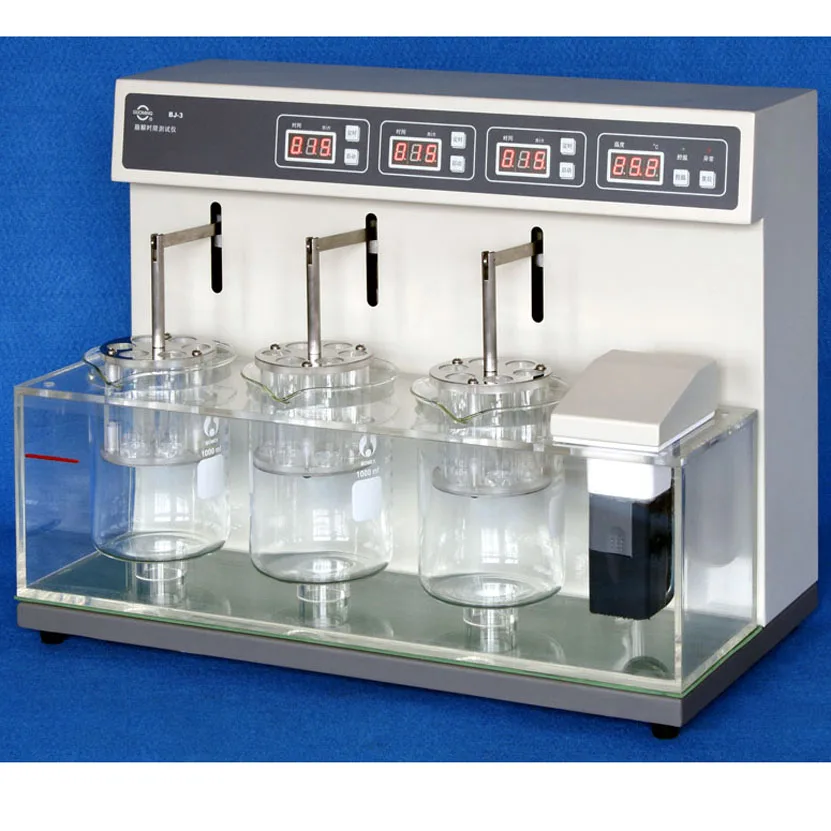

BJ-3Disintegration tester
Features:
* There are eighteen tubes in three basket assembly.
* Each test station is driven independently. Auto stop at timing point.
* The bath liquid can achieve an even temperature.
* A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
* The time parameters can be preset at anytime. The preset and real time data can be displayed alternately in time.
* Automation: auto-test, auto-diagnose, auto-alarm.
* There are eighteen tubes in three basket assembly.
* Each test station is driven independently. Auto stop at timing point.
* The bath liquid can achieve an even temperature.
* A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
* The time parameters can be preset at anytime. The preset and real time data can be displayed alternately in time.
* Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameter
Model | BJ-1 | BJ-2 | BJ-3 | ||
Basket assembly | 1 | 2 | 3 | ||
Nacelle up and down frequency | 30 - 32 time/min | 30 - 32 time/min | 30 - 32 time/min | ||
Nacelle up and down range | 54-56 mm | 54-56 mm | 54-56 mm | ||
Automatic time range | 1-900 minutes | 1-900 minutes | 1-900 minutes | ||
Time accuracy | +/- 0.5 minute | +/- 0.5 minute | +/- 0.5 minute | ||
The cubage of beaker | 1000 ml | 1000 ml | 1000 ml | ||
The quantity of glass tube | 6 pcs | 12 pcs | 18 pcs | ||
Controlling temperature range | Room temperature to 45 ℃ | Room temperature to 45 ℃ | Room temperature to 45 ℃ | ||
Accuracy of controlling temperature | +/- 0.5 ℃ | +/- 0.5 ℃ | +/- 0.5 ℃ | ||
Power | 600 W | 600 W | 600 W | ||
Power supply | AC, 220V/50HZ or 110V/60HZ 1 phase | AC, 220V/50HZ or 110V/60HZ 1 phase | AC, 220V/50HZ or 110V/60HZ 1 phase | ||
Net weight | 11 kg | 16 kg | 22 kg | ||
Overall size | 260 x 300 x 420 mm | 400 x 300 x 420 mm | 540 x 300 x 420 mm | ||
