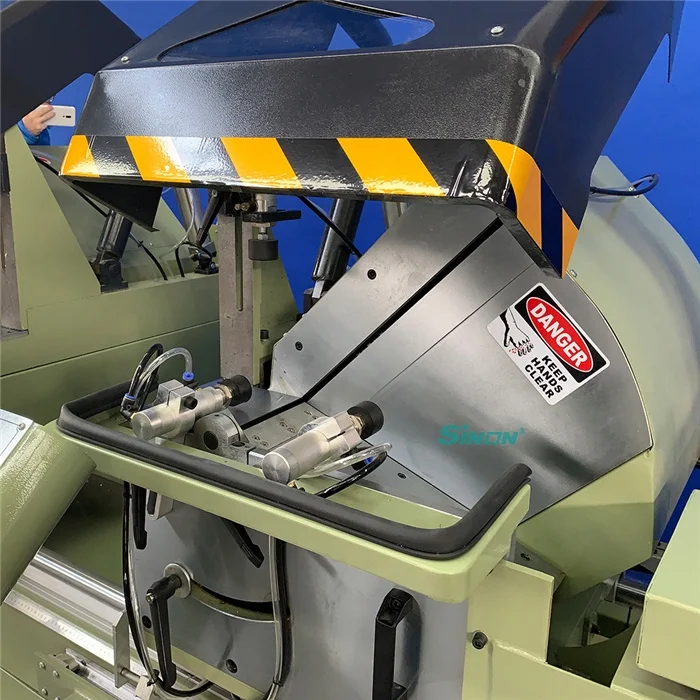

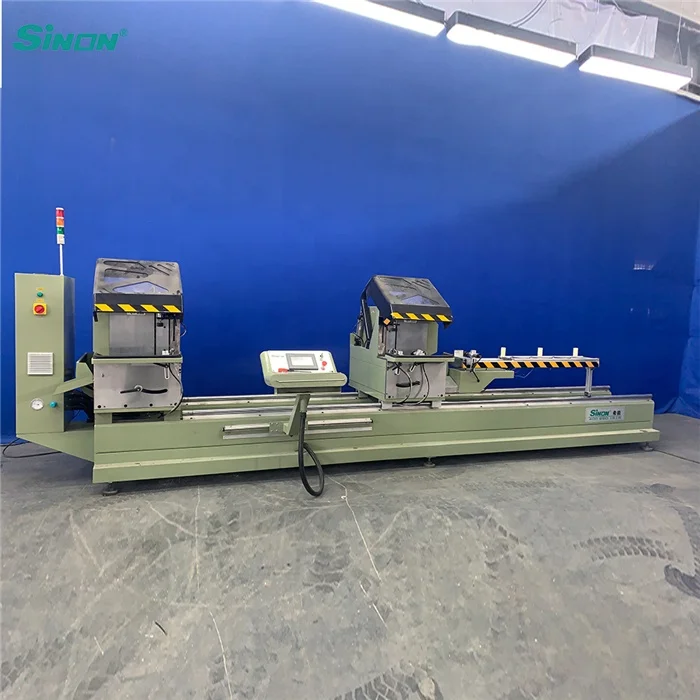

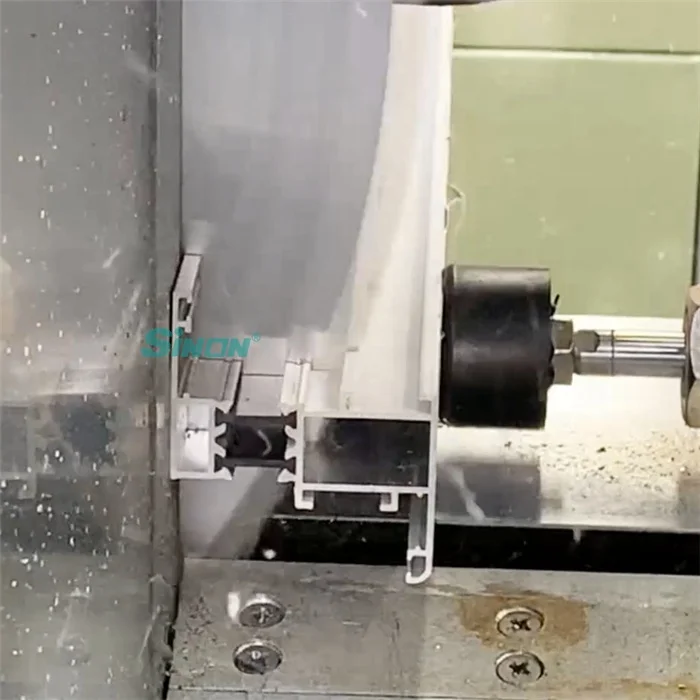

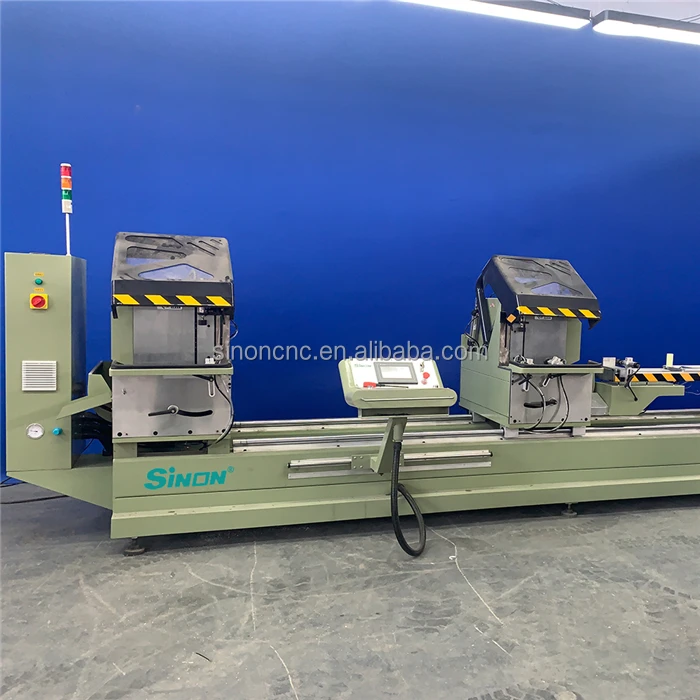

automatic positioning aluminum window profile cutting machinery with 135mm sawing width
- Category: >>>
- Supplier: Jinan Sinon Cnc Machine Co. Ltd.
Share on (1600577798307):
Product Overview
Description
Product Description
Specification
Item | Value |
Power Supply | 380V 50Hz 3PH or Customized |
Total Power for Motor | 2*2.2KW |
Motor's Rotation Speed | 2800r/min |
Air Working Pressure | 0.5~0.8MPa |
Blade Specification | Φ500mm*Φ30mm*4.4mm |
Cutter Feeding Speed | 0~3m/min |
Cutting Length | Max. 4200mm Min.0mm |
Cutting Width | Max. 135mm |
Cutting Height | 45° Max. 200mm 90° Max. 300mm |
Cutting Angle | 45°，90° |
Repeat Locating Length Tolerance | ±0.20mm |
Cutting Profile Surface Plane | ≤0.10mm |
Cutting Angle Tolerance | ±5'mm |
Cutting Profile Surface Roughness | Ra 12.5 μm |
Contour Dimension (L*W*H) | 6300*1800*1900mm |
Weight | 1800kg |
Features

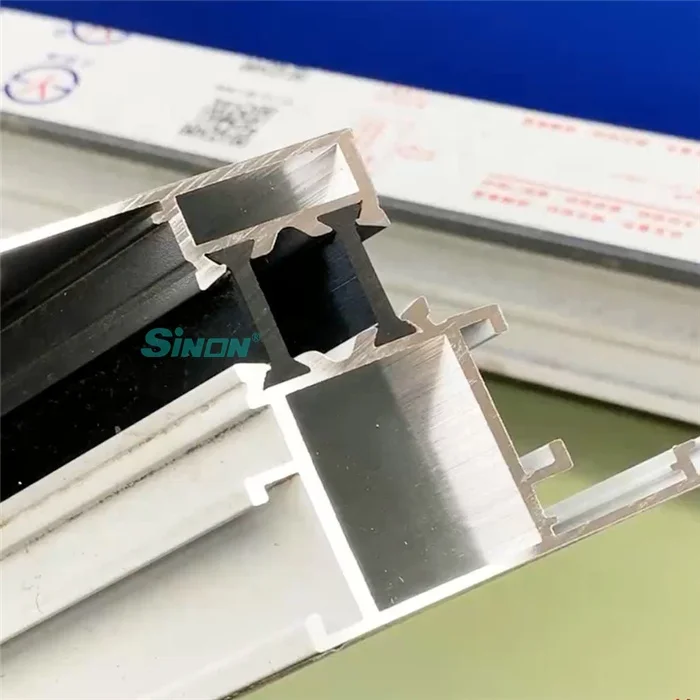

1. suitable for cutting aluminum alloy profiles.
2. adopts the industrial level CNC with closed-loop control system.
3. adopts button-push screen with USB connector.
4. optimizing cutting process according to the working list.
5. Tabulation function: profiles can be selected quickly.
6. automaticly imput profiles at the 90 degrees angle.
7. Angle automatic indexing: 45°， 90°.
8. Adopts air-hydraulic damper, ensure stable working.
9. High precision linear guiding pair ensuredvsteady and long-term processing accuracy.
10. Stable high accuracy machine body.
11. Rubber sealed auto-opening shield to ensuure user's safety.
12. Compact construction and easier to use.
13. equipped with protection device.
2. adopts the industrial level CNC with closed-loop control system.
3. adopts button-push screen with USB connector.
4. optimizing cutting process according to the working list.
5. Tabulation function: profiles can be selected quickly.
6. automaticly imput profiles at the 90 degrees angle.
7. Angle automatic indexing: 45°， 90°.
8. Adopts air-hydraulic damper, ensure stable working.
9. High precision linear guiding pair ensuredvsteady and long-term processing accuracy.
10. Stable high accuracy machine body.
11. Rubber sealed auto-opening shield to ensuure user's safety.
12. Compact construction and easier to use.
13. equipped with protection device.

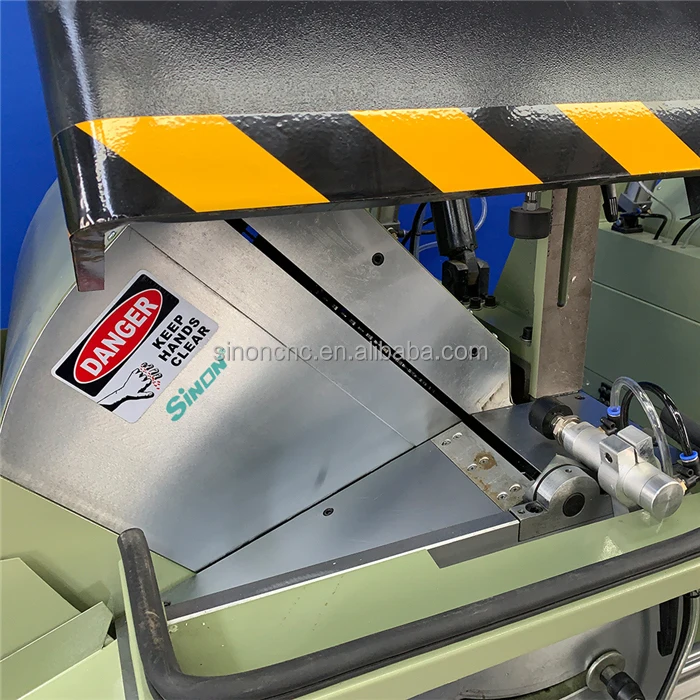

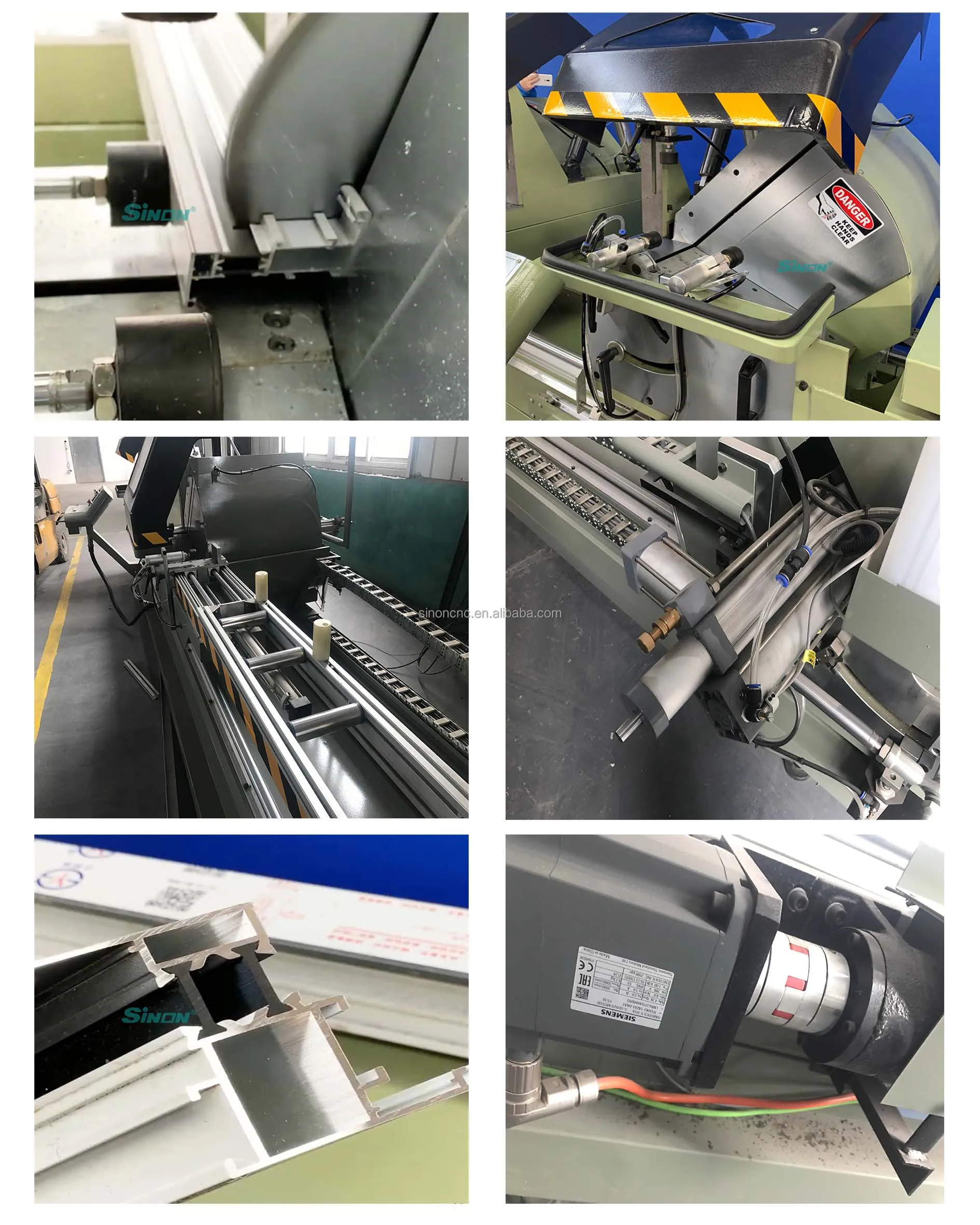

Details Images
Packing & Delivery
Sinon also pay attention to package. Plastic film coating, steel pallet and wood case are provided to package the machinery with high insurance and safety.

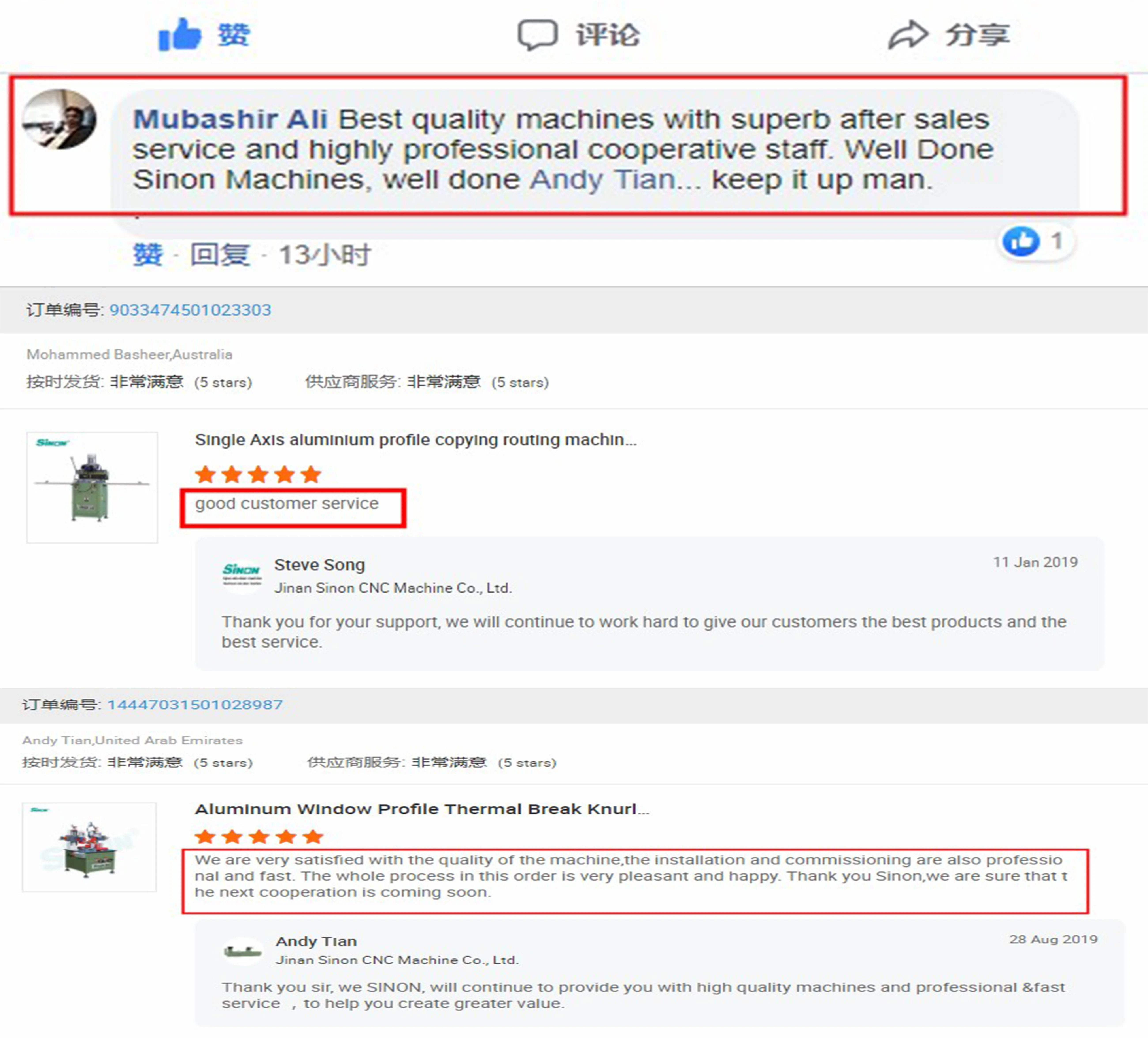

Feedback

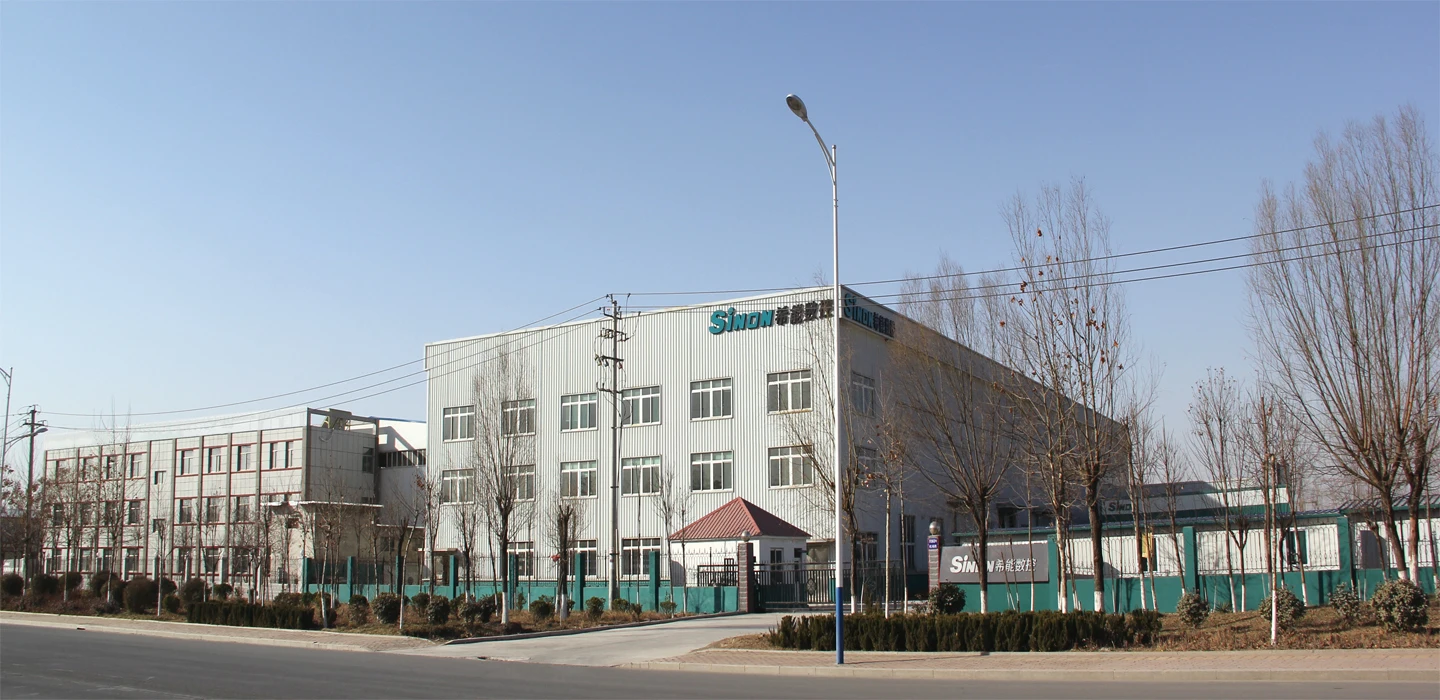

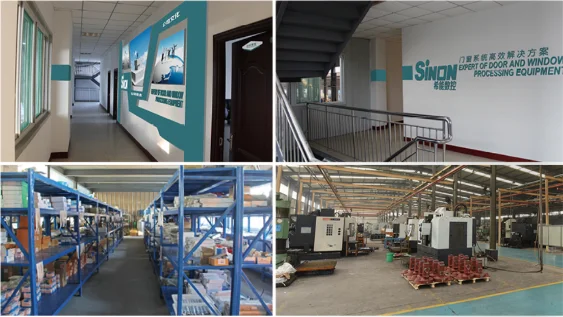

Company Profile
Jinan Sinon CNC Machine Co.,Ltd(China door and window expert maker)
One of the leading companies that engages in the production of machines for Aluminum and uPVC windows and doors over 15 years in China.

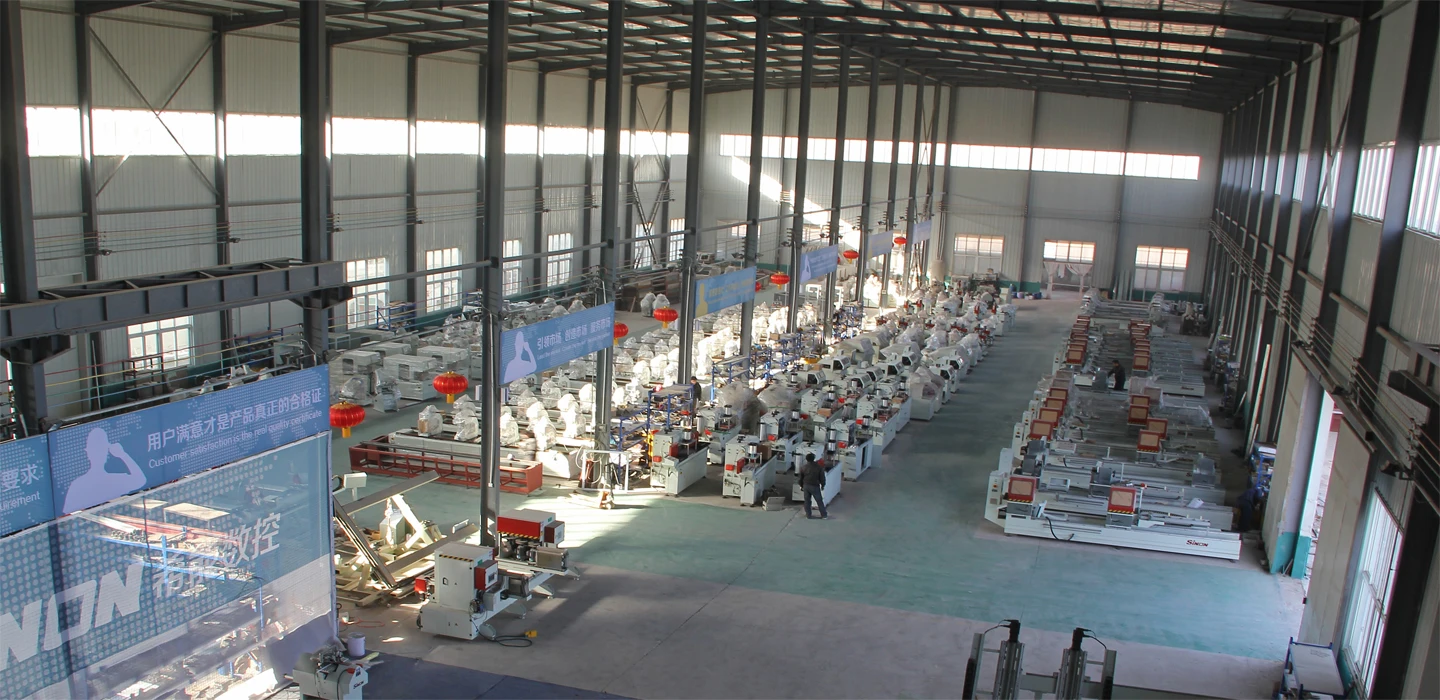

Standard and Modernization
Sinon always persue high standard industrial plant and modern management mode. We have unique advantage in production sales, technology inquiry, program design, installation and maintenance.
What We pursue
1. High Quality
- strictly control the making process to give the best quality to customer
2. Innovation
- Quality and innovation are the supporting pillars of our company.
3. Good Service
- Reply within 24 hours
- Free contact for the most machine
- Free professional design for each customer
- Free design drawings for factory
- Free layout Plan for complete sets of equipment
- Free professional design for each customer
- Free design drawings for factory
- Free layout Plan for complete sets of equipment
4. Installation Guide
- Our senior engineer is available to travel aboard to help installation machines and training staff
5. Shipping
- plastic film and wood case are provided to make sure the safety of machines during transportation.
6. After Sales
- Provide the machine operation and maintainace guide
Our machineries has exported to more than 40 countries and areas, such as UK, the USA, South Korea, India, Pakistan, Egypt and so on.
Exhibition and Team
Sinon participates in many exhibitions to communicate with other companies and potential consumers and keep its competitiveness.
Certifications
FAQ
1. who are we?
We are based in Shandong, China, start from 2005,sell to South Asia(13.00%),Southeast Asia(13.00%),Africa(12.00%),Northern Europe(8.00%),Southern Europe(7.00%),Domestic Market(7.00%),South America(7.00%),Eastern Europe(7.00%),Mid East(6.00%),North America(5.00%),Central America(5.00%),Eastern Asia(4.00%),Western Europe(3.00%),Oceania(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPVC window making machine,aluminum window machine,aluminum cutting machine,aluminium profile cutting machine,cnc milling machine
4. why should you buy from us not from other suppliers?
Jinan Sinon is one of most professional upvc aluminum window door equipment manufacturer in china, and has more than 15 years' experience in window door equipment manufacturing. Main product pvc window machine,aluminum window machine,upvc welding machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2005,sell to South Asia(13.00%),Southeast Asia(13.00%),Africa(12.00%),Northern Europe(8.00%),Southern Europe(7.00%),Domestic Market(7.00%),South America(7.00%),Eastern Europe(7.00%),Mid East(6.00%),North America(5.00%),Central America(5.00%),Eastern Asia(4.00%),Western Europe(3.00%),Oceania(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPVC window making machine,aluminum window machine,aluminum cutting machine,aluminium profile cutting machine,cnc milling machine
4. why should you buy from us not from other suppliers?
Jinan Sinon is one of most professional upvc aluminum window door equipment manufacturer in china, and has more than 15 years' experience in window door equipment manufacturing. Main product pvc window machine,aluminum window machine,upvc welding machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
