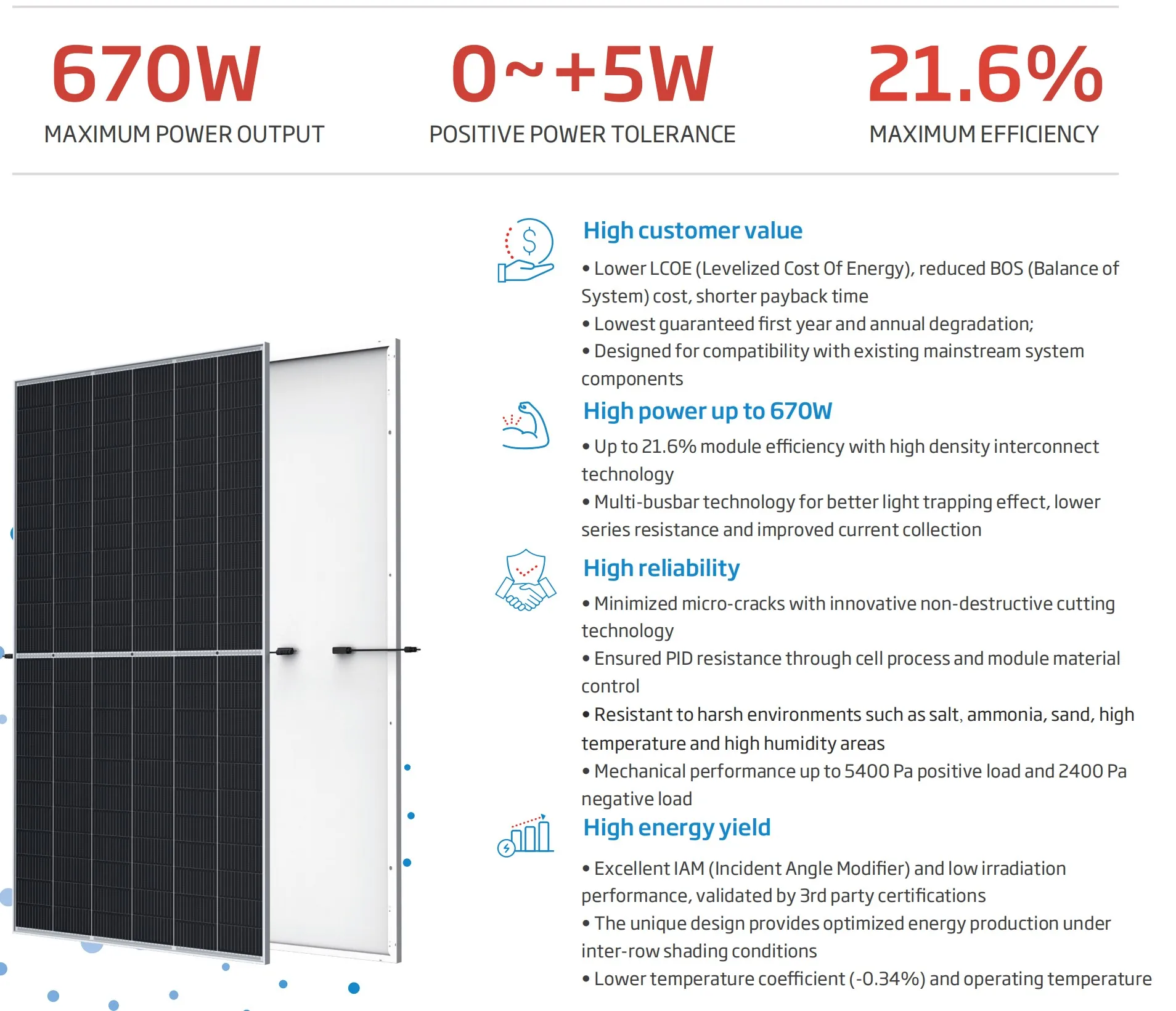

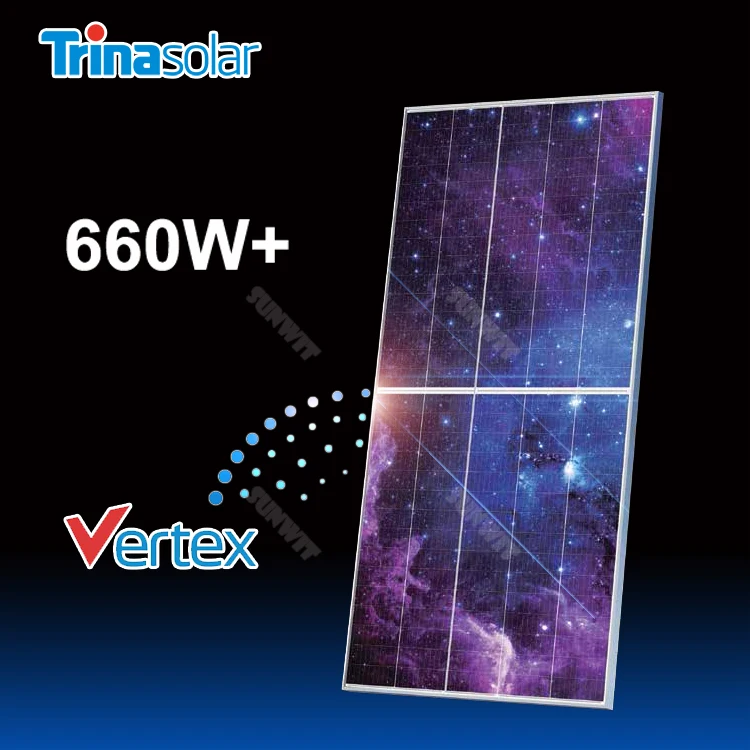

Alibaba Trina 650w 660w 670w solarworlds roof tesla vertex solar panels modules price module factory solar pv panel
- Category: >>>
- Supplier: SSS New Energy Technology Co. Ltd
Share on (1600577844527):
Product Overview
Description
Product Description
Specifications | ||||||||
ELECTRICAL DATA (STC) | ||||||||
Peak Power Watts-PMAX (Wp) | 650 | 655 | 660 | 670 | ||||
Maximum Power Voltage-VMPP (V) | 37.4 | 37.6 | 37.8 | 34.2 | ||||
Maximum Power Current-IMPP (A) | 17.39 | 17.43 | 17.47 | 17.55 | ||||
Open Circuit Voltage-VOC (V) | 45.3 | 45.5 | 45.7 | 46.1 | ||||
Short Circuit Current-ISC (A) | 18.44 | 18.48 | 18.53 | 18.62 | ||||
Module Efficiency η m (%) | 20.9 | 21.1 | 21.2 | 21,6 | ||||
Power Tolerance-PMAX (W) | 0 ~ +5 | |||||||
Front Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Heat Strengthened Glass | |||||||
Frame | 35mm(1.38 inches) Anodized Aluminium Alloy | |||||||

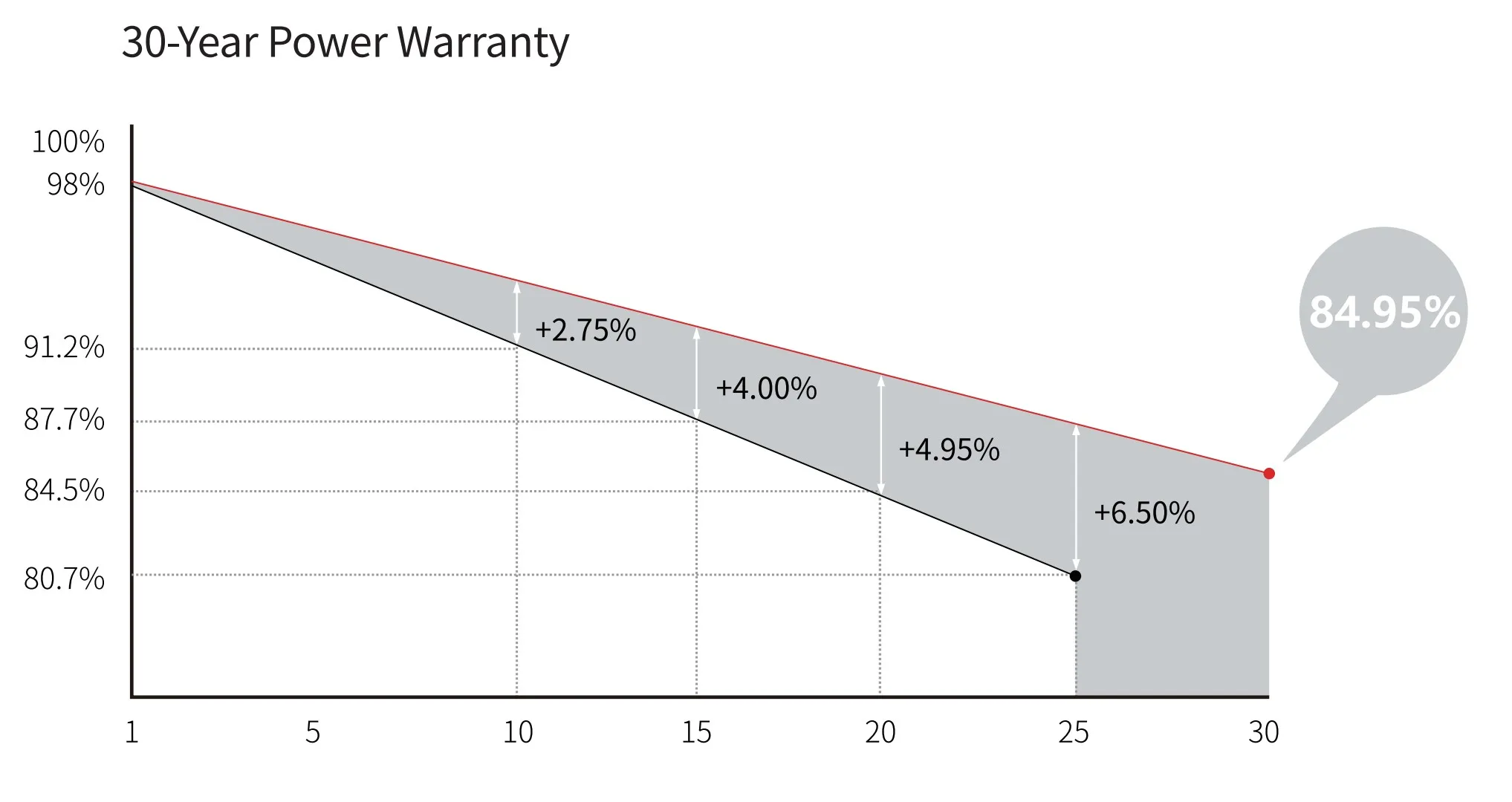

WARRANTY | 12 year Product Workmanship Warranty,30 year Power Warranty | |||||||
PACKAGING CONFIGURATION | Modules per box: 31 pieces,Modules per 40’ container: 558pieces | |||||||
Strict QC System
PV CELL.
>Low hot spot effect
>No light-induced degradation
>High conversion efficiency with high reliability
>Uniform cell performance with stable process control
>Excellent power generation performance under low irradiation
>Low hot spot effect
>No light-induced degradation
>High conversion efficiency with high reliability
>Uniform cell performance with stable process control
>Excellent power generation performance under low irradiation
BACKSHEET.
>Good electrical insulation and breakdown.
>Excellent UV resistance and aging resistance.
>Made-to-order backsheet with width up to 1300mm.
>Double-side fluorocarbon strcture(PVF//PET//PVF) with the integration of Tedlar(DuPont).
>Good electrical insulation and breakdown.
>Excellent UV resistance and aging resistance.
>Made-to-order backsheet with width up to 1300mm.
>Double-side fluorocarbon strcture(PVF//PET//PVF) with the integration of Tedlar(DuPont).
JUNCTION BOX.
>IP68 protection level.
>Unique split junction box design to minimize the loss caused by occlusion.
>Combination of series circuit and parallel circuit, reduced internal power loss.
>IP68 protection level.
>Unique split junction box design to minimize the loss caused by occlusion.
>Combination of series circuit and parallel circuit, reduced internal power loss.
>Excellent light transmittance and transparency.
>Excellent long term adhesion to glass,mental and polymer backsheet.
>Excellent durability ,such as weather resistance ,high-temperature,high-humidity and UV light resistance.
>Excellent long term adhesion to glass,mental and polymer backsheet.
>Excellent durability ,such as weather resistance ,high-temperature,high-humidity and UV light resistance.
GLASS.
>Precise edge processing and cutting.
>Minimal optical distortion and non-existent roller marks.
>Physically tempered ultrathin glass presents the ideal combination of durability and flexibility.
>Higher light transmittance ensures higher module power output.
>Precise edge processing and cutting.
>Minimal optical distortion and non-existent roller marks.
>Physically tempered ultrathin glass presents the ideal combination of durability and flexibility.
>Higher light transmittance ensures higher module power output.

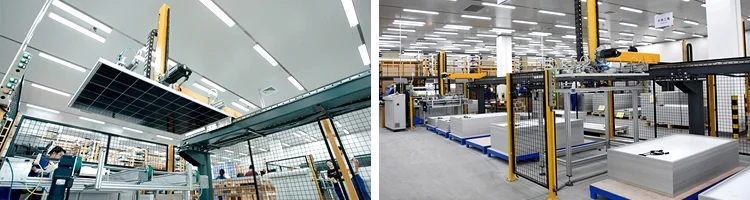

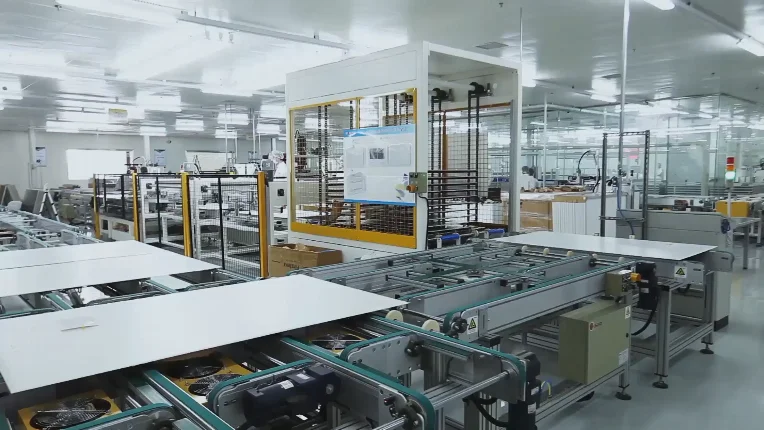

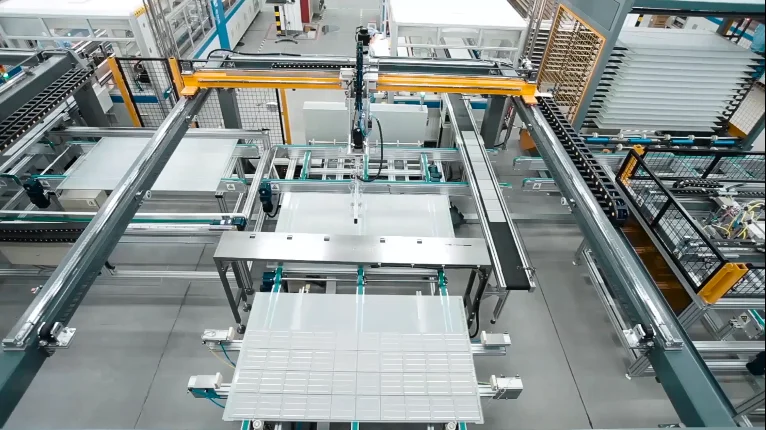

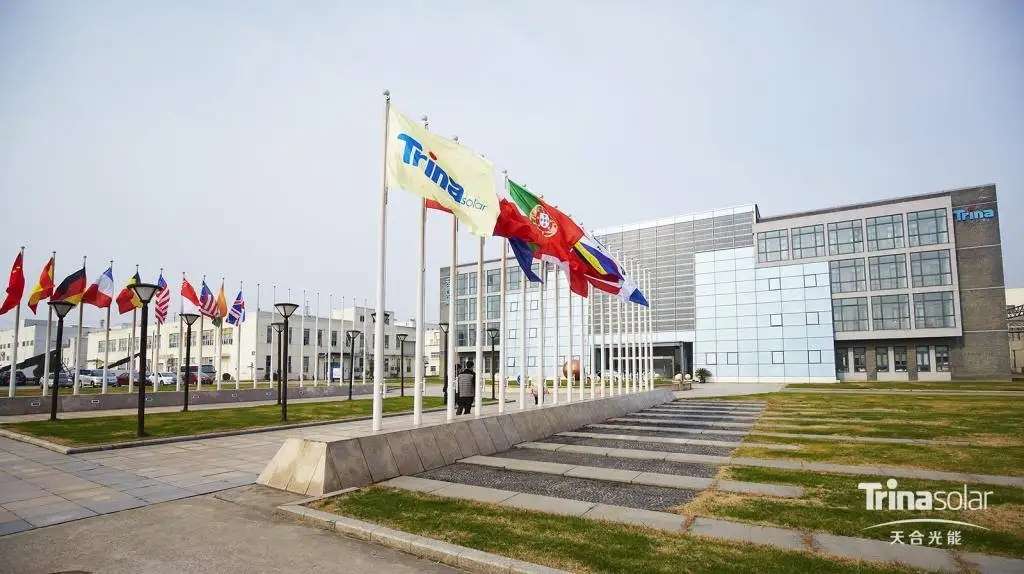

Factory

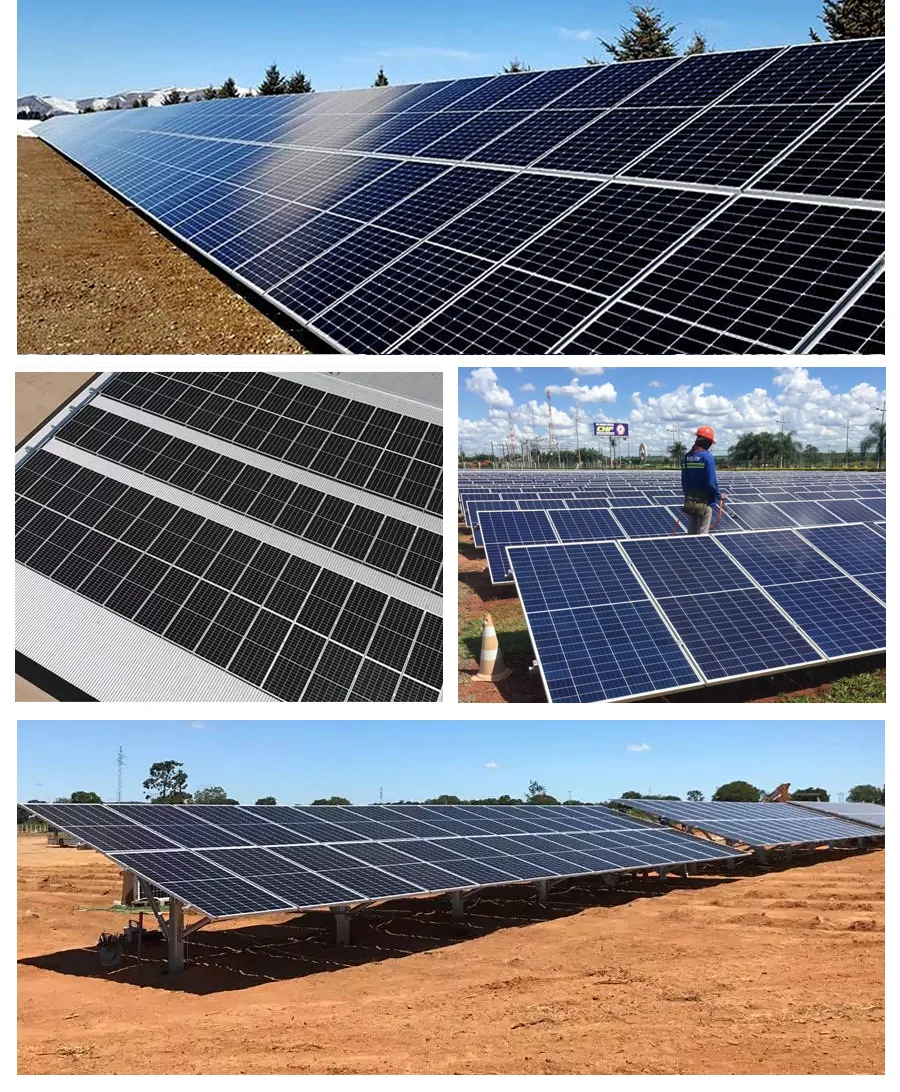

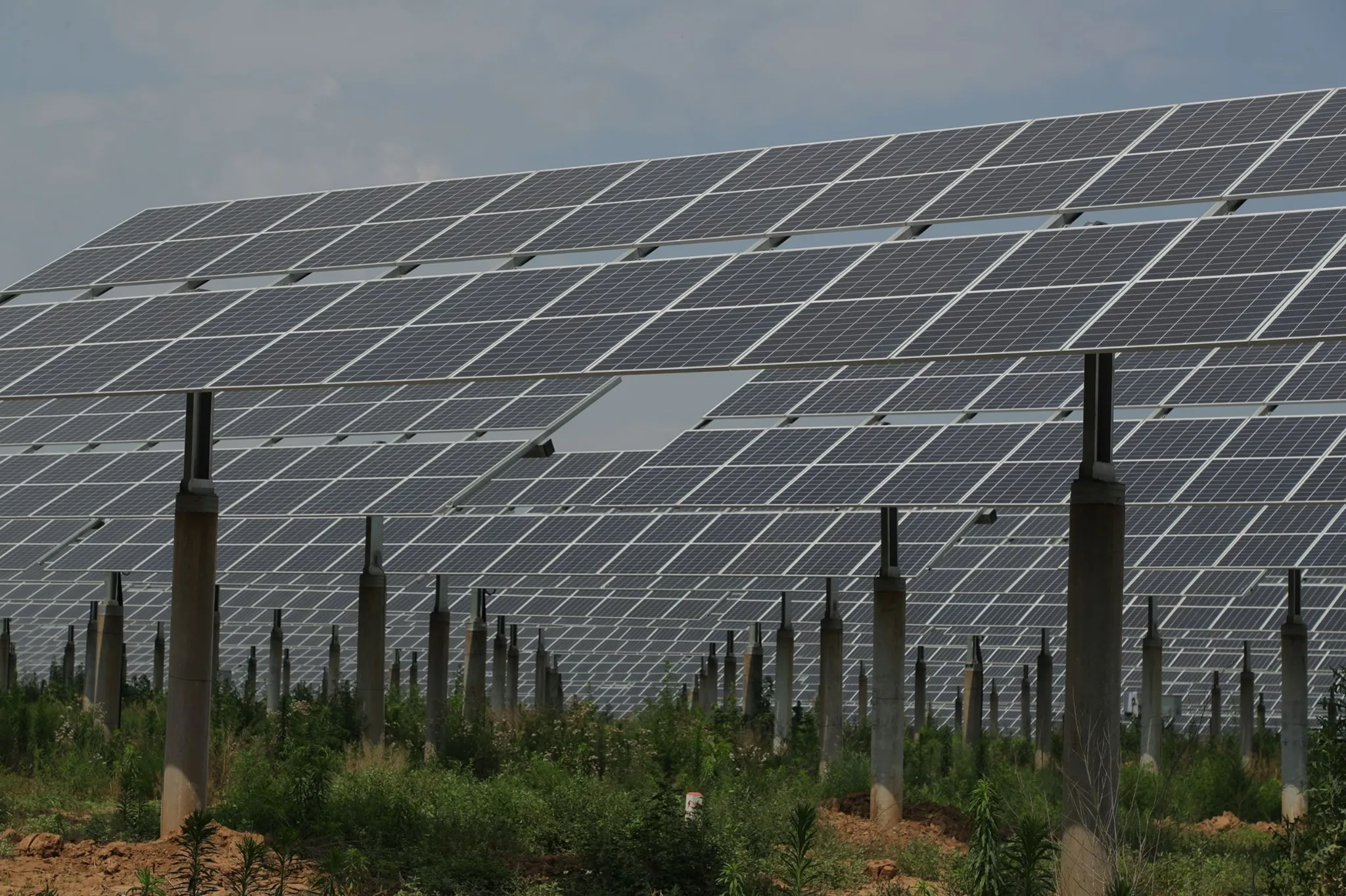

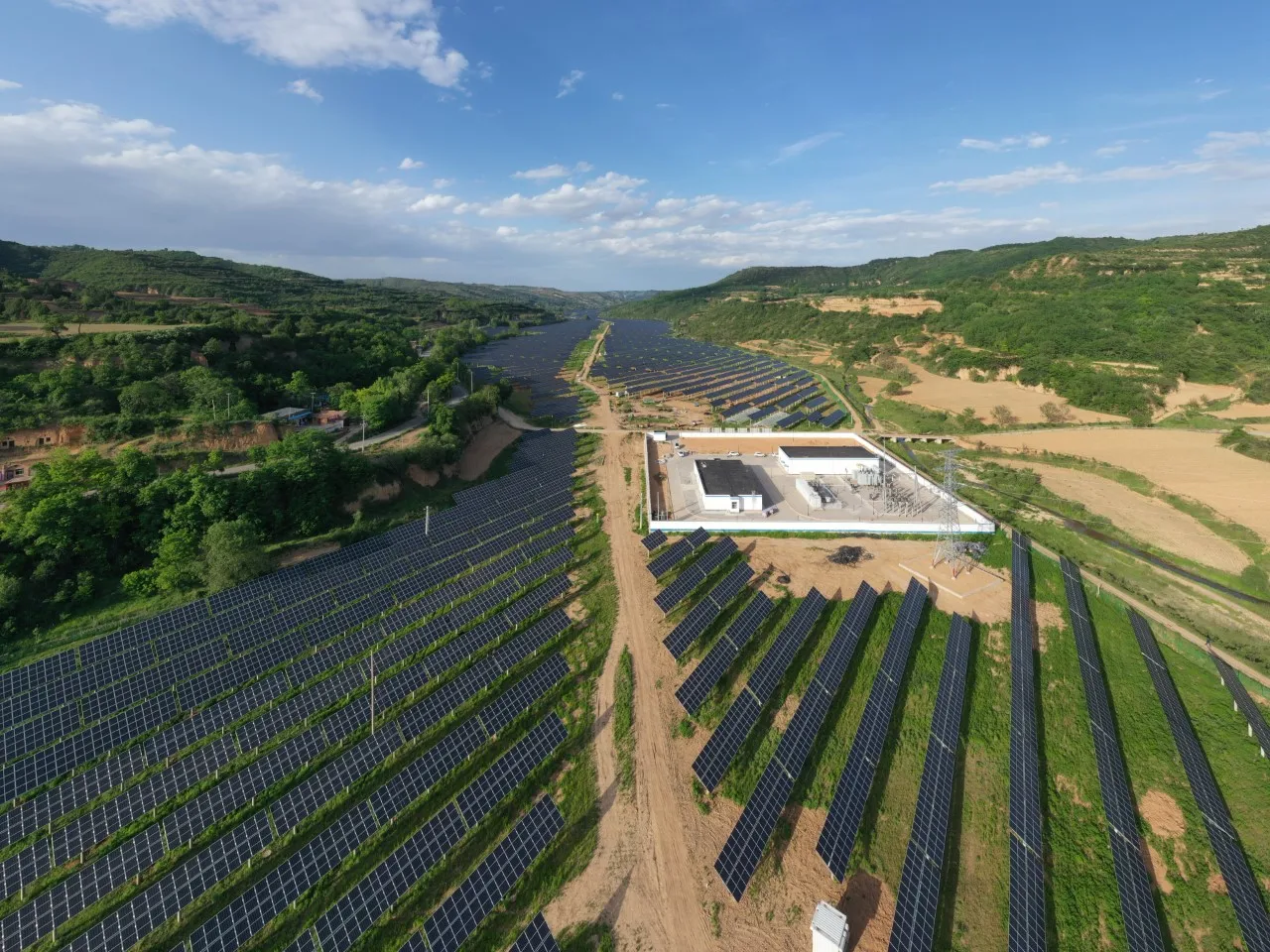

Project Cases
Certifications

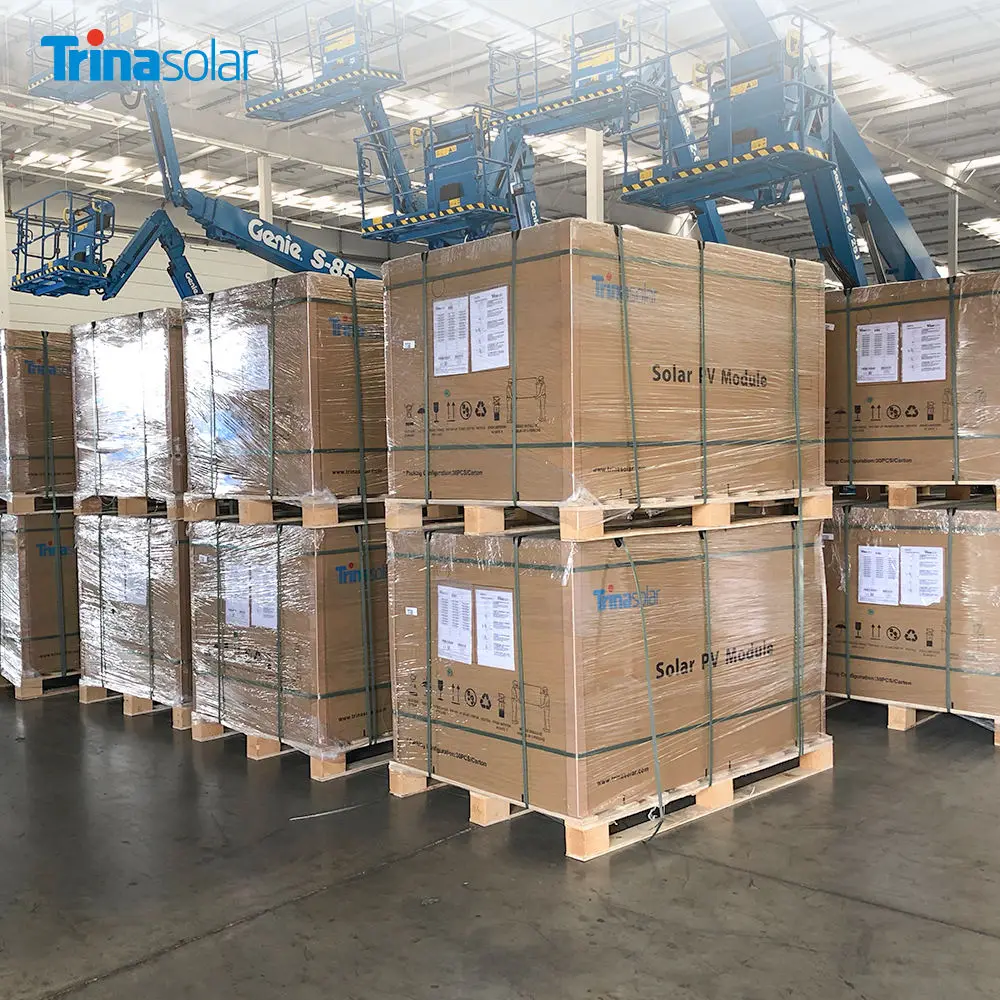

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than one pallet, we accept any customized packing as per your requests.
FAQ
Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ROHS,ISO,TUV?
A: Yes,our products are approved by CE,ROHS,ISO,TUV
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2. All of the productions are inspected carefully by QC before delivery.
Q: What is your Min.order?
A: There's no minimum quantity
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ROHS,ISO,TUV?
A: Yes,our products are approved by CE,ROHS,ISO,TUV
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2. All of the productions are inspected carefully by QC before delivery.
Q: What is your Min.order?
A: There's no minimum quantity
Q: Our advantages
A: 1. Ready To Ship 2. Sample Available
3. One-Stop Service 4. Online customization
5. Many years' experiences of manufacturing since 2007 and services available in 24 hours
A: 1. Ready To Ship 2. Sample Available
3. One-Stop Service 4. Online customization
5. Many years' experiences of manufacturing since 2007 and services available in 24 hours
Payment Terms & Delivery Time | ||||||||
Payment Terms | TT | EXW | 30% T/T in advance | 70% negotiable | ||||
FOB/FCA | ||||||||
CNF CFR | ||||||||
CIF | ||||||||
DDU/DAP | ||||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | |||||||
West union | Amount lower than 5000usd | |||||||
Other payment | To be negotiable | |||||||
Delivery Time | 7~30 days after receiving the payment | |||||||
