Surgical laparpscopic instruments Disposable Bladeless endoscopic trocar laparoscopic surgery 5mm 10mm 12mm trocars

Product Overview

Description

Disposable laparoscopic trocar hereinafter referred to as "trocar" is divided into visible and non-visible models of A type(visible) and B type(non-visible type).



1, No knife puncture head to reduce postoperative bleeding and protect blood vessels and organs;

2, Non-slip screw thread increases the fixing force with the abdominal wall;

3, Multiple combinations can be provided.



A Type of Bladeless Visible Trocar

Model specifications	Puncture cone outer diameter	Cannular inner diameter	Cannula length	Total cannula length	Puncture cone length
YTTC-5/65-A	5.5	6	63	106	125
YTTC-10/65-A	10.3	10.5			135
YTTC-12/65-A	12.7	13
YTTC-15/65-A	15.3	15.6	75	125	155
YTTC-5/100-A	5.5	6	97	140	170
YTTC-10/100-A	10.3	10.5	98	141	180
YTTC-12/100-A	12.7	13
YTTC-15/100-A	15.3	15.6	110	160	200

B Type of Bladeless Non-visible Troccar

Model specifications	Puncture cone outer diameter	Cannula inner diameter	Cannula length	Total cannula length	Puncture cone length
YTTC-5/65-B	5.5	6	63	106	147
YTTC-10/65-B	10.2	10.5			156
YTTC-12/65-B	12.7	12.9
YTTC-5/100-B	5.6	6.3	97	140	182
YTTC-10/100-B	10.3	10.6	98	141	190
YTTC-12/100-B	12.7	12.9

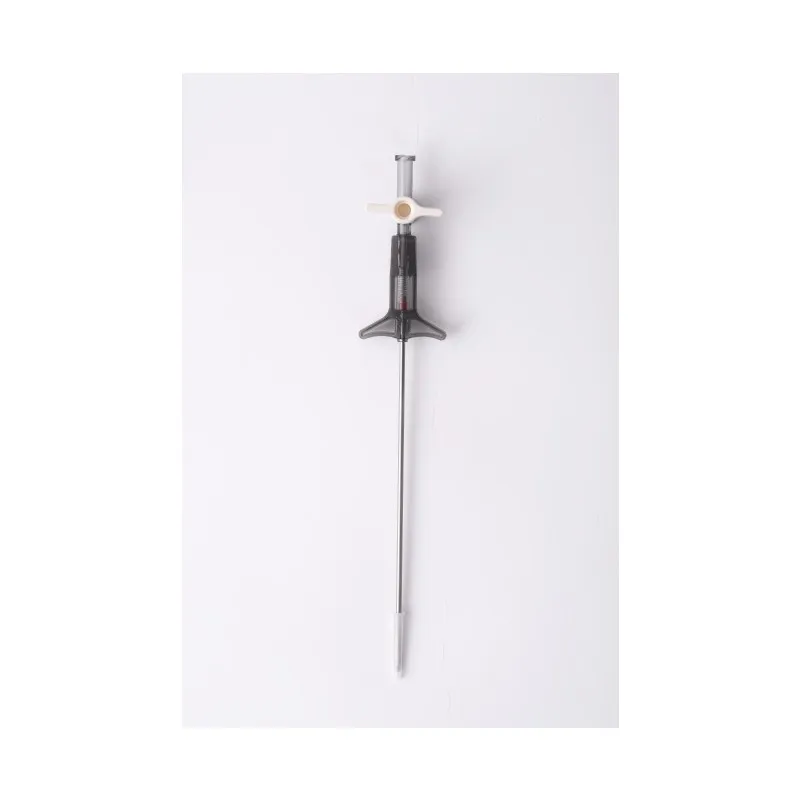

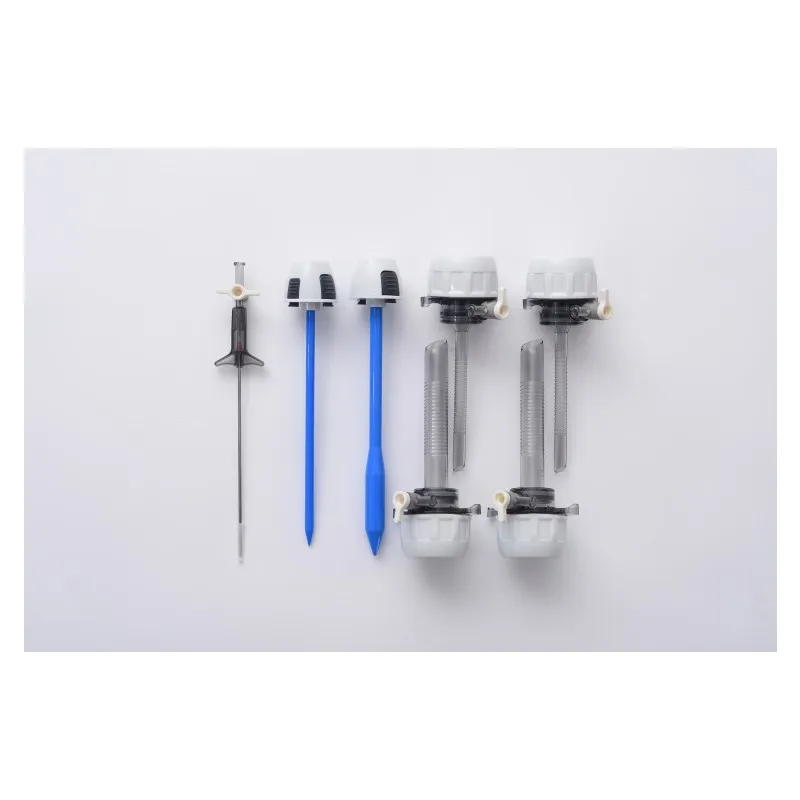

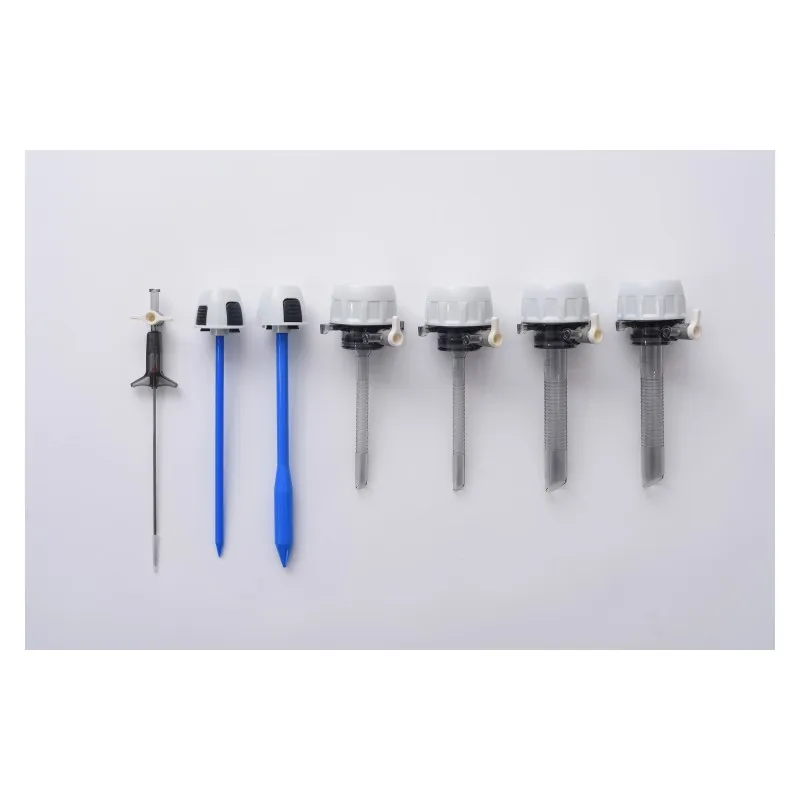

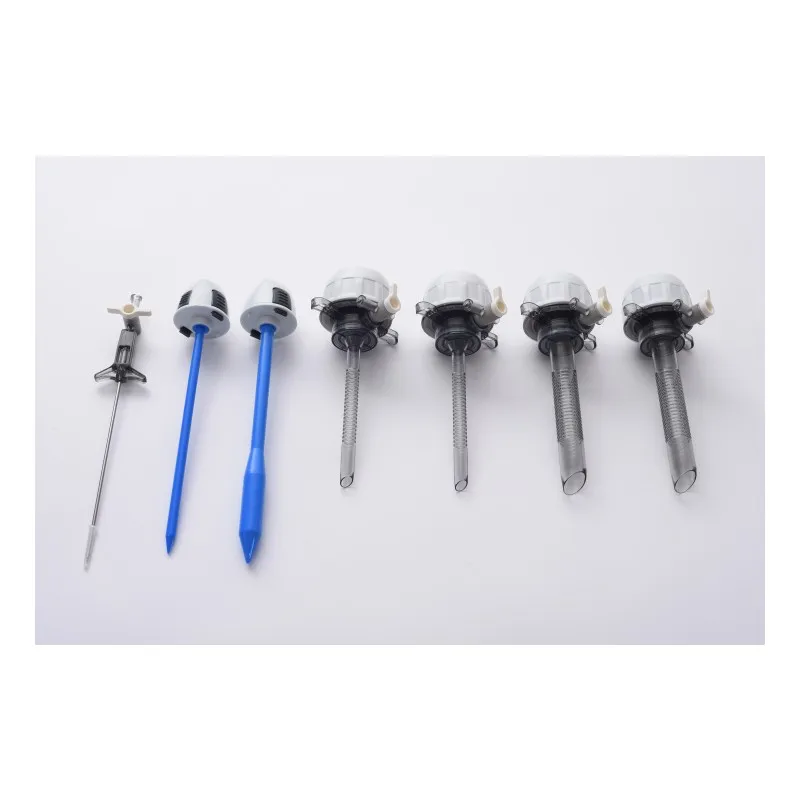

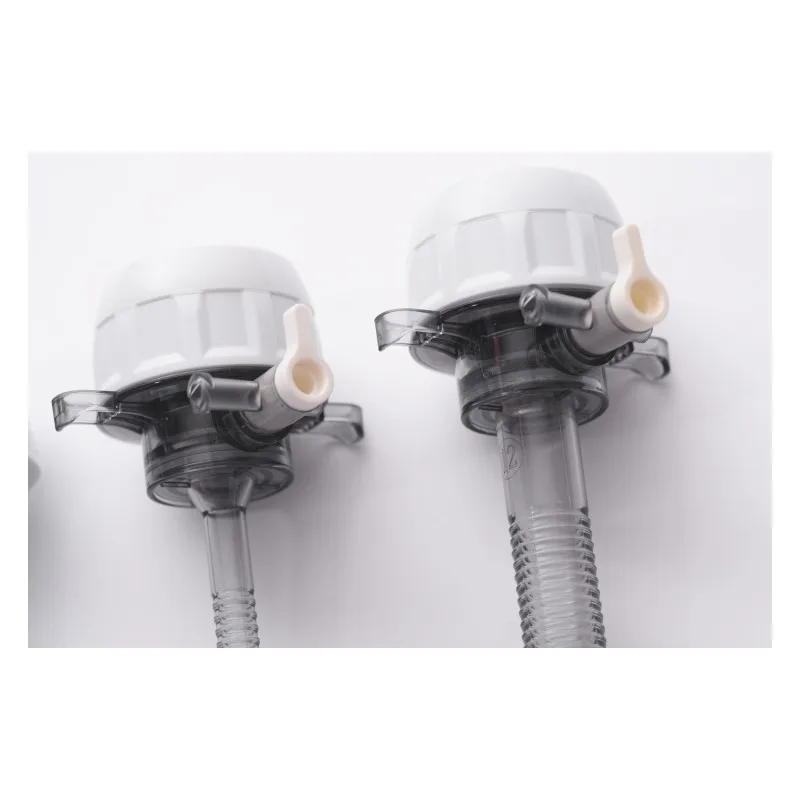

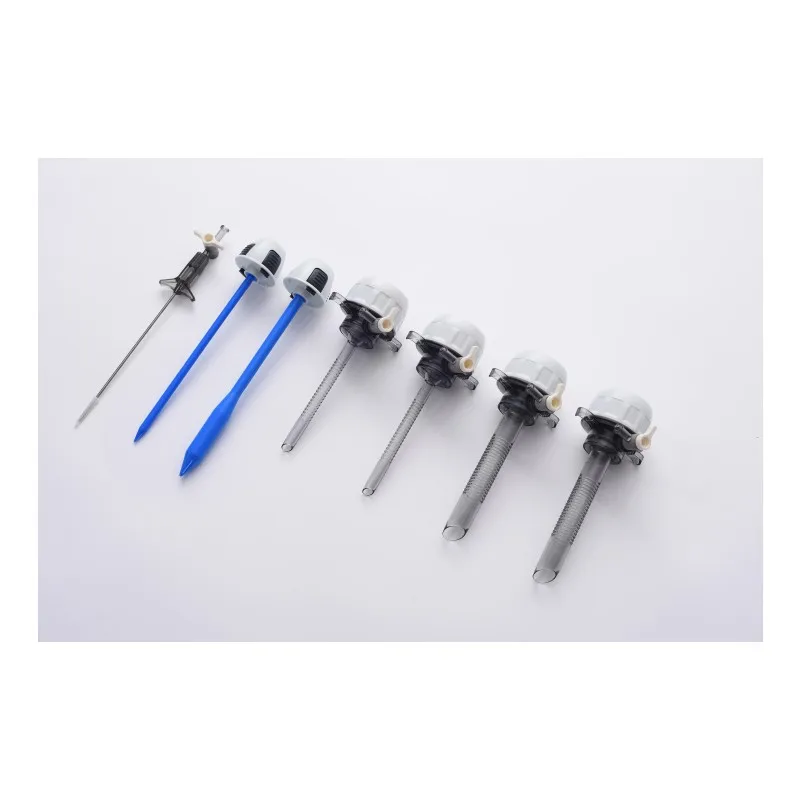

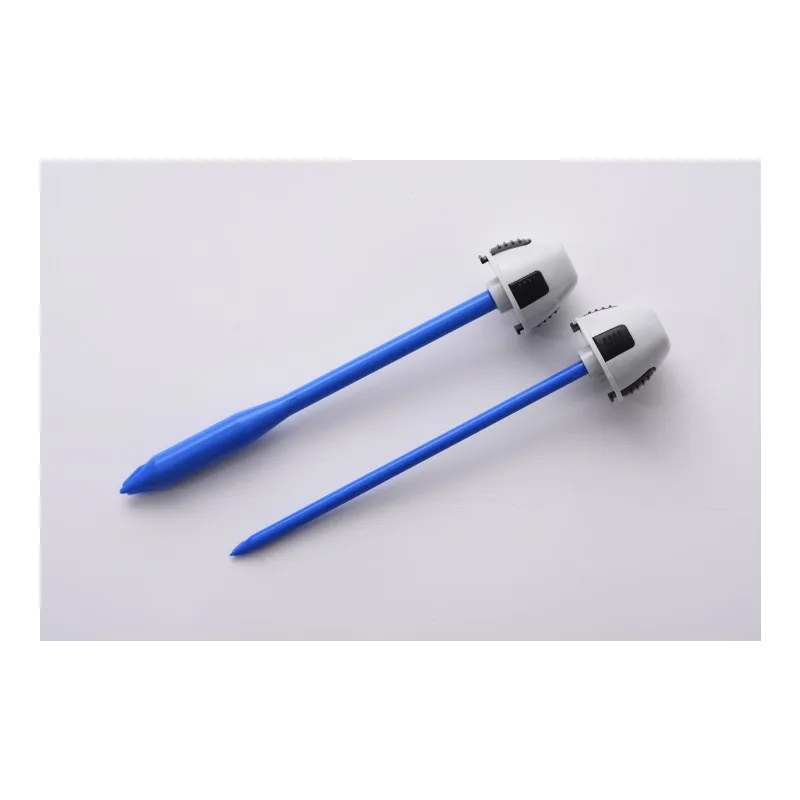

The trocar consists of puncture cone & puncture cannula. The puncture sleeve is composed of a cannula, locking cover, air injection valve, sealing cap; The veress needle is mainly composed of an air injection valve, air injection switch, handle, puncture needle, spring plate, spring and puncture cone.
