Product Overview
Description
Product Description
Feature:
1. The Truck-mounted drilling rig is driven by diesel engine with reasonable power matching, high transmission efficiency, high reliability, compact structure, high degree of assembly and small footprint.
2. Self-made heavy-duty chassis, equipped with hydraulic power steering system, with good mobility, off-road and transverse stability.
3. The main brake adopts band brake or hydraulic disc brake, and the auxiliary brake adopts pneumatic push-disc brake, pneumatic clamp disc brake or water brake.
4. The mast set with two sections at the front opening, tilting forward or standing upright, lifting and stretching of the hydraulic cylinder, and is equipped with wind guy lline and anti-overturn guyline.
5. The rotary table drive system can realize the positive rotation, reverse rotation, suspension and disconnection of the rotary table, and is equipped with the reverse torque release device to ensure the safe release of the rotary table drilling string torque.
6. The drilling floor adopts the telescopic or spiral lifting structure, the floating platforms on both sides can be turned over, and the sledding can be hoisted and transported.Table height, size, layout can be customized.
7. Perfect peripheral equipment of solid control, well control, high-pressure manifold, mud pump unit, oil and water tank, etc. It can be matched arbitrarily or customized as required.
2. Self-made heavy-duty chassis, equipped with hydraulic power steering system, with good mobility, off-road and transverse stability.
3. The main brake adopts band brake or hydraulic disc brake, and the auxiliary brake adopts pneumatic push-disc brake, pneumatic clamp disc brake or water brake.
4. The mast set with two sections at the front opening, tilting forward or standing upright, lifting and stretching of the hydraulic cylinder, and is equipped with wind guy lline and anti-overturn guyline.
5. The rotary table drive system can realize the positive rotation, reverse rotation, suspension and disconnection of the rotary table, and is equipped with the reverse torque release device to ensure the safe release of the rotary table drilling string torque.
6. The drilling floor adopts the telescopic or spiral lifting structure, the floating platforms on both sides can be turned over, and the sledding can be hoisted and transported.Table height, size, layout can be customized.
7. Perfect peripheral equipment of solid control, well control, high-pressure manifold, mud pump unit, oil and water tank, etc. It can be matched arbitrarily or customized as required.
Specification
Model | ZJ10/900Z | ZJ15/1350Z | ZJ20/1580Z | ZJ30/1800Z | ZJ40/2250Z | |||||
Max Hook Load (kN) | 900 | 1350 | 1580（1600） | （*1700）1800 | 2250（*2500） | |||||
Nominal Drilling Depth（114mm）m | 500～1000 | 800～1500 | 1200～2000 | 1600～3000 | 2500～4000 | |||||
Drawworks Power (kW) | 261 | 403 | 470 | 403×2 | 470×2 | |||||
Lines | 6 | 8 | 8 | 8，10 | 8，10 | |||||
Wire line Dia (mm) | 26 | 26 | 29 | 32 | 32 | |||||
Mast height (m) | 29，31 | 33，35 | 35，36 | 36，38，41 | 38，39，41，43 | |||||
Max hook speed (m/s) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |||||
Substructure height (m) | 4 | 4.5，5，6 | 4.5，5，6 | 6，7，7.5 | 6，7，7.5 | |||||
RT Hole Dia.(mm) | 444.5 | 444.5 | 444.5，520.7 | 520.7，698.5 | 698.5 | |||||
Main Brake | band and disc brake | band and disc brake | band and disc brake | band and disc brake | band and disc brake | |||||
auxiliary brake | 224WCB | 224WCB | 224WCB | 324WCB | 236WCB，dynamic braking | |||||
Carrier Model | XD40/8×6 | XD50/10×8 | XD60/12×8 | XD70/14×8 | XD70/14×8，XD80/16×10 | |||||
Min ground clearance mm | 311 | 311 | 311 | 311 | ||||||
Min diameter of turning circle m | 28 | 33 | 36 | 41 | 41 | |||||
emission standard | 国V | 国V | 国V | 国V | 国V | |||||
* means not first parameter | ||||||||||

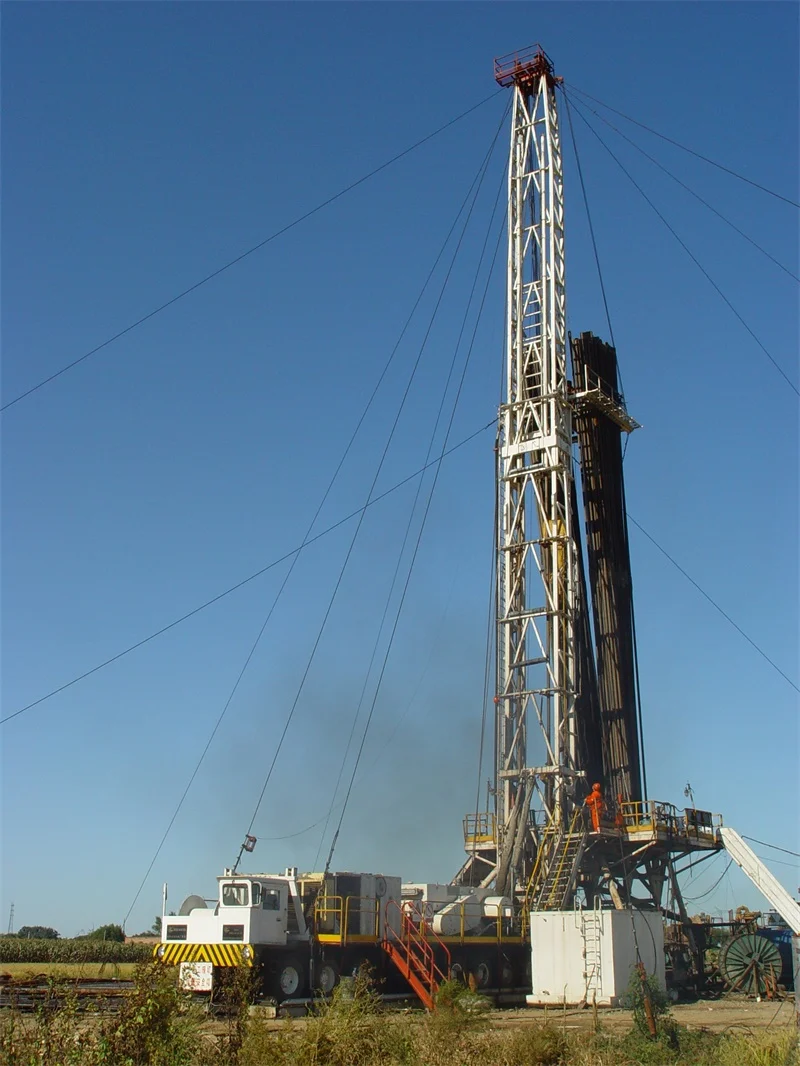

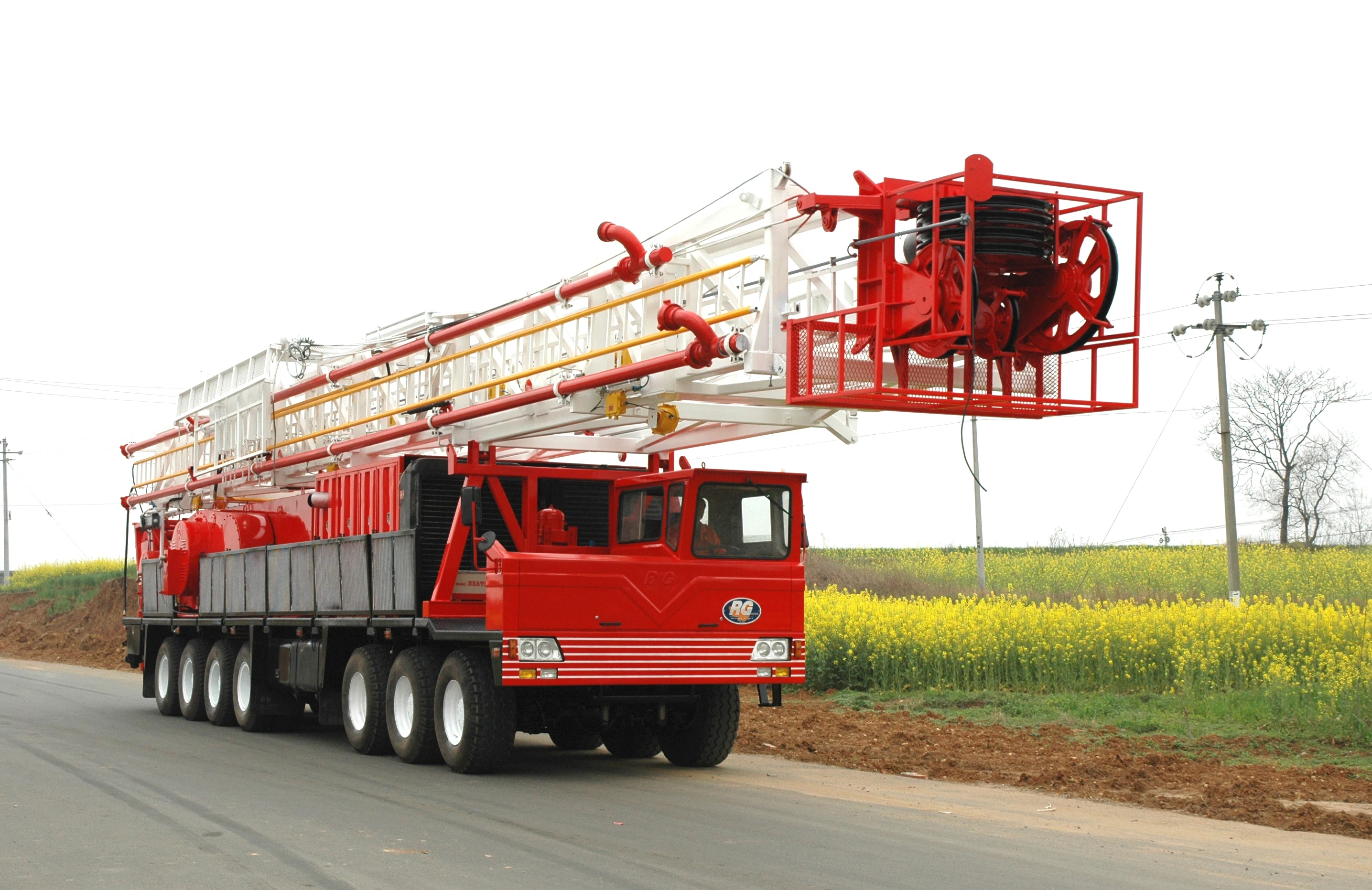

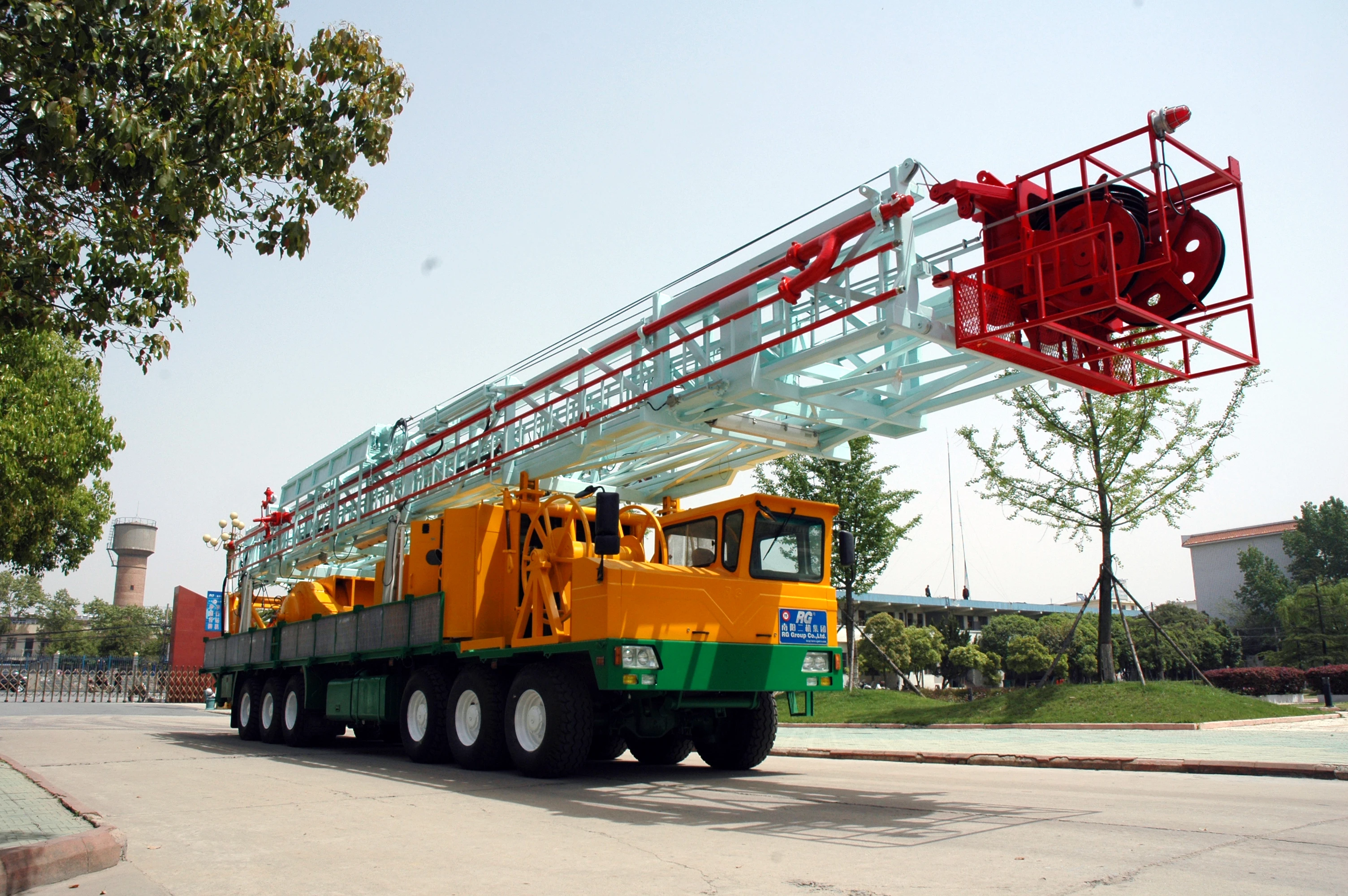

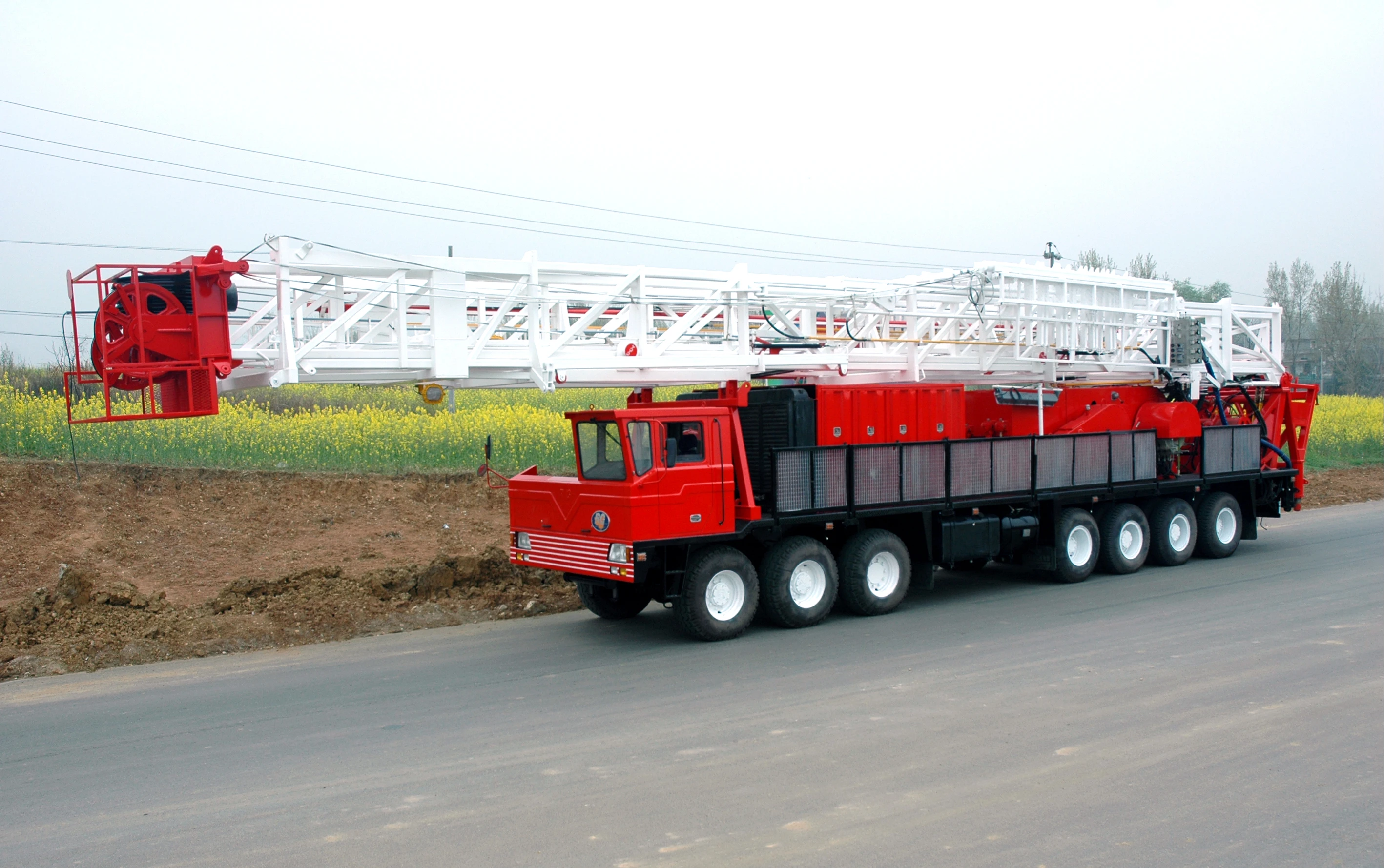

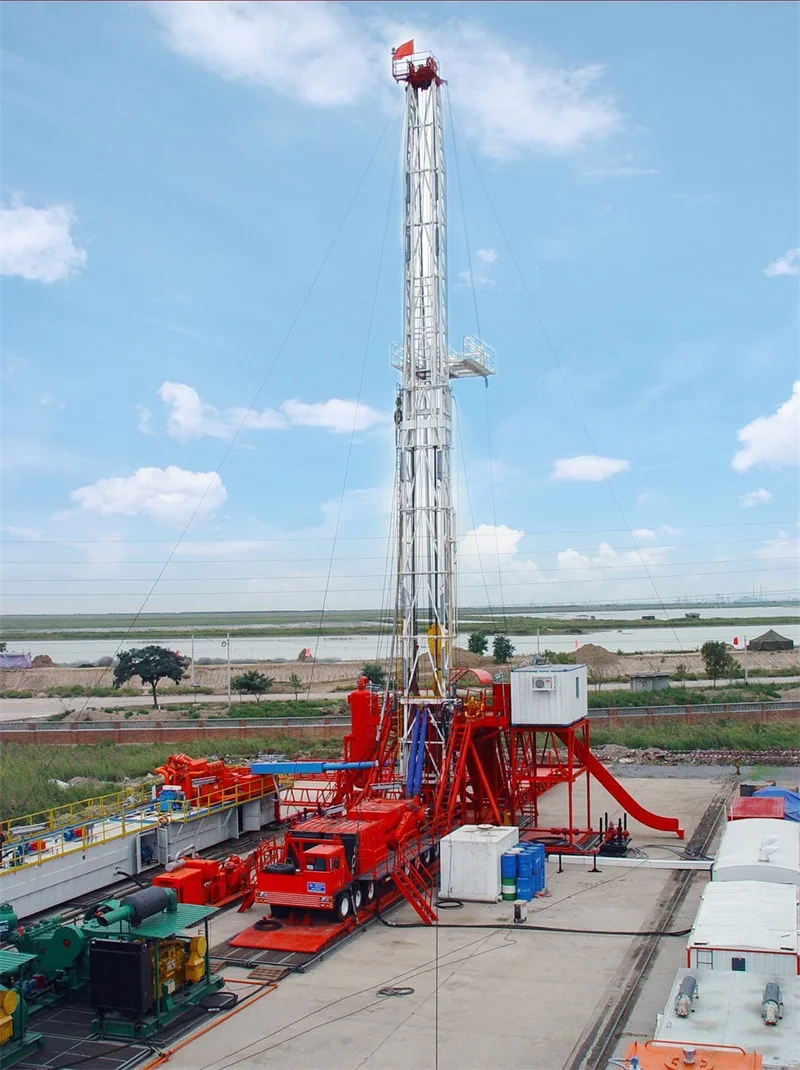

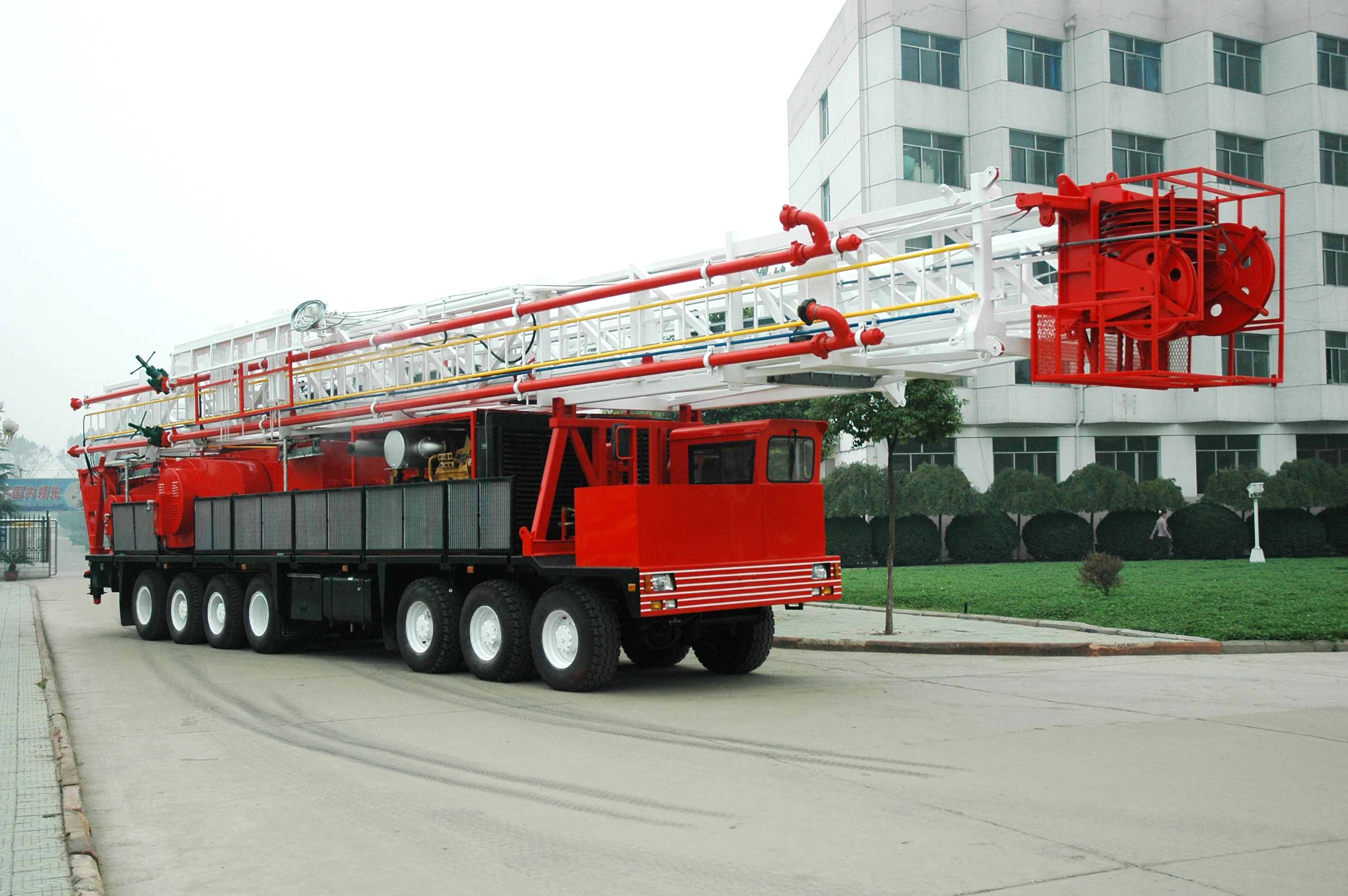

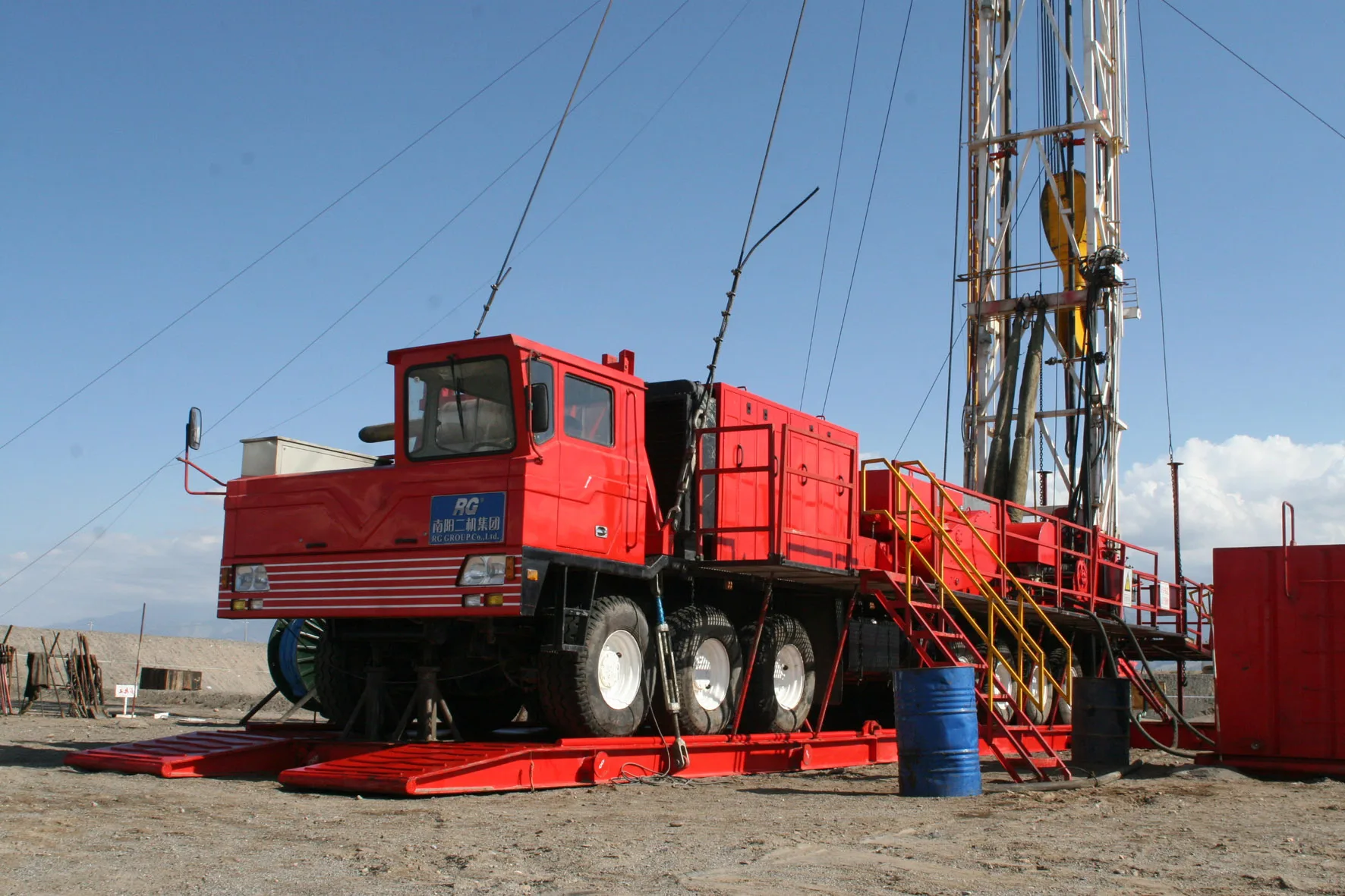

Product Display
Company Profile
RG PETRO-MACHINERY GROUP CO. LTD. was named No.2 Petroleum Machinery Manufacturing Plant of National Petroleum Industrial Ministry of China, reformed from state-owned enterprise to a limited liability company in 2004. In 2016，company was reformed as incorporated company.RG PETRO-MACHINERY GROUP CO., LTD. is National Technical Equipment Production Base, Light-duty Drilling Rigs Production Base, National Innovative Enterprise, National High and New Technology Enterprise, State Torch Plan Key New-and High-tech Enterprise, National New Product Trial Production, Top One Hundred Enterprise of Independent Innovation in China, Top Ten Enterprise of Petroleum Equipment in China, Henan Province Petroleum Drilling Equipment Export Base and Henan Province Top Twenty Enterprise of Patent Application, and a member of IADC.
Our products cover 12 series with over 200 kinds, including truck-mounted drilling rigs, skid-mounted drilling rigs, trailer-mounted drilling rigs, work over rigs, logging equipments, etc. Especially, RG PETRO-MACHINERY GROUP CO., LTD. firstly proposed an idea for portable drilling equipments with characteristic of quick-carrying and operation automation in China, and put it into the development of portable drilling equipments. RG PETRO-MACHINERY GROUP CO,. LTD. developed the first 3000m truck-mounted drilling rig in China and was awarded the state-level second-class award of advance science and technology, awarded the national recognition with the Shenzhou V Spacecraft, and the award is the highest science and technology award in the petroleum equipments industry till now. 4000m truck-mounted drilling rig and 4000m trailer-mounted drilling rig developed by RG PETRO-MACHINERY GROUP CO., LTD. is the largest self-propelled drilling equipment in the worldwide, with high-competitive in the international market, providing the advanced drilling equipment for factory drilling.
The company is supplying the logging and cementing technology and the oil & gas services and to be best international advanced integration oil & gas equipments manufacture and services supplier.
Certifications
Customer Photos
Exhibition
