High Quality Automatic Chocolate Cereal making machine macadamia nuts processing machine
- Category: >>>
- Supplier: Jinan Darin Machinery Co. Ltd.
Share on (1600577883166):
Product Overview
Description
Products Description
Introduction

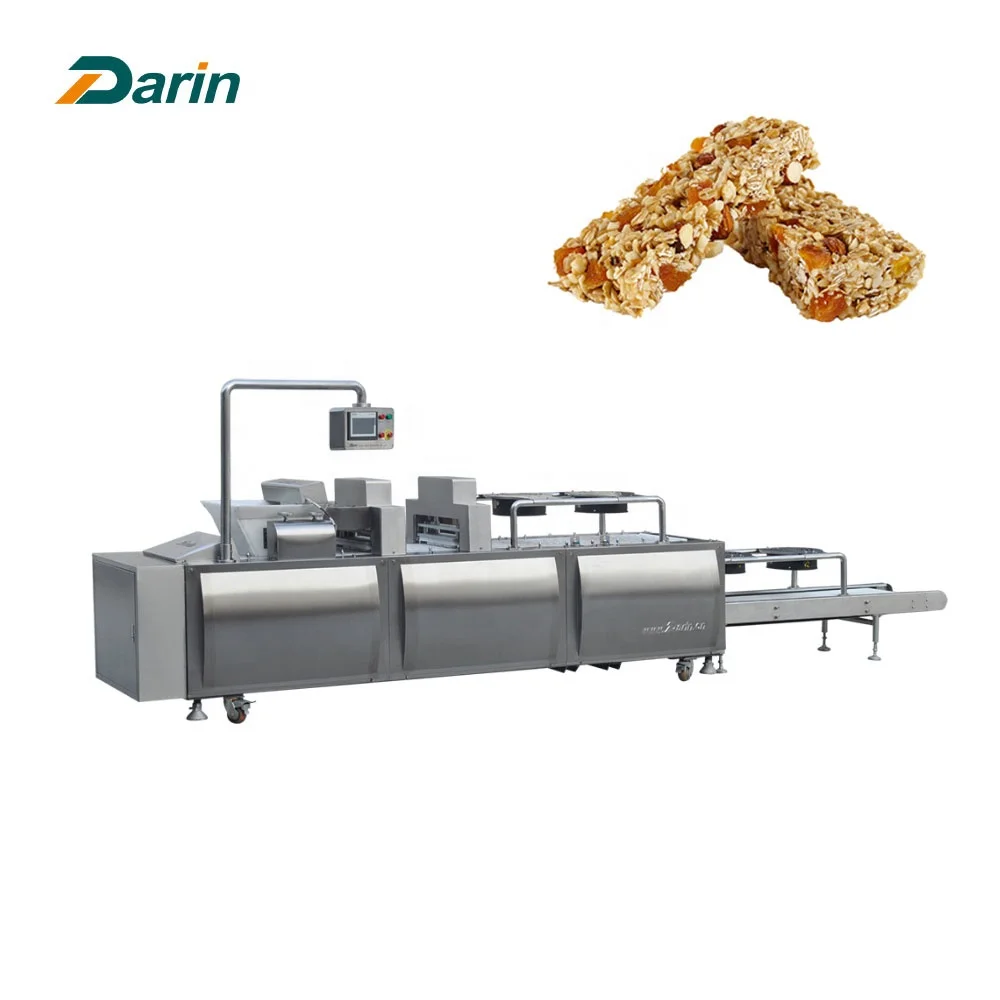

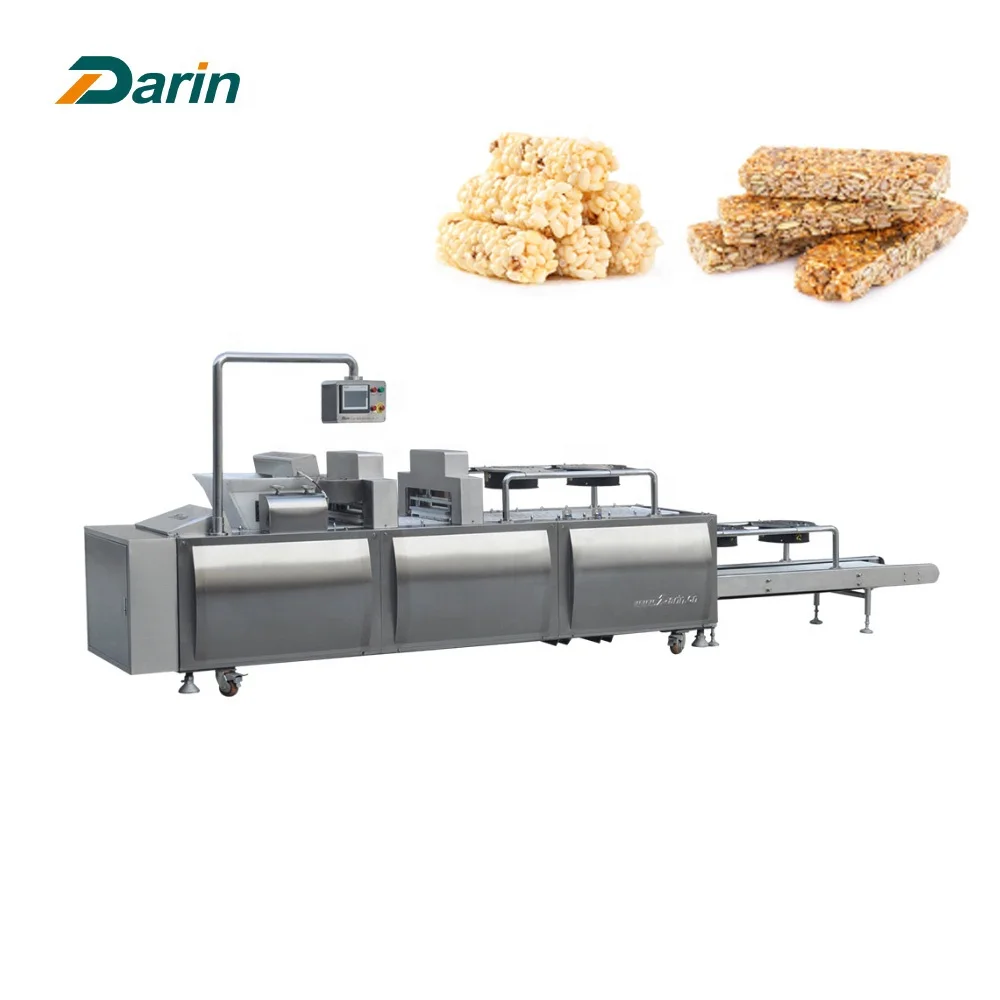

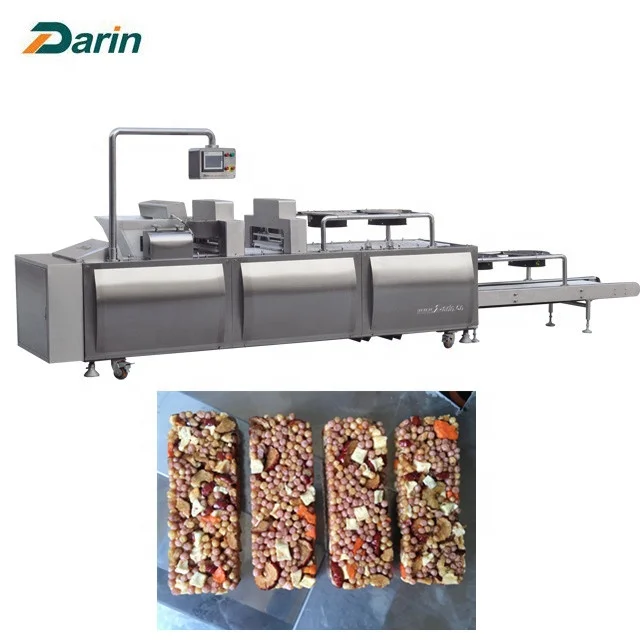

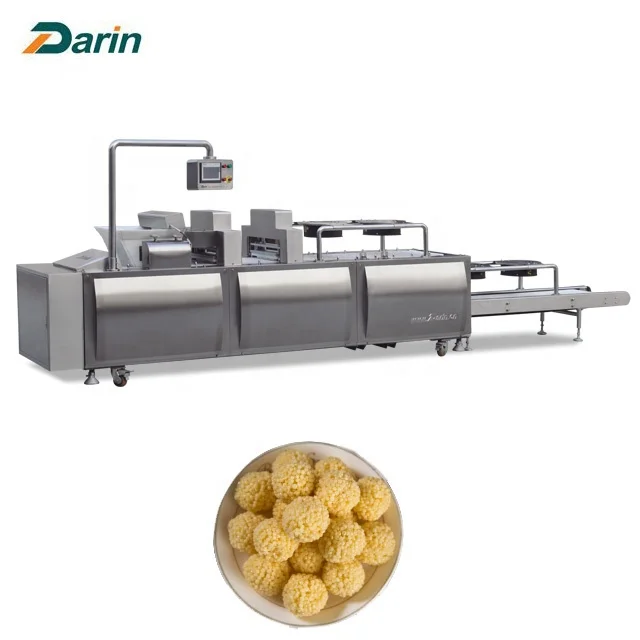

DRC-65 Cereal Bar Forming Machine can be used for producing cereal bar with different shapes and sizes by changing the molds.
Ø Combined procedures into one: Filling materials - Forming shape - Cooling cereal bar - Demolding cereal bar - Conveying & cooling cereal bar.
Ø Controlled by Siemens PLC and touch screen with friendly interface. The staff could 180°rotate the touch screen, flexible and convenient. The controller languages can be Chinese, English, French, Arabic, Spanish, Russian, etc.
Ø Equipped with two sets of mechanical pressing molds, does not hurt materials and without material wastage.
Ø The forming molds are made by HMWHDPE and includes 36 pieces. The mold cavity can be designed with different shapes and sizes as customer’s requirements, such as cylinder, ball, square, round cake, heart, triangle.
Ø Equipped with sensors to accurately check the forming molds position, so the pressing mold could tightly fit, makes super cereal bar shaping.
Ø The conveying belt is made by HMWHDPE to avoid the materials sticking on the belt, also meet food grade.
Ø Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.
Ø After forming procedure and demolding procedure, there has fans to cool down the cereal bar to normal temperature.
Easy operation, clean and maintenance.
Ø Combined procedures into one: Filling materials - Forming shape - Cooling cereal bar - Demolding cereal bar - Conveying & cooling cereal bar.
Ø Controlled by Siemens PLC and touch screen with friendly interface. The staff could 180°rotate the touch screen, flexible and convenient. The controller languages can be Chinese, English, French, Arabic, Spanish, Russian, etc.
Ø Equipped with two sets of mechanical pressing molds, does not hurt materials and without material wastage.
Ø The forming molds are made by HMWHDPE and includes 36 pieces. The mold cavity can be designed with different shapes and sizes as customer’s requirements, such as cylinder, ball, square, round cake, heart, triangle.
Ø Equipped with sensors to accurately check the forming molds position, so the pressing mold could tightly fit, makes super cereal bar shaping.
Ø The conveying belt is made by HMWHDPE to avoid the materials sticking on the belt, also meet food grade.
Ø Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.
Ø After forming procedure and demolding procedure, there has fans to cool down the cereal bar to normal temperature.
Easy operation, clean and maintenance.
Paramenter of Cold Pet Treat Extrusion Line
Output | 200-300kg/hr |
Mixer Tank Size | 390 x 380 x 410mm |
Material Hopper Size | 450 x 400 x 300mm |
Mixer Tank Temperature | 0-70℃ |
Mold Quan | 39pcs, includes：Forming mold x 36pcs Pressing mold x 2pcs Demolding mold x 1pcs |
Forming Mold size | 509 x 173mm |
Effective mold size | 380 x 140mm |
Min. distance between mold cavity | 11mm |
Power | 10.8kw |
Weight | 1200kg |
Dimension | 5300 x 965 x 1850mm |
Details Images
Company Profile
Certifications
Why Choose Us
Product packaging
Fumigation wooden cases, which are well sealed and strong enough for long-term trip, and suitable for multi-times loading & unloading by forklift.
Transport
Commissioning And After-sales Service
1.We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2.After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the
vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory , our engineers are ready to start for the commissioning service.
3.1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4.Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5.It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of
commissioning service.
6.The engineer’s round-trip flight tickets, accommodation and daily salary are on client’s account.
Favorable comments
FAQ
Q: Why us Darin?
Darin: With more than 20 years experience in designing and manufacturing food machines, Darin feels proud and onfident to introduce our machines to you and your esteemed company as one of the most competitive supplier in this business. What we strive to do all the time is providing innovative machines for our customers.
Q: What materials Darin adopted in those machines?
Darin: All the parts that touched with Darin will use food grade SS304, PU belt, strong carbon steel or appointed material for the bearing parts. High quality electronic components supplied by well-reputated company like Siemens and WEG.
Q: How to get a proper quotation with good price?
Darin: Contact us directly and provide as more information as you can, like the product pictures, weight, capacity, voltage and frequency of the motor requested, delivery date if there's urgently need. Quotation will be sent to your inbox immediately once everything is clear.
Q: When will the machines be shipped?
Darin: Normally around 45 working days.
Q: How about the after-sales service?
Darin: Darin will always provide best full-life after sales service, no matter when customers have any problem or questions, we will reply them very soon.
