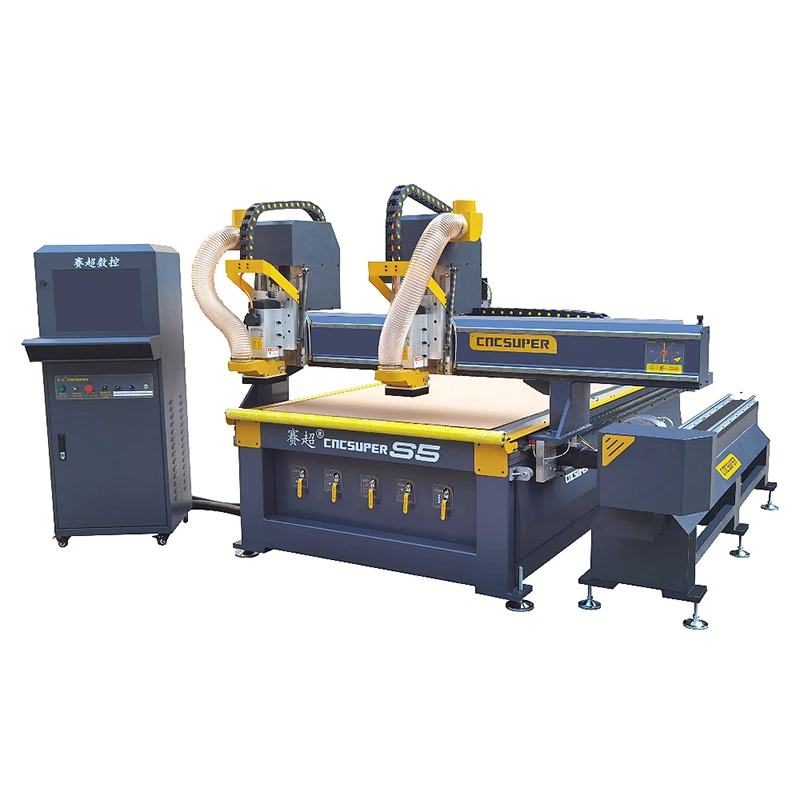

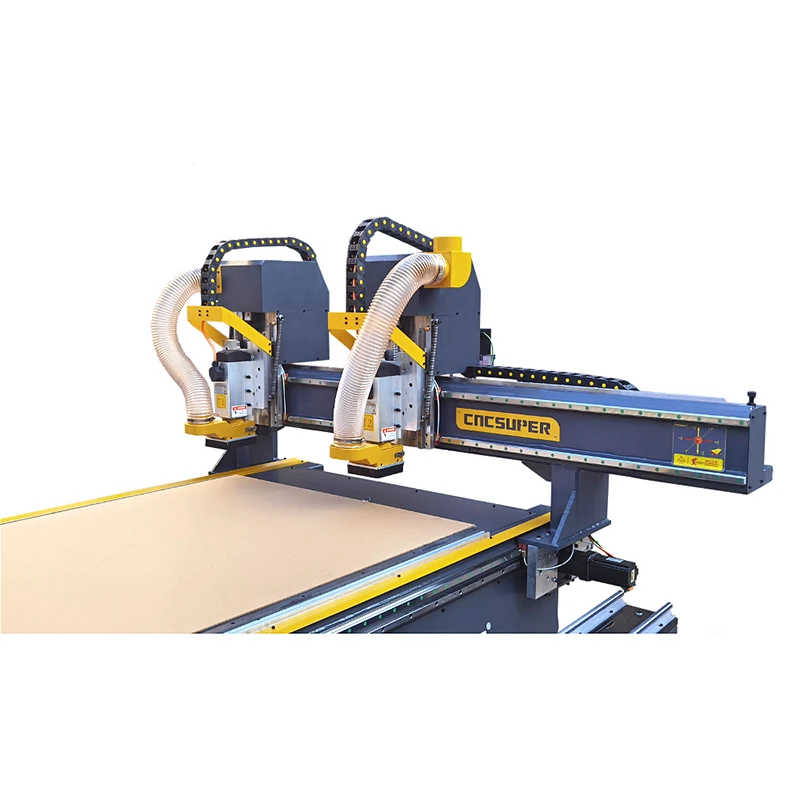

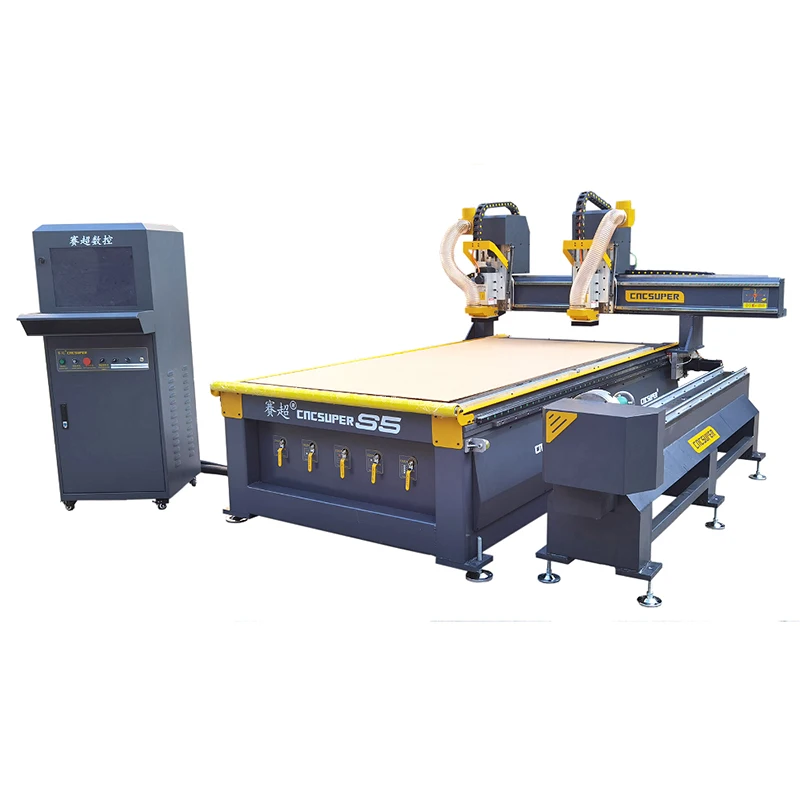

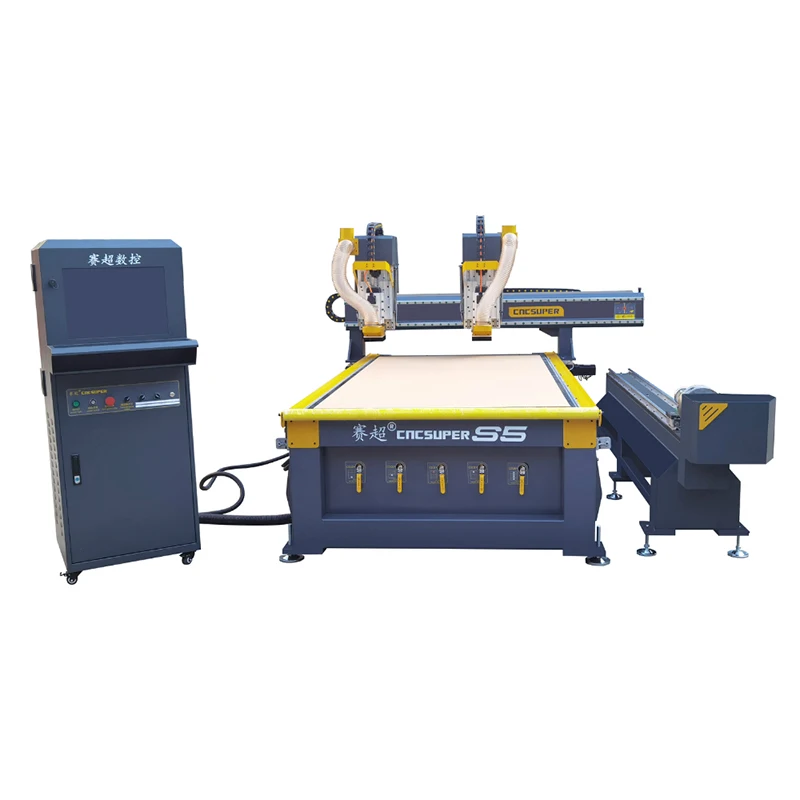

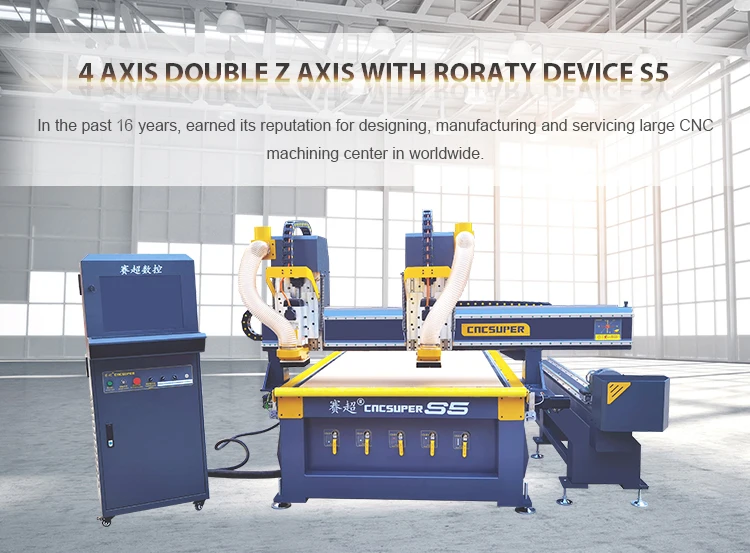

Four Axis Wood Carving Machine 4 Axis 3 Axis 4*8ft 1300*2500mm 3d 1325 Atc Cnc Router Machine With Rotary Table
Four-Axis Wood Carving Machine 4 Axis 3 Axis 4*8ft 1300*2500mm 3d 1325 Atc Cnc Router Machine With Rotary Table
Four-Axis Wood Carving Machine 4 Axis 3 Axis 4*8ft 1300*2500mm 3d 1325 Atc Cnc Router Machine With Rotary Table
Four-Axis Wood Carving Machine 4 Axis 3 Axis 4*8ft 1300*2500mm 3d 1325 Atc Cnc Router Machine With Rotary Table
Four-Axis Wood Carving Machine 4 Axis 3 Axis 4*8ft 1300*2500mm 3d 1325 Atc Cnc Router Machine With Rotary Table
Four-Axis Wood Carving Machine 4 Axis 3 Axis 4*8ft 1300*2500mm 3d 1325 Atc Cnc Router Machine With Rotary Table
Four-Axis Wood Carving Machine 4 Axis 3 Axis 4*8ft 1300*2500mm 3d 1325 Atc Cnc Router Machine With Rotary Table

Four Axis Wood Carving Machine 4 Axis 3 Axis 4*8ft 1300*2500mm 3d 1325 Atc Cnc Router Machine With Rotary Table

Share on (1600577894775):


Price:

Quantity:


Product Overview

Description



Products Description






Product Parameters


NO.
DESCRIPTION
1
Working area (XY)
1300x2500mm
2
Z travel height
200mm, double Z axis with coupling
3
Rotary axis
Rotary dia-200mm, length 2500mm
4
Spindle power
2PCS 6KW air cooling spindle
5
NO. of revolution
18000rpm/min
6
Guide
Original Taiwan HIWIN guiding rail
7
Motor
Taiwan DELTA servo motors and drives
8
Positioning accuracy
±0.03/300mm
9
Repositioning accuracy
0.03mm
10
Controller
CNCSUPER 4 axis control system
11
Reducer
Japan SHIMPO reducer
12
Software compatibility
TYPE 3 or ARTCAM
13
Table
5 zones vacuum table
14
Vacuum pump
5.5KW air vacuum pump
15
Lubrication
Self-lubrication system
16
Max. speed
35000mm/min
17
Max. working speed
20000mm/min
18
Command
G Code, *u00, *mmg, *plt
19
Diameter of cutter
3.175-12.7mm
20
Working voltage
AC380V, 3PH/50HZ
21
Lathe structure
Seamless welded steel structure
22
Weight
2200KG

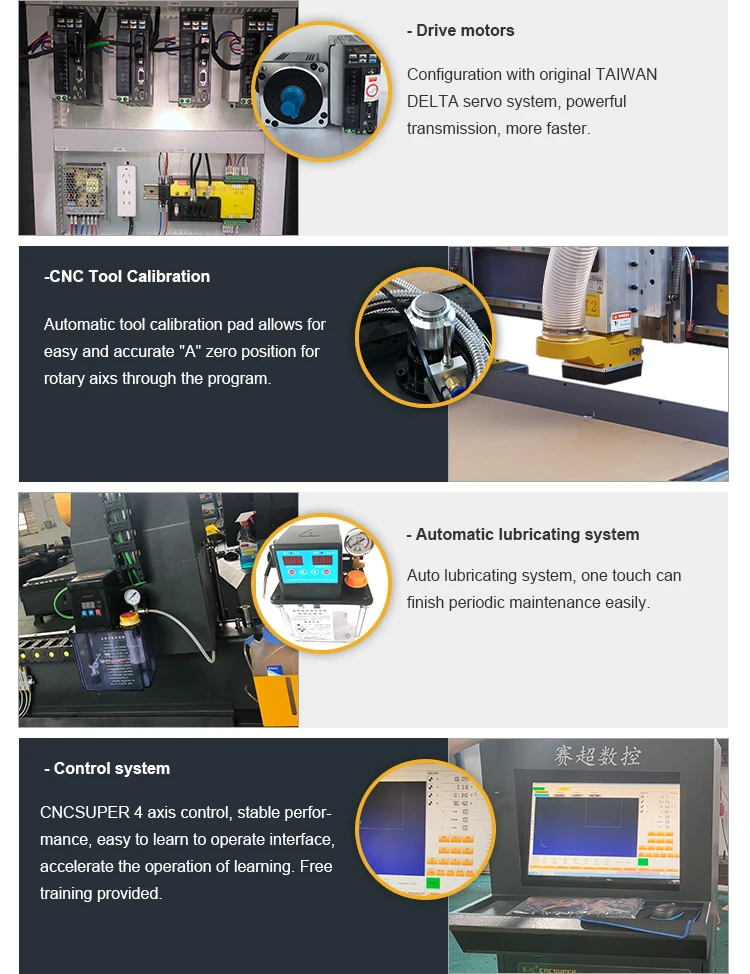

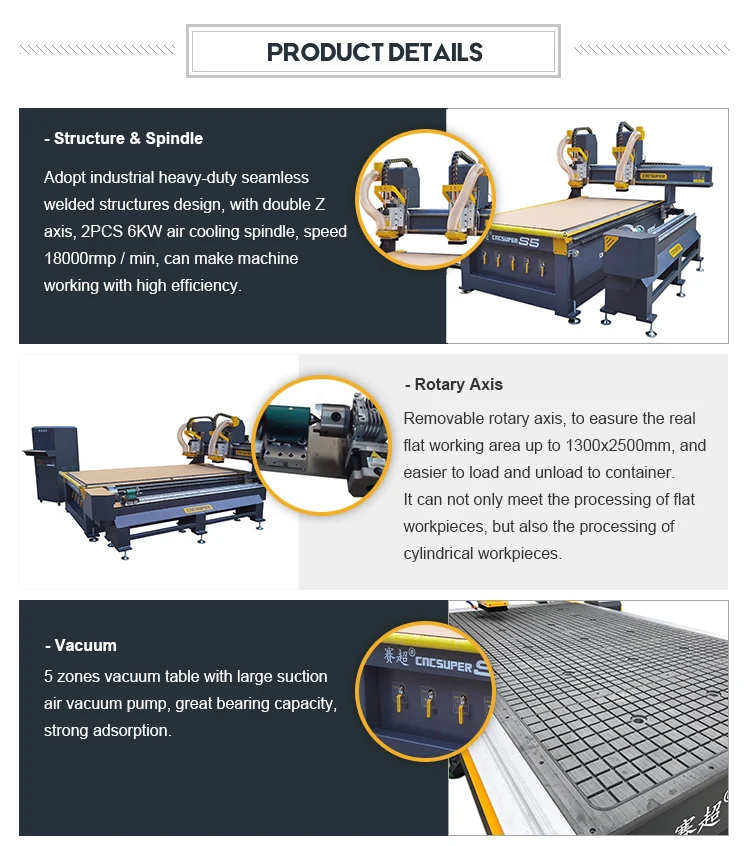

Product Details






Product application




HOT Sale product


Simple to operation cnc router machine
Advance structure design with hot working treatment makes performance stably and durably.
DSP A11 control system Simple operation for new customer.
Taiwan DELTA servo ,Japan SHIPMO reducer.
Table moving ball screw atc cnc router
Heavy-duty seamless welded structures.High precision X.Y.Z axis all ball screw transmission
Japan YASKAWA servo system.
Italy HSD9.6KW ATC tool changer spindle motor
Static fixed gantry and moving the table transmission


ATC door/furniture making carving machine
Automatic platen press,material fixed effect is better.Multi spindles carving for different engraving designs and effects.
Taiwan HIWIN linear square rails.
original TAIWAN DELTA servo motors and drivers,.
Heavy duty ATC CNC router prefect for high gloss acrylic
High precision Y-axis dual motors.
9KW ATC tool change spindle, working speed up to 25000mm / min. Syntec Control system, 7.5kw vacuum pump .
