Harxon Manufacture Helix Antenna High Gain High Precision GPS GNSS Antenna
- Category: >>>
- Supplier: Harxon Corporation
Share on (1600577912652):
Product Overview
Description
Product Description
Specification
PERFORMANCE | |
Signal Received | GPS L1/L2 GLONASS L1/L2 GALILEO E1 QZSS L1/L2 SBAS L1 |
Nominal Impedance | 50Ω |
Polarization | RHCP |
Axial Ratio | ≤3dB |
Gain at Zenith (90°) | 1217-1257MHz 2dBi (maximum) 1565-1610MHz 2.5dBi (maximum) |
LNA | |
LNA Gain | 33dB (typical) |
Noise Figure | ≤1.5dB |
Output VSWR | ≤2.0 |
Operation Voltage | +3.3 to + 12VDC |
Operation Current | 55mA (maximum) |
Group Delay Ripple | ＜15ns |
MECHANICAL | |

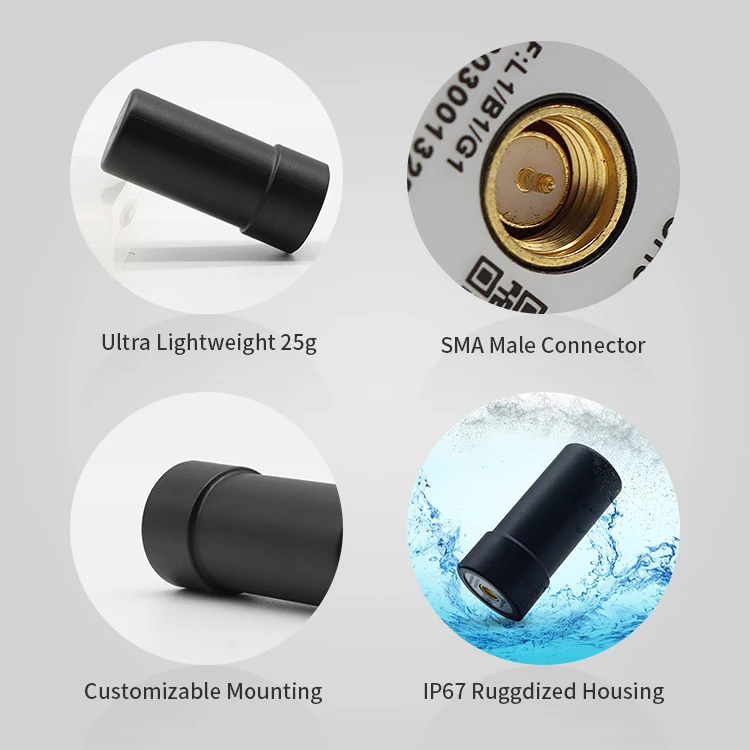

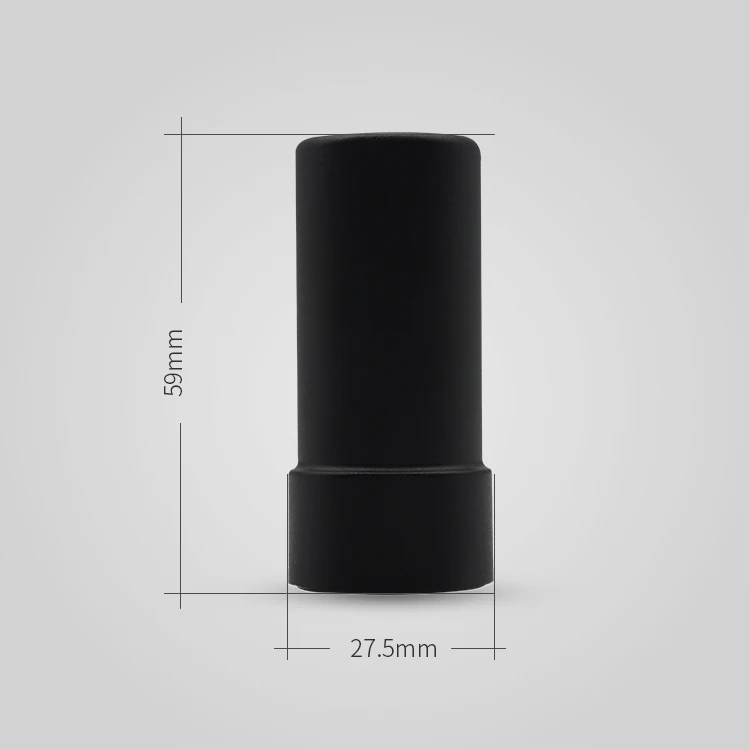

Dimensions | ¢27.5*59mm |
Connector | SMA male |
Weight | ≤25g |
Mounting | customers design own installation |
ENVIRONMENTAL | |
Operating Temperature | -40℃ to +70℃ |
Storage Temperature | -40℃ to +70℃ |
Humidity | 95% non-condensing |
Water/Dust Resistance | IP67 |
Regulatory Compliance | CE, RoHS, REACH |
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
