WEDIDIT Android Interactive White board Multi points,Low Cost Virtual Touch Screen Ultra Slim Electronic Board

Product Overview

Description

Features:

1.mouse simulation function:

most hard and smooth plane can transformed into interactive interfaces of operable computers;

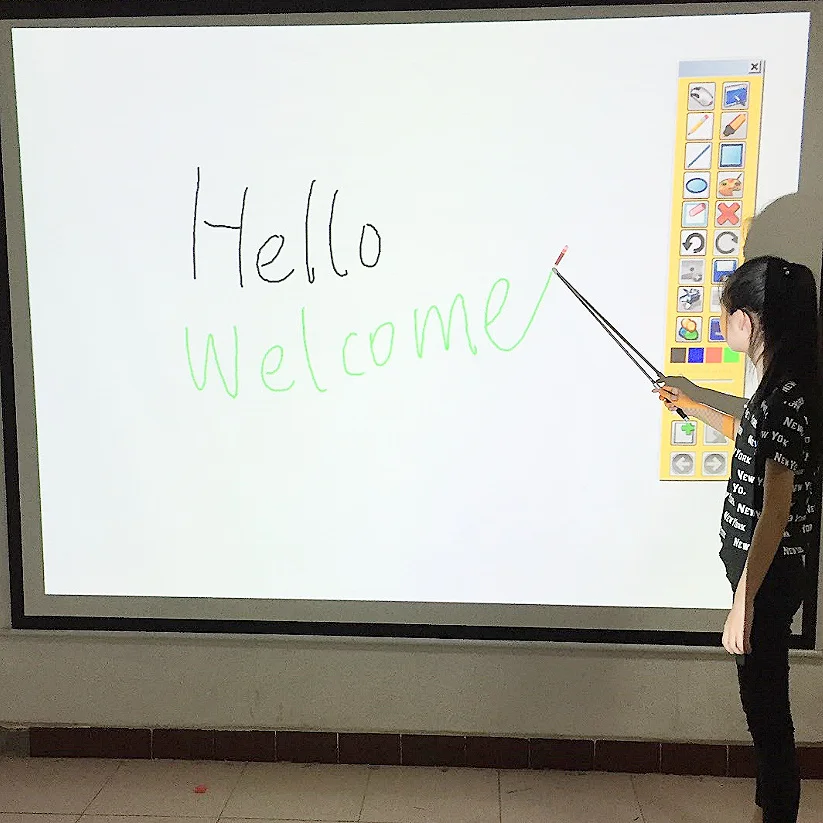

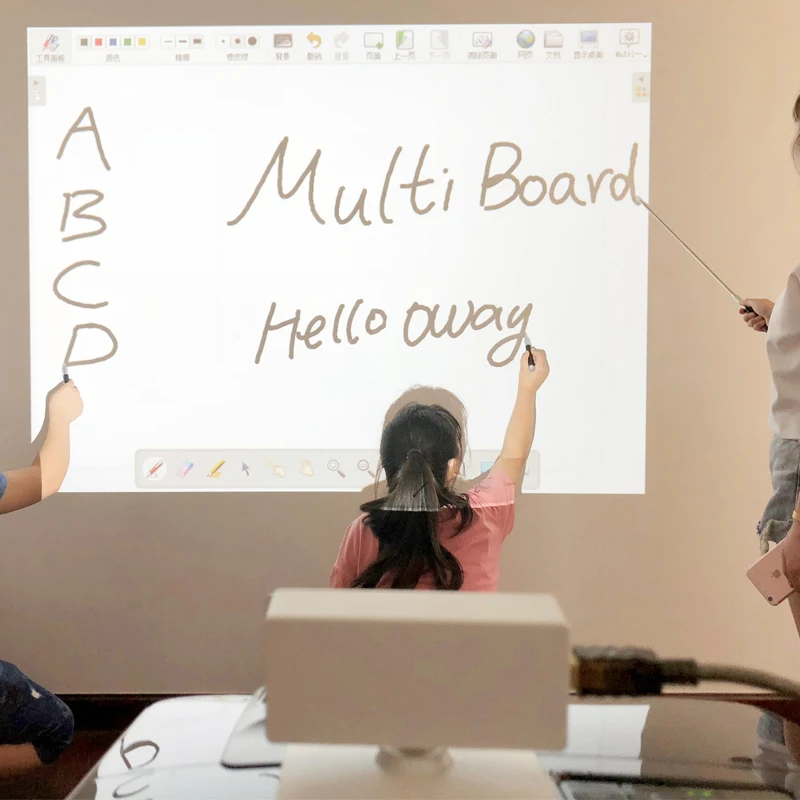

2.writing function:

different pens (highlight pen, laser pen, etc.) can be used to write on the software interface, the written content can be saved, printed and replayed and the function of recognizing handwriting can be realized;

3.multimedia support function:

multimedia such as video, image and flash are supported.

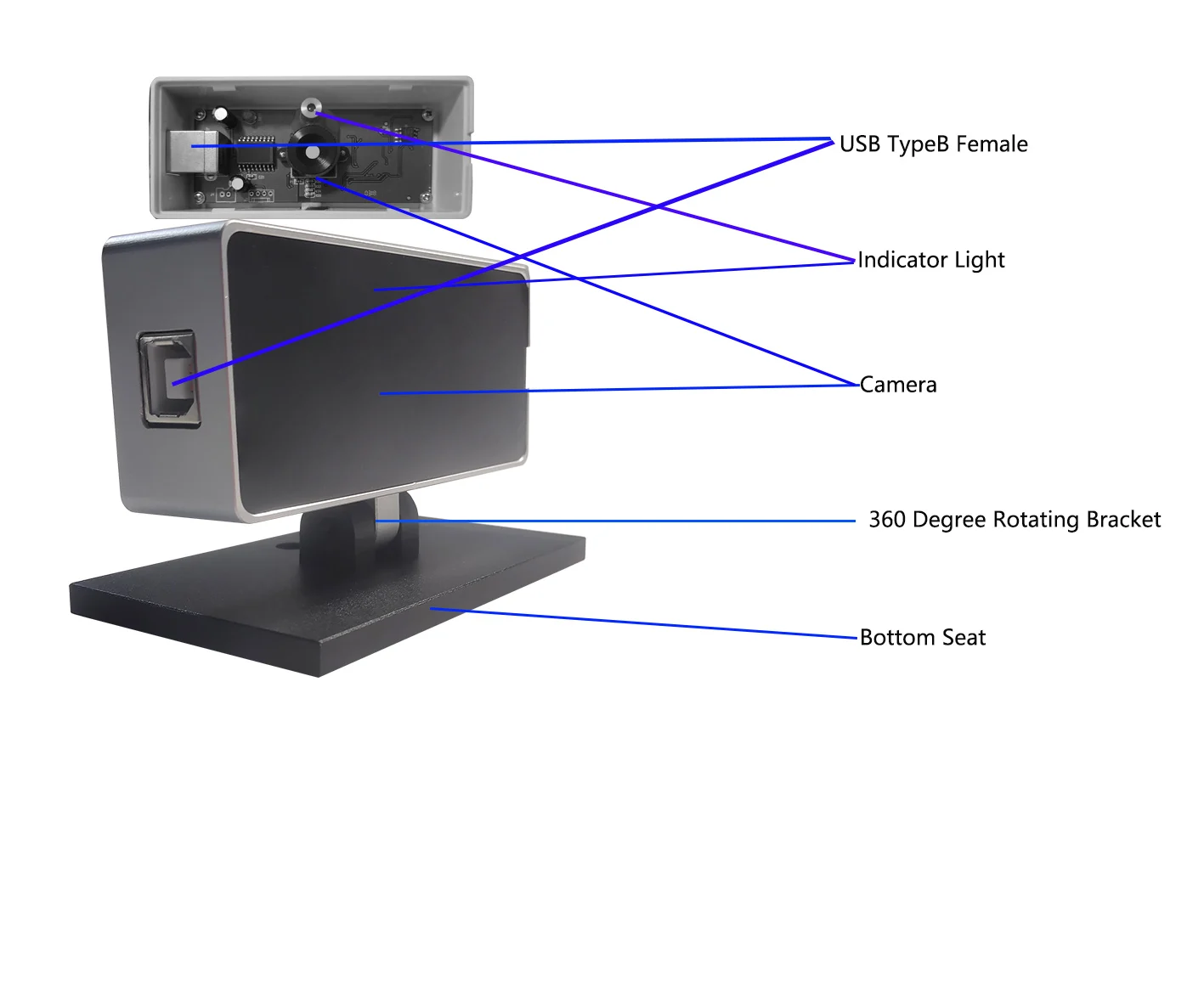

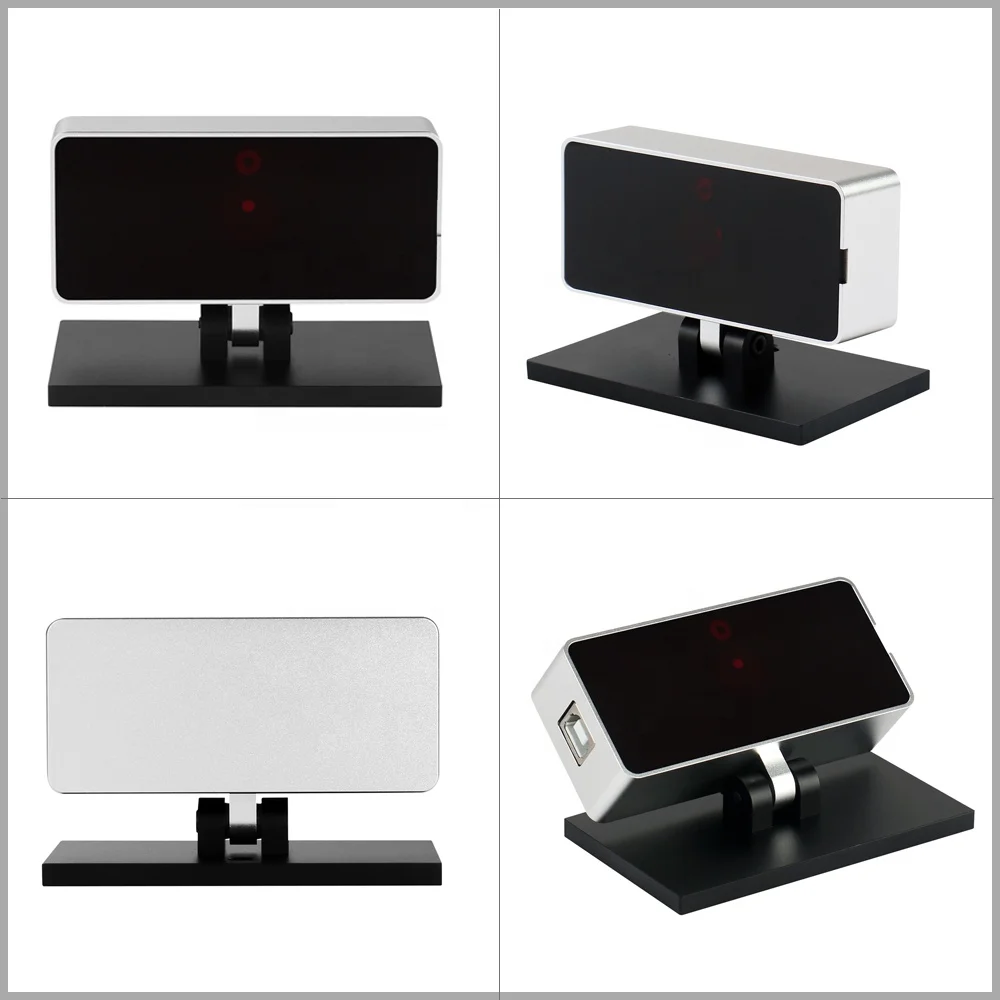

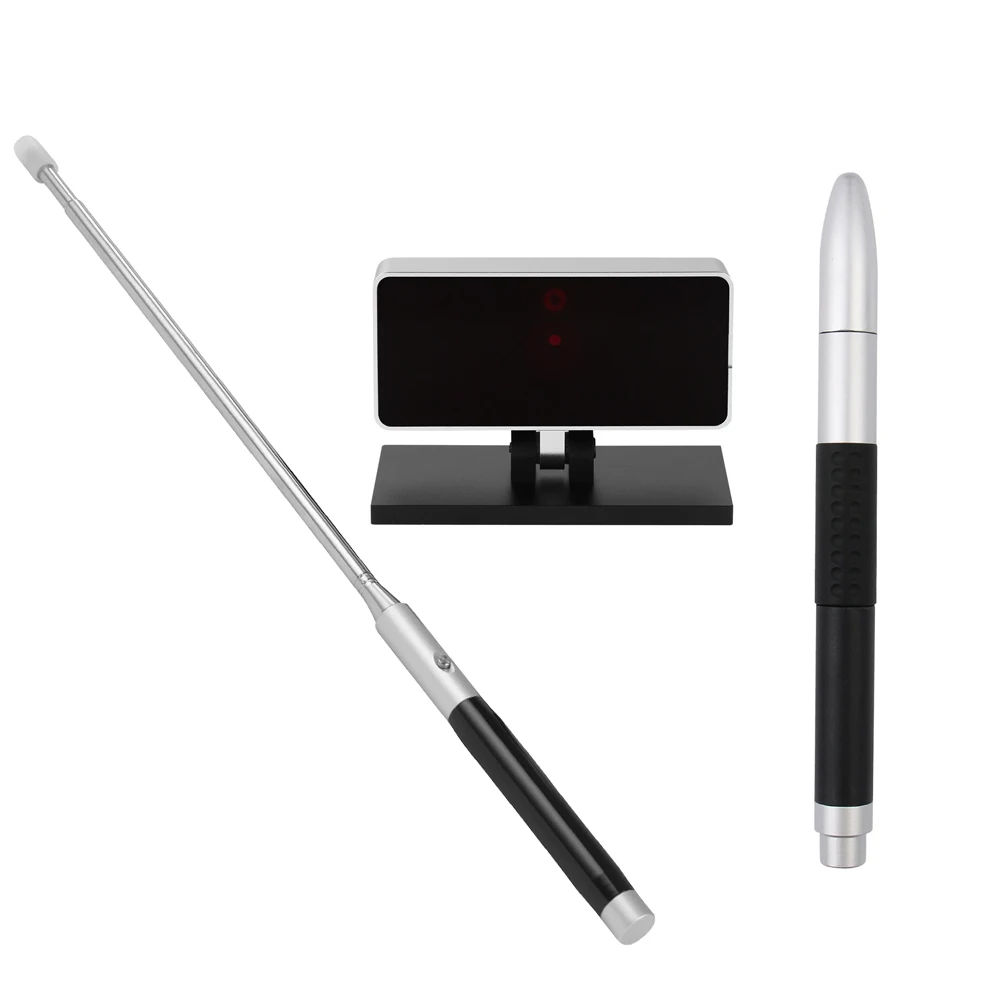

Signal Receiver
Movement Detection	infrared
Active Area(Max projection size)	300 inches
Active Area(Horizontal angle)	33 +/- 2 degrees
Active Area(Vertical angle)	0-30 degrees
Throw Ratio	0.16,0.28,0.38,0.57,0.83,1.28
Calibration Technology	infrared calibrationing
Active Distance(From projection screen)	0.3 - 5 m
Connectivity Interface	1 x USB cable(connection distance up to 20 m)
Power Requirement	5 w(from USB port)
Size	l*w*h:85*58*60mm
Power Consumption	5 w
Color	gray
Weight	67 g
IR Pointer
Movement Detection Technology	led light
Power Requirement	AAA x 2
Trigger Methods of Pointer	button
Pen Body Weight	87g(with battery)
Pointer Extendable Length	417 - 608mm(length),8 - 15mm(diameter)
Net Weight	68 g
IR Pen
Movement Detection Technology	led light
Power Requirement	AAA x 2
Pen Body Dimension	163mm(length),8 - 14mm(diameter)
Pen Weight	60g(with battery)
Net Weight	37 g
System Requirements
OS Required	windows xp,vista,win7/8/10/11,linux ubuntu
Processor Type	intel pentium
RAM Size	128 mb
Min Hard Drive Space	30 mb

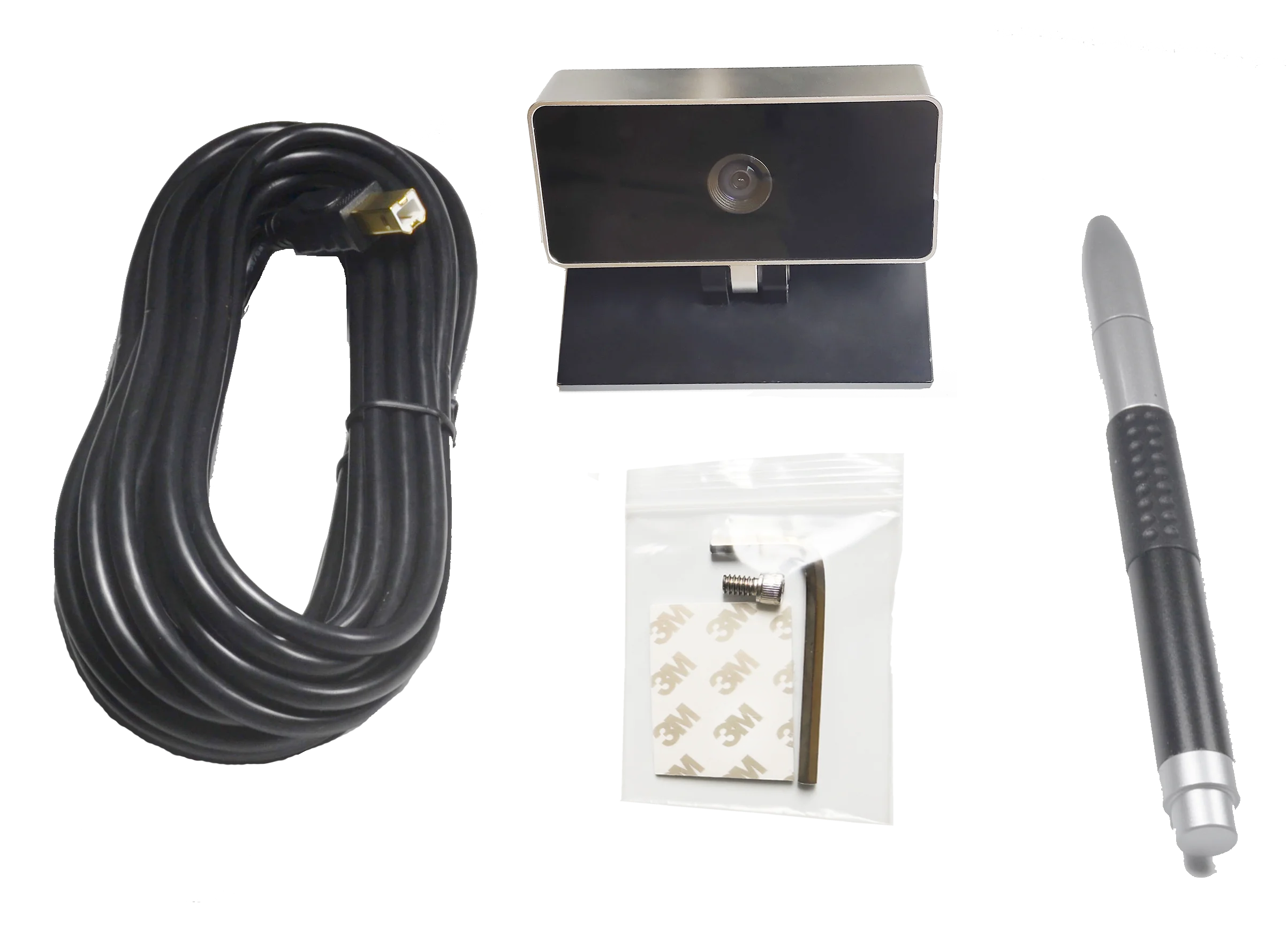

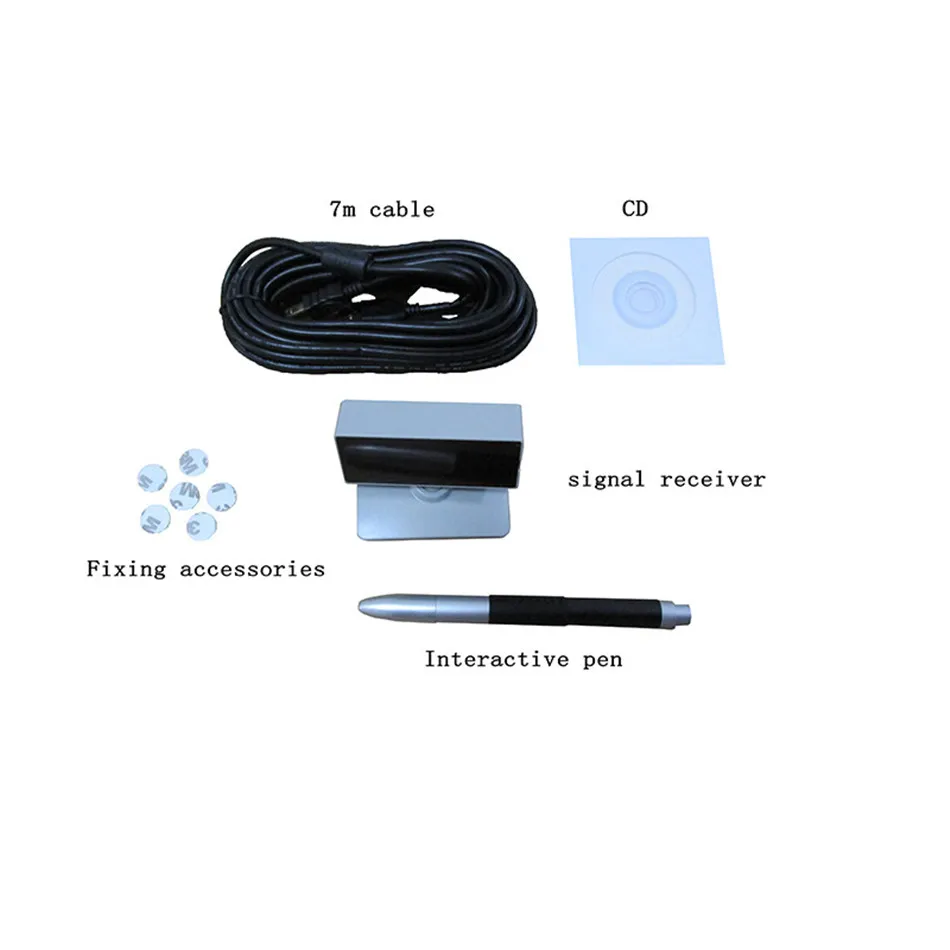

Product Image

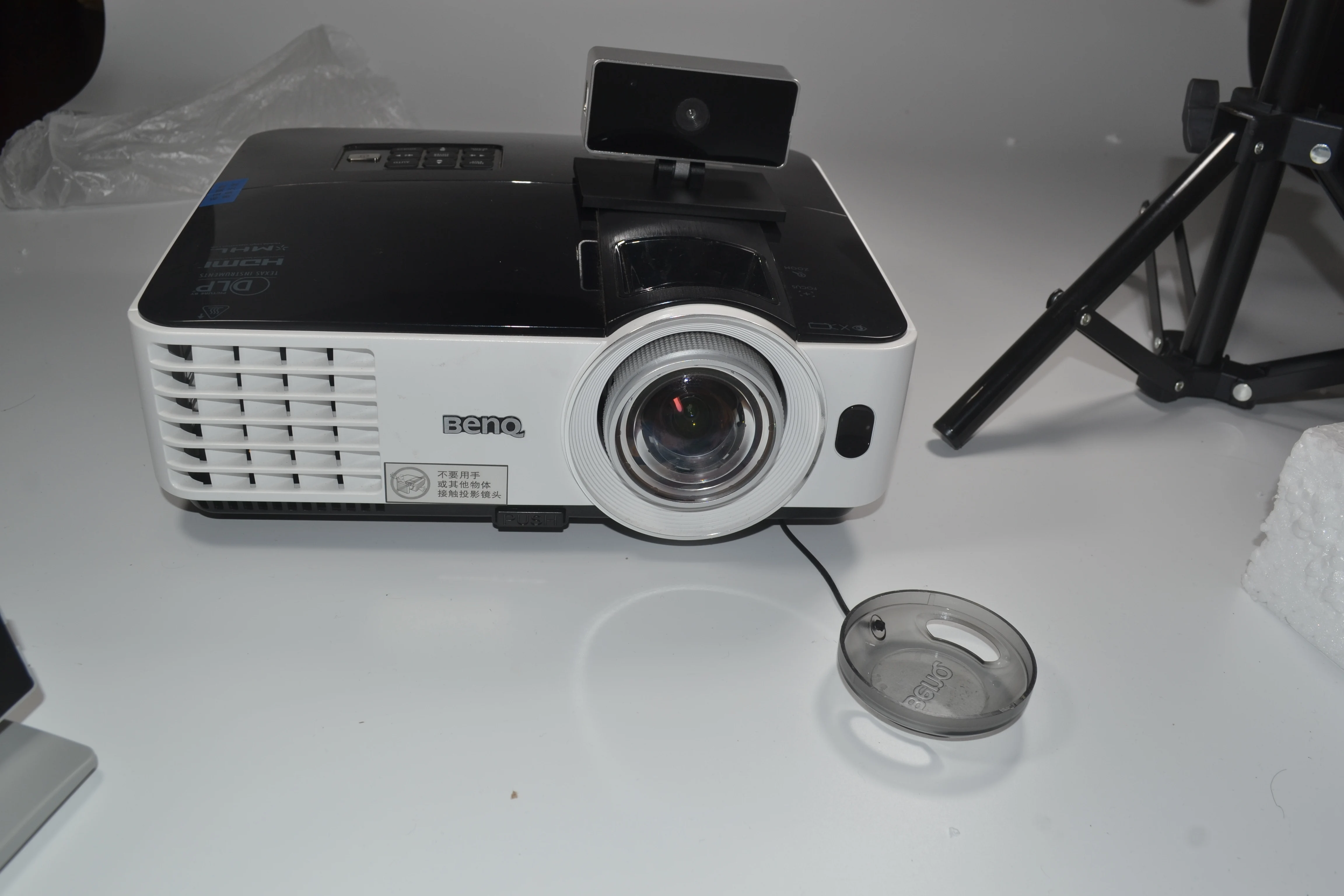

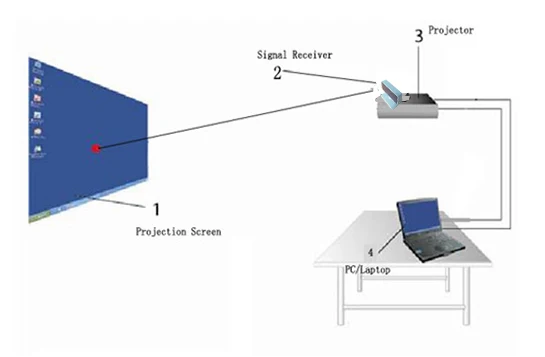

How To Install









Other Hot Sale Items In Top Smart

Hunan Top Smart Technology Co., Ltd. was established in June 2018. It is a company engaged in the research and development, production, sales and export of interactive products such as interactive floor, interactive wall, immersive games, large touch screens and portable touch interactive systems, portable electronic whiteboards, interactive projectors IDMs, and real interactive games.

The company has a number of patents and software copyrights, and is writing a large number of patents and software copyrights.

The company has an excellent management group and technique group, we will make efforts to increase R& D investment in order to ensure the high quality of the product for clients, offer first-class presale and after-sale service.



At present, the company has published the key technologies in related fields with the spirit of craftsmanship, and expects and has the confidence to quickly become an internationally renowned professional company in the field. Although the company was established in 2018, the founder of the company has been engaged in the research and development of portable electronic whiteboards and laser touch technology for more than 10 years. He has a solid foundation and intellectual property rights, and the technology is in a leading position in the world in related fields.



The company is moving from the application of portable touch interactive systems to the market segment of the education industry, into the emerging market with huge potential for real sense gaming systems. Because the technology used is the same, the company is in a leading position in the emerging real-sensing interactive game market technology. In the next three years, it will launch more real-feeling interactive game products with user friendly experience and become a leading manufacturer in the industry. At the same time, the company's real sense game system can combine games and fitness exercises, bringing positive social benefits while bringing economic benefits.



 Company advantages:

 1.You can add your logo as an advertising element in some games

3. Some interactive special effects can change the background image, which can attract more people to your ads.

4.Support Remotely management

5.Customized development service

FAQ:

Q1: What the whole set of interactive wall/floor includes?

A1: It includes:

a.computer (clients prepare or buy from us)

b. projector(clients prepare or buy from us)

c. touch system FT8 (buy from us)

d. games(clients prepare or buy from us)



Q2: Do you provide the whole set of interactive projection wall/floor system?

A2:   Yes, we can provide the whole set of interactive projection system. Please leave us your contacts email/whatsapp/wechat.



Q3:   Can I buy any other projectors?

A3:   Yes, just give us the size of the projector, and we’ll customize the system to your needs.



Q4:   If I buy the basic version, can you teach me how to install the interactive floor system?

A4:   Yes, we will provide you with a detailed user manual and an installation video.



Q5:   Can you design new effects for me?

A5:   Yes, you can play your imagination, tell us what you want and then we design.



Q6:    What’s the delivery time?

A6:    After payment, 3-6 business days after the offshore time.
