High Frequency Portable Surgical Bipolar Electrosurgical Unit
- Category: >>>
- Supplier: Ari Medical Technology Co. Ltd.
Share on (1600577934681):
Product Overview
Description
Products Description

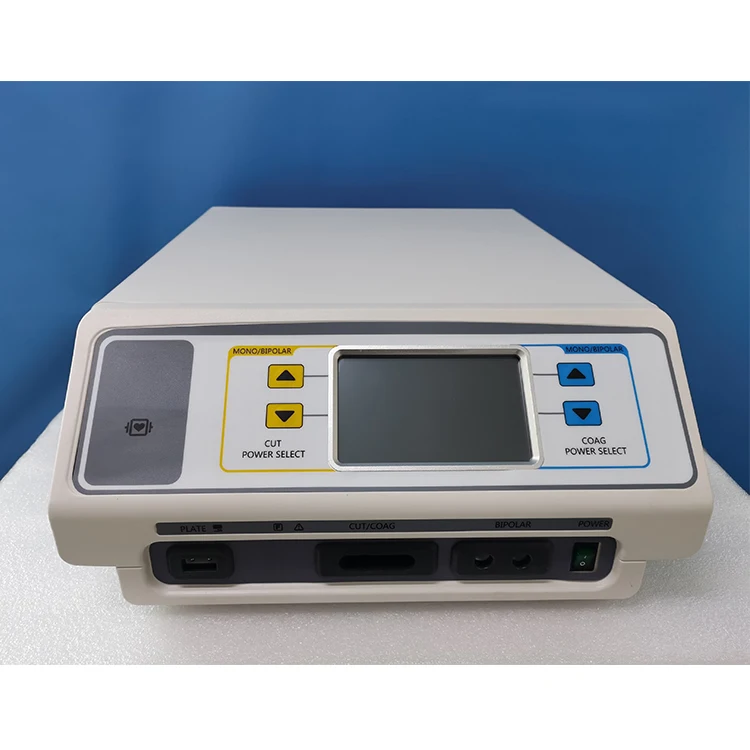

High Frequency Portable Surgical Bipolar Electrosurgical Unit
01. Max 300W Electrosurgical Generator, with mono-polar and bipolar function.
02. Seven working modes: pure cut, blend1, blend2, contact coag, forced coag,bipolar coag, bipolar cut.
03. Wide clinical applications, such as the general surgery, thoracic surgery,orthopedic surgery, cardiology, gynecology,urology(under water TUR), oncology,neurosurgery, etc.

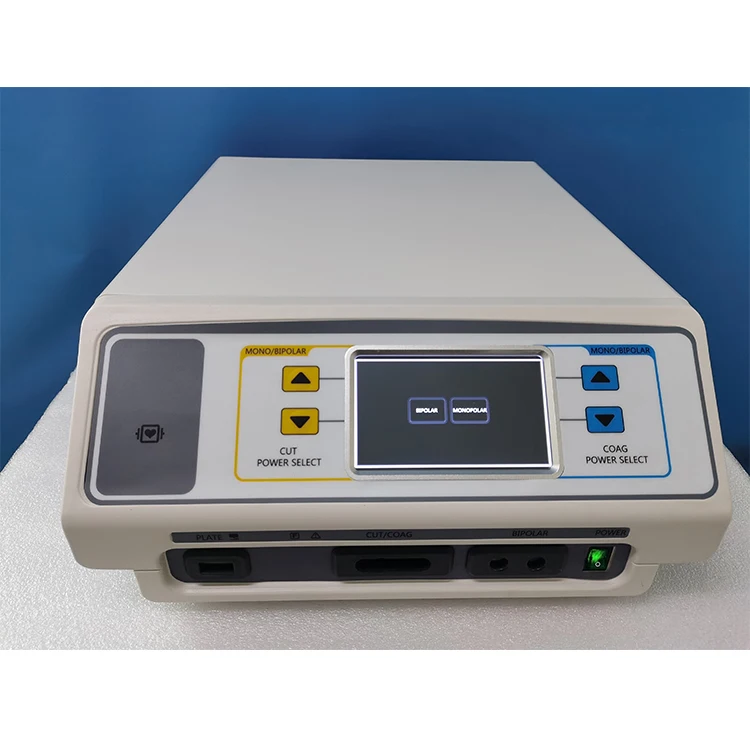

04. Microprocessor controlled, LCD touch screen display. With audible and visualindicators and errors codes during the process of outputting.
05. Return Electrode Monitoring system and Power Peak System, minimizing therisk of tissue damage.
06. Both hand and foot controlled.
07. Separate power display and outlet socket for mono-polar cut, mono-polar coag,bipolar cut and bipolar coag, each output can be individually configured.
08. The unit always remember the last setting when it turned off.
09. Remote control function. The surgeon can adjust the outputs by power controlESU pencil.
10. The ESU unit can be connected with laparoscope and endoscope, etc.
11. Protection against over-voltage and over-current.
12. Defibrillation protected.
13. Convection refrigeration without ventilator.
14. Mounted on 4 wheels cart(optional).
15. Meets the requirements of international safety standards EN60601-1 andEN60601-2.
02. Seven working modes: pure cut, blend1, blend2, contact coag, forced coag,bipolar coag, bipolar cut.
03. Wide clinical applications, such as the general surgery, thoracic surgery,orthopedic surgery, cardiology, gynecology,urology(under water TUR), oncology,neurosurgery, etc.
04. Microprocessor controlled, LCD touch screen display. With audible and visualindicators and errors codes during the process of outputting.
05. Return Electrode Monitoring system and Power Peak System, minimizing therisk of tissue damage.
06. Both hand and foot controlled.
07. Separate power display and outlet socket for mono-polar cut, mono-polar coag,bipolar cut and bipolar coag, each output can be individually configured.
08. The unit always remember the last setting when it turned off.
09. Remote control function. The surgeon can adjust the outputs by power controlESU pencil.
10. The ESU unit can be connected with laparoscope and endoscope, etc.
11. Protection against over-voltage and over-current.
12. Defibrillation protected.
13. Convection refrigeration without ventilator.
14. Mounted on 4 wheels cart(optional).
15. Meets the requirements of international safety standards EN60601-1 andEN60601-2.
Power | 220V±22V, 50Hz±1Hz (110V±11V, 60Hz) | ||
Operating Frequency | 512KHz | ||
Power Rating | 1100VA±10％ | ||
Nine Working Modes | Monopolar Cut | a) Pure cut: 1W~300W (Load 800Ω) b) Blend1: 1W~200W (Load 800Ω) c) Blend2: 1W~250W (Load 800Ω) | |
Monopolar Coag | d) Spray Coag: 1W～80W (Load 800Ω) e) Soft Coag: 1W～120W (Load 800Ω) | ||
Bipolar | f) Bipolar Coagulation: 1W～70W (Load 200Ω) g) Bipolar Cut: 1W～120W (Load 200Ω) | ||
Power Consumption | ≤1100VA | ||
Configuration Sheet | ||||||||
Electrosurgical Pencil | 5PCS | |||||||
Electrosurgical Pad | 10PCS | |||||||
Electrosurgical pad cable | 1PC | |||||||
Footswitch | 1SET | |||||||
Bipolar Forceps | 1PC | |||||||
Bipolar Forceps with cable | 1PC | |||||||
