CT2930 High precision 3 in 1 lathe drilling and milling machine lathe mill drill combo
- Category: >>>
- Supplier: Anhui Sinsun Electronic Commerce Co. Ltd.
Share on (1600577935522):
Product Overview
Description
SIMILAR PRODUCTS

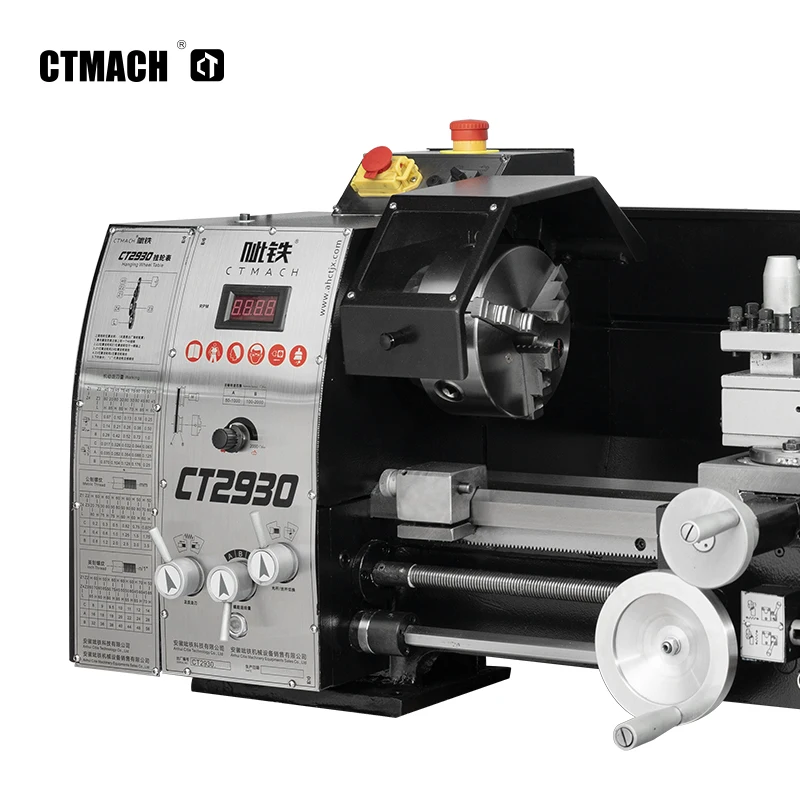

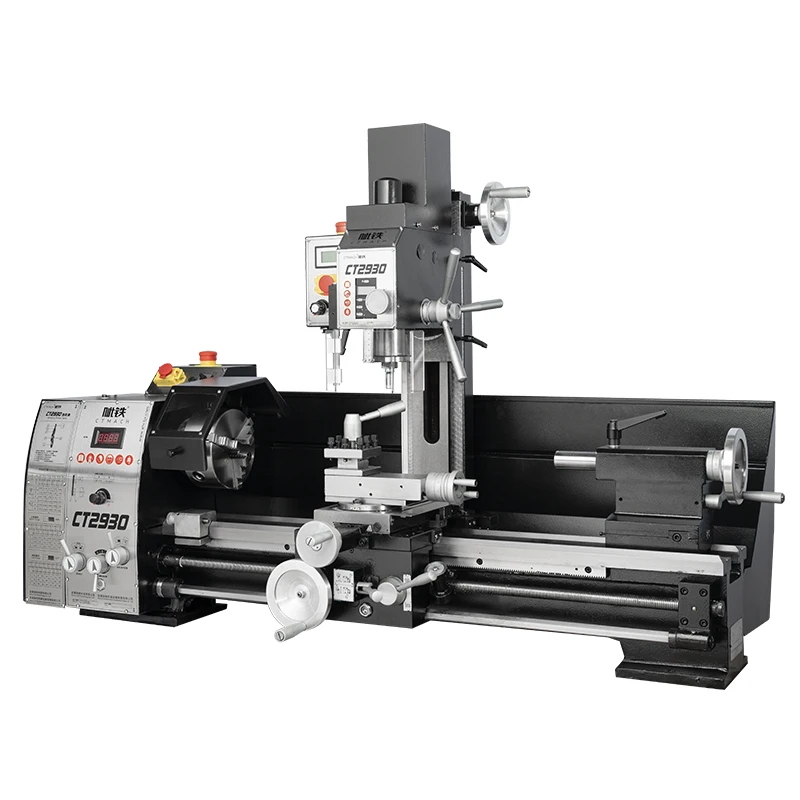

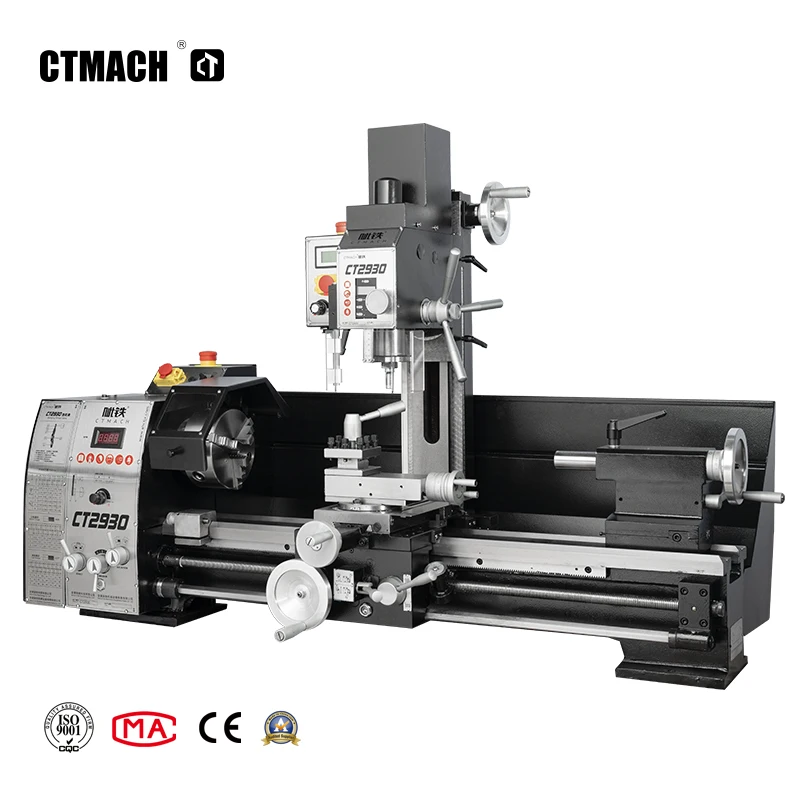

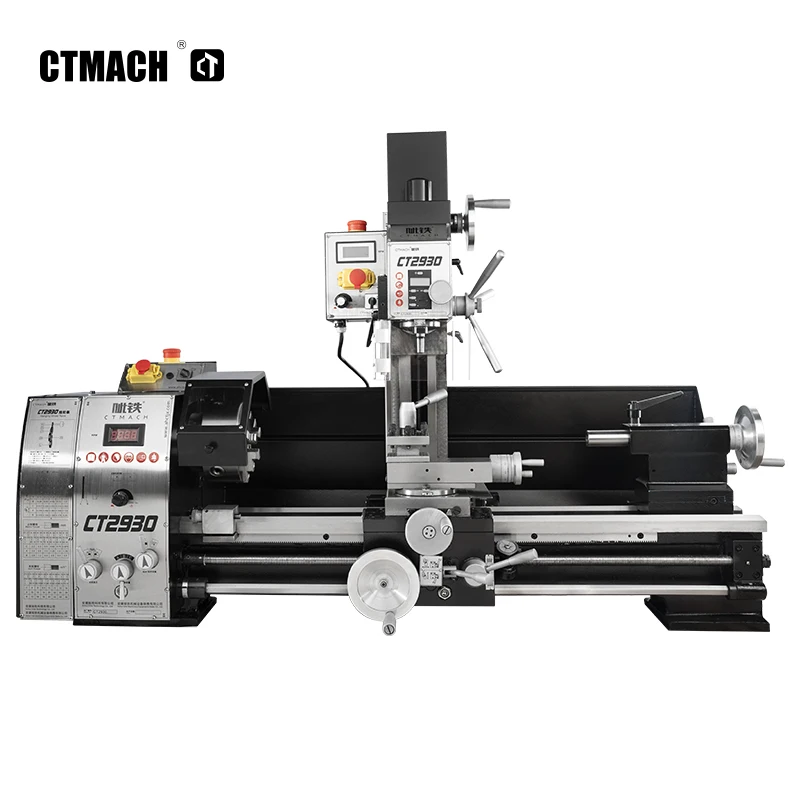

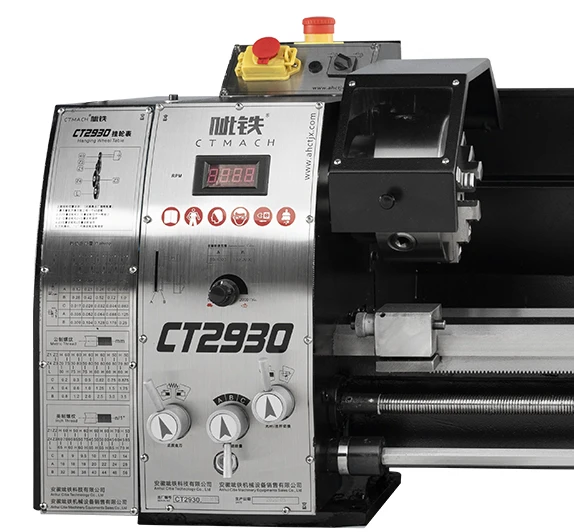

CT2930 Multifunctional Machine
●Supersonic frequency hardened bed way.
●Spindle speed readout.
●Variable Speed.
●DC motor
●Precision roller bearing for spindle.
●High quality steel, ground and hardened gear inside headstock.
●Various threads cutting function available.
●Spindle speed readout.
●Variable Speed.
●DC motor
●Precision roller bearing for spindle.
●High quality steel, ground and hardened gear inside headstock.
●Various threads cutting function available.
PRODUCT SPECIFICATIONS
TURNING | ||||||||
Swing Over Bed | 290mm | |||||||
Swing Over Cross Slid | 165mm | |||||||
Distance Between Centers | 750mm | |||||||
Lathe Bed Width | 180mm | |||||||
Spindle Taper | MT5 | |||||||
Spindle Bore | 38mm | |||||||

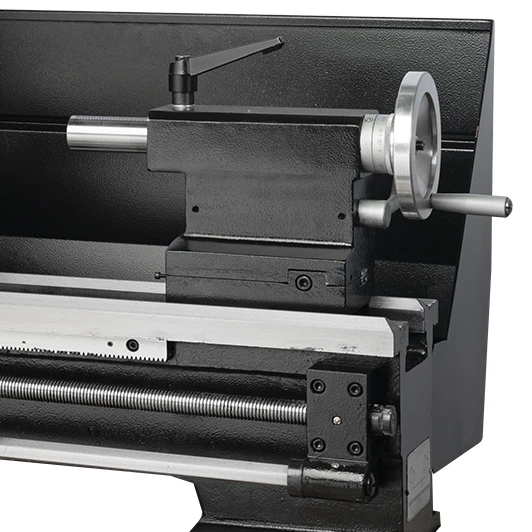

Tailstock Sleeve Travel | 80mm | |||||||
Tailstock Taper | MT3 | |||||||
Large Carriage Travel | 560mm | |||||||
Middle Carriage Travel | 140mm | |||||||
Longitudinal Feeds | 0.07-0.4mm/r | |||||||
Metric Thread (Grade) | 0.2-3.5mm (18) | |||||||
Inch Thread (Grade) | 8-56 T.P.I (21) | |||||||
Spindle Speeds (Grade) | 50-1800 R.P.M/ Steepless Speed | |||||||
Motor Power | 1.5kw | |||||||

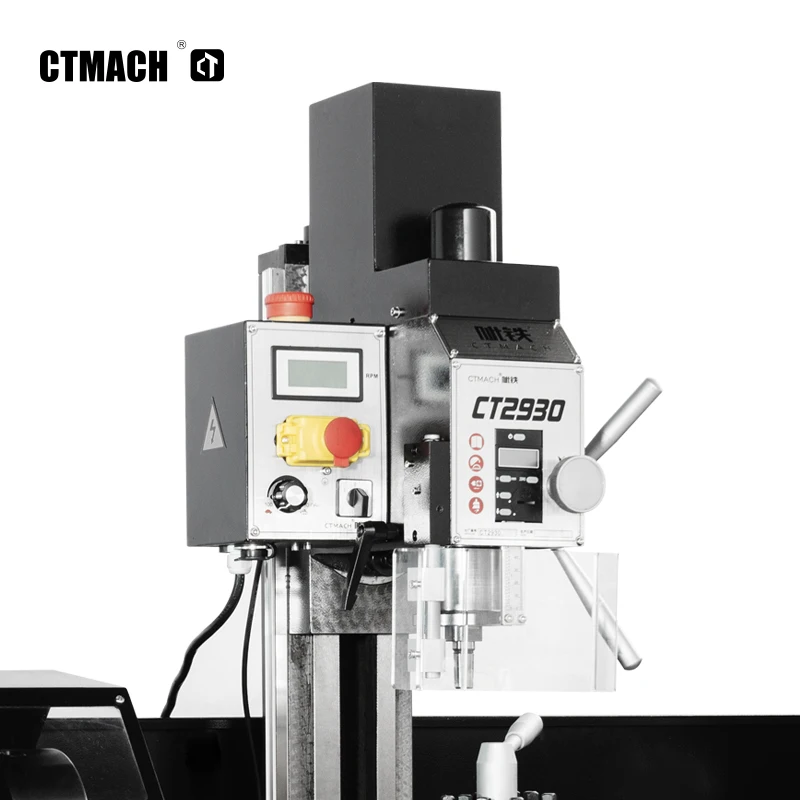

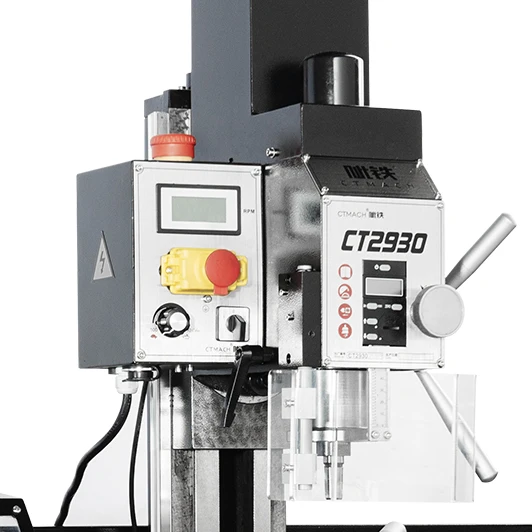

DRILLING AND MILLING | ||||||||
Max. Drilling Diamter | 30mm | |||||||
Max. Face Milling Capacity | 63mm | |||||||
Max. Vertical Milling Capacity | 16mm | |||||||
Z-Axis Travel | 355mm | |||||||
Spindle Taper | MT2 | |||||||
Spindle Travel | 50mm | |||||||
Spindle Incline Angle | ±90° | |||||||
Spindle Speeds (Grade) | 50-2250R.P.M/ Steepless Speed | |||||||
T-slot specifications | 10mm | |||||||
Motor Power | 1.1kw | |||||||
OTHER | ||||||||
N.W. | 290KG | |||||||
Overall Dimensions | 1140*700*1030mm | |||||||
FEATURES AT A GLANCE

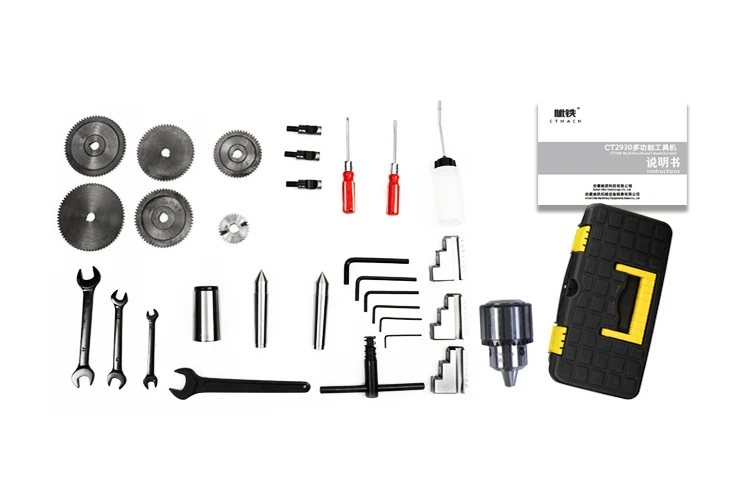

Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
EU CE standard, safe and reliable
ISO9001 quality system certification
Company Profile
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
