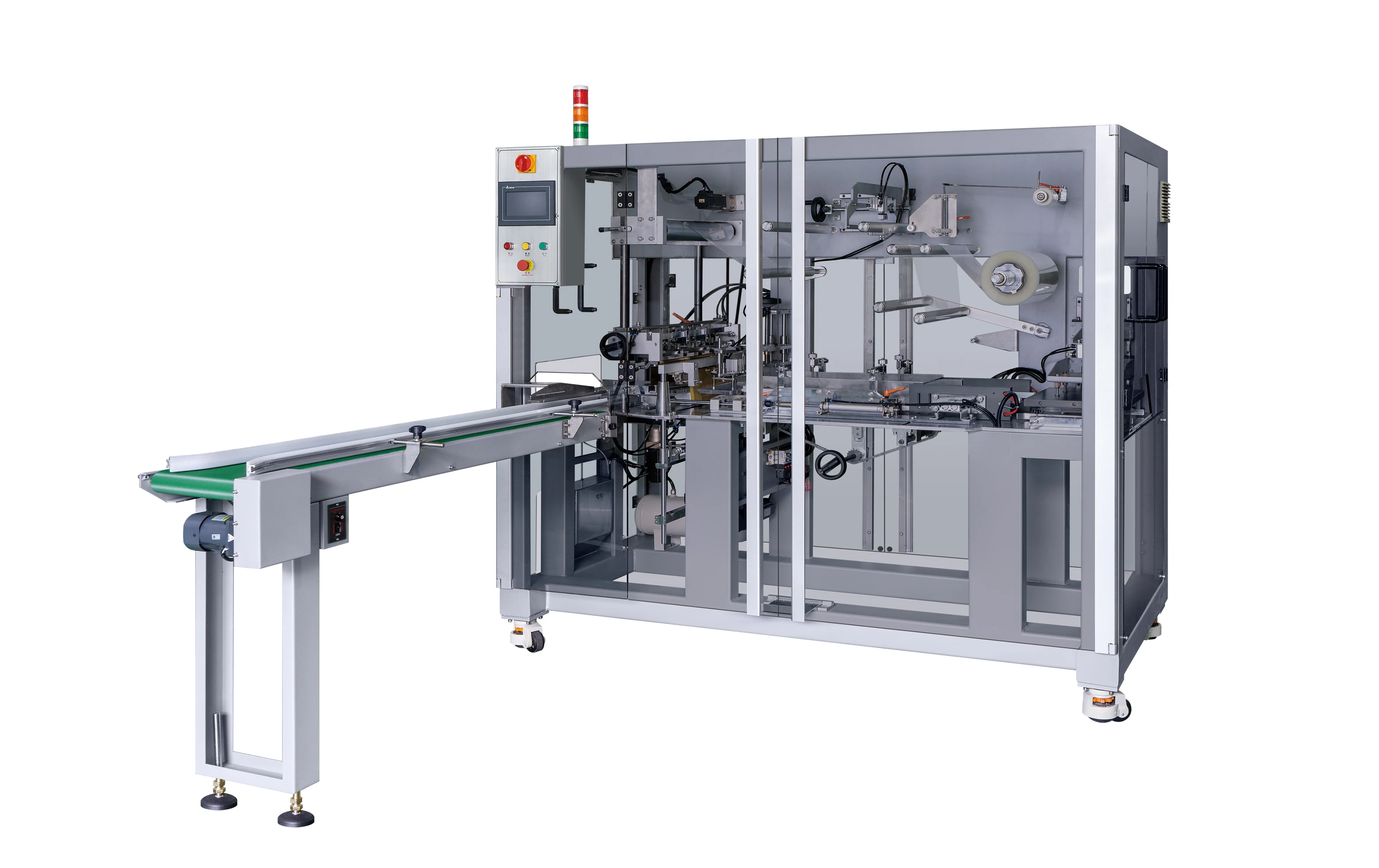

Professional Manufacturer 10 packs Big Box Cigarette Wrapping machine Cellophane Over Wrap Machine

Product Overview

Description

Professional Manufacturer 10 packs Big Box Cigarette Wrapping machine Cellophane Over Wrap Machine





1. Production Instruction:

This machine is widely used in medicine, health care products, food, cosmetics, stationery, audio-visual products and other industries of a variety of single big box packaging or a number of small box film (with gold cable) packaging .



Automatic Grade: Automatic   Driven Type: Electric

Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.

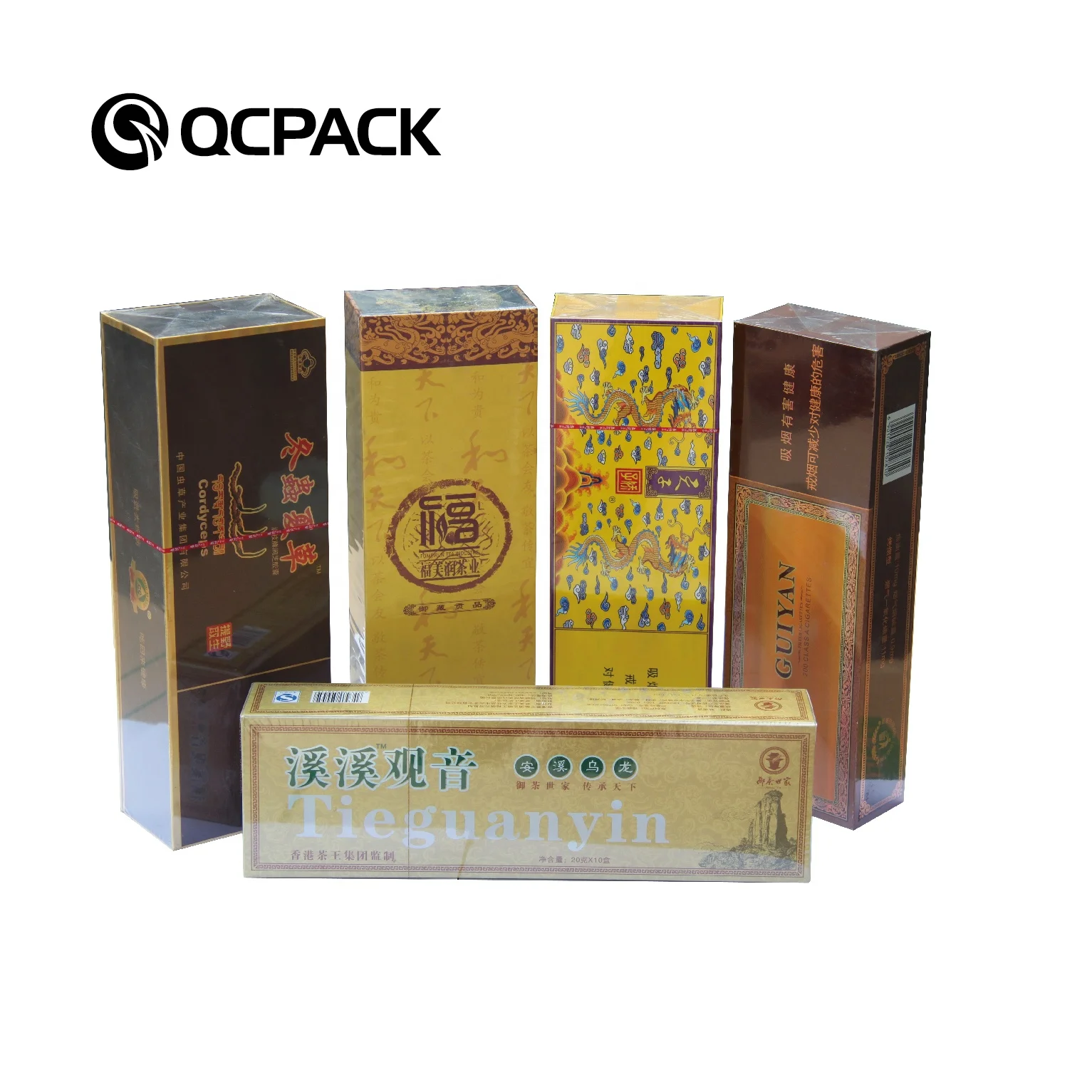

 - big box packaging or a number of small box packaging





2.Technical Data:

Packing Material	BOPP film and gold tear tape
Packing Speed	35~60 packs/min
Packing Size	(L)100-360*(W)50-230*(H)25-130mm
Electric Supply & Power	220V 50Hz  6kw
Weight	850kg
Overall Dimensions	(L)2320×(W)980×(H)1830mm





3. Features:

The work of this machine is to rely on a series of servo motor inside the machine to drive various connecting rods and components to complete, using multi-function digital frequency conversion stepless speed regulation, PLC programming control technology, automatic box feeding, automatic counting, touch display to achieve man-machine interface, suction film fall; And can be used with other production lines.



4.Component list

No.	Name	Amount	Brand
1	PLC module	1 pc	Delta
2	Temperature control device	1 pc	Delta
3	Touch screen	1 pc	Delta
4	The encoder	1 pc	Omron
5	Servo motor	4 pcs	Delta
6	Servo controller	4 pcs	Delta
7	The inverter	1 pc	Delta
8	Switching power supply	1 pc	Delta
9	Miniature universal relay	3 pcs	Omron
10	Solid state relay	5 pcs	Omron
11	Main motor	1 pc	CPG
12	Inner and outer cylinder	2 pcs	AirTAC
13	Plastic cylinder	1 set	AirTAC
14	U-shaped cutter cylinder	1 pc	AirTAC
15	The cutting cylinder	1 set	AirTAC
16	Solenoid valve	7 pcs	AirTAC



For more details of Professional Manufacturer 10 packs Big Box Cigarette Wrapping machine Cellophane Over Wrap Machine, please feel free to contact me.
