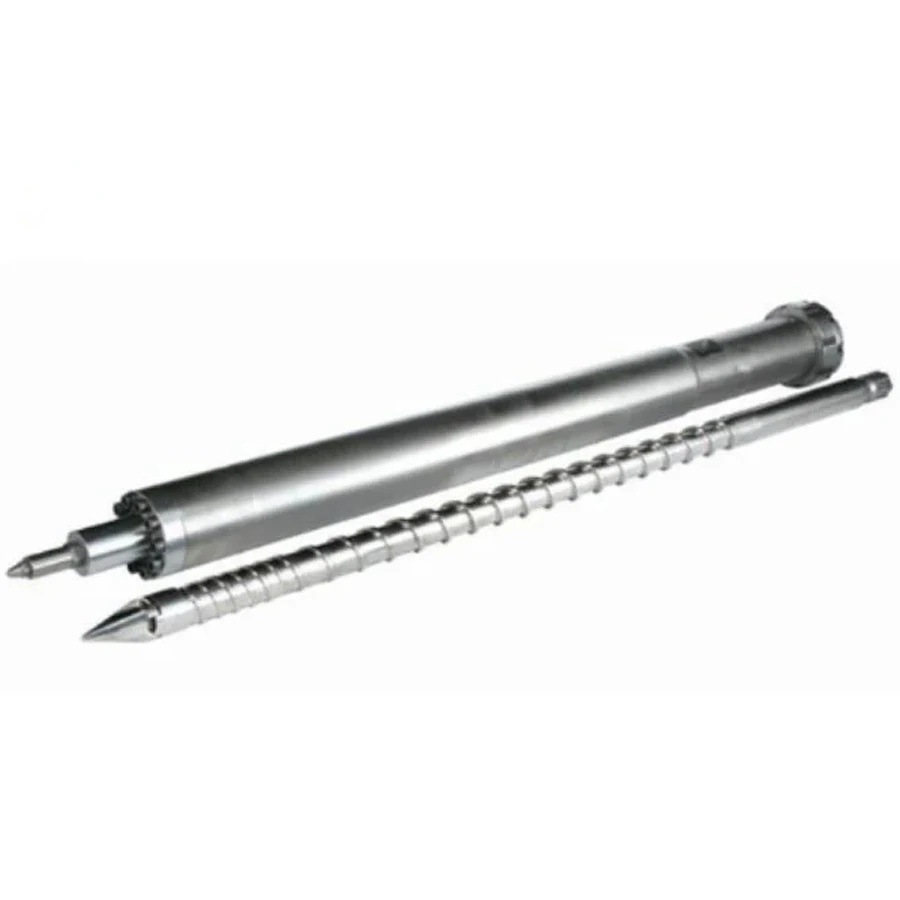

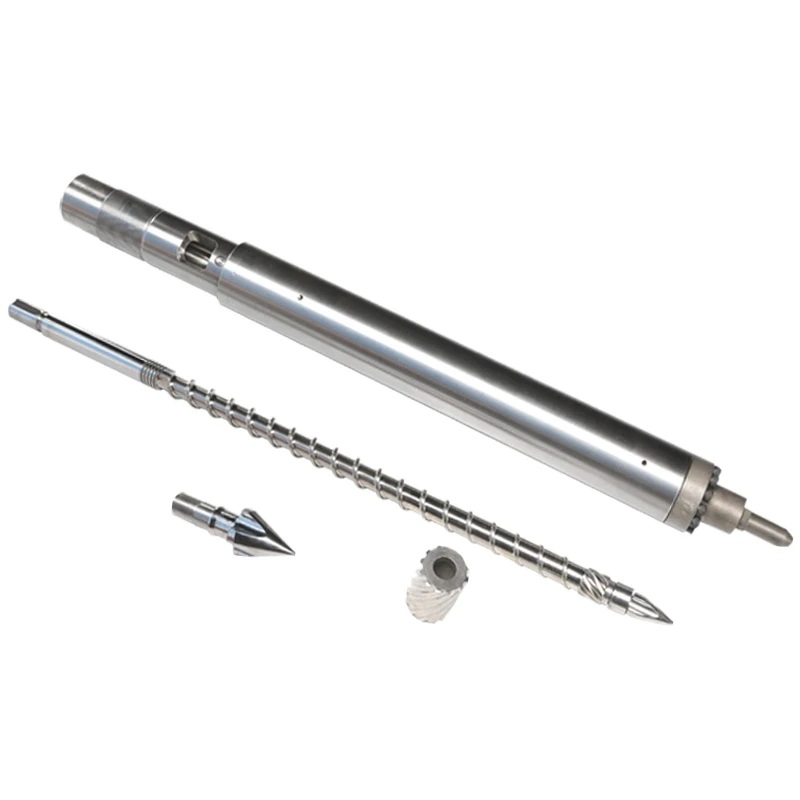

Детали для пластиковых резиновых литьевых машин, впрыскивающий винтовой цилиндр для литья под давлением
- Category: Plastic & Rubber Machinery Parts >>>
- Supplier: Zhejiang Jiacheng Machinery Co. Ltd.
Share on (1600577946625):
Product Overview
Description
We are 30 years factory!!
Contact us get latest discount price !!!
Contact us get latest discount price !!!
Specification

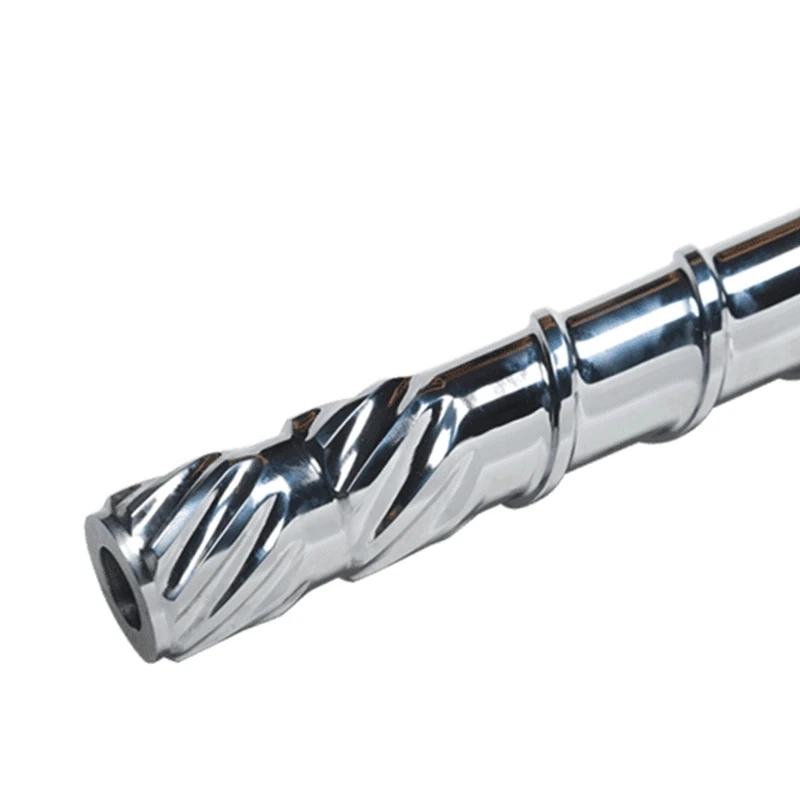

Nitrided Extrusion Screw
We can design and produce high performance extrusion screw to fit your application
*Material: High quality 38CrMoAlA 42CrMo
*Treatment: Nitriding,Bimetallic,Electroplating
*Diameter of Screw: Can be cusomtizedΦ15mm~ Φ300mm
*Screw Type: Vented type non-vented type, high-wear type,Barrier flight type, Mix type ect
*Suitable for: PP,PE,ABS,PVC,TPE ect
*Benefit: Improved product quality,increase plasticizing rate,minimize wear,boost output
*Material: High quality 38CrMoAlA 42CrMo
*Treatment: Nitriding,Bimetallic,Electroplating
*Diameter of Screw: Can be cusomtizedΦ15mm~ Φ300mm
*Screw Type: Vented type non-vented type, high-wear type,Barrier flight type, Mix type ect
*Suitable for: PP,PE,ABS,PVC,TPE ect
*Benefit: Improved product quality,increase plasticizing rate,minimize wear,boost output
Product | Material Base | Treatment | Technical Parameter | Application |
Screw | 38CrMoAlA | Nitriding | Tempering hardness: HB260-280 Nitriding hardness: HV950 Nitride layer depth: 0.4-0.6MM Brittleness :≤2.5 Surface finish Ra0.04 | used for ordinary acid-free low particle size and does not contain GF. Such as ABS\\PP\\PS, etc. |
Screw | 38CrMoAlA | Bimetallic Ni-based alloy | Alloy thickness:≥1.5mm Hardness:HRC53~56 Brittleness :≤2.5 Surface finish Ra0.04 | used for adding acid plastic with GF less than 30% |
Screw | 42CrMo | Bimetallic Ni-based alloy+ElectroPlating | Alloy thickness≥1.5mm ElectroPlating thickness : 0.03~0.0SMM Hardness: HRC52~55 | transparent material/ color mixing material |
Screw | Fully hard powder metallurgy steel | vacuum quenching prooess | Quenching hardness: HRC57-59, Electroplatable thickness: 0.03~0.05MM | suitable for engineering plastics with 35% GF or less, high temperature materials.PA+ GF/ LCP+ GF/High Temperature PC |
Screw | Full hard powder metallurgy steel | vacuum quenching prooess | Quenching hardness: HRC59~61 Thickness 0.005~0.01MM | suitable for engineering plastics with 45% GF or less |

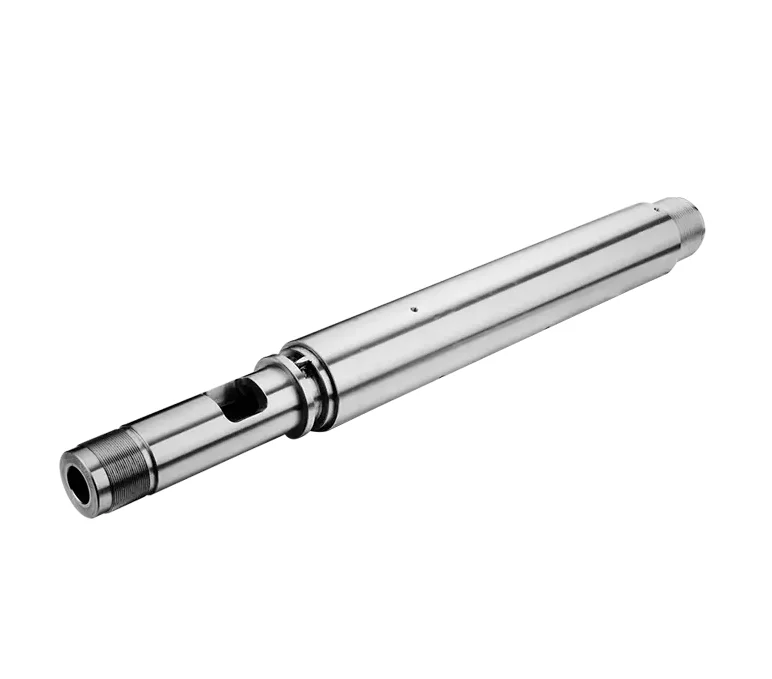

Nitrided Extrusion Barrel
Our Extrusion Barrel is are produced to the highest quality standards
*Material: High quality 38CrMoAlA 42CrMo
*Treatment: Nitriding,Bimetallic,Electroplating
*Diameter : Can be cusomtizedΦ20mm~ Φ300mm
*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect
*Benefit: Improved product quality,minimize wear,boost output
*Material: High quality 38CrMoAlA 42CrMo
*Treatment: Nitriding,Bimetallic,Electroplating
*Diameter : Can be cusomtizedΦ20mm~ Φ300mm
*Suitable for plastic: PP,PE,ABS,AS,PS,PC,PET ect
*Benefit: Improved product quality,minimize wear,boost output
Product | Material Base | Treatment | Technical Parameter | Application |
Barrel | 38CrMoAlA | Nitriding | tempering hardness :HB260-280 nitriding hardness: HV950 nitride layer depth :0.4-0.6MM, brittleness:≤ 2 | Commonly used for acid-free plastics with GF less than 10%, such as PP\\PS＼AS\\ABS\\TPU\\TPE |
Barrel | 38CrMoAlA | Bimetallic Fe-based alloy | Alloy thickness: 1.5-2MM Surface hardness:HRC60-65 | Commonly used for adding acid plastic with GF less than 30%,PC/PA |
Barrel | 38CrMoAlA | Bimetallic Ni-based alloy+15% tungsten carbide powder | Alloy thickness: l.5-2MM, Surface hardness HRC52~55 | Commonly used for adding acid plastic with GF less than 35%, PA/LCP/PBT |
Barrel | 38CrMoAlA | Bimetallic Ni-based alloy+25% tungsten carbide powder | Alloy thickness: l.5-2MM Surface hardness: HRC58~62 | generally used to add aci lastic PEEK/PPS/LCP/flame retardant |
