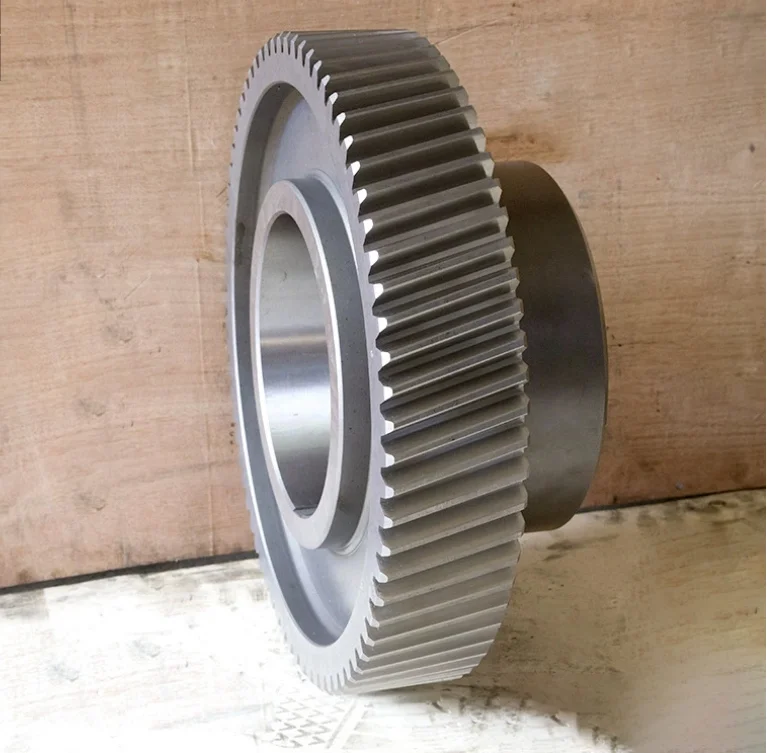

Luoyang CIC OEM Casting steel CNC machine girth gear and pinion for ball mill
- Category: >>>
- Supplier: Cic Luoyang Mechanical Engineering Technology Co. Ltd.
Share on (1600577952177):
Product Overview
Description

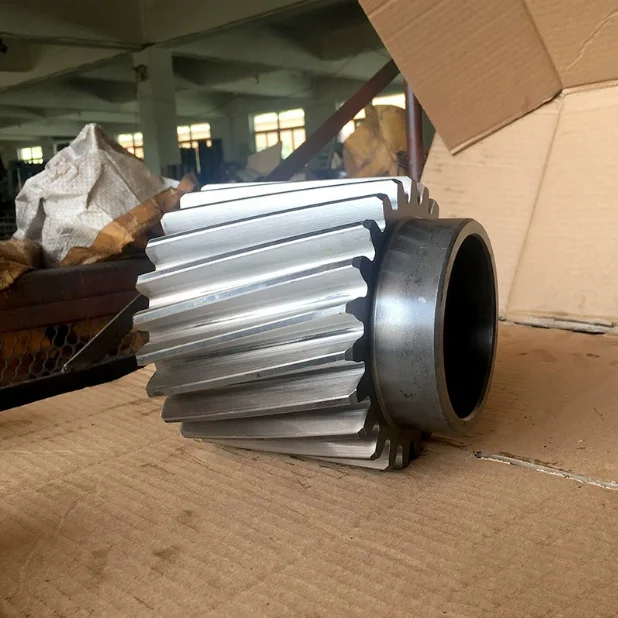

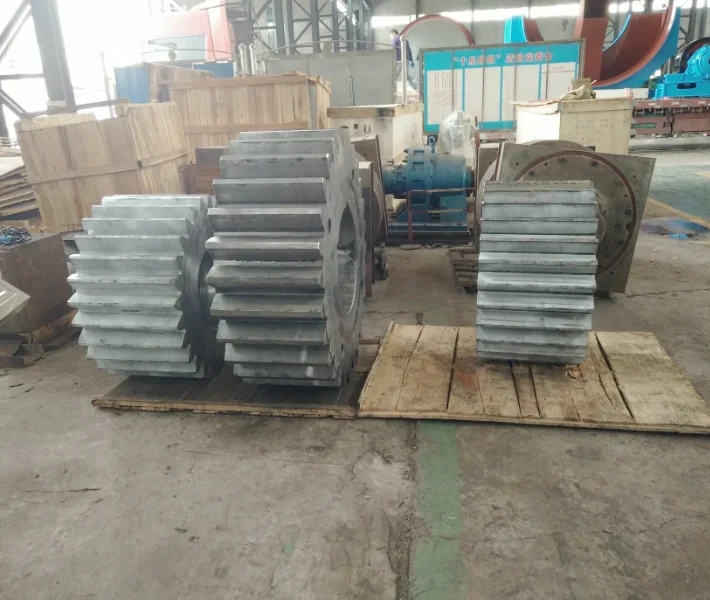

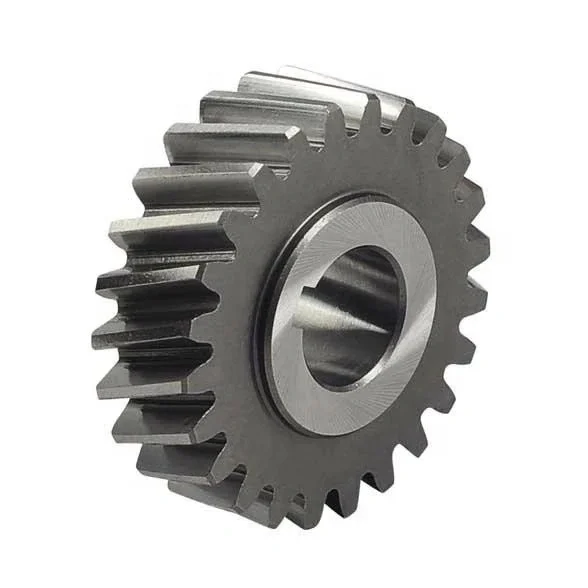

Mill Pinion Gears
Our high torque, high precision integral and non-integral mill pinions are used in SAG, horizontal ball mill and rotary kiln
applications。
applications。

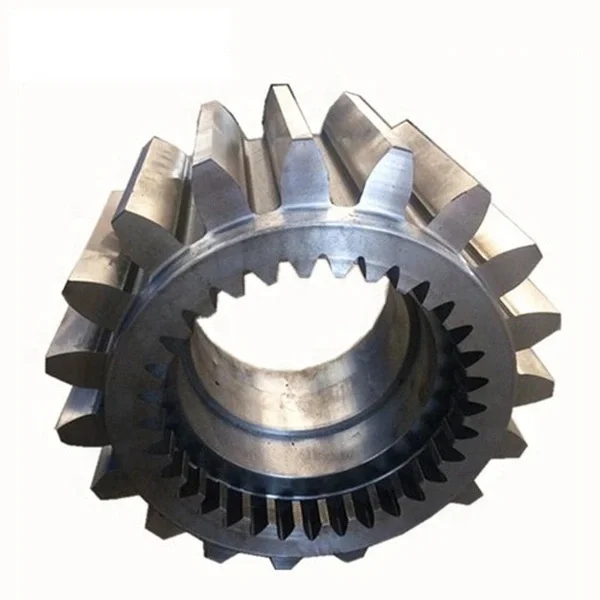

The tooth shape structure of ball mill pinion: it is usually divided into two types, one is involute cylindrical spur gear, and the other is helical cylindrical gear. The matching spur gear enters the mesh at the same time along the tooth width, which is easy to produce vibration and noise, and the transmission is unstable. The application of helical cylindrical gear in the mill is better than that of cylindrical spur gear, and it can be used for high-speed and heavy load with compact center distance. However, because the manufacturing cost of helical cylindrical gears is much higher than that of cylindrical spur gears, cylindrical spur gears are mostly used for ball mill pinions in the market at present. The connection mode of pinion and pinion shaft usually includes expansion sleeve type and internal key type.
Specification
No. | Item | Description |
1 | Diameter | ≤15m |
2 | Module | ≤45 |
3 | Material | Cast Alloy Steel, Cast Carbon Steel, Forged Alloy Steel, Forged Carbon Steel |
4 | Structure From | Integrated, Half to Half, Four Pieces and More Pieces |
5 | Heat Treatment | Quenching & Tempering, Normalizing & Tempering, Carburizing & Quenching & Tempering |
6 | Tooth Form | Annular Gear, Outer Gear Ring |
7 | Standard | ISO, EN, DIN, AISI, ASTM, JIS, IS, GB |
Spare parts used for coal mine and mining machinery
Company Profile
About Us
Our company has strong machining capacity. We can produce: Rotary Part: 250t in weight and 8m in diameter for one single; Shell Part: 200t in weight, 6m in diameter and 20m in length for one single; Gear Part: 150t in weight, 15m in diameter and modulus 45 for one single;Shaft Part: 60t in weight, 2m in diameter and 10m in length for one single. The company can supply large-sized ring&loop parts forthe kiln grinding with capacity of 10000t per day , it is able to produce φ15m girth gear and the reducer with the flank hardness over HRC57, precision GB/T10095 Class 5 and transmission power can reach 45kw.
The company has various large and precision machining equipments such as: 15m CNC Hobbing Machine, 8m CNC Hobbing Machine producedby Wuzhong, 5m CNC Vertical Lathe, 200 Boring&Milling Machine, 220 Boring&Milling Machine, φ2m×10m CNC Horizontal Lathe and φ6m×20m Heavy Horizontal Lathe, etc.
The company has various large and precision machining equipments such as: 15m CNC Hobbing Machine, 8m CNC Hobbing Machine producedby Wuzhong, 5m CNC Vertical Lathe, 200 Boring&Milling Machine, 220 Boring&Milling Machine, φ2m×10m CNC Horizontal Lathe and φ6m×20m Heavy Horizontal Lathe, etc.
Quality Control
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.How can I get the quotation?
Please give us your drawing,quantity,weight and material of the product.
2.If you don't have the drawing,can you make drawing for me?
Please give us your drawing,quantity,weight and material of the product.
2.If you don't have the drawing,can you make drawing for me?
Yes,we are able to make the drawing of your sample duplicate the sample.
3.When can I get the sample and your main order time?
3.When can I get the sample and your main order time?
Sample time: 35-40 days after start to make mold. Order time: 35-40 days, the accurate time depends on product.
4.What is your payment method?
4.What is your payment method?
Tooling:100% T/T advanced Order time:50% deposit,50%to be paid before shipment.
5.Which kind of file format you can read?
5.Which kind of file format you can read?
PDF, IGS, DWG, STEP, MAX
6.What is your surface treatment?
6.What is your surface treatment?
Including: powder coating, sand blasting, painting, polishing, acid pickling, anodizing, enamel, zinc plating, hot-dip galvanizing, electrophoresis, chrome plating.
7.What is your way of packing?
7.What is your way of packing?
Normally we pack goods according to customers' requirements.
