Max opening 185mm automatic air conditioner pressing machine 3inch used hydraulic hose crimper
- Category: >>>
- Supplier: Oriental Mj Hydraulic Machinery (tianjin) Co. Ltd.
Share on (1600577970056):
Product Overview
Description
Product Overview

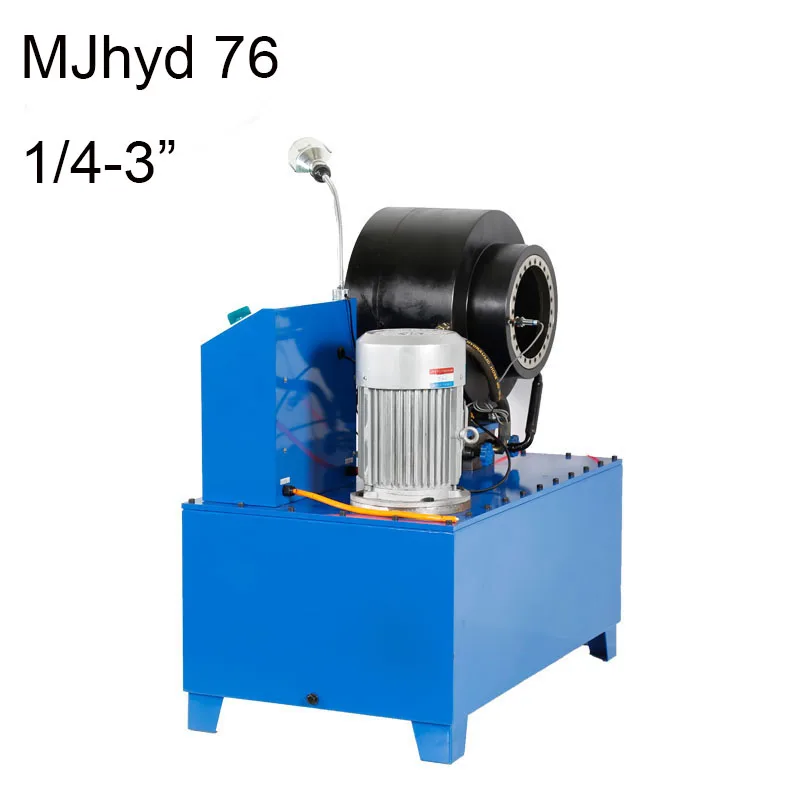

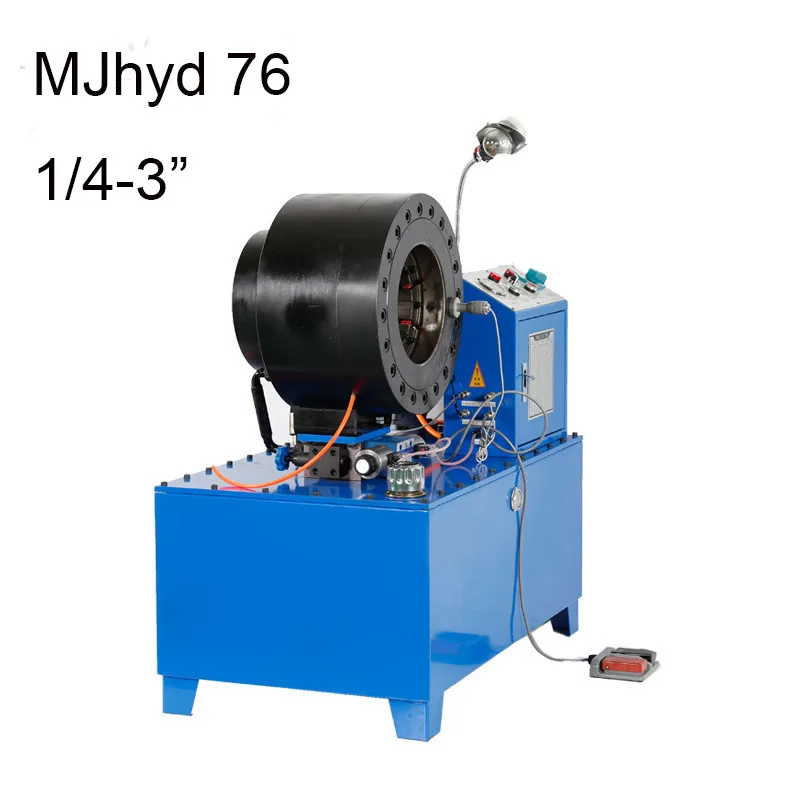

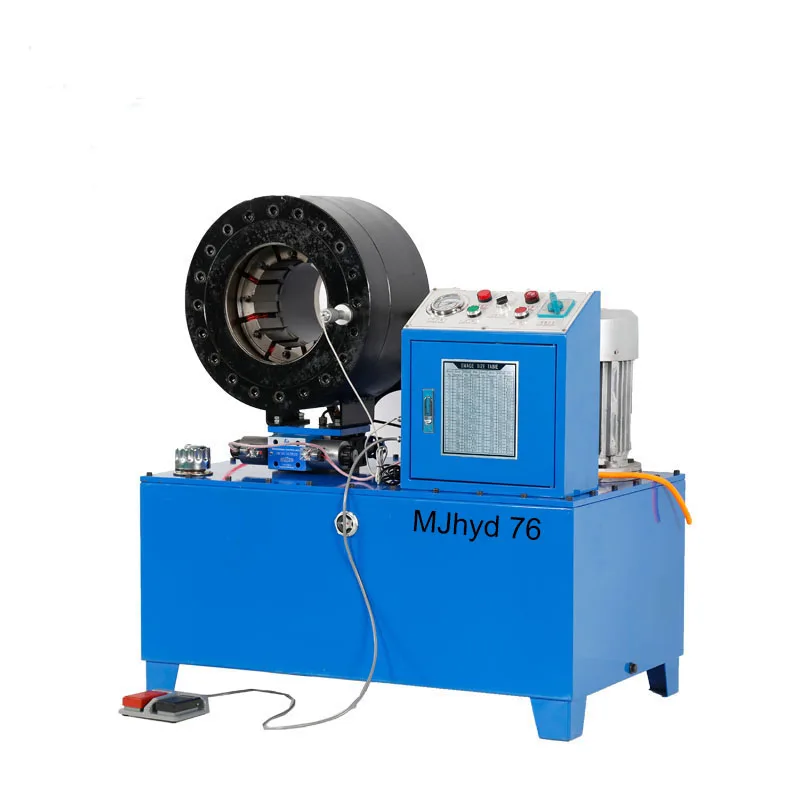

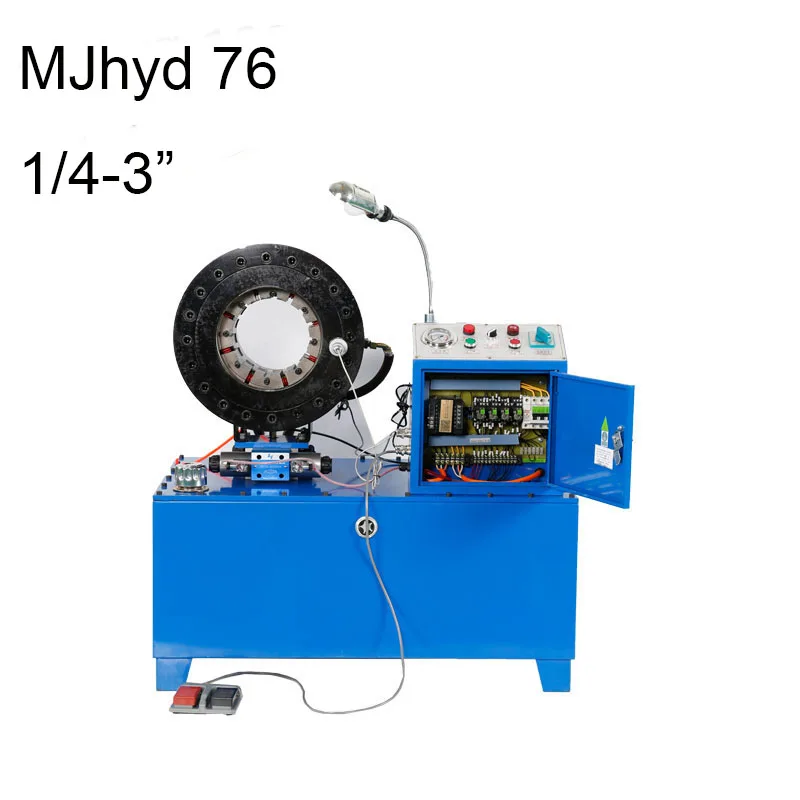

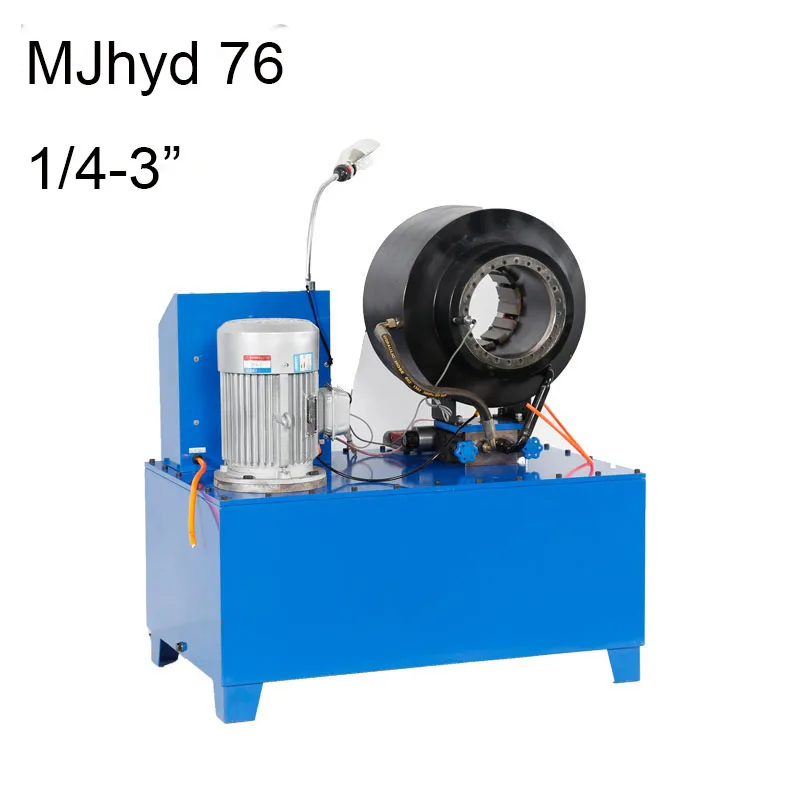

MJhyd 76 hydraulic hose crimping machine
This is the crimping machine used for press hydraulic hose range 1/4-3" 6-76mm 1-4 or 6 steel wires,or other pipe OD range 4-120mm.
The machine could crimp hose 3" R15 or 5" R15 6 wires and complete crimped once time, including 14 sets dies, 5.5KW/4KW powerful motor and 10L large out-let oil pump.
FEATURES AT A GLANCE
Powerful crimp force
Automatic/ Foot pedal operation
380V 5.5KW 10L hydraulic unit
with 16 sets dies
Large max opening 185mm
Working light
Long term warranty
Max opening 185mm
4KW/5KW motor power
Automatic,button & foot pedal
PRODUCT SPECIFICATIONS
Model | Large work ability 4" hydraulic hose crimping machine |
Crimping inner diameter range | 1/8-3" 3-76mm 1-4 or 6 wires |
Crimp outer diameter range | 4-120mm |
Motor power | 4KW 5.5KW or customize |
Oil pump | 10L |
Max opening | 185mm |
The max open tolerance | ±30mm |
Scale accuracy | 0.01mm |
Operate methods | Automatic, button or foot pedal |
Dies molds | regular 14 sets ,could customize for more |
Dies number | 15mm 19mm 23mm 26mm (length 60mm) |
Dies number | 31mm 36mm 41mm (length 70mm) |
47mm 55mm 63mm (length 80mm) | |
75mm 84mm 90mm 105mm (length 100mm) | |
Packing size | L 1060 * W 890* H 1200mm |
Gross weight | 580KG |
Many hose/pipe could be crimped
Different hose or fitting need different dies mold, like air suspension ring, air conditioning hose,brake hose,hydraulic hose,cable wire, steel pipe,steel wire rope and so on.
So you can tell us what you need to crimp, then we make customize the dies mold regarding your products or requirements.
Recommend Products
Model : MJ58
The machine could crimp hose up to 2" 6sp or 3" 4SP, including 15 sets dies, 5.5KW motor.Could crimp eblow fittings no need move dies.
Model : MJ53
Crimp hose range 1/4-2" 6-51mm 1-4 wires; including 10 sets dies, automatic control with foot pedal as well; Match the dies holder on the machine left, very convenient for operation.
Model : MJ52-T
Finn power P32 looking style, crimp hose 1/4-2" 6-51mm, with quick change and dies rack. Could change whole set dies once time,save your time; dies rack very convenient for operation.
Our factory and company
Oriental Mj Hydraulic Machinery (tianjin) Co., Ltd.
Oriental MJ Hydraulic Machinery（Tianjin）Co.,ltd has always been committed to the research and development of Hydraulic hose&
Tubing Processing Equipment, high and low pressure rubber hose, fitting joints, etc.
History of more than 18 years, offering customized solutions gained from research, precision and quality.
Tubing Processing Equipment, high and low pressure rubber hose, fitting joints, etc.
History of more than 18 years, offering customized solutions gained from research, precision and quality.
Production process
Step 1 :
High quality Raw material
Step 2:
Lathe processcing
Step 3:
Drilling
Step 4:
Assembly -part 1
Step 5:
Assembly -part 2
Step 6:
Assembly -part 3
Certifications
Packing-step 1:
Innermost layer is plastic bag/wrap;
Packing- step 2:
Middle layer is bubble wrap for protection;
Packing-step 3:
Outside is export standard wooden box,strong and fumigation free.
Q1 : Are you factory ?
A1: Yes,we are factory,and our factory has over 18 years experice for product the machines;
Q2: Do you have the machine in stock?
A2: We usually keep the machine in stock, please kindly tell me which model you want,we will provide you more detail information.
Q3: Could you customize the voltage ?
A3: Yes,we can customize the voltage ,we have experience customize on 230V 240V 400V 415V and 110V, if you want customize the
voltage,please contact me.
Q4: How about the warranty?
A4: Firstly our machines have 3 years warranty time,its long term warranty for this kind machine;
Then we very confident that if you crimp the hose/fitting within its ability and operate right way,the machine would not work
wrong;
If your machine cann''t work,please contact us,we will help you fix it or send you some spares.
Q5 : Could you customize dies molds?
A5 : Yes,we are very experience on customize dies, suck like for air conditioning,brake hose and so on. We could customize the
dies pattern or dies number regarding your requirement.
Q6: Does the machine operate easily?
A6: Yes, We complete testing each machine before send,no need anymore adjust,we package installation instructions and use tip for
each machine,we also could provide the operate video.
Q7 :Can you produce product with my own brand?
A7. Yes, it''s available except famous brand which are not allowed.
Q8: Could you customize color for me?
A8: Yes,we can customize the color regarding your requirement.
