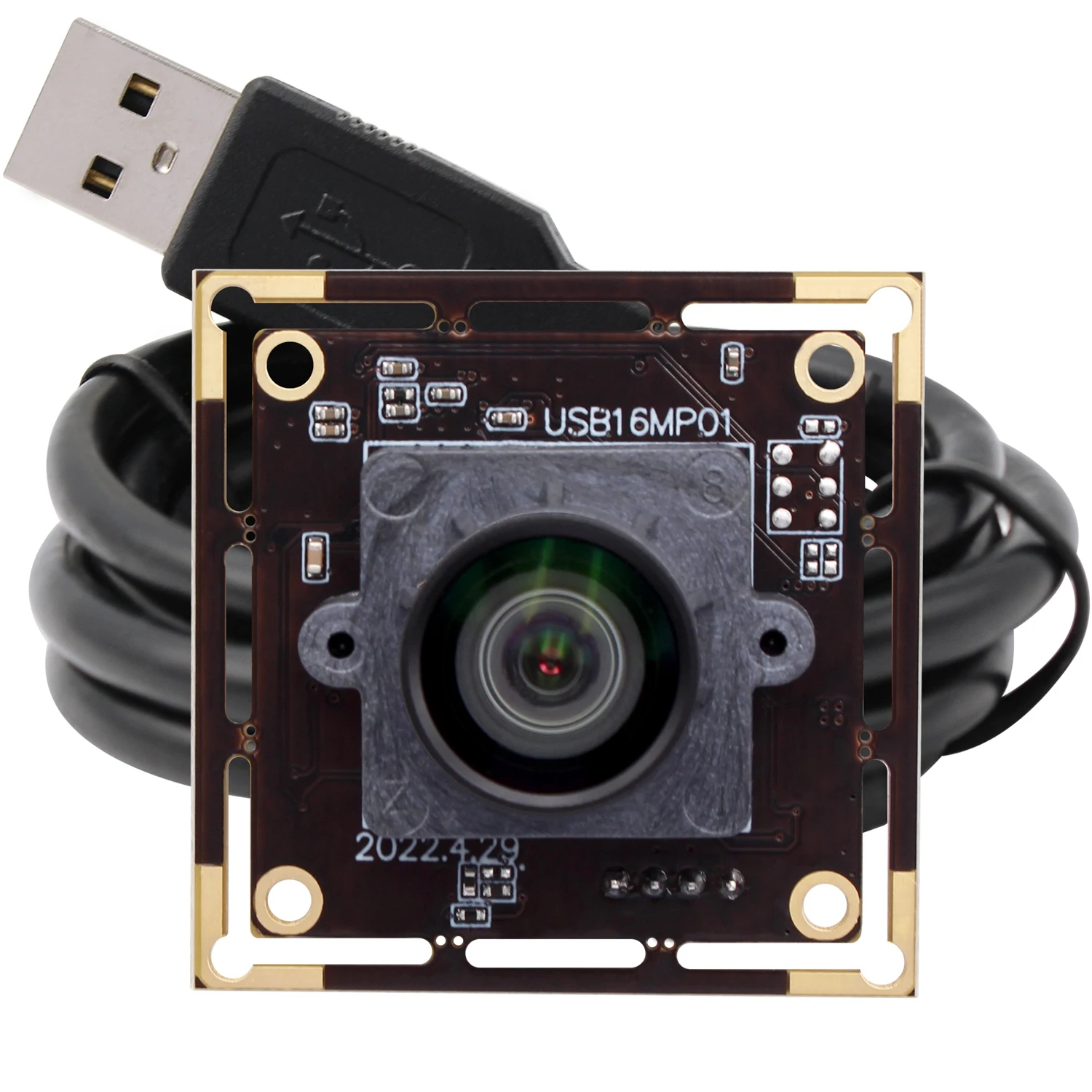

ELP No Distortion 16MP USB Webcam Driverless IMX298 Sensor OCR Passport Scanning OEM CMOS CCTV Board Camera Module For PC Laptop
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600577979633):
Product Overview
Description
16MP Video Camera USB 2.0 Interface IMX298 Manual Focus High Resolution CCTV Surveillance Camera Module For Document Scanning
16MP 4656(H) *3496(V) High Resolution Mini USB Camera UVC Web Camera for Android Linux Windows Video Conference Camera,
High quality no distortion lens,supports full HD video calling over the internet without delay.
Max Resolution:4656x 3496
Sensor:SONY IMX298
Compression Format:MJPEG/YUY2 optional
Default 1 meter USB cable
Sensor:SONY IMX298
Compression Format:MJPEG/YUY2 optional
Default 1 meter USB cable
Specification
Model | ELP-USB16MP01-V100 |
Sensor | SONY IMX298 |
Sensor Size | 1/2.8inch |
Pixel Size | 1.12um |
Image area | 6.4mm x 5.3mm |
Max. Resolution | 4656(H) X 3496(V) 16Megapixel |
Compression format | MJPEG / YUY2（YUYV） |
4656x 3496 MJPEG@10fps YUY2 @ 1fps 4208x 3120MJPEG@10fps YUY2 @ 1fps 4160x 3120 MJPEG@10fps YUY2 @ 1fps 4000x 3000MJPEG@10fps YUY2 @ 1fps 3840 x2160 MJPEG@10fps YUY2 @ 1fps 3264 x2448MJPEG@10fps YUY2 @ 1fps 2592 x1944 MJPEG@10fps YUY2 @ 1fps 2320 x1744MJPEG@30fps YUY2 @ 1fps 2048 x1536 MJPEG@30fps YUY2 @ 1fps 1920 x1080MJPEG@30fpsYUY2 @ 5fps 1600 x1200 MJPEG@30fpsYUY2@ 5fps 1280 x960MJPEG@30fpsYUY2 @ 10fps 1280 x720 MJPEG@30fpsYUY2 @10fps 1024 x768MJPEG@30fpsYUY2 @ 10fps 800 x600 MJPEG@30fps YUY2 @ 15fps 640 x480MJPEG@30fps YUY2 @ 30fps | |
Min illumination | 0.5lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free DriveProtocol | USB Video Class（UVC） |
AEC | Support |
AWB | Support |
AGC | Support |
Buttoncamera | Support |
Adjustableparameters | Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | Default V100 no distortion lens, Horizontal 80degree Other lens optional |
Power supply | USB BUS POWER4P-2.0mm socket |
Operating Voltage | DC5V |
Working Current | 150mA~240mA |
Working temperature | -10～70℃ |
Storage temperature | -20～85℃ |
Boardsize/Weight | 38X38mm（Compatible 32X32mm）/ about 30g |
Cable | Standard 1M / optional 2M,3M,5M |
Operating system request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |

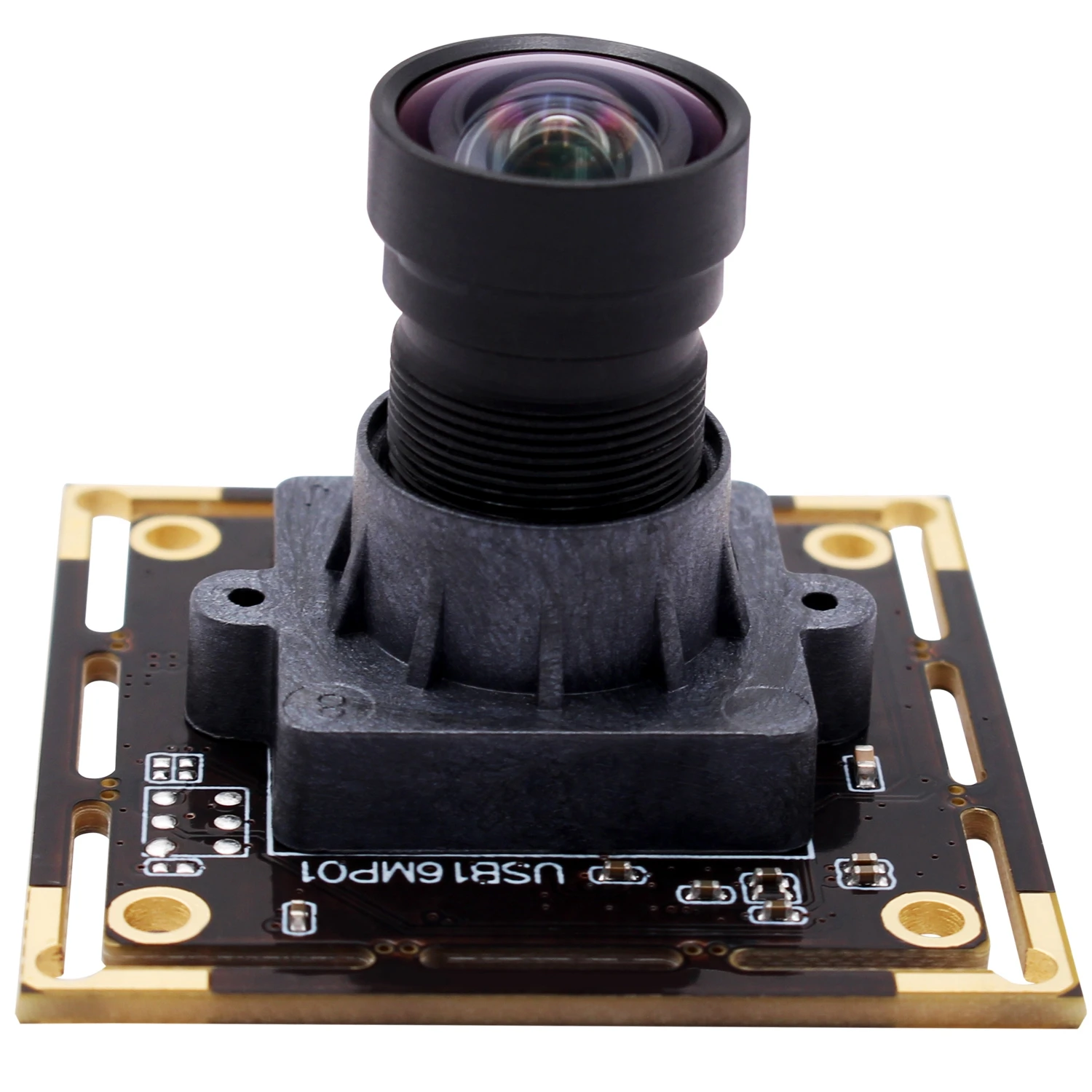

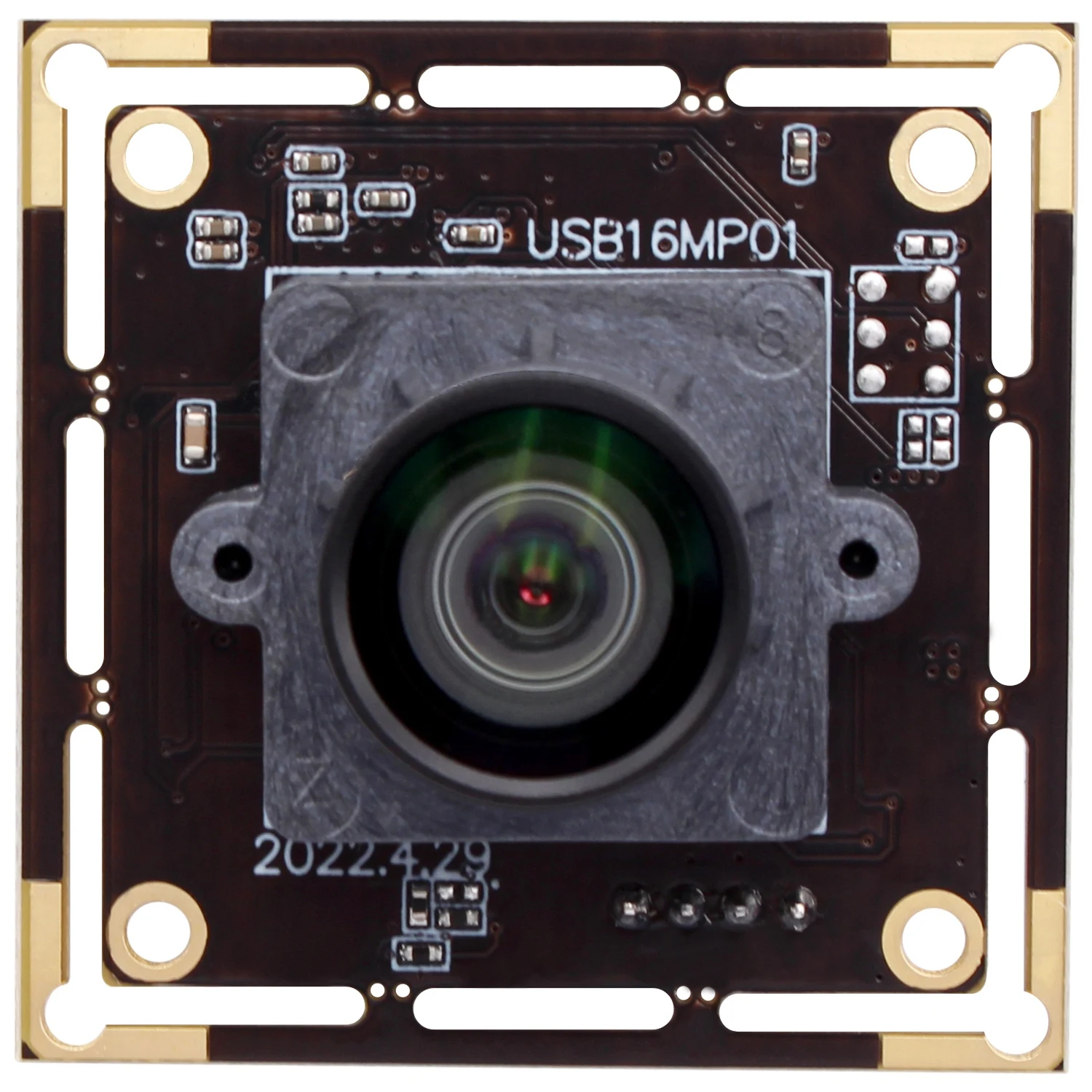

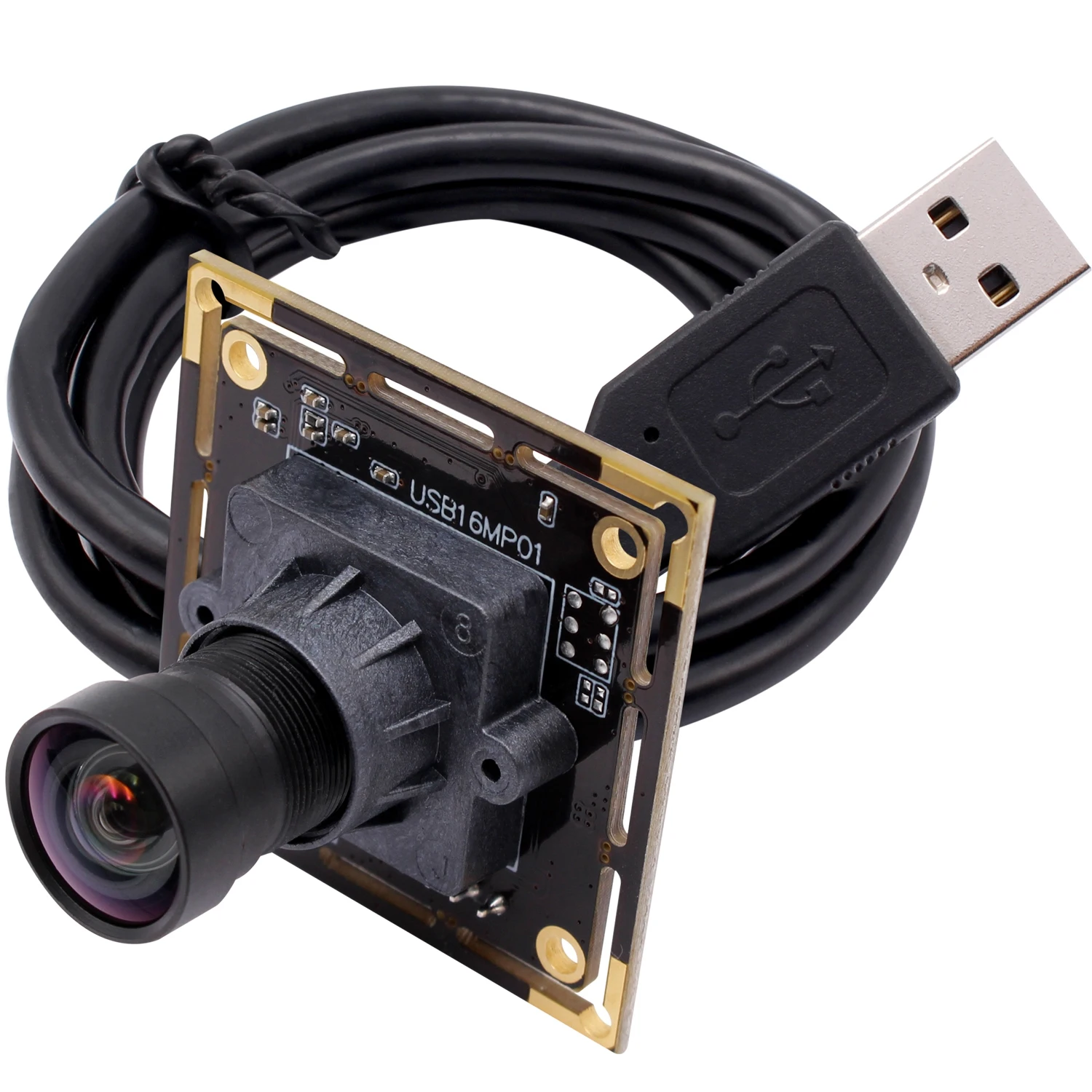

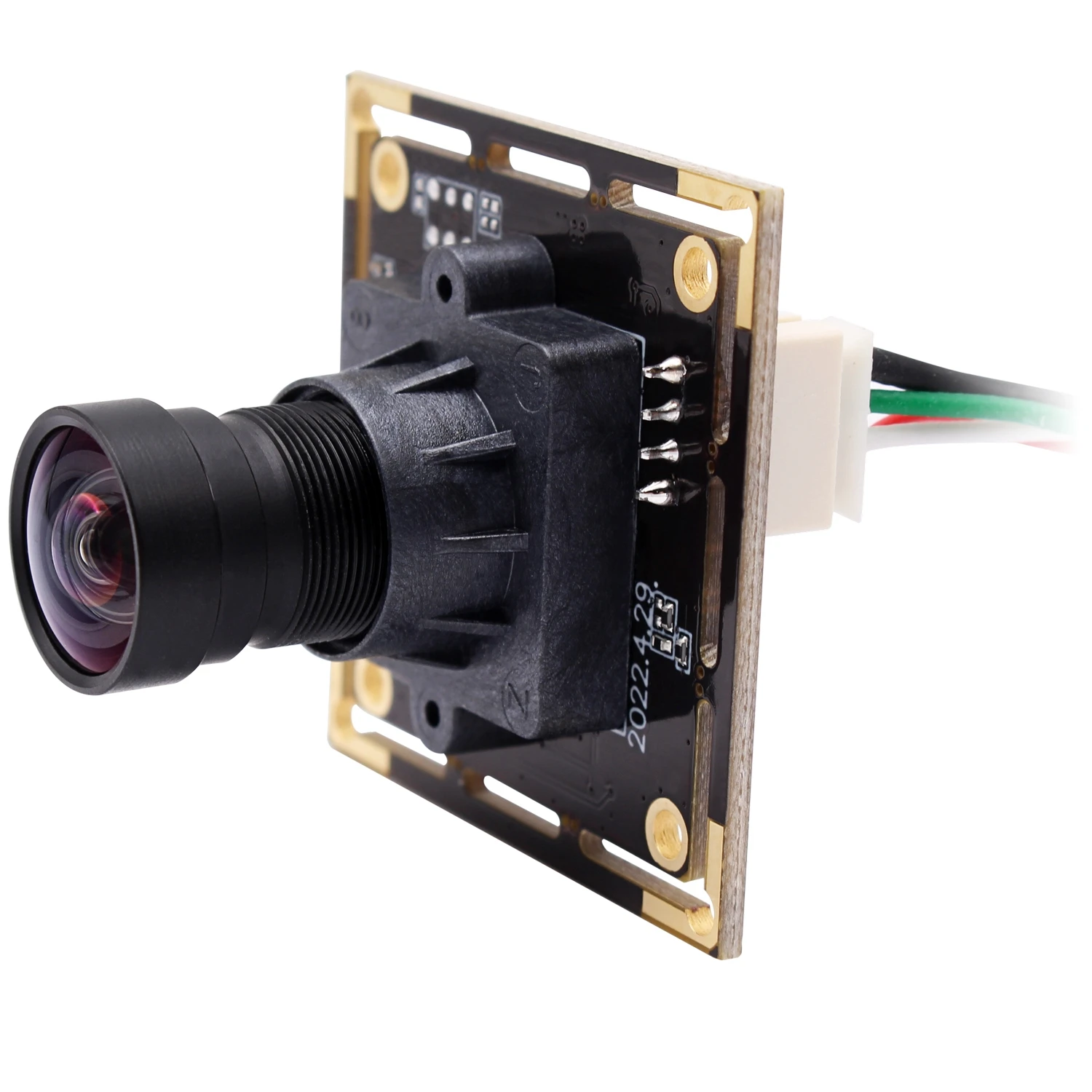

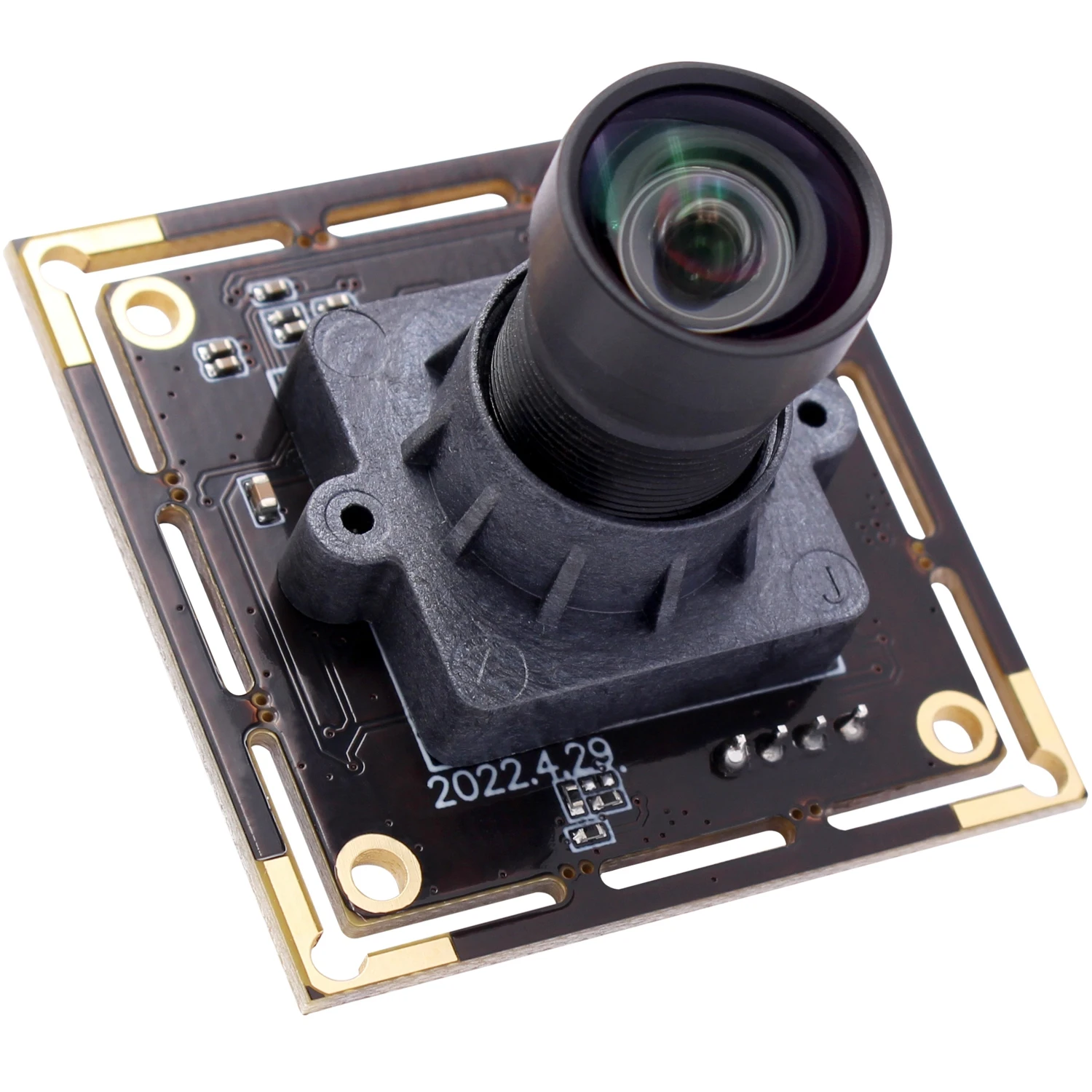

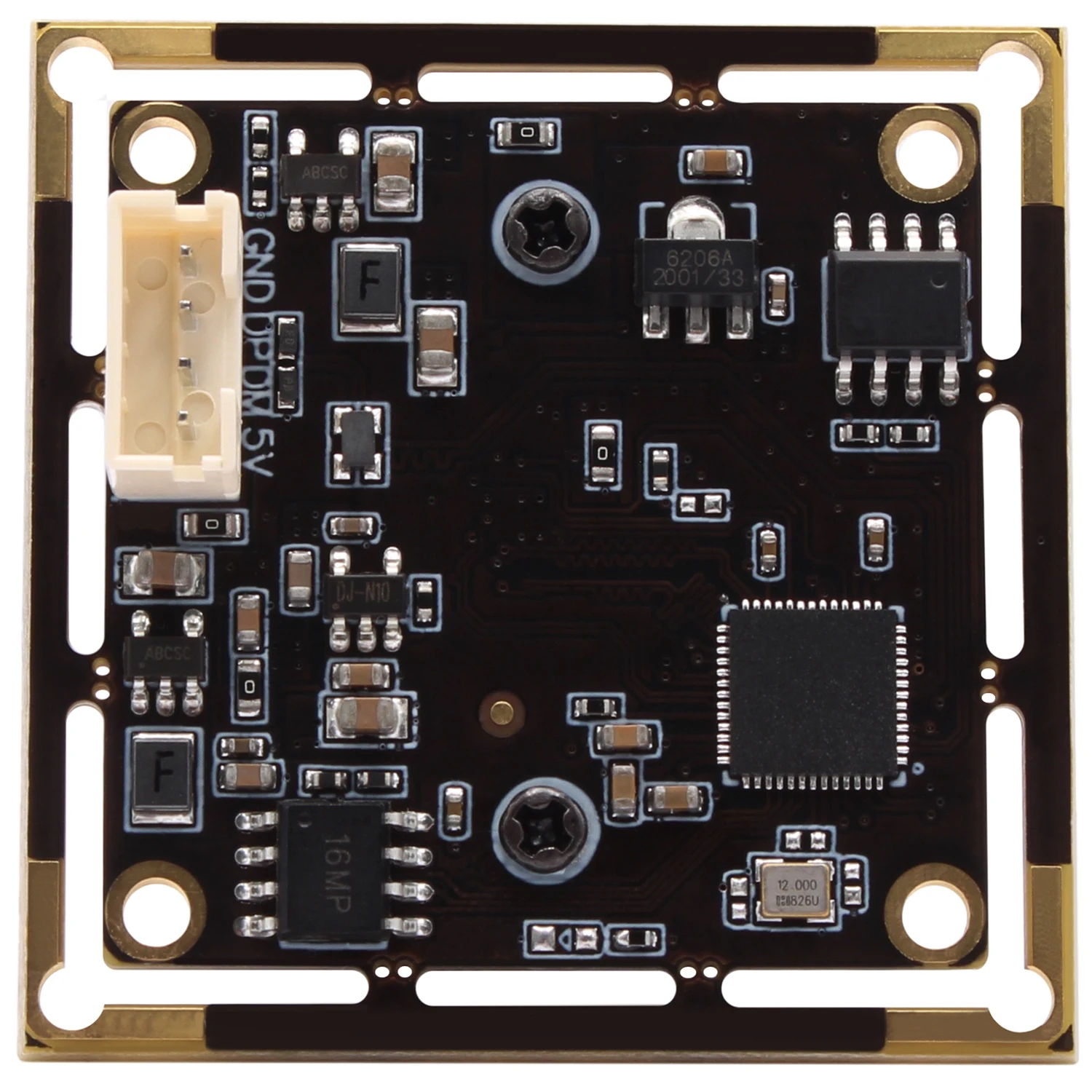

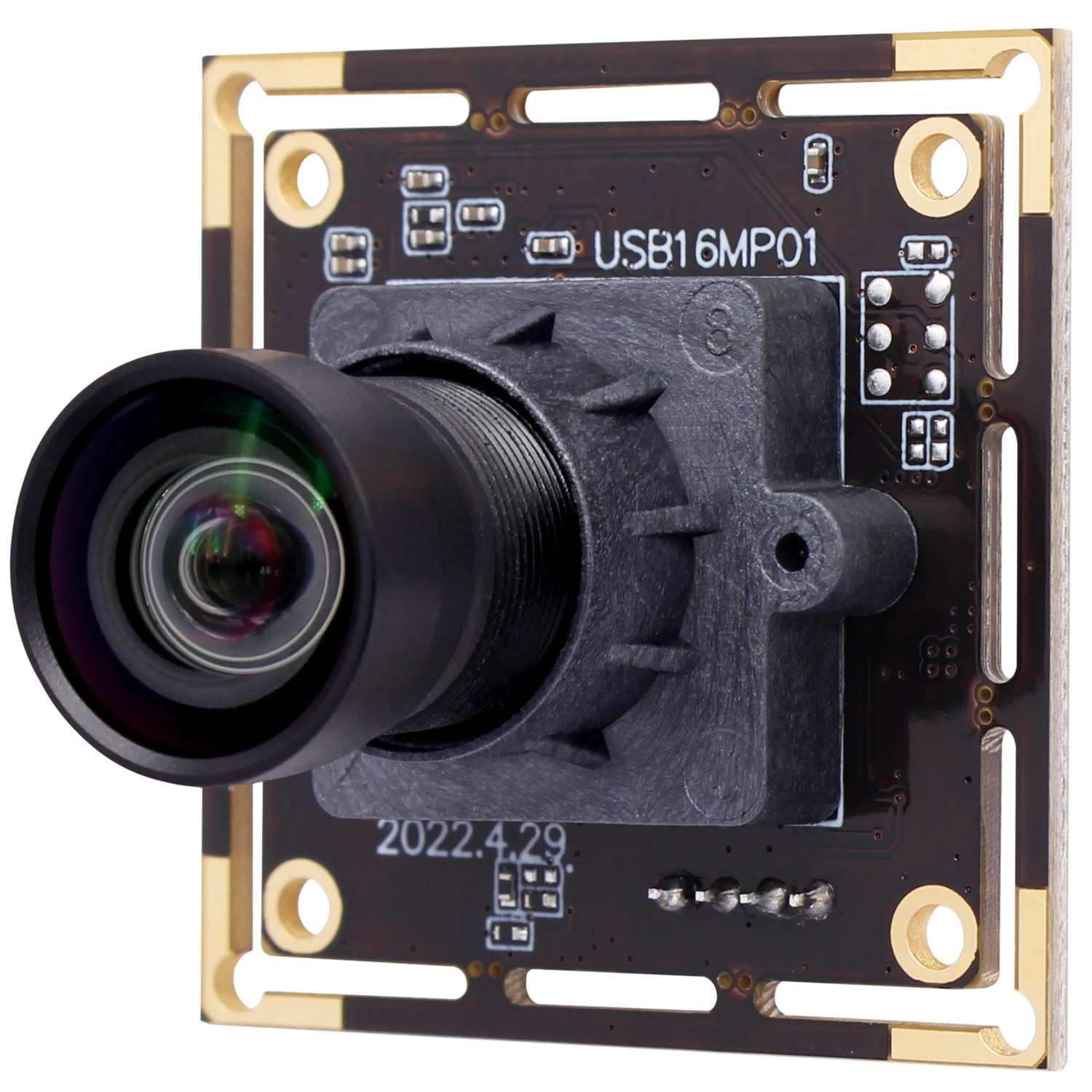

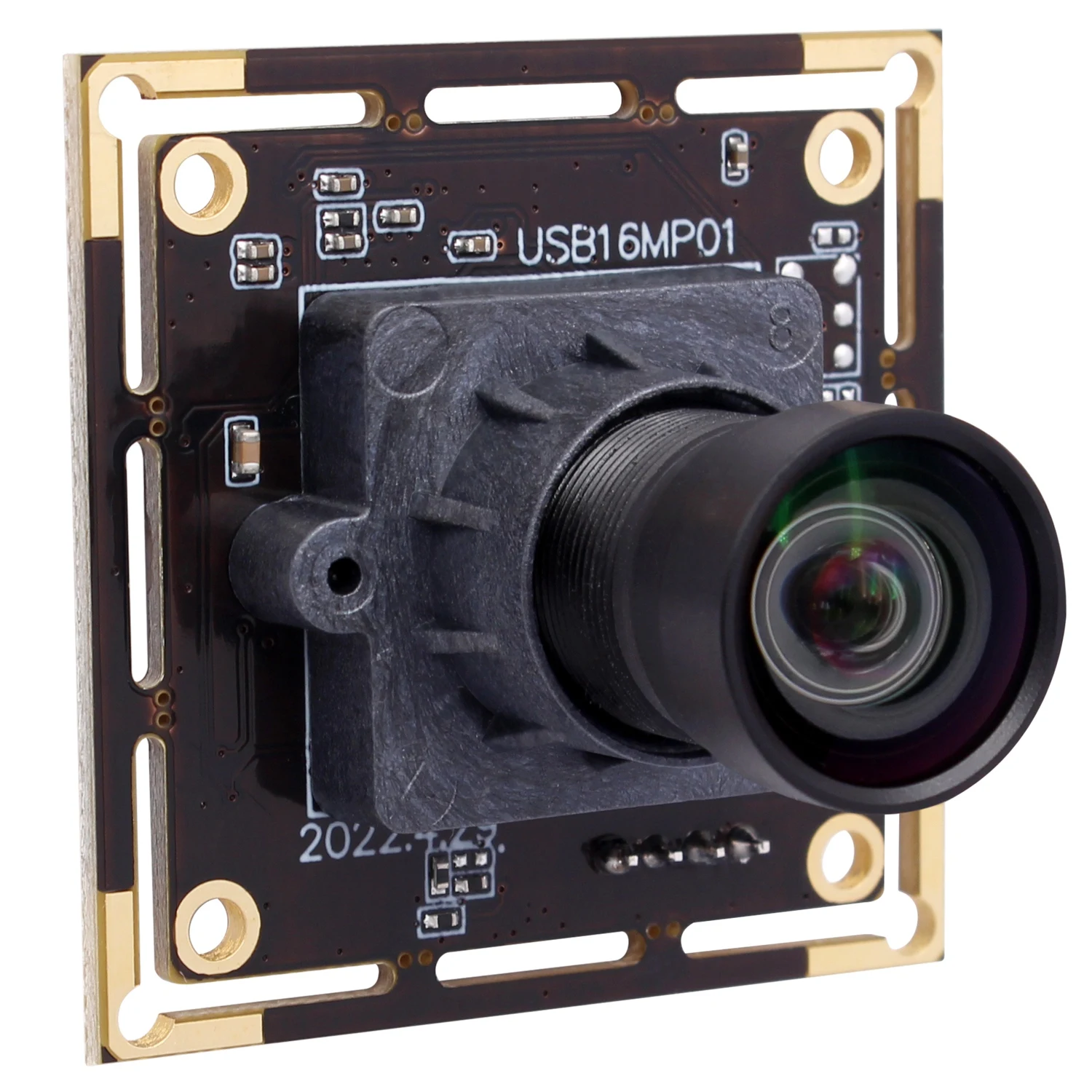

Product Picture Show
Effect Image
16MP resolution,support 10fps@4656x3496/4160X3120/ 3840X2160/2592X1944, 30fps@2048X1536/1600X1200/1280X720 and YUV video streaming. Mini 75 degree no-distortion Lens USB camera can view 8CM-100M long distance,true and no distortion color image.
Adjustable Parameters:
Brightness/contrast/saturation/hue/sharpness/gamme/gain/white balance/backlight contrast/exposure.
Used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB,smart box TV BOX, advisement player,LED display,automatic vending machine,safety box,notebook,video door phone, MID, Tablet external, evaluator,medical Equipment, ttendance machine, Voting system etc
Brightness/contrast/saturation/hue/sharpness/gamme/gain/white balance/backlight contrast/exposure.
Used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB,smart box TV BOX, advisement player,LED display,automatic vending machine,safety box,notebook,video door phone, MID, Tablet external, evaluator,medical Equipment, ttendance machine, Voting system etc
Plug-&-Play (UVC compliant),USB2.0 camera module with 1 meter USB2.0 cable. Embedded with 1/2.8”SONY IMX298 image sensor for better picture performance. High quality 16 megapixel lens great fit for Medical Auxiliary,Document Scanning,Macro photography.....
Supported OS:
Win7/8/10,Linux,Mac,Wince and Android with UVC.Size:38x38mm/32x32mm. Plug and Play,UVC compliant for most os.,Working Temperature: 0°C to 60°C.Widely used in medical machine,industrial equipment,Ticket Machine,Kiosk,Automatic Vending Machine,ATM machine.
Support all kinds of Android,Linux Windows,Mac OS system,can also work with smart phone by OTG cable.
* Family Chat
* Conference Call
* Smart TV
* Education streaming
* Long Distance Object Capture.
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental
monitoring, etc.
Company Profile
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
