OLLITAL Perfusion Agitator Tanque Bioreactor 30l 350l 3000l 100001 Bacteria Sten Cells
- Category: >>>
- Supplier: Xiamen Ollital Technology Co. Ltd.
Share on (1600578068340):
Product Overview
Description
Product Description

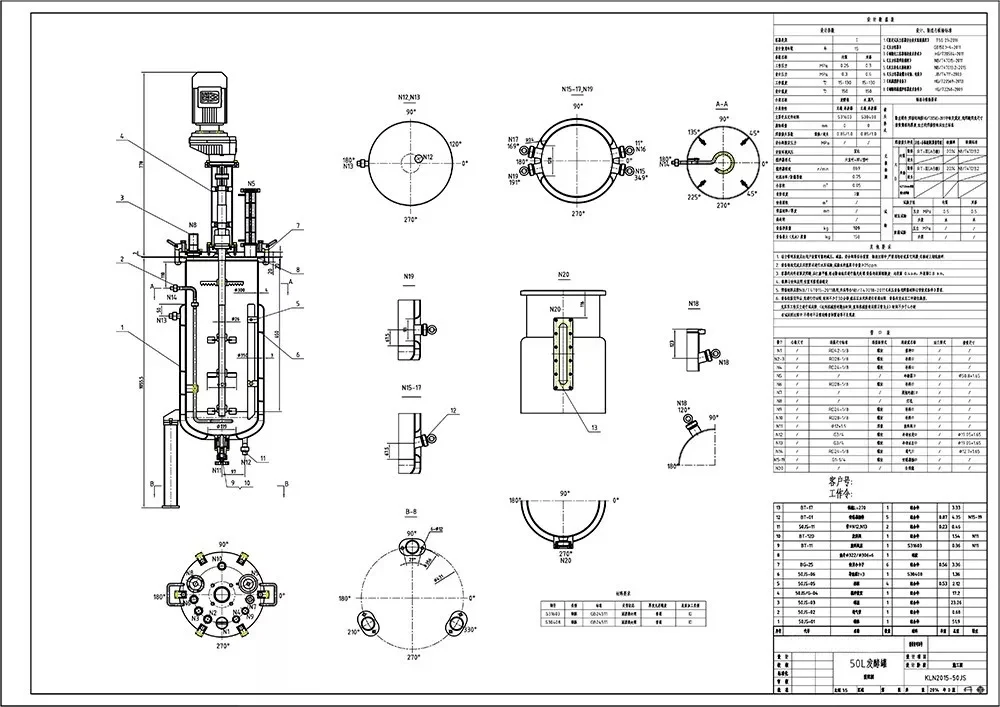

Design of bioreactors
The design of bioreactors is a complex biochemical research engineering scientific task. The goal of design is to create the optimal environment for microorganisms or cells to perform their functions and produce products with impurity levels within standards.
Technical Parameters
TYPE | OLT-5/10/20/30/50JS | ||
Total Volume | 5/10/20/30/50L | ||
Vessel | 316L Stainless Steel +Borosilicate Glass | ||
Stirrer | Top driven | ||
Basic Features | Temperature,RPM,PH,Feed,Aeration | ||
Advanced Features | DO,Antifoam,Level | ||
Features | specific Air-distributing ring make liquid and air mix completely:bottom webby forrecycling Enzyme catalysis | ||
Controller | OLT-7000 Technical parameter | |||
Parameter | Guideline | Controller data processing function | ||
pH | Displaying range: 0.00~14.00±0.01 Auto-control range:2.00~12.00±0.05 Fermentation process control (According to the fermentation time, auto- control pH fluent, at least10 parts) | pH value historical and trend curve analysis Acid, alkali dosage curve analysis Batch report form analysis Acid, alkali total dosage record Keep | ||
Antifoam | Automatic PID control and alarm Fermentation process control (According to the fermentation time, auto- control antifoam fluent, at least10 parts) | Antifoam value historical and trend curve analysis Foam error state record antifoam total dosage record Batch report form analysis Keep | ||
Rpm | Automatic enactment and control(50~1000rpm±5‰) Fermentation process control (According to the fermentation time, auto-control rev fluent, at least10 parts) | Rpm value historical and trend curve analysis Batch report form analysis Keep and deliver data | ||
Temperature | Temperature of cooling water: +5℃-65℃±0.2℃ Fermentation process control (According to the fermentation time, auto- control temperature fluent, at least10 parts) | Temperature value historical and trend curve analysis Batch report form analysis Keep | ||
Feeding | PID automatic enactment and control Fermentation process control (According to the fermentation time, auto- control feeding fluent, at least10 parts) | Feeding value historical and trend curve analysis Feeding total dosage record Batch report form analysis keep | ||
Pressure | Manual control, instrument display | |||
Air flux | Manual control, instrument display | |||
Performance parameter | ||||
Equipment | Item | Reqirements and manufacturers | ||
5BG Reactor tank | reactor body | glass and strainless steel cylinder, 5L-50 litres total volume, 3.5-35 litres working volume, sterilizable in situ, magnetic force stirrer | ||
Aeration system | include pressure control valve, rotameter, aeration filter(0.2μm) | |||
Agitation system | bottom magnetic force stirrer, AC motor, ca.50~1200rpm,±1% | |||
Temperature control | double walled dished base for temperature control, cooling water temp.+5~65℃,±0.5℃ | |||
Anti foam control | antifoam probe check and add antifoam agent by one peristaltic pump | |||
Feeding control | feeding by one peristaltic pump,≥3.7ml/min | |||
pH control | PID control of two pumps to add acid or alkali, pH display range:0~14,±0.01, pH electrode: Swiss Mettler-Toledo | |||
DO control | DO display range:0~150%,±1, DO electrode: Swiss Mettler-Toledo | |||
Control system | The essential part of OLT-7000 consists of10.5"touch prainter and PLC. The standard display is used as showing interface and the keyboard and mouse can be used to operate. One controller can control 2~12 fermenters at the same time and the fermenters can work at the same time. Software: Siemens S7+ FORCE CONTORL Data collection and control module: S200 PLC controller and data collection and control module Driving relay: OMRON, Japan Electrical driver: Panasonic, Japan | |||
Product Details
About us
OLLITAL was established in 2003 with over 150 employees (as of August 2018). It is a high-tech enterprise that focuses on development, specializing in the production of medical microbiological testing, laboratory reactors, biosafety protection, disinfection and sterilization, sample processing, life sciences, and ultrasonic equipment.
OLLITAL brings together a professional team composed of experts, scholars, and other researchers. The company independently develops biochemical analyzers, ultrasonic equipment, laboratory reactors, medical microbiological testing equipment, and life science instruments.
OLLITAL brings together a professional team composed of experts, scholars, and other researchers. The company independently develops biochemical analyzers, ultrasonic equipment, laboratory reactors, medical microbiological testing equipment, and life science instruments.
