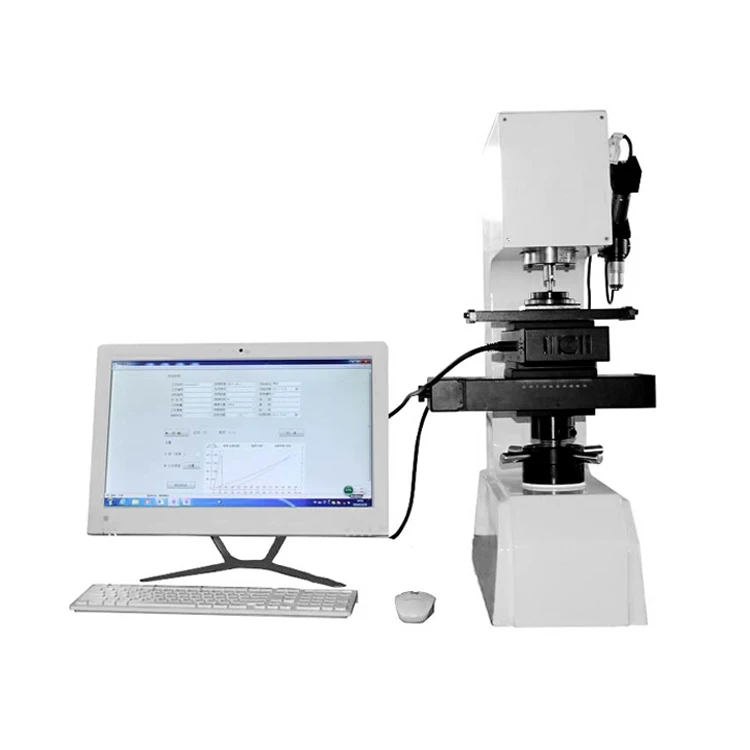

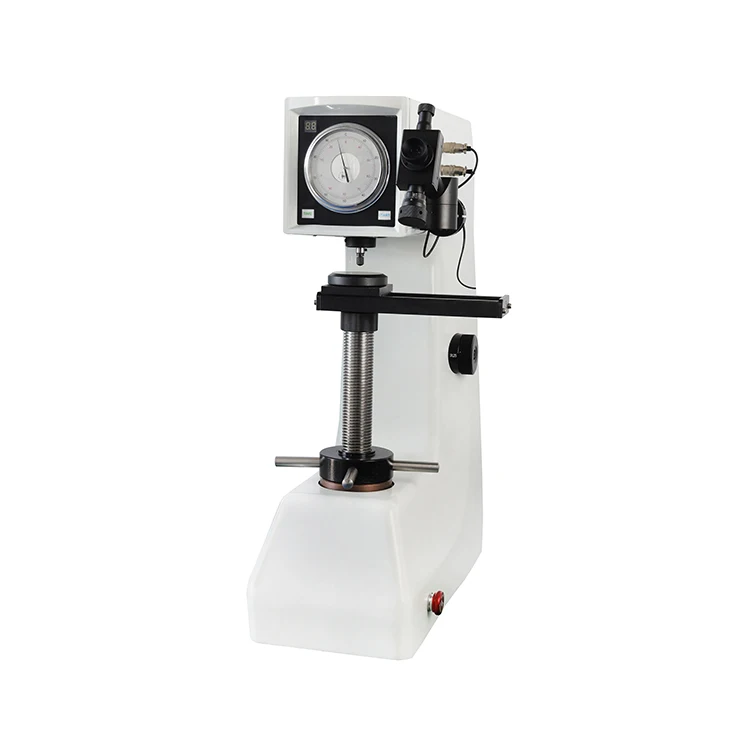

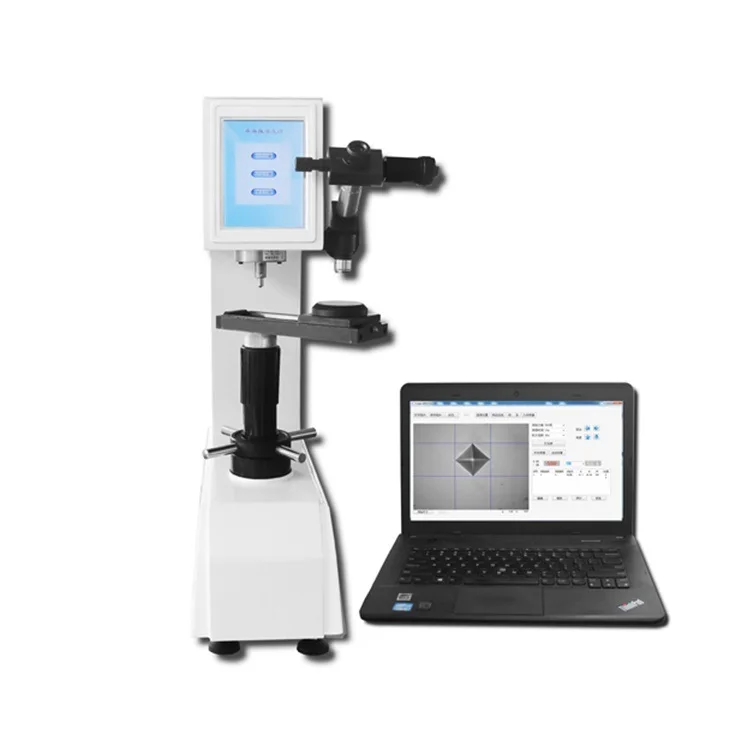

Prec Good price Brinell Rockwell vickers Digital universal Durometer Hardness Tester
- Category: >>>
- Supplier: Smart Test Co. Ltd.
Share on (1600578094472):
Product Overview
Description
Prec Durometer Vickers Price Rockwell Diamond Indenter For Metal Hardness Tester
Product Description
1.Application:
It's suitable to determine the Brinell, Rockwell and Vickers hardness of ferrous, non-ferrous metal and hard alloy.
Precision conforms to GB/T 230.2, GB/T 231.2, GB/T 4340.2, ISO6508-2, ISO6507-2, ISO6506-2, ASTM E18, ASTM E10 and ASTM E92
2.Technical parameters:
| Brinell Rockwell Vickers Universal Hardness Tester | ||||
| Model | HBRV-187.5D | HBRV-187.5STF | HBRV-187.5STE | |

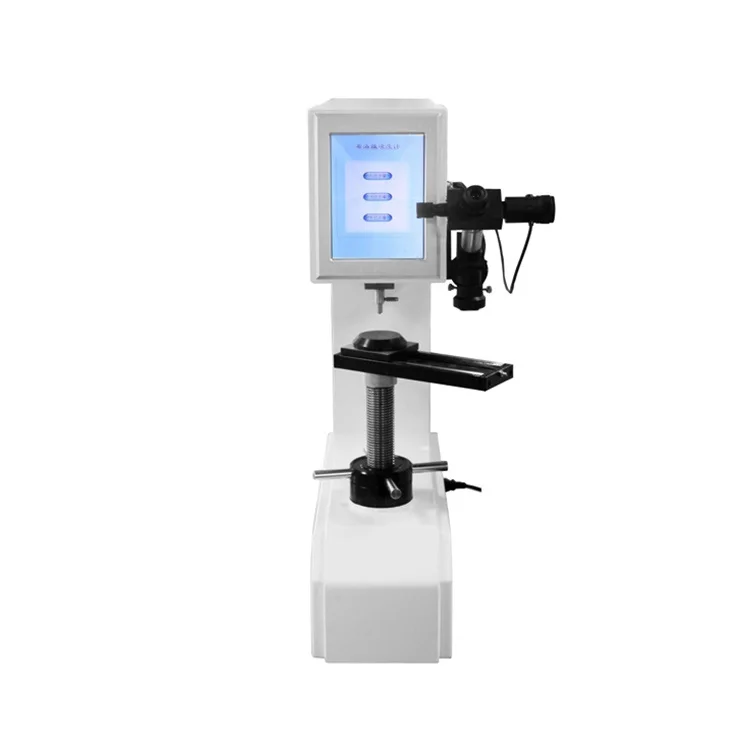

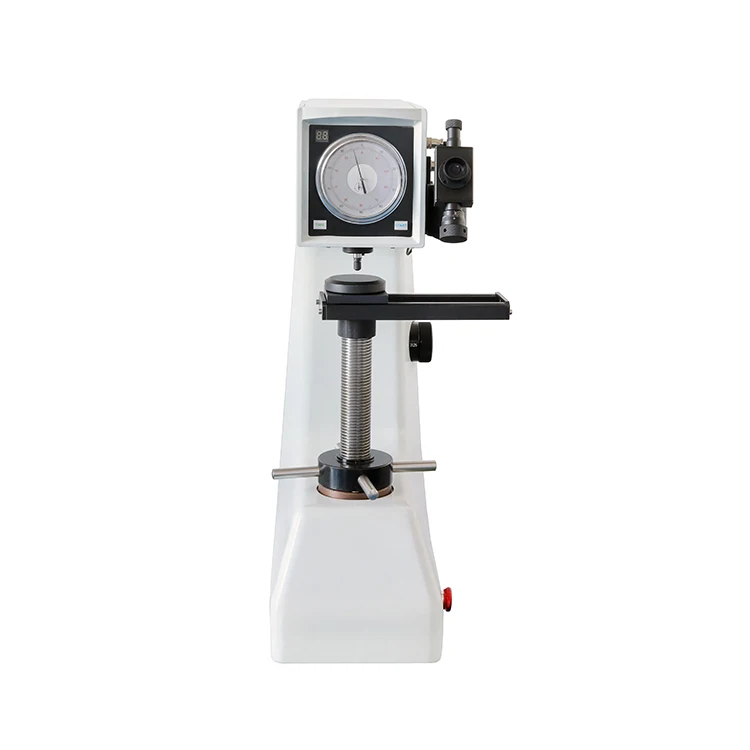

| Hardness read | Dial shows | Touch LCD display | Touch LCD display | |
| Control | Weight load | Weight load | Electric load closed-loop control | |
| Test force | 5~187.5kgf | |||
| Total Test Force | Rockwell | 588,980, 1471N (60, 100, 150Kgf) | 588,980, 1471N (60, 100, 150Kgf) | |
| Brinell | 153.2,306.5,612.9, 1226, 1839,2415.8N ( 15.625,31.25,62.5, 125, 187.5 ,250Kg) | 153.2,306.5,612.9, 1226, 1839N (15.625,31.25,62.5, 125, 187.5Kgf) | ||
| Vickers | 294.2,980.7N (30, 100Kgf) | 49.03,98.07, 196. 1,294.2,490.3,980. 7N (5, 10,20,30,50, 100Kgf) | ||
| Scale | Rockwell | HRA,HRB,HRC | HRA,HRB,HRC,HRD,HRE,HRF,HR G,HRH,HRK,HRL,HRM,HRP,HRR,H RS,HRV | |
| Brinell | HBW2.5/31 .25,HBW2.5/62.5 HBW2.5/ 187 .5 | HBW2.5/ 15 .625,HBW2.5/31 .25,HB W2.5/62.5,HBW5/ 125, | ||
| Vickers | HV30,HV100 | HV30,HV100 | HV5,HV10,HV20,HV30,HV50,HV100 | |
| Hardness Test | Rockwell | 20- 100HR | ||
| Brinell | 5-650HBW | |||
| Vickers | 10-3000HV | 5-3000HV | 5-3000HV | |
| Head-wall distance | 160mm | 160mm | 160mm | |
| Max height of specimen | Rockwell | 200mm | 200mm | 180mm |
| Brinell,Vickers | 200 | 180mm | 165mm | |
| Lens magnification | 100X,50X,25X | 100X,50X,25X | ||
| Power Supply | AC220V+5%,50-60Hz | |||
