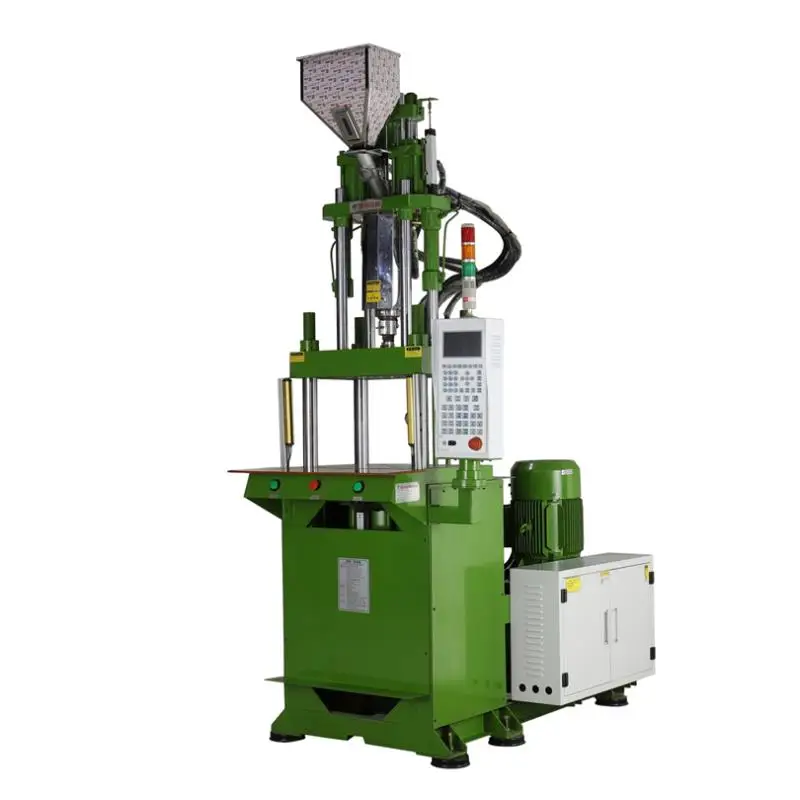

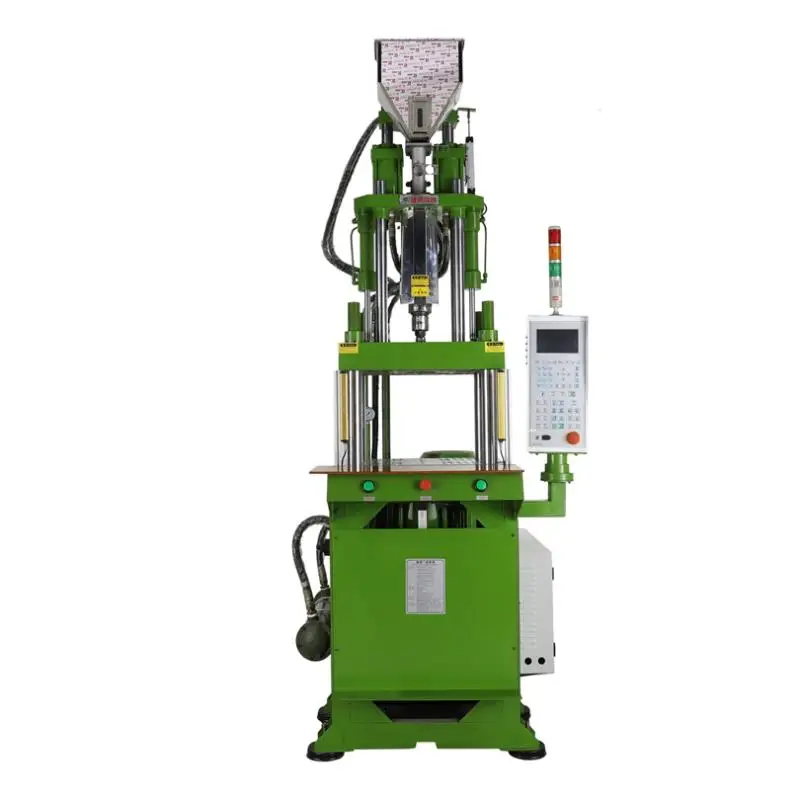

High Quality Eco Friendly Nylon Floss Waxed Dental Floss Pick vertical injection molding machine
- Category: Injection Molding Machines >>>
- Supplier: Dongguan,Yingling,Intelligent,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Related Products
Product Description
Feature
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Fixed bottom mold and loose top mold type is suitable for plastic injection molding of inserts and it is also equipped with an ejector for finshed products.
4)Low-pressure closed die assembly can protect the safety of die.
Specification of dental floss Injection Moulding Machine:
| MODEL | UNIT | JY- 550ST | |
| INJECTION UNIT | Screw Diameter | mm | ø36 |
| Theoretical Injection Volume | cm³ | 162.7 | |
| Injection Weight(PS) | g(oz) | 153.8(5.4) | |
| Max.Injection Pressure | Mpa(kgf/cm²) | 158.8(1620) | |
| Injection Rate | cm³/s | 89.5 | |
| Injection Speed | mm/s | 88 | |
| Injection Stroke | mm | 160 | |
| Screw Speed Rotation | r.p.m | 0-200 | |
| NO.of Temperaturecontrol | 4 | ||
| CLAMPINGUNIT | Clamping Force | KN(tf) | 539(55) |
| Clamping Stroke | mm | 200 | |
| Min.Mold Thickness | mm | 180/280 | |
| Max.Opening | mm | 380/480 | |
| (L*W)Max.MouldSize | mm | 500*450 | |
| (L*W)Platen Size | mm | 500*450 | |
| Ejector Distance | mm | 35 | |
| Ejector Force | KN(tf) | 172(1.75) | |
| OTHERS | Oli Tank Capacity | L | 175 |
| Electric Power | KW(HP) | 7.5(10) | |
| Heater Power | KW | 5.3 | |
| Machine Dimensions | L*W*H | 1.67*1.25*2.46M | |
| Machine Weight | tf | 2.1 |
Machine Application
Machine Application:
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,patch cord cable,dental floss etc
.
More Application:
Detailed Images
Company Information
Packaging
1.We will arrabge to manufacture the machine the second day after your confirmation.
2.Before shipment,we will check and test the machine carefully.
3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.
| Packaging | |
| Dimensions | 1.8*1.1.35*2.25m |
| 2.Weight | 2250kg |
FAQ
Q1: Are you a trading company or a manufacturer? |
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
Q2: What's your warranty for the machine? |
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
Q3: What's your Delivery Time? |
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
Q4: Where is your factory? How can visit you? |
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. |
Q5: Why choose us? |
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
Welcome to visit our factory to view more details
