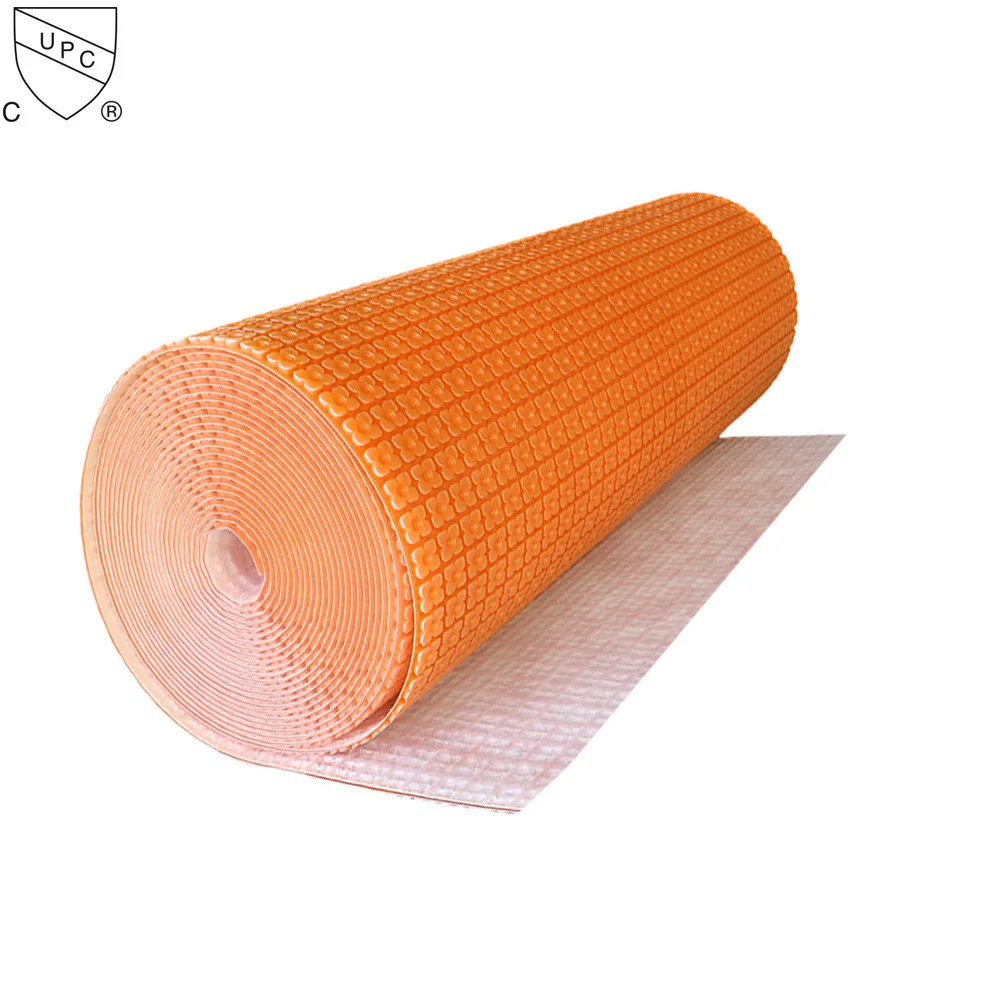

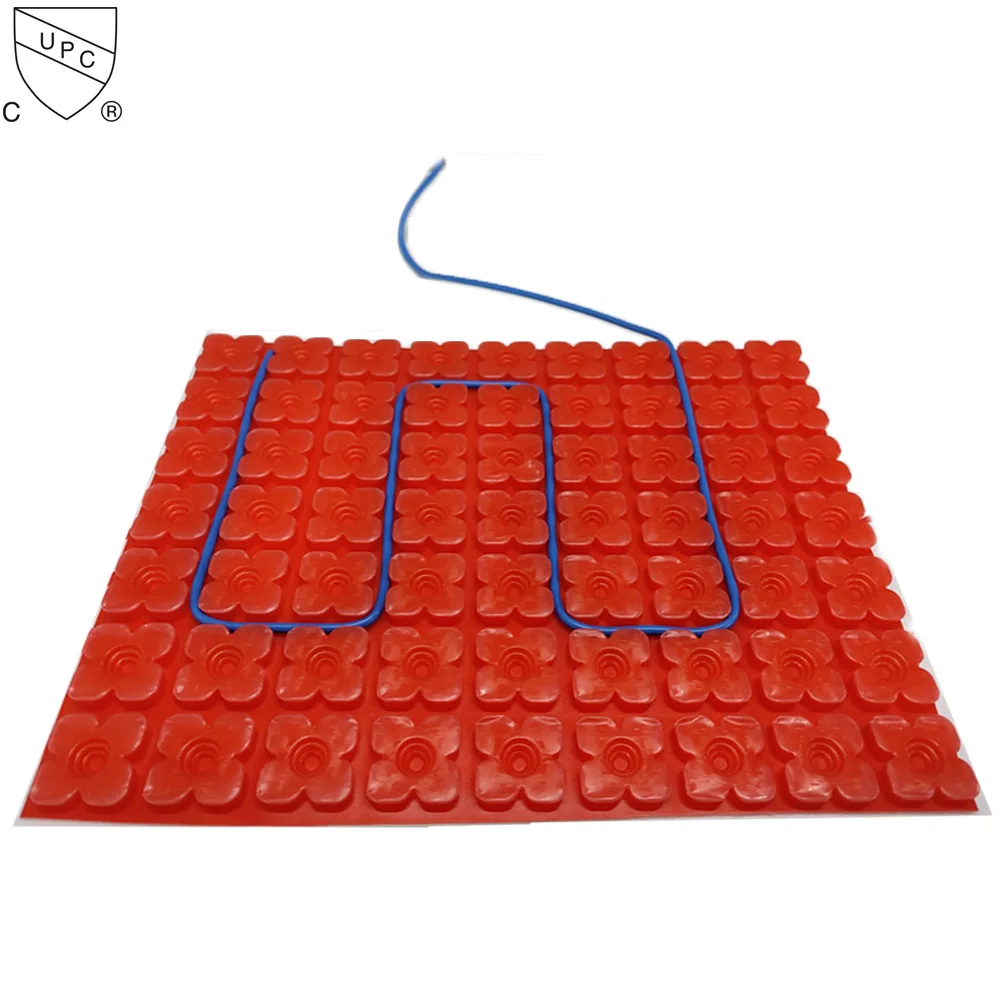

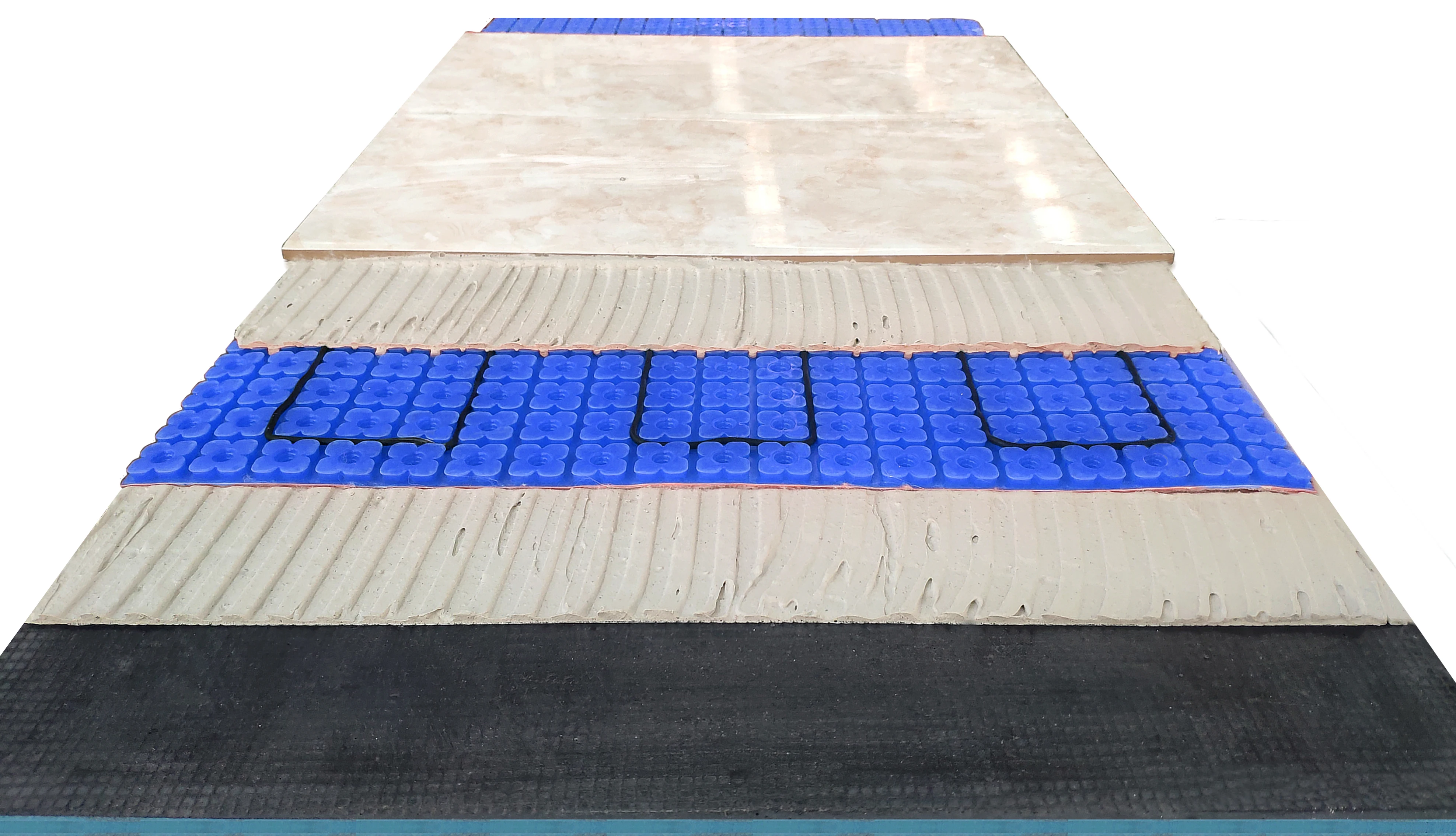

Electric Underfloor Heating Mat,Uncoupling Membrane Waterproof Easy Install Anti Crack Protect Tile Floor Warming UK NA cUPC
- Category: >>>
- Supplier: Weifang Berry Waterproof Material Co. Ltd.
Share on (1600579110478):
Product Overview
Description
Product Description
Product | Floor Heating Membrane UM505 |
Wire Cable Diameter | 3.6-4.2mm |
Material | Polyethylene(PE)film; Polypropylene(PP)nonwoven |
Roll Size | 1mx30m/1mx20m/1mx10m |
Weight | 1000g/sgm |
Thickness | 5.6 mm |
Packing | Wrapped in plastic film/CARTON/PALLET |
Color | Orange; Yellow; Green; Blue; or others |
We hold all of our products to the same high standard as any other American manufacturer.
This uncoupling and waterproofing membrane with an integrated bonding fleece roll is made with new, virgin polyethylene synthetic polymer.
This high strength material provides strong adhesion and multi-layered waterproof protection.
The integration of this uncoupling, waterproofing, load-distribution, and vapor management functions makes consistent results viable.
We are confident you will love our quality and our competitive prices. Give us a chance to be your new name brand choice!

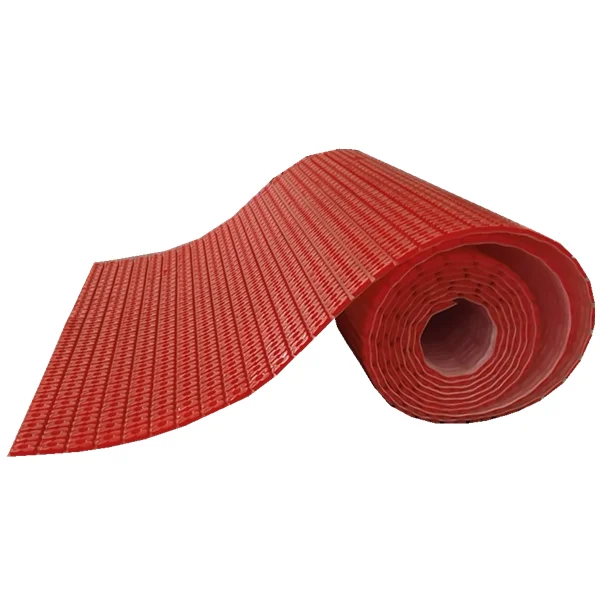

Detailed Images

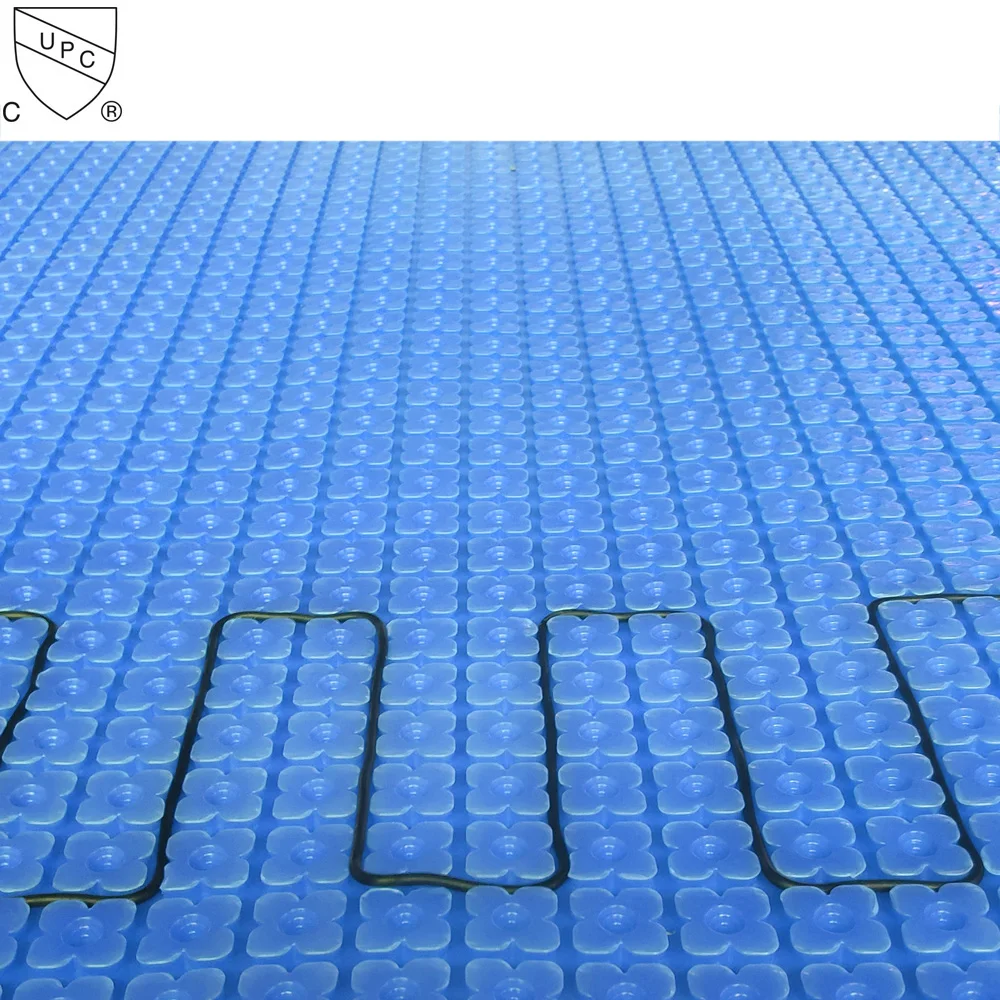

FLOOR WARMING

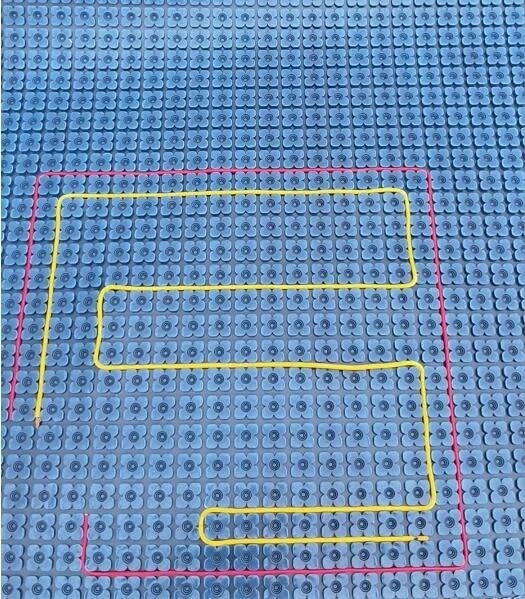

You can freely choose the interval for installing the heating cable / wires according to your heating needs.
Usually:
Area Covered per Cable Spacing
Regular 3 Stud OR Alternating 3-2 Stud
Area Covered per Cable Spacing
Regular 3 Stud OR Alternating 3-2 Stud
Multi-Function
In addition to the most basic and most important floor warming function, our underfloor heating mat products also have four other special functions:
Uncoupling; Waterproof; Vapor Management, Load Distribution
Product Features
A. Uncoupling
It provides uncoupling through its open rib structure, which allows for in-plane movement that effectively neutralizes the differential movement stresses between the substrate and the tile, thus eliminating the major cause of cracking and delaminating of the tiled surface.
B.Waterproofing
It provides reliable waterproofing in interior and exterior applications. Its polyethylene composition protects the substrate from moisture penetration, which is particularly important in today's building environment where most substrates are moisture sensitive.
C.Vapor management
The distinguishing feature of this uncoupling membrane is the existence of free space created by the configured channels on the underside of the matting. The free space provides a route for excess moisture and vapor to escape from the substrate that could otherwise cause damage to the tile layer above. Thus, it effectively manages moisture beneath the tile covering.
D.Load-distribution
It is virtually incompressible within the tile assembly, the advantages of uncoupling are achieved without sacrificing point load distribution capabilities. The ability of membrane installations to support and distribute heavy loads while preserving the integrity of the tiles surface has been verified through extensive laboratory and field testing, including applications exposed to vehicular traffic.
Date Sheet
The Factory Inhouse Inspection Report
Reference: GB18173.1-2012
Property | Requirement | Performance |
Tensile Strength (N/cm) | ≥40N/cm | 81.7N/cm |
Tensile Strength (N/cm) | ≥25% | 91.1% |
Compressive Strength (kPa) | ≥100kPa | 868.1kPa |
Shell Appearance after 50% High Compression | No Breakage | No Breakage |
Drainage Area (cm³) | ≥30cm³ | / |
Hot-air Aging（80℃×168h） Tensile Strength Retention Rate(%) | ≥80% | 117.50% |
Hot-air Aging（80℃×168h） Tensile Elongation Retention Rate (%) | ≥70% | 87.3% |
Alkali Resistance [Saturated Ca(OH)₂ Solution 23℃×168h] Tensile Strength Retention Rate (%) | ≥80% | 110.2% |
Alkali Resistance [Saturated Ca(OH)₂ Solution 23℃×168h] Tensile Strength Retention Rate (%) | ≥80% | 117.3% |

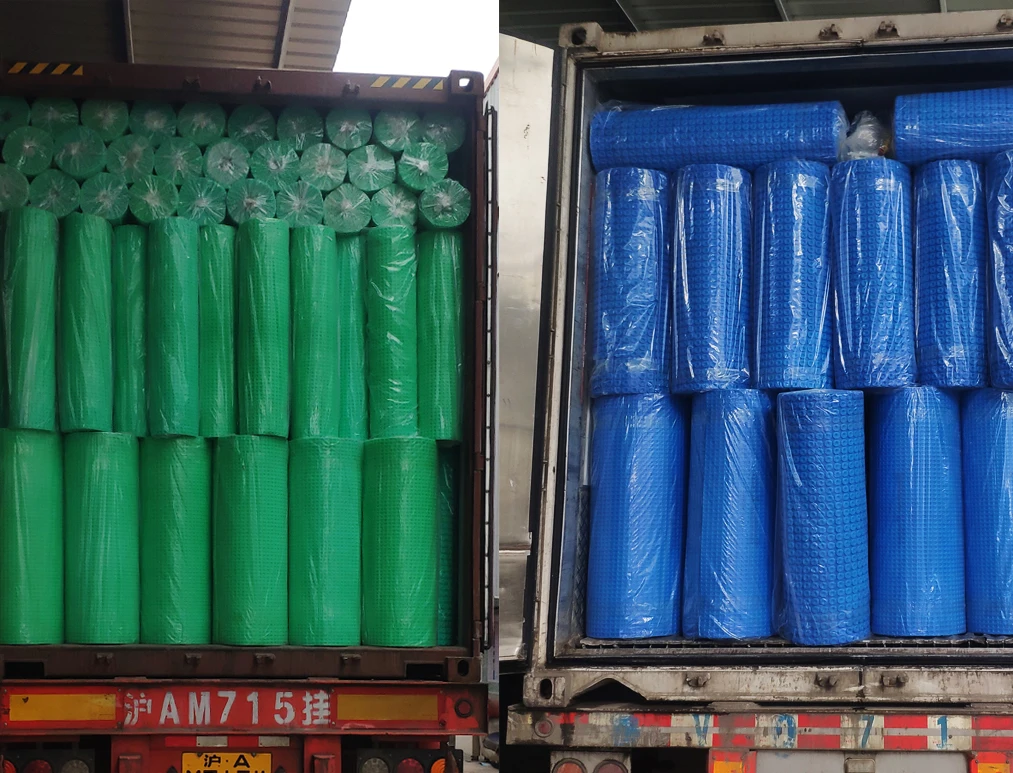

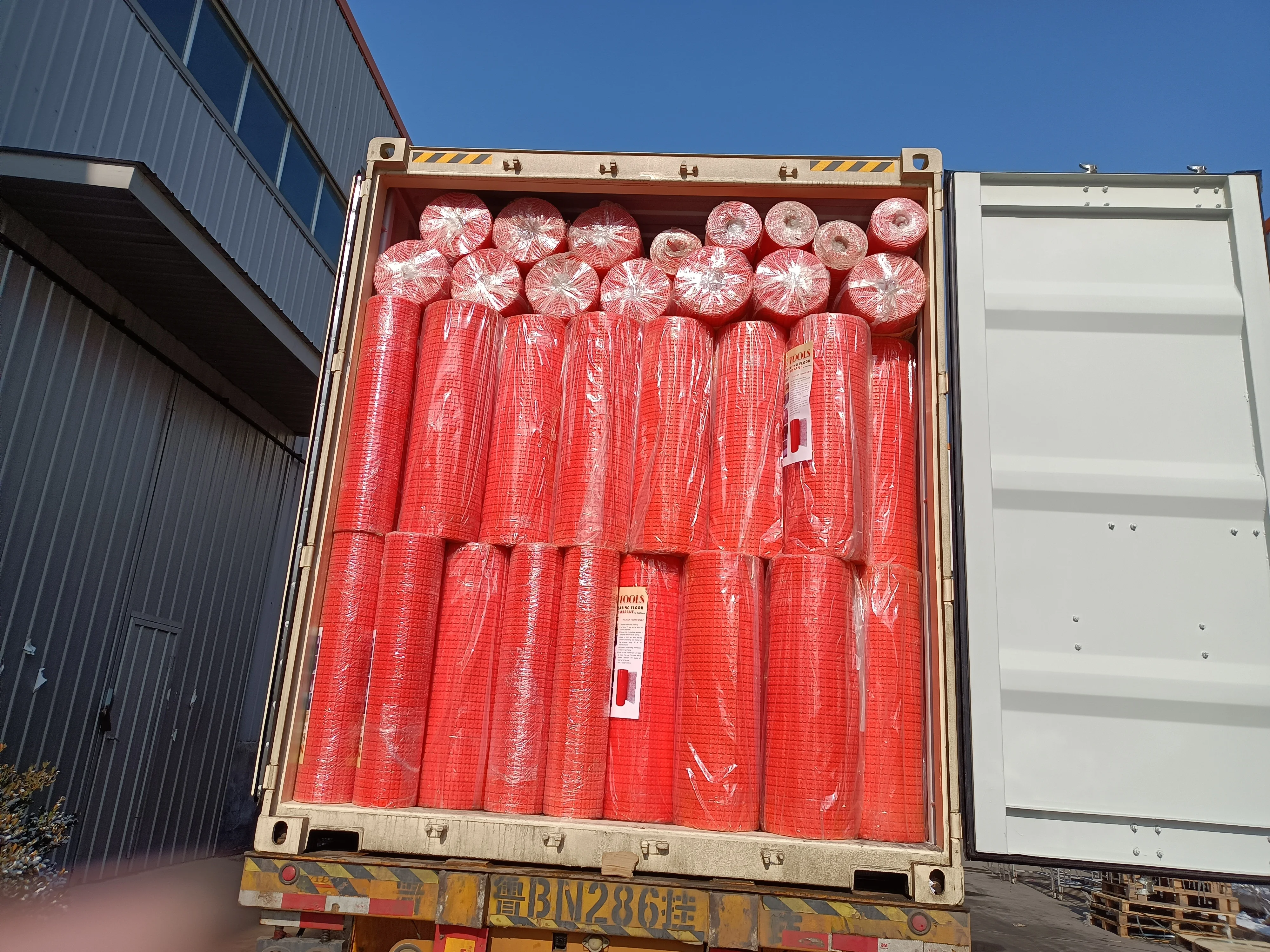

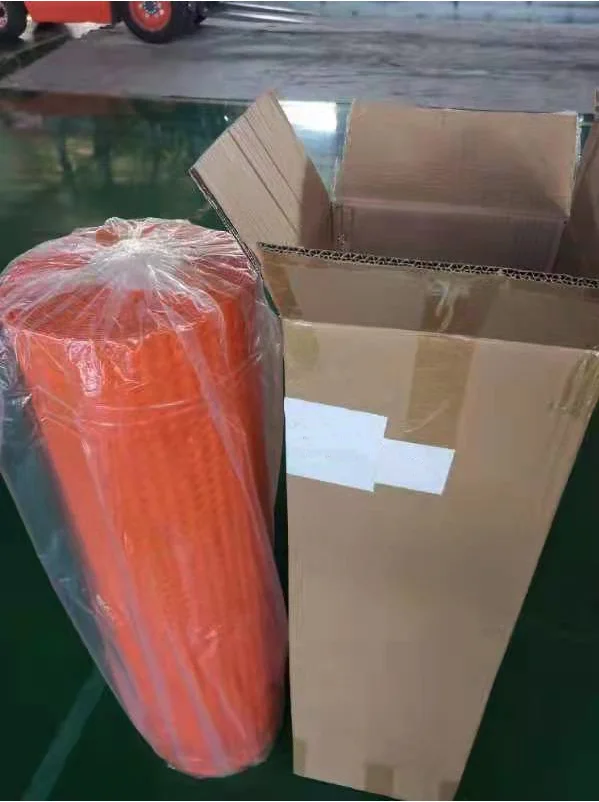

Packing&Delivery

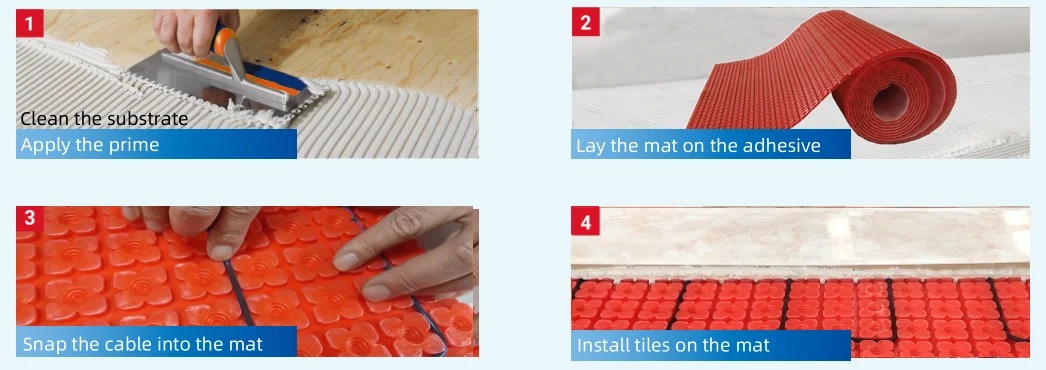

Installation
Easy To Install
All substrates must be clean, even, and load bearing. Bond inhibiting surfaces must be removed prior to the application of underfloor heating mat.
1. Using a thin-set mortar that is suitable for the substrate, apply the thin-set mortar (mixed to a fairly fluid consistency, but still able to hold a notch) using a trowel.
2. Apply underfloor heating mat to the floor, fleece side down. Solidly embed the matting into the mortar using a float, screed trowel, or roller, making sure to observe the open time of the bonding mortar. If the mortar skins over prior to matting installation, remove and reapply. Note: It may be helpful to back roll the end of the matting before installation, or place boxes of tile on top of the matting after installation, to avoid curling.
*When using the roller, slowly move the roller from one end of the matting to the other, slightly overlapping successive passes.
3. Lift up a corner of the matting to check coverage. Proper installation results in full contact between the fleece webbing and the thin-set mortar. Note: Coverage may vary with mortar consistency, angle at which the trowel is held, substrate flatness, etc. If full coverage is not achieved, remove and reapply, making sure to verify proper mortar consistency and application.
4. Abut end and side sections of adjacent sheets. Note: Aligning the studs on the top of the matting during installation can help make subsequent heating cable installation easier.
5. The eletric heating cables can now be installed. Cables snap into the membrane; clips and fasteners are not required.No self-levelers required to encapsulate the cables; installation time significantly reduced.
1. Using a thin-set mortar that is suitable for the substrate, apply the thin-set mortar (mixed to a fairly fluid consistency, but still able to hold a notch) using a trowel.
2. Apply underfloor heating mat to the floor, fleece side down. Solidly embed the matting into the mortar using a float, screed trowel, or roller, making sure to observe the open time of the bonding mortar. If the mortar skins over prior to matting installation, remove and reapply. Note: It may be helpful to back roll the end of the matting before installation, or place boxes of tile on top of the matting after installation, to avoid curling.
*When using the roller, slowly move the roller from one end of the matting to the other, slightly overlapping successive passes.
3. Lift up a corner of the matting to check coverage. Proper installation results in full contact between the fleece webbing and the thin-set mortar. Note: Coverage may vary with mortar consistency, angle at which the trowel is held, substrate flatness, etc. If full coverage is not achieved, remove and reapply, making sure to verify proper mortar consistency and application.
4. Abut end and side sections of adjacent sheets. Note: Aligning the studs on the top of the matting during installation can help make subsequent heating cable installation easier.
5. The eletric heating cables can now be installed. Cables snap into the membrane; clips and fasteners are not required.No self-levelers required to encapsulate the cables; installation time significantly reduced.
