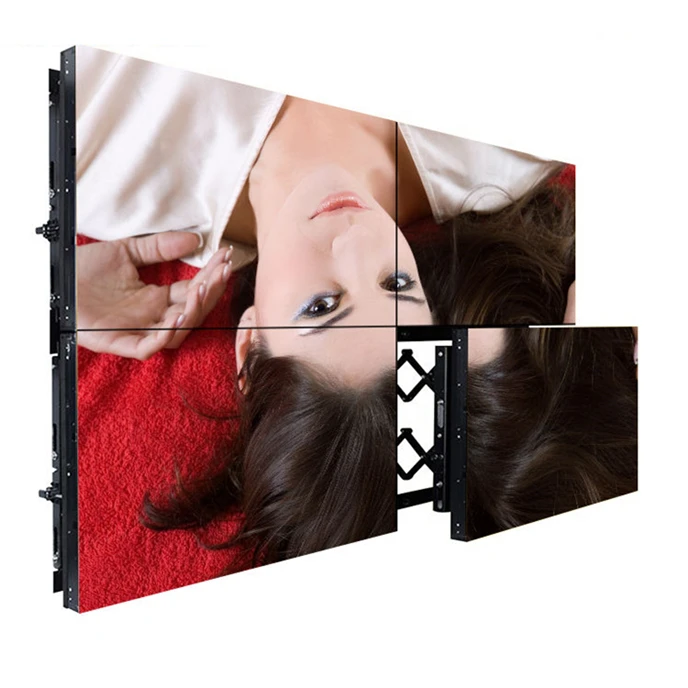

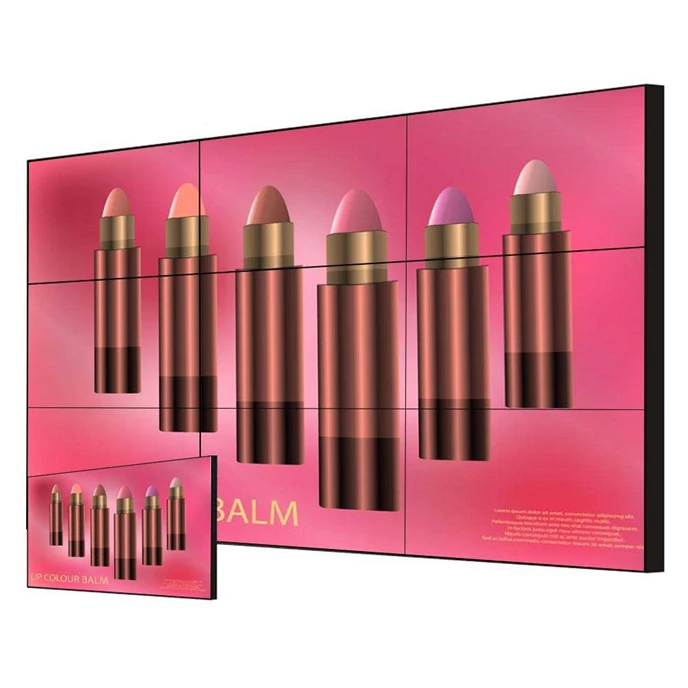

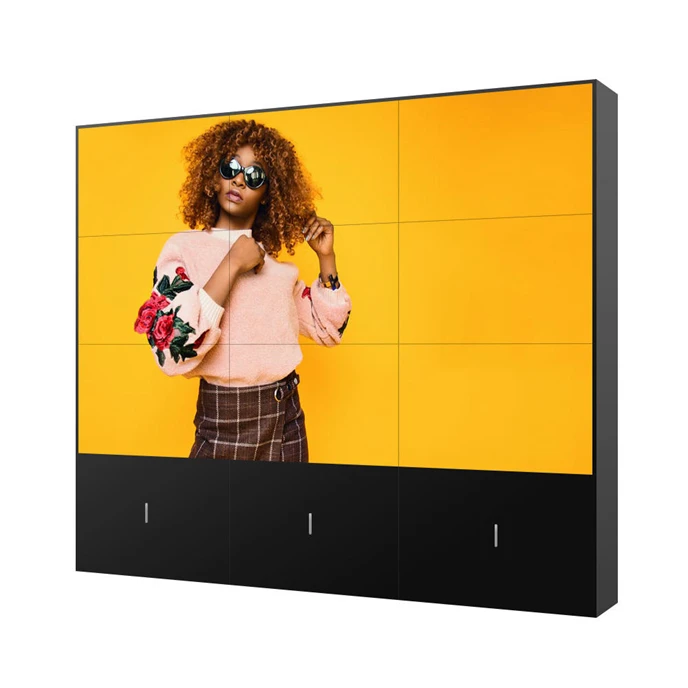

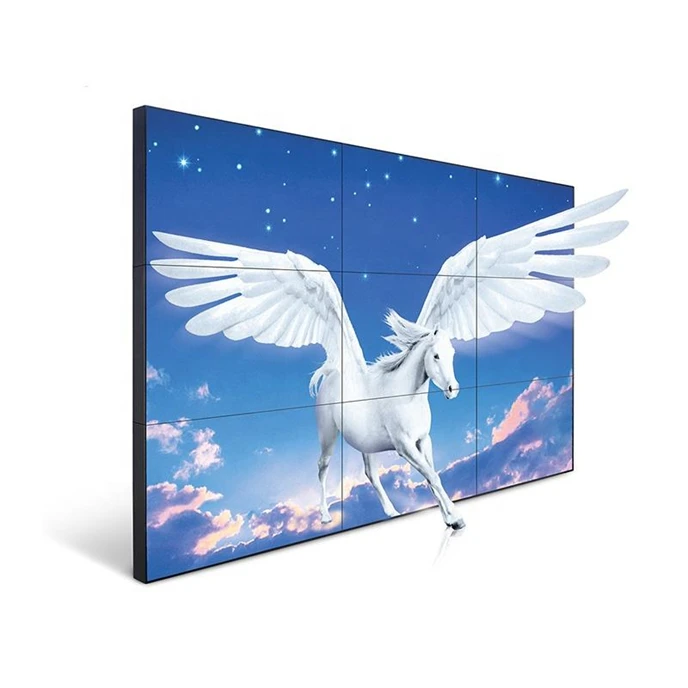

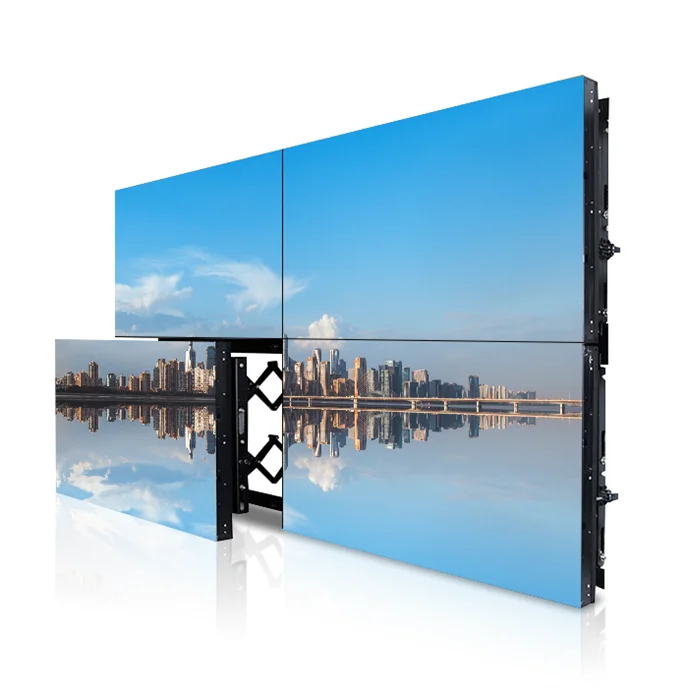

HD screen LG panel super narrow 1.8mm bezel 3x3 video tv video wall lcd price
- Category: >>>
- Supplier: Shenzhen Dragonbest Technology Co. Ltd.
Share on (1600579367990):
Product Overview
Description
Product Description
HD screen LG panel super narrow 1.8mm bezel 3x3 video tv video wall lcd price
Hot Selling | High Quality
specification

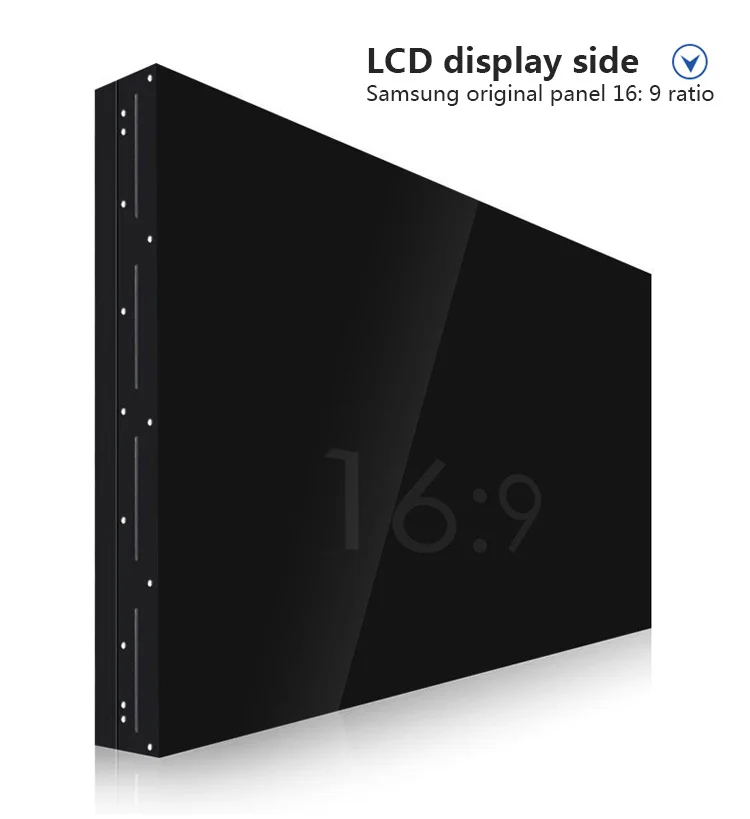

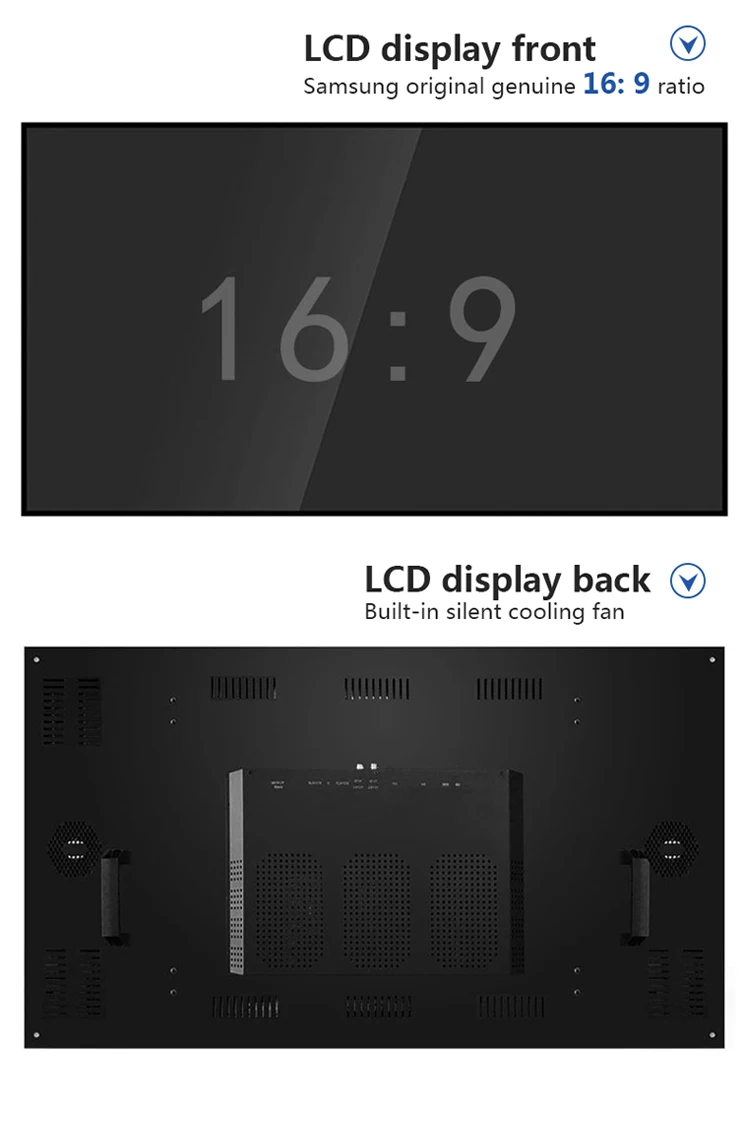

- Product Name: 55 inch ultra narrow side splicing unit
- LCD panel: imported Samsung screen
- Maximum resolution: 1920x1080
- Pixel pitch (mm): 0.248 (H) × 0.745 (V) mm
- Backlight type: LED
- Backlight life: 60,000 hours
- Display color: 16.7M
- Brightness: 500cd / m2
- Contrast: 4000:01:00
- Viewing angle (up/down/left/right): 89° / 89° / 89° / 89°

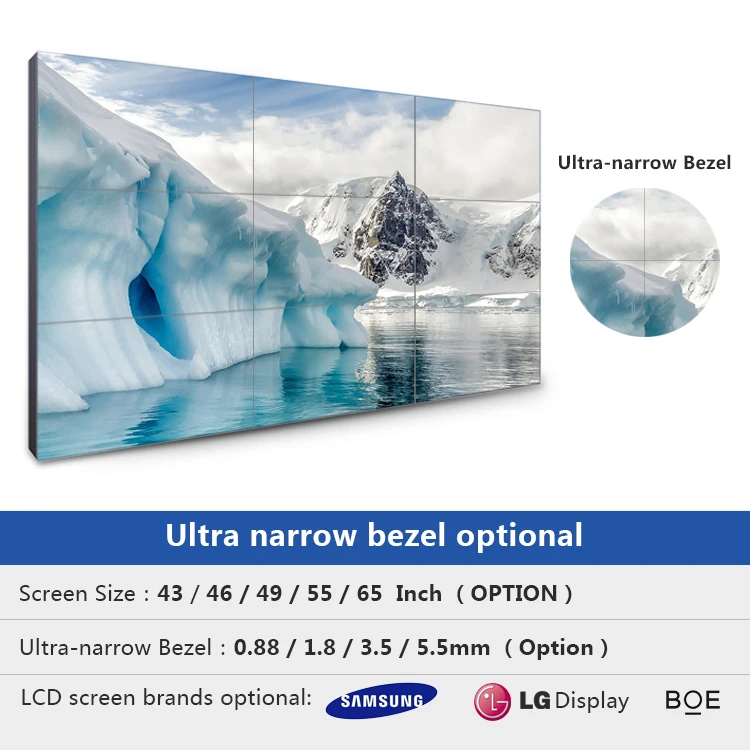

- Double seams: 5.5mm and 3.5mm (optional)
- Response time: 8ms
- Display mode 16:09

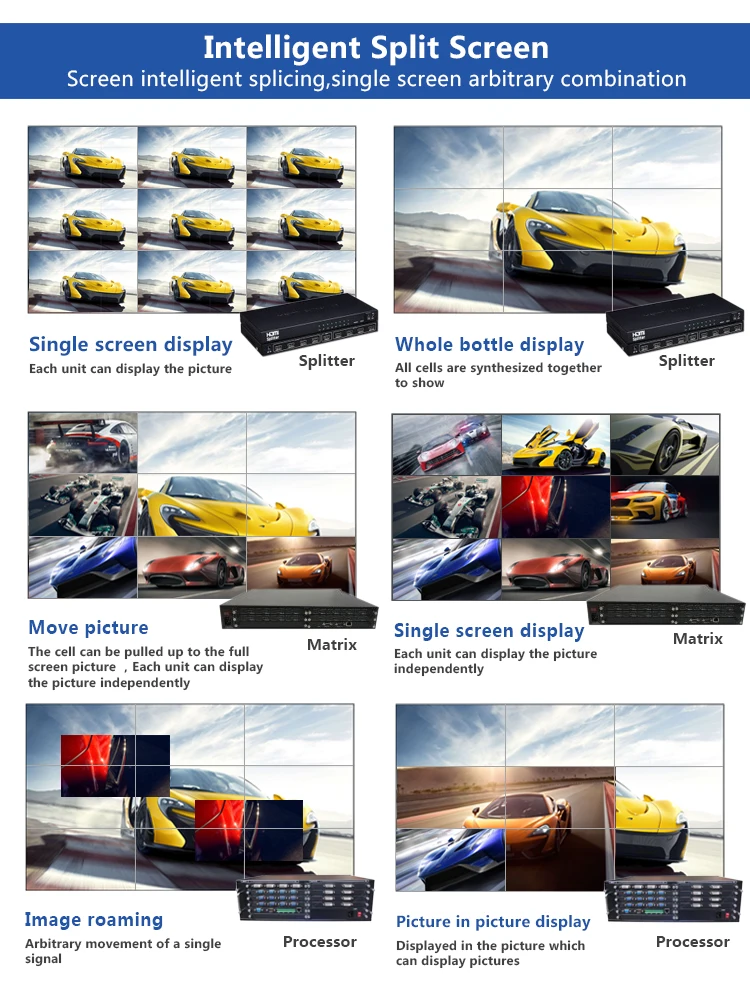

- Splicing combination: any row M * any column N (2 ≤ M, N ≤ 15)
Product Paramenters
| Model | Samsung 46 inch 3.5mm Video wall screen specification | |||
| Contrast | 3000:1 | |||
| Display color | 16.7M | |||
| Response time | 8ms | |||
| Viewing angle | 89/89/89/89(Typ) | |||
| working frequency | 60HZ | |||
| Stitching | 3.5mm | |||

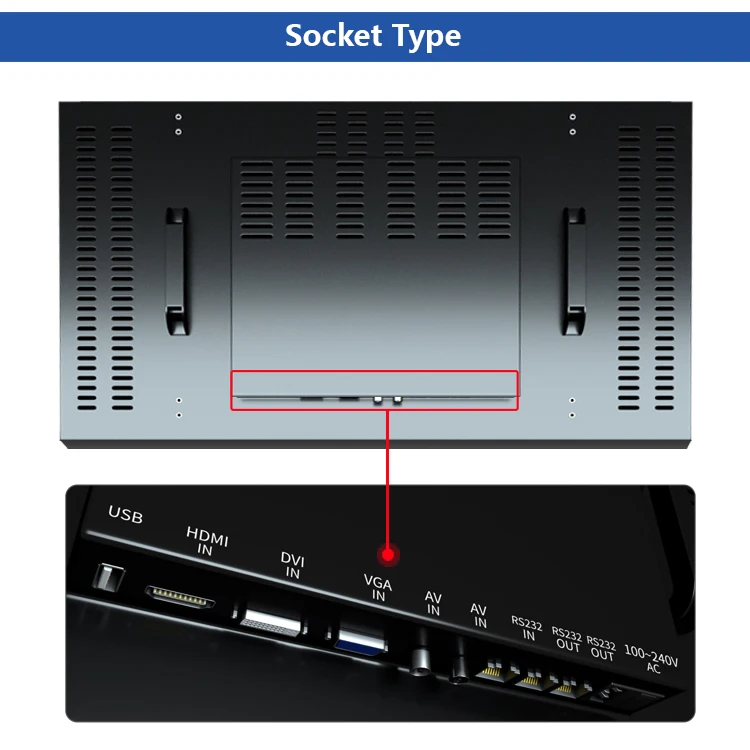

| USB input | (usb * 1) can be upgraded to support video picture media playback | |||
| HDTV input | (HDTV * 1) Supports 1920 * 1080 @ 60hz signal input, backward compatible | |||
| with 4k, customization required | ||||
| VGA input | (vga * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility | |||
| DVI input | (dvi * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility | |||
| 4k needs customization | ||||
| BNC input | (bnc * 1) Support ntsc pal and other formats | |||
| Remote Receive Input | (debug * 1) Remote control signal transmission | |||
| RJ45 input | (rj45 * 1) rs232 signal input | |||
| RJ45 output | (rj45 * 2) rs232 signal output | |||
| BNC output | (bnc * 1) Support ntsc pal and other formats | |||
| Show diagonal | AC220V 50/60Hz | |||
| Dimensions | <=240W | |||
| Display area | 3W | |||
| Zoom | 0~50℃ | |||
| Panel type | -20~65℃ | |||
| Resolution | Simplified Chinese, Traditional Chinese, English and other languages | |||
| Dot Pitch | 18KG | |||
| brightness | Wall-mounted, embedded, floor-standing, front maintenance, cabinet | |||
| Model | Samsung 55 inch 1.7mm Video Wall Screen Specification | |||
| Show diagonal | 55 " | |||

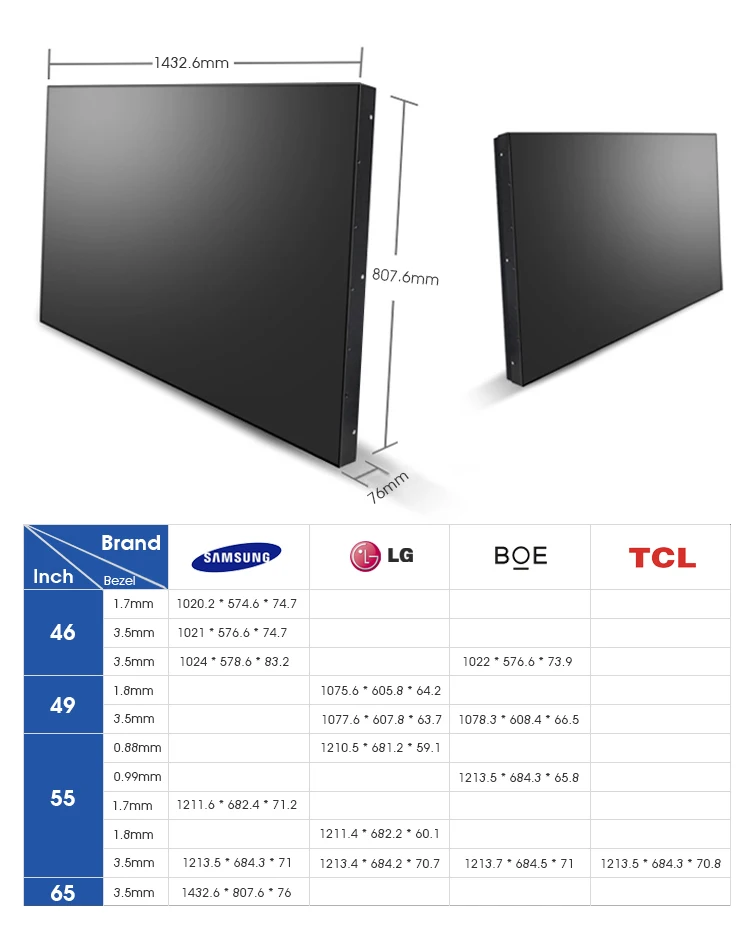

| Outline size | 1211.54(W)*682.34(H)*118.2(D)mm | |||
| Display area | 1209.6(W)*680.4(H)mm | |||
| display scale | LED backlight | |||
| Resolving power | 1920(RGB)X1080,FHD | |||
| Point spacing | 0.210(H)*0.630(V) | |||
| brightness | 500CD/M | |||
| contrast ratio | 4000:1 | |||
| Display color | 16.7M | |||
| response time | 8ms | |||
| viewing angle | 89/89/89/89(Typ) | |||
| working frequency | 60HZ | |||
| Splicing joint | 1.7mm | |||
| USB input | (USB * 1) upgradeable video picture media playback | |||
| HDTV input | (HDTV * 1) support 1920 * 1080 @ 60Hz signal input, downward | |||
| compatible 4K, customized | ||||
| VGA input | (VGA * 1) support 1920 * 1080 @ 60Hz signal input and downward | |||
| compatibility | ||||
| DVI input | (DVI * 1) support 1920 * 1080 @ 60Hz signal input and downward | |||
| compatibility 4K needs customization | ||||
| BNC input | (BNC * 1) support NTSC pal and other systems | |||
| Remote control | (debug * 1) remote control signal transmission | |||
| receiving input | ||||
| RJ45 input | (RJ45 * 1) RS232 signal input | |||
| RJ45 output | (RJ45 * 2) RS232 signal output | |||
| BNC output | (BNC * 1) support NTSC pal and other systems | |||
| working voltage | AC220V 50/60Hz | |||
| Product power | Less than 240W | |||
| consumption | ||||
| standby power | 3W | |||
| working temperature | 0~ 50 C | |||
| Storage temperature | -20~ 65 C | |||

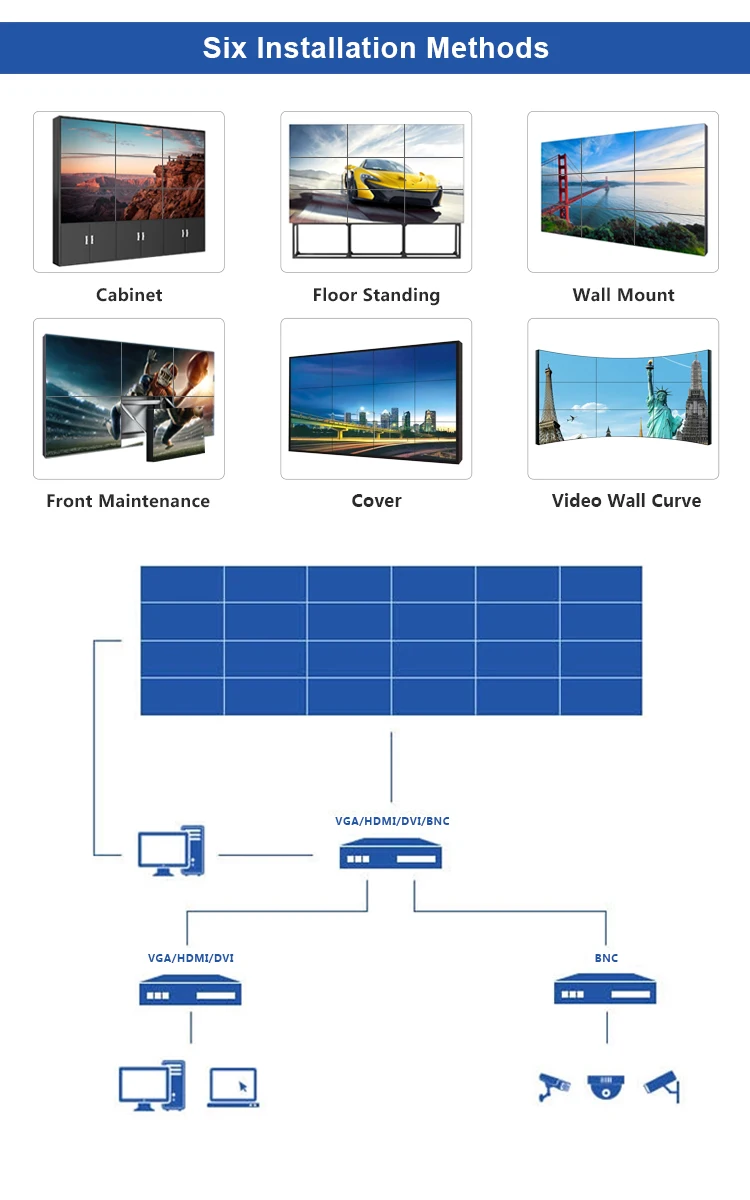

| Installation mode | Wall mounted, embedded, floor standing, front maintenance, cabinet | |||
| Model | LG 49 inch 3.5MM splicing unit specifications | |||
| Diagonal display | 49 " | |||
| Display area | 1073.8 (W) *604.0(H)mm | |||
| Zoom | led Backlight | |||
| Panel Type | LED backlight | |||
| Resolution | 1920(RGB)X1080, FHD | |||
| Spacing | 0.1864 (H) * 0.5593 (V) | |||
| brightness | 450CD / M² | |||
| Contrast | 1300:1 | |||
| Color display | 16.7M | |||
| response time | 8ms | |||
| Viewing angle | 89/89/89/89(Typ) | |||
| working frequency | 60HZ | |||
| Patchwork stitching | 3.5mm | |||
| USB input | (USB * 1) can be upgraded media player supports video pictures | |||
| HDTV input | (HDTV * 1) * Support 1920 1080 @ 60HZ signal input is backward | |||
| compatible with 4K be customized | ||||
| VGA Entry | (VGA * 1) * Support 1920 1080 @ 60HZ signal inputs can be | |||
| backward compatible | ||||
| DVI Entry | (DVI * 1) * Support 1920 1080 @ 60HZ signal inputs can be backward | |||
| compatible 4K be customized | ||||
| BNC Entry | (BNC * 1)And other standard support NTSC PAL | |||
| Remote control receiver input | (DEBUG * 1) the remote control signal transmission | |||
| RJ45 input | (RJ45 * 1) RS232 input signal | |||
| RJ45 output | (RJ45 * 2) RS232 signal output | |||
| BNC output | (BNC * 1)And other standard support NTSC PAL | |||
| Operating Voltage | AC220V 50 / 60Hz | |||
| Power consumption | ≤240W | |||
| Standby power consumption | 3W | |||
| Operating temperature | 0~ 50 C | |||
| storage temperature | -20~ 65 C | |||
Company Information
Shenzhen Dragonbest Technology Co., Ltd
certification
Packaging & Shipping
PACKAGE:
Advertising player Standard export carton packing.
DELIVERY TIME:
DHL:3-4 Days arrive
ups:4-5 Days arrive
Fedex:4-5 Days arrive
EUEXP:7-10 Days arrive
USPS:10-20 Days arrive
FAQ
1) Q:What is the minimum order quantity?
A: Qty: 1 unit. Different order quantity different price.
2) Q:What payment methods your company accept?
A: We usually accept wire transfer T/T, L/C, D/P, D/A, Paypal. For partner relationship, we may consider other payment terms.
3) Q:How long is the warranty time for your products?
A: We provide 1 year warranty for all of our products and supply life-time maintenance.
4) Q:I haven't done business with your company before, how can i trust your company?
A: Our company is a registered golden member on Alibaba site for more than 15 years.
We supply to all over the world, and business partners including P&G,Unilevel, BAT,CocoCola,WalMart etc. Feel free to contact us for more cases and solutions.
5) Q:what's the shipment terms and delivery time of your company?
A: It depends on order quantity, shipping address and shipping methods.
6) Q:Do you give any discount ?
A: Yes, we are looking for long term business cooperation. We will always offer customers the reasonable price
based on the right solution.
7) Q:I would like to ask you if it's possible to have my logo on the product.
A: Logo printing service is available for mass order based on our M.O.Q
8)Q:What kind of certification do you get?
A: We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
9)Q: What’s the HS CODE?
A: Digital Signage HS CODE: 8528591090
