EP150 EP250 EP350 EP450 cinta transportadora rubber convoyor belt for mine
- Category: Rubber Belts >>>
- Supplier: Kaifeng,Borui,Rubber,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Model | BRXJSSD-500 |
Conveyor belt type | Annular type |
Tensile strength | Strong |
Pitch | 10000mm |
Belt width | 500/650/800/1000mm |
Mesh diameter | 2-15mm |
Application range | Mining and excavation |
Material | Rubber, EP nylon, canvas |

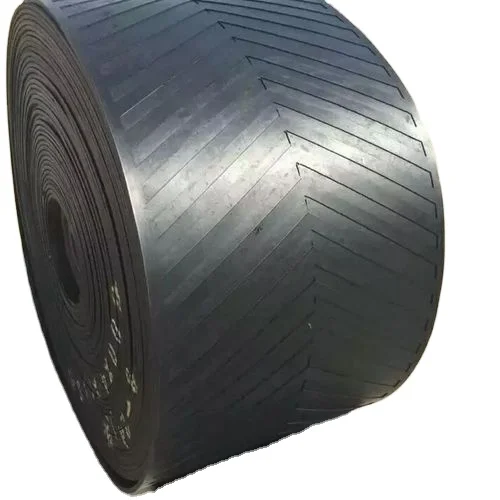

Conveyor belt series products: ordinary cotton canvas conveyor belt, nylon (NN) conveyor belt (divided into nn-100 type, nn-150 type, NN-200 type, nn-250 type, nn-300 type, nn-350 type, nn-400 type), polyester (EP) belt (divided into ep-100 type, ep-150 type, ep-200 type, ep-250 type, ep-300 type, ep-350 type, ep-400 type), large inclination (wavy edge) conveyor belt, skirt partition conveyor belt, annular conveyor belt Patterned conveyor belt {due to different materials and different inclination angles, the shape and height of the pattern are required to be different. The commonly used types of patterned conveyor belt are: herringbone conveyor belt (herringbone conveyor belt includes upper convex and lower concave herringbone conveyor belt), splayed conveyor belt, fishbone conveyor belt, U-shaped conveyor belt, cylindrical conveyor belt, pitted conveyor belt, etc., or designed according to user requirements}, waterstop PVC or PVG whole core flame retardant tape, etc; It can also provide conveyor belts with various special properties (general flame-retardant conveyor belt, heat-resistant conveyor belt, burning resistant conveyor belt, high wear-resistant conveyor belt, acid resistant conveyor belt, alkali resistant conveyor belt, cold resistant conveyor belt, oil resistant conveyor belt, high temperature resistant conveyor belt, high strength conveyor belt and food conveyor belt).
The conveyor belt is divided into many specifications and models according to the use environment and requirements:
According to the size of the transportation volume and the width, it is divided into: B200 B300 B400 B500 b600 b650 B800 b1000 b1200 b1400 b1600b1800 b2000 and other common models (B represents the width, and the unit is mm).
According to the different use environment, it can be divided into: ordinary conveyor belt includes (ordinary type, heat-resistant type, fire-resistant type, burning resistant type, acid and alkali resistant type, oil resistant type), heat-resistant conveyor belt, cold resistant conveyor belt, acid and alkali resistant conveyor belt, oil resistant conveyor belt, food conveyor belt and other models. The minimum thickness of the covering glue on the ordinary conveyor belt and food conveyor belt is 3.0mm, and the minimum thickness of the lower covering glue is 1.5mm; The minimum thickness of covering glue on the heat-resistant conveyor belt, cold resistant conveyor belt, acid and alkali resistant conveyor belt and oil resistant conveyor belt is 4.5mm, and the minimum thickness of covering glue under it is 2.0mm. The thickness of the upper and lower covering glue can be increased by 1.5mm according to the specific conditions of the use environment.

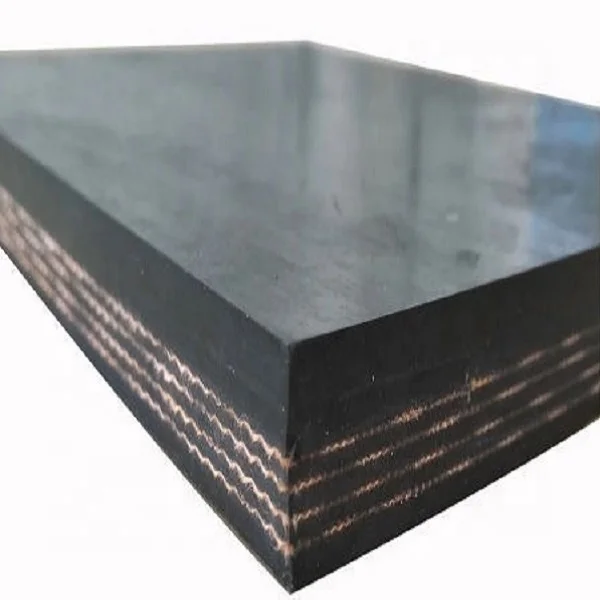

According to the tensile strength of the cloth layer of the conveyor belt, it is divided into ordinary conveyor belt and strong conveyor belt. The strong canvas conveyor belt is divided into nylon conveyor belt (NN conveyor belt) and polyester conveyor belt (EP conveyor belt). Supplementary note: the strong layer of the strong conveyor belt is polyester canvas (EP), which is specifically divided into EP100, EP150, ep200, ep250, ep300, ep350, ep400, etc; It can also be nylon canvas (NN), which can be divided into nn100, nn150, nn200, nn250, nn300, nn350, nn400, nn450, nn500, etc.
High inclination belt: including low patterned belt, high patterned belt, diaphragm belt and edge retaining belt.
The working surface of the low patterned belt is covered with rubber bumps or bumps of various shapes with a height of less than 10mm to block the layering of materials, which are used to transport powder and small particles of bulk materials. The height of the bump on the surface of the high patterned belt is 10 ~ 25 mm to prevent the rolling of materials, which is used to transport medium and large particle size bulk materials. These two kinds of belts can increase the conveying inclination by about 10 °. The working surface of the diaphragm plate belt is covered with a partition board with a height of more than 100 mm. The shape of the partition board is divided into double fin shape, multi fin shape, high V shape or straight shape, which can be used to realize upward transportation with an inclination of 53 °. The baffle type belt is a diaphragm with wavy or plate-shaped baffle. The height of the baffle is 40 ~ 300 mm. This belt can realize vertical lifting. ③ Tropical resistance: conveyor belt with special rubber as covering material, the temperature of conveying materials can reach 800 ℃. ④ Cold resistant belt: it is also a conveyor belt with special rubber as covering material, which can be used in the environment of -55 ℃. ⑤ Flame retardant belt: conveyor belt with PVC or special rubber as covering material, mainly used in underground coal mines. It is not easy to produce flames and cause explosions when it has strong friction with rollers or other parts. ⑥ Wire mesh belt: it is woven from metal wires and has no covering layer. It is used to transport materials at -55 ~ 1200 ℃ or complete the dehydration of materials during transportation. ⑦ Steel strip: it is made of cold-rolled steel sheet with a thickness of 0.2 ~ 4 mm, which is mostly used on the conveyor in the drying furnace. ⑧ Steel rope traction belt.
According to the use of the conveyor belt, it can be divided into: oil proof conveyor belt, anti slip conveyor belt, climbing conveyor belt, acid and alkali proof conveyor belt, heat proof conveyor belt, cold proof conveyor belt, flame proof conveyor belt, corrosion proof conveyor belt, moisture-proof conveyor belt, low temperature conveyor belt, high temperature conveyor belt, oil resistant conveyor belt, heat-resistant conveyor belt, cold resistant conveyor belt, low temperature conveyor belt, high temperature conveyor belt, acid and alkali resistant conveyor belt, flame-retardant conveyor belt.
Conveyor belts can be divided into: PVC conveyor belt, Pu conveyor belt, polyethylene conveyor belt, plastic chain plate conveyor belt, module mesh conveyor belt, polypropylene conveyor belt, nylon conveyor belt, Teflon conveyor belt, stainless steel conveyor belt.
According to the degree of heat resistance, conveyor belts are divided into: ①. Heat resistant conveyor belts: Ti type resistant to not more than 100 degrees, T2 type resistant to not more than 125 degrees, T3 type resistant to not more than 150 degrees ②. High temperature resistant conveyor belts: temperature resistant capacity not more than 200 degrees ③. Burning resistant conveyor belts (metal mesh conveyor belts): temperature resistant 200-500 degrees
The conveyor belt is divided into many specifications and models according to the use environment and requirements:
According to the size of the transportation volume and the width, it is divided into: B200 B300 B400 B500 b600 b650 B800 b1000 b1200 b1400 b1600b1800 b2000 and other common models (B represents the width, and the unit is mm).
According to the different use environment, it can be divided into: ordinary conveyor belt includes (ordinary type, heat-resistant type, fire-resistant type, burning resistant type, acid and alkali resistant type, oil resistant type), heat-resistant conveyor belt, cold resistant conveyor belt, acid and alkali resistant conveyor belt, oil resistant conveyor belt, food conveyor belt and other models. The minimum thickness of the covering glue on the ordinary conveyor belt and food conveyor belt is 3.0mm, and the minimum thickness of the lower covering glue is 1.5mm; The minimum thickness of covering glue on the heat-resistant conveyor belt, cold resistant conveyor belt, acid and alkali resistant conveyor belt and oil resistant conveyor belt is 4.5mm, and the minimum thickness of covering glue under it is 2.0mm. The thickness of the upper and lower covering glue can be increased by 1.5mm according to the specific conditions of the use environment.
According to the tensile strength of the cloth layer of the conveyor belt, it is divided into ordinary conveyor belt and strong conveyor belt. The strong canvas conveyor belt is divided into nylon conveyor belt (NN conveyor belt) and polyester conveyor belt (EP conveyor belt). Supplementary note: the strong layer of the strong conveyor belt is polyester canvas (EP), which is specifically divided into EP100, EP150, ep200, ep250, ep300, ep350, ep400, etc; It can also be nylon canvas (NN), which can be divided into nn100, nn150, nn200, nn250, nn300, nn350, nn400, nn450, nn500, etc.
High inclination belt: including low patterned belt, high patterned belt, diaphragm belt and edge retaining belt.
The working surface of the low patterned belt is covered with rubber bumps or bumps of various shapes with a height of less than 10mm to block the layering of materials, which are used to transport powder and small particles of bulk materials. The height of the bump on the surface of the high patterned belt is 10 ~ 25 mm to prevent the rolling of materials, which is used to transport medium and large particle size bulk materials. These two kinds of belts can increase the conveying inclination by about 10 °. The working surface of the diaphragm plate belt is covered with a partition board with a height of more than 100 mm. The shape of the partition board is divided into double fin shape, multi fin shape, high V shape or straight shape, which can be used to realize upward transportation with an inclination of 53 °. The baffle type belt is a diaphragm with wavy or plate-shaped baffle. The height of the baffle is 40 ~ 300 mm. This belt can realize vertical lifting. ③ Tropical resistance: conveyor belt with special rubber as covering material, the temperature of conveying materials can reach 800 ℃. ④ Cold resistant belt: it is also a conveyor belt with special rubber as covering material, which can be used in the environment of -55 ℃. ⑤ Flame retardant belt: conveyor belt with PVC or special rubber as covering material, mainly used in underground coal mines. It is not easy to produce flames and cause explosions when it has strong friction with rollers or other parts. ⑥ Wire mesh belt: it is woven from metal wires and has no covering layer. It is used to transport materials at -55 ~ 1200 ℃ or complete the dehydration of materials during transportation. ⑦ Steel strip: it is made of cold-rolled steel sheet with a thickness of 0.2 ~ 4 mm, which is mostly used on the conveyor in the drying furnace. ⑧ Steel rope traction belt.
According to the use of the conveyor belt, it can be divided into: oil proof conveyor belt, anti slip conveyor belt, climbing conveyor belt, acid and alkali proof conveyor belt, heat proof conveyor belt, cold proof conveyor belt, flame proof conveyor belt, corrosion proof conveyor belt, moisture-proof conveyor belt, low temperature conveyor belt, high temperature conveyor belt, oil resistant conveyor belt, heat-resistant conveyor belt, cold resistant conveyor belt, low temperature conveyor belt, high temperature conveyor belt, acid and alkali resistant conveyor belt, flame-retardant conveyor belt.
Conveyor belts can be divided into: PVC conveyor belt, Pu conveyor belt, polyethylene conveyor belt, plastic chain plate conveyor belt, module mesh conveyor belt, polypropylene conveyor belt, nylon conveyor belt, Teflon conveyor belt, stainless steel conveyor belt.
According to the degree of heat resistance, conveyor belts are divided into: ①. Heat resistant conveyor belts: Ti type resistant to not more than 100 degrees, T2 type resistant to not more than 125 degrees, T3 type resistant to not more than 150 degrees ②. High temperature resistant conveyor belts: temperature resistant capacity not more than 200 degrees ③. Burning resistant conveyor belts (metal mesh conveyor belts): temperature resistant 200-500 degrees
