CATFLO 1100GPH marine bilge pump price rule automatic small 12v dc water pump for yacht boat
- Category: >>>
- Supplier: Fuan Bidibao Electrical Appliance Co. Ltd.
Share on (1600580086059):
Product Overview
Description
Product Description
DC Automatic Submersible Boat Impeller Water Pump
- All-in-one pump & switch - No float switch required
- Pump turns on when water level rises & shuts off when water is removed
- Water cooled motors for long life, with anti airlock design and moisture tight seals.
- Output: Up to 12.5 gallons/minute(750 gallons/hour). Max. recommended discharge head 2.5m.
- Heavy duty motors with stainless steel shafts and tough thermoplastic bodies.
- Includes comprehensive user manual with installation instructions and wiring diagram

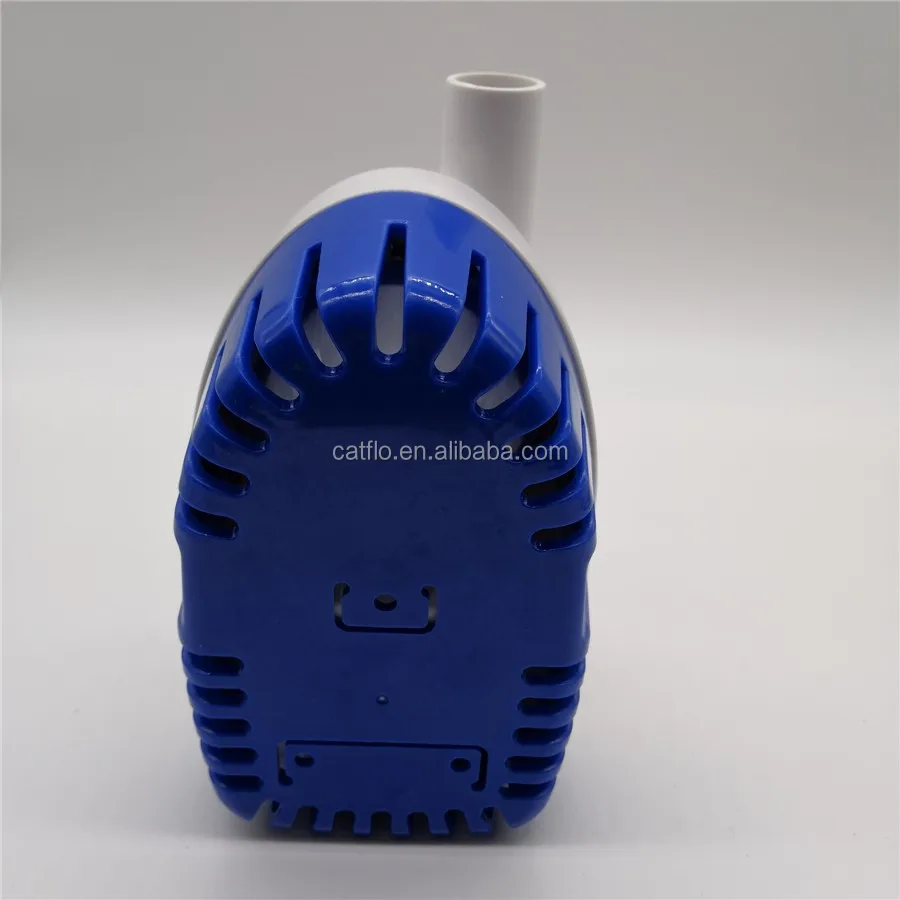

- Snap-off strainer for easy cleaning
- Connections: For 19mm (3/4") bore hose.
- Totally submersible and ignition protected.
- Compact pump for smaller vessels.
- Tough plastic body.
- Limited one year warranty
- Can be used with switch panel for manual override
- Includes comprehensive user manual with installation instructions and wiring diagram
Pump
| Motor Voltage | 12/24V DC |
| Type | Compact, Efficient, Long life motor |
| Mode | Demand |
| Certifications Option | CE Approval |
| Liquid Temperature | 110°F (43°C) Max. |
| Max Head | 3m |
| Max Flow rate | 750GPH |
| Thermal Overload Protected | Start working when temperature reach 90°C(+-10%) |
| Inlet/Outlet Ports | 19mm/3/4'' |
| 19mm/3/4'' | |
| Duty Cycle | Intermittent (under different pressure the continuous working time will also be different) |
| Motor options | 2 pin connector |
| On/off switch |
Packaging & Shipping
Application
| Application: | ||||
 | ||||
| How a Bilge Pump Works | ||||
Automatic bilge pumps with Built-in switch. Removal of the motor cartridge allows for easy cleaning of the strainer and impeller in the event that the pump becomes clogged with debris. Electric Submersible Pumps are by far the most popular type of electric Bilge Pumps, submersibles give very high outputs, are cost effective, have low amp draw and are easy to install. Bilge pumps are designed to exhaust standing water only. They are not intended to prevent rapid accumulation of on-board water due to rough weather, hull damage, and/or other unsafe navigational conditions. |
