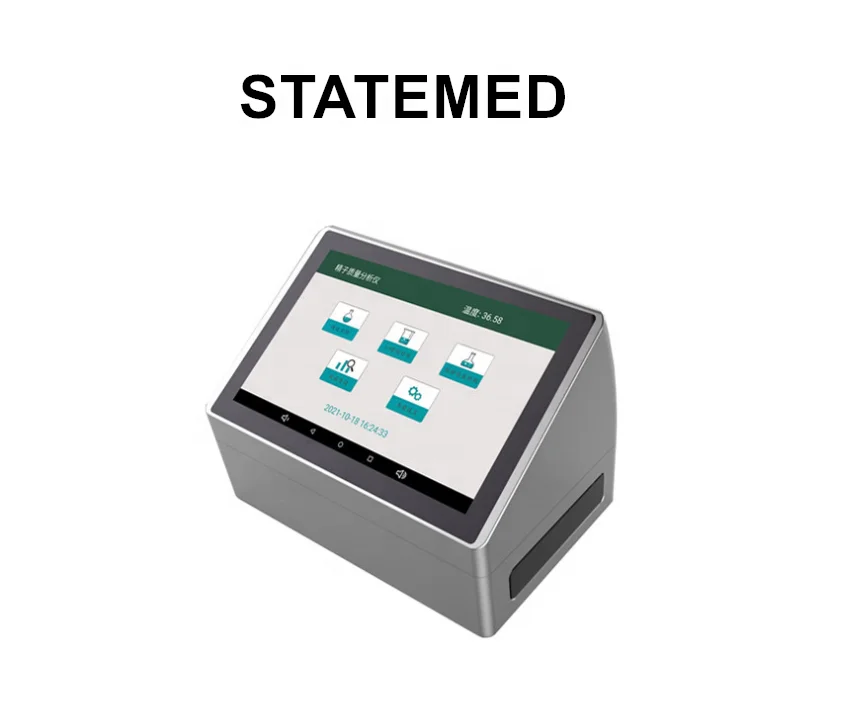

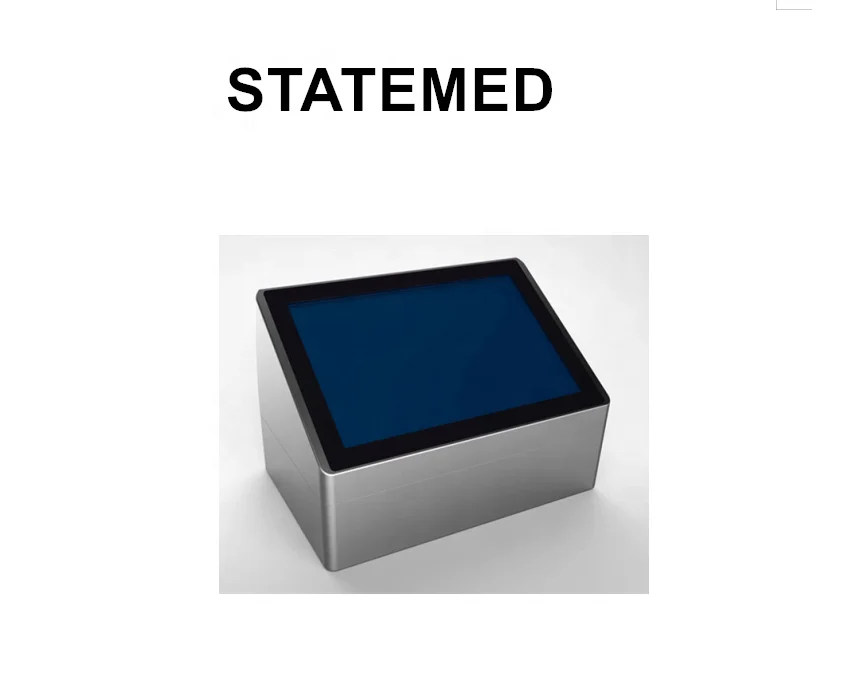

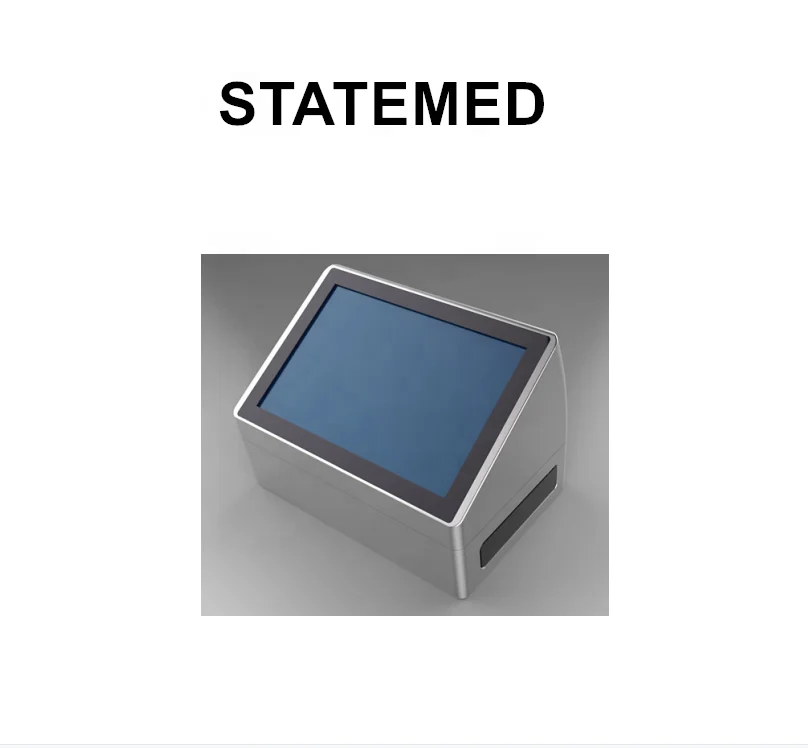

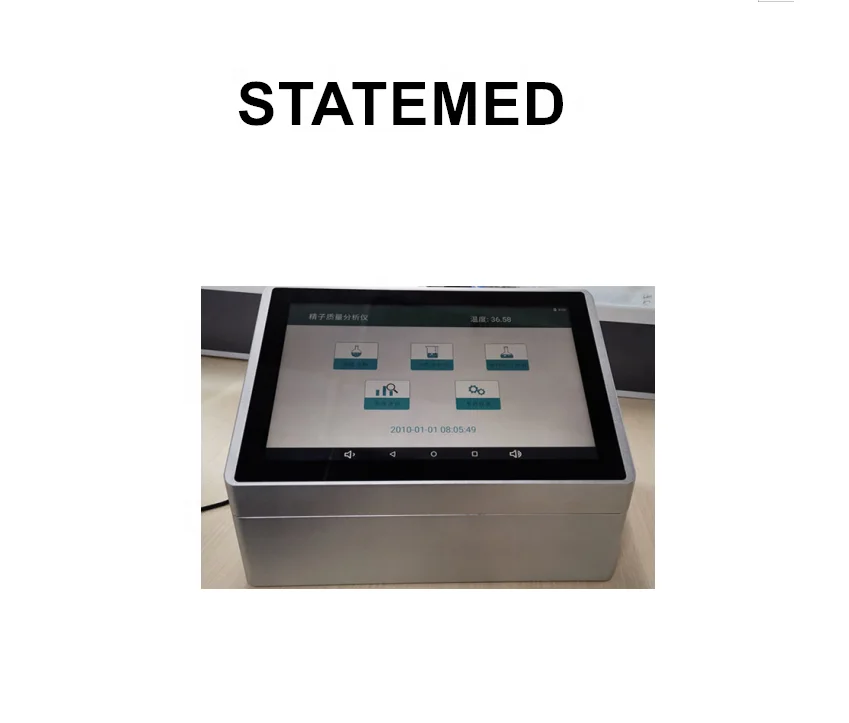

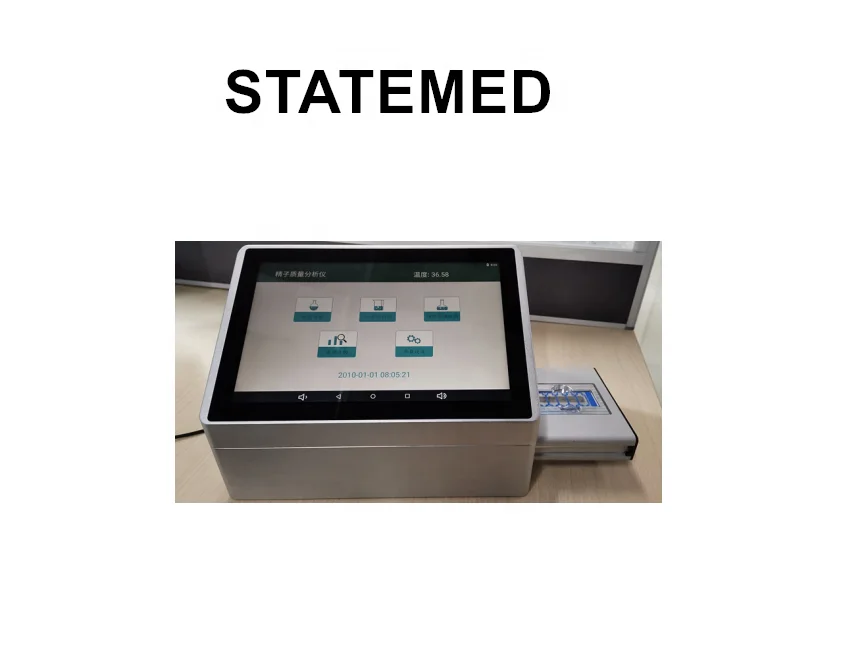

Портативный анализатор качества спермы с высокой точностью для лошадей, собак, крупного рогатого скота, свиней, овец и других животных
- Category: Clinical Analytical Instruments >>>
- Supplier: State (Beijing) Medical Technology Co. Ltd.
Share on (1600580211257):
Product Overview
Description
Product Description
Sperm quality analyzer is an automatic qualitative and quantitative detection and analysis of sperm density,
motility, viability, movement trajectory characteristics, etc. In this way, various parameters of sperm dynamic
and static (including density, motility, effective sperm count, etc.) can be obtained, which can improve the
efficiency of artificial insemination, increase the farrowing rate of sows, reduce semen loss and reduce labor
costs. Equipped with a constant temperature heating table, the sperm motility will not be affected by
temperature factors during detection, and a semen analysis report can be generated, which is convenient
for users to analyze.
motility, viability, movement trajectory characteristics, etc. In this way, various parameters of sperm dynamic
and static (including density, motility, effective sperm count, etc.) can be obtained, which can improve the
efficiency of artificial insemination, increase the farrowing rate of sows, reduce semen loss and reduce labor
costs. Equipped with a constant temperature heating table, the sperm motility will not be affected by
temperature factors during detection, and a semen analysis report can be generated, which is convenient
for users to analyze.
Main Features
2. The number of detected sperm in each group is more than 1000, which can effectively distinguish individual sperm and automatically filter out impurities.
3. Classification dilution algorithm, any dilution ratio can accurately detect the original precision activity.
4. Equipped with a 37-degree constant temperature table (the temperature setting range is 35°~45°) to ensure the survival time of sperm outside and improve the detection error tolerance rate.
5. Fully intelligent electronic control, intelligent focusing, intelligent tracking, improve observation efficiency.
6. Intelligent algorithm, identify sperm accurately, effectively capture sperm movement trajectory.
7. Store its own database, which is convenient for management, can automatically print data reports, and the basic information is clear at a glance.
8. The operation is simple and fast, and the calculation is fast and accurate.
9. The overall structure is made of high-strength alloy, which is stable and beautiful. According to ergonomics, the tilt angle of the screen is set for easy observation.
10. The printing information is comprehensive, and the label paper can be pasted to facilitate statistical classification.

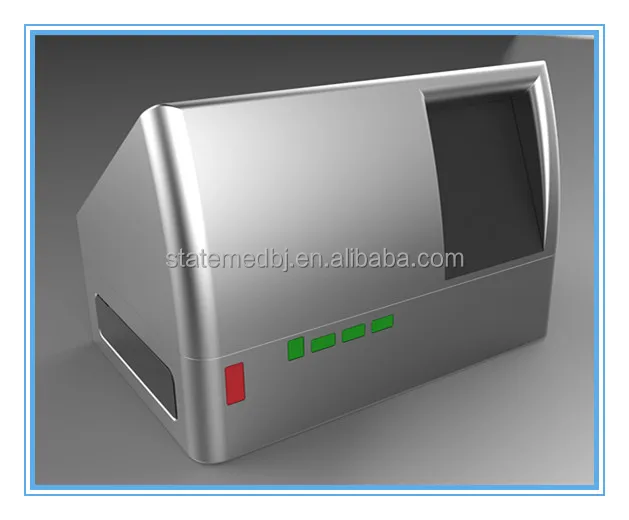

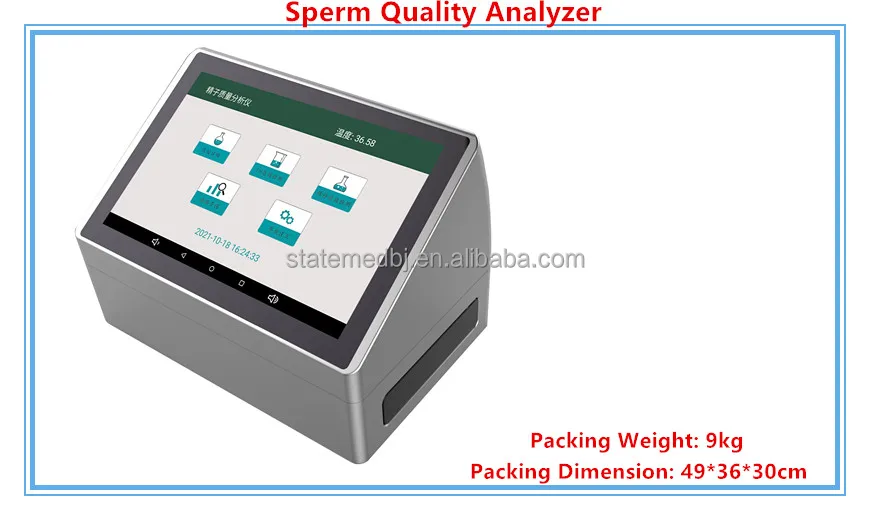

Detailed Images
Technical Parameters:
Accuracy: 98%
Resolution: 1um (width of sperm head)
Vitality Accuracy: 90%
Analysis time: within 30s
Detected speed range: 0-250（um/s）
Hard disk: 64G
Continuous working time: 8 hours
Measurement data:\tEffective sperm density, sperm forward motility rate
Constant temperature: 36-39
Store information: 10000
Constant temperature: 36-39
Store information: 10000
Entry information: Ear tag number, boar breed, collection time, factory area, collection quantity,
packing specification, packing quantity
packing specification, packing quantity
Print: Built-in printer
Networking: WIFI
Screen: 10.1 inch touch screen
Number of detection chambers: 6
Pictures and Videos: JPG format and MP4 format
Operating Procedures:
1) Quick visual inspection function
2) 1:9 Original sperm detection function
3) Diluted semen test
4) Data query
5) Boar Information
6) Parameter settings
7) Animal selection
2) 1:9 Original sperm detection function
3) Diluted semen test
4) Data query
5) Boar Information
6) Parameter settings
7) Animal selection
1) Sperm Quality Analyzer
2) Product Manual
3) Power Adapter

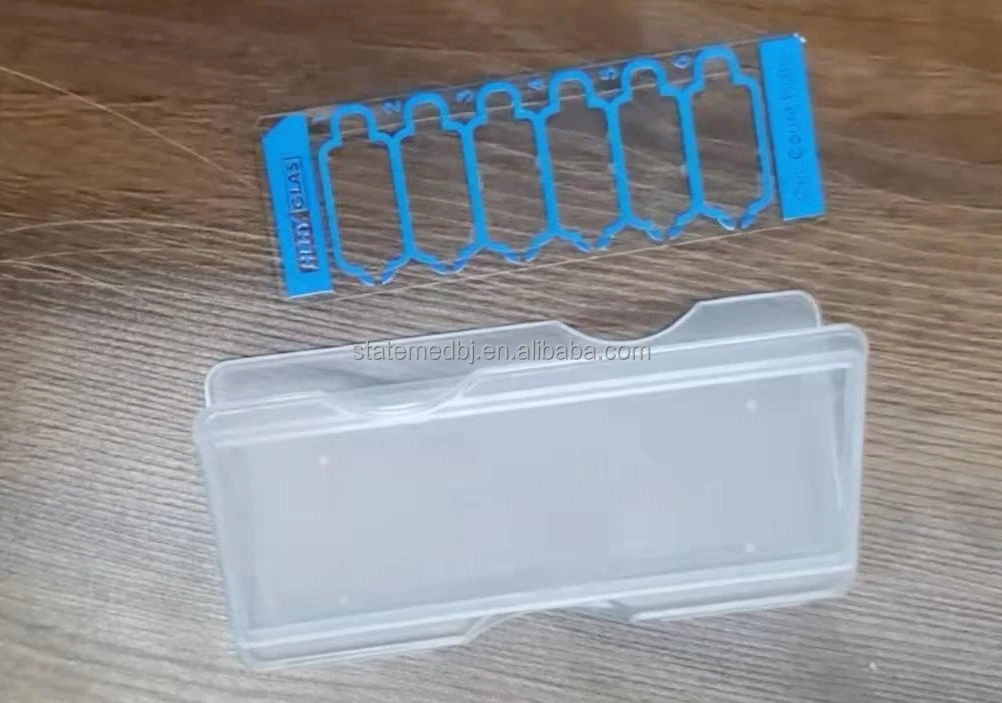

4) Glass Slide
5) Pipette
6) Cleaning Cloth
Precautions
①The product warranty period of our company is within 1 year from the start of use, or within 1.5 years after purchase,
whichever comes first. In addition, please contact our company for the relevant regulations such as product durability
times, replacement parts, and maintenance procedures. or agent consultation.
whichever comes first. In addition, please contact our company for the relevant regulations such as product durability
times, replacement parts, and maintenance procedures. or agent consultation.
②During the warranty period, if the fault or damage caused by the responsibility of the company is clearly identified,
the company will provide free replacements or replaceable parts that need to be replaced. In addition, the guarantee
here is the single guarantee of the company's products. The resulting damage is not covered by the guarantee.
the company will provide free replacements or replaceable parts that need to be replaced. In addition, the guarantee
here is the single guarantee of the company's products. The resulting damage is not covered by the guarantee.
③Do not use the observation function without a glass slide, otherwise the lens will be easily worn, please do not
disassemble it yourself, if there is any problem, please contact customer service in time.
disassemble it yourself, if there is any problem, please contact customer service in time.
④ Please refer to the separate guarantees and disclaimers of other products of our company, and use them after
understanding.
understanding.

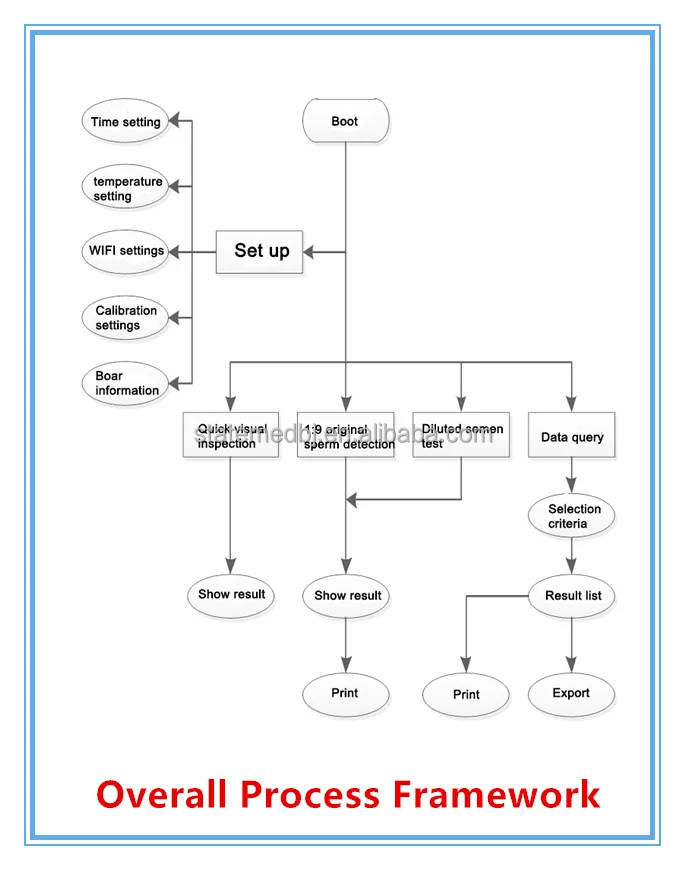

Overall Process Framework

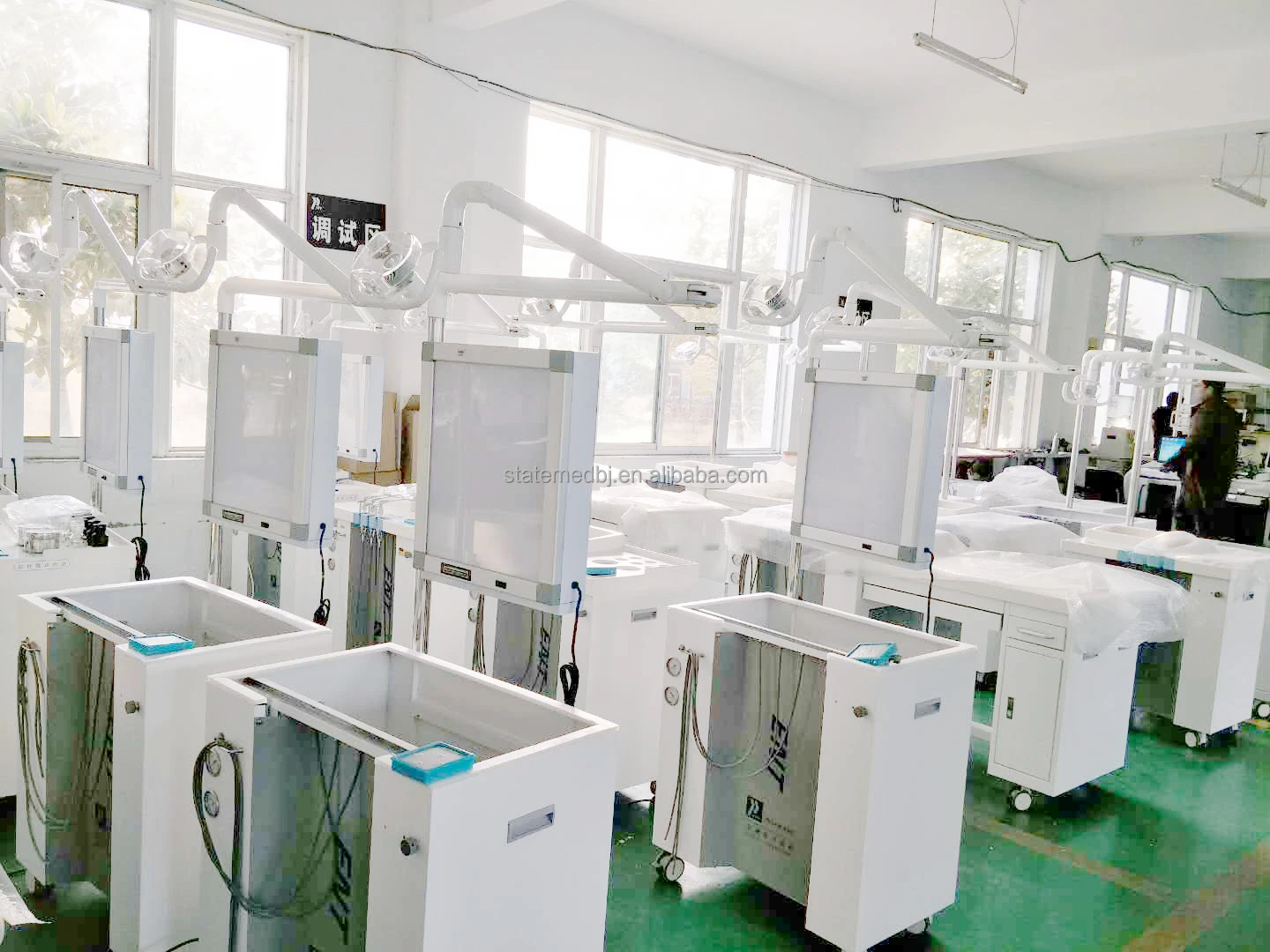

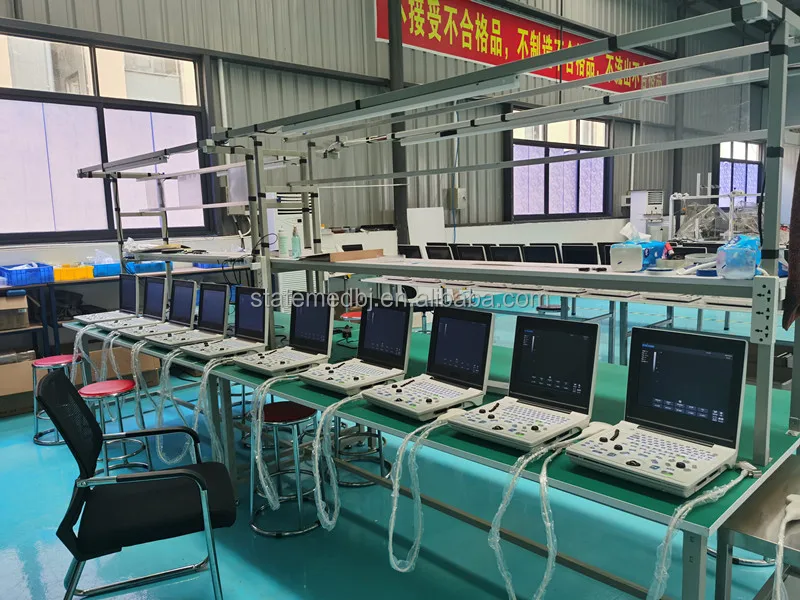

Company Introduction
State (Beijing) Medical Technology Co., Ltd. established in 2 0 0 2, is a High-tech medical products enterprise
combining R & D, production ,sales and after-sale together, specialized in Medical Ultrasonic Instruments,
E N T Workstation, Medical Endoscope Imaging Systems, Colposcope Digital Imaging System, Spectral
Treatment Unit, Medical Illumination lights, Medical Air Disinfection Machine, X-ray machines, Multi Parameter
Patient Monitor, Red Light Therapy Equipment, Enteral Feeding Pump, Intermediate Frequency Massage.
We constantly develop professional quality electric medical devices by adopting the domestic good technical
facilities to blend the computer information process technology and clinical medicine research well.
With professional ultrasonic technology, good standard quality system, strict production process control and
efficient after-sales service, our medical ultrasound products has obtained the trust of many medical institutions,
such as Colour Doppler, Digital B / W Ultrasound, Wireless Mini Ultrasound Scanner. Our Colour Doppler is the
professional scientific research achievement of State, Which is the reflection that State has been taking customer's
demand as design concept and making good technology innovation as backup force whether from scalable structure
or professional-quality images and powerful clinical application. State supply cost-effective and ultra-clear image
colour ultrasounds to global medical communities and make ultrasonic diagnosis with good achievements. We will
explore and develop unceasingly and try to make good contributions to human health in the world, which is the
common goal of every State people.
combining R & D, production ,sales and after-sale together, specialized in Medical Ultrasonic Instruments,
E N T Workstation, Medical Endoscope Imaging Systems, Colposcope Digital Imaging System, Spectral
Treatment Unit, Medical Illumination lights, Medical Air Disinfection Machine, X-ray machines, Multi Parameter
Patient Monitor, Red Light Therapy Equipment, Enteral Feeding Pump, Intermediate Frequency Massage.
We constantly develop professional quality electric medical devices by adopting the domestic good technical
facilities to blend the computer information process technology and clinical medicine research well.
With professional ultrasonic technology, good standard quality system, strict production process control and
efficient after-sales service, our medical ultrasound products has obtained the trust of many medical institutions,
such as Colour Doppler, Digital B / W Ultrasound, Wireless Mini Ultrasound Scanner. Our Colour Doppler is the
professional scientific research achievement of State, Which is the reflection that State has been taking customer's
demand as design concept and making good technology innovation as backup force whether from scalable structure
or professional-quality images and powerful clinical application. State supply cost-effective and ultra-clear image
colour ultrasounds to global medical communities and make ultrasonic diagnosis with good achievements. We will
explore and develop unceasingly and try to make good contributions to human health in the world, which is the
common goal of every State people.
