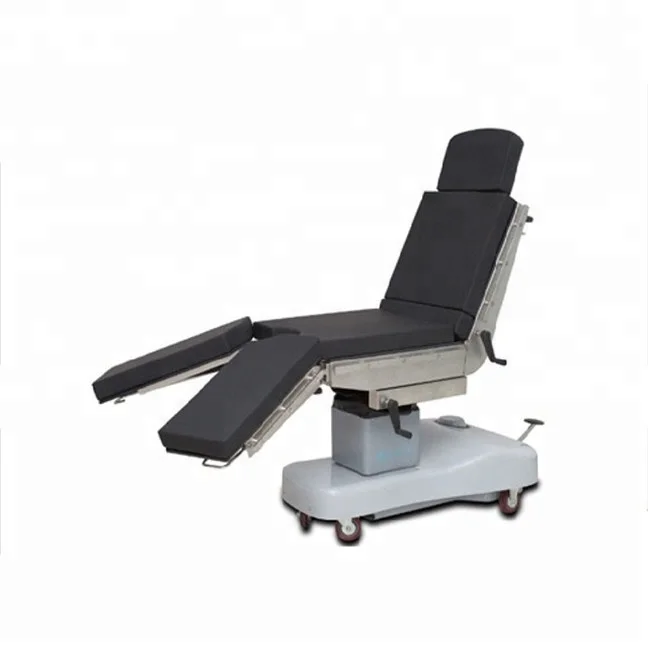

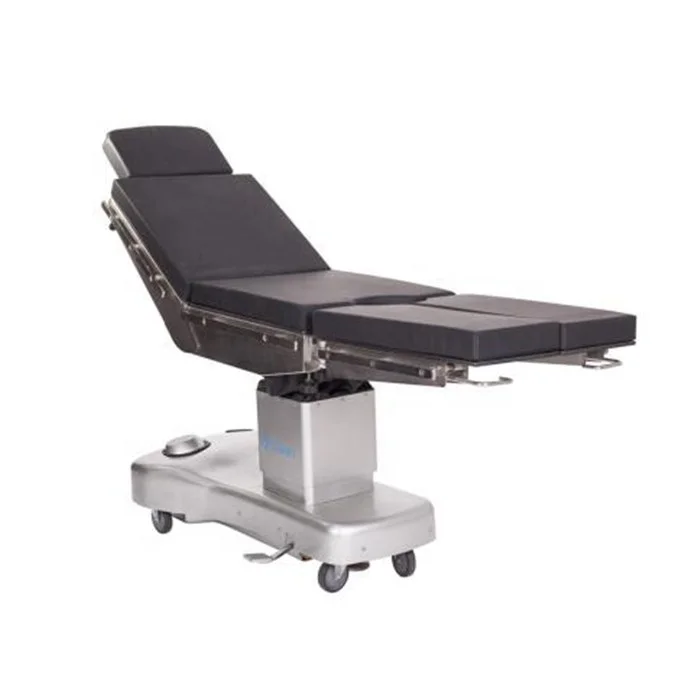

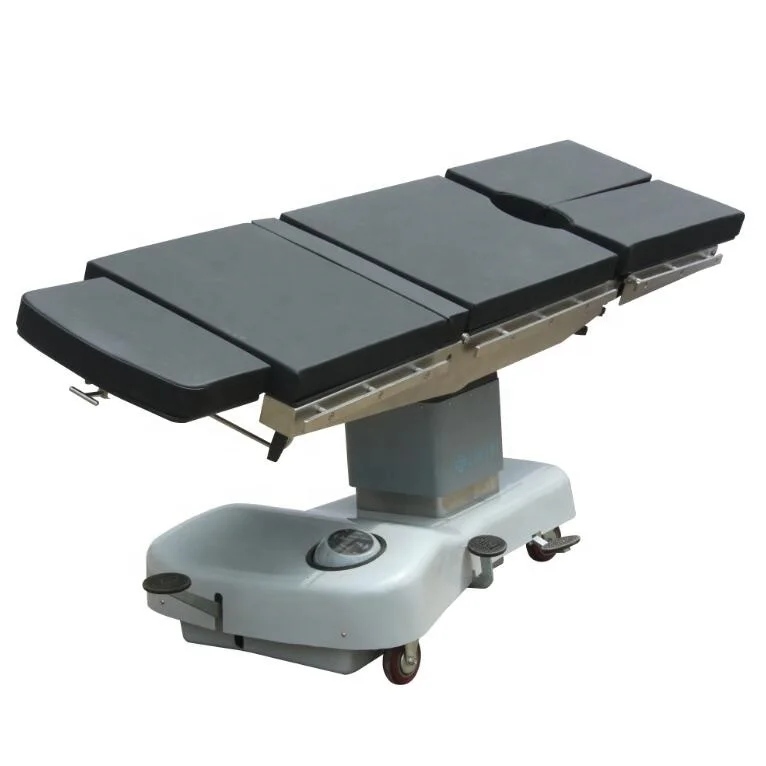

OT Table Manual Hydraulic Multifunctional Operating Table Surgical Table
- Category: >>>
- Supplier: Shandong Lewin Medical Equipment Co. Ltd.
Share on (1600580215783):
Product Overview
Description
Products Description
1.Manual Hydraulic control.

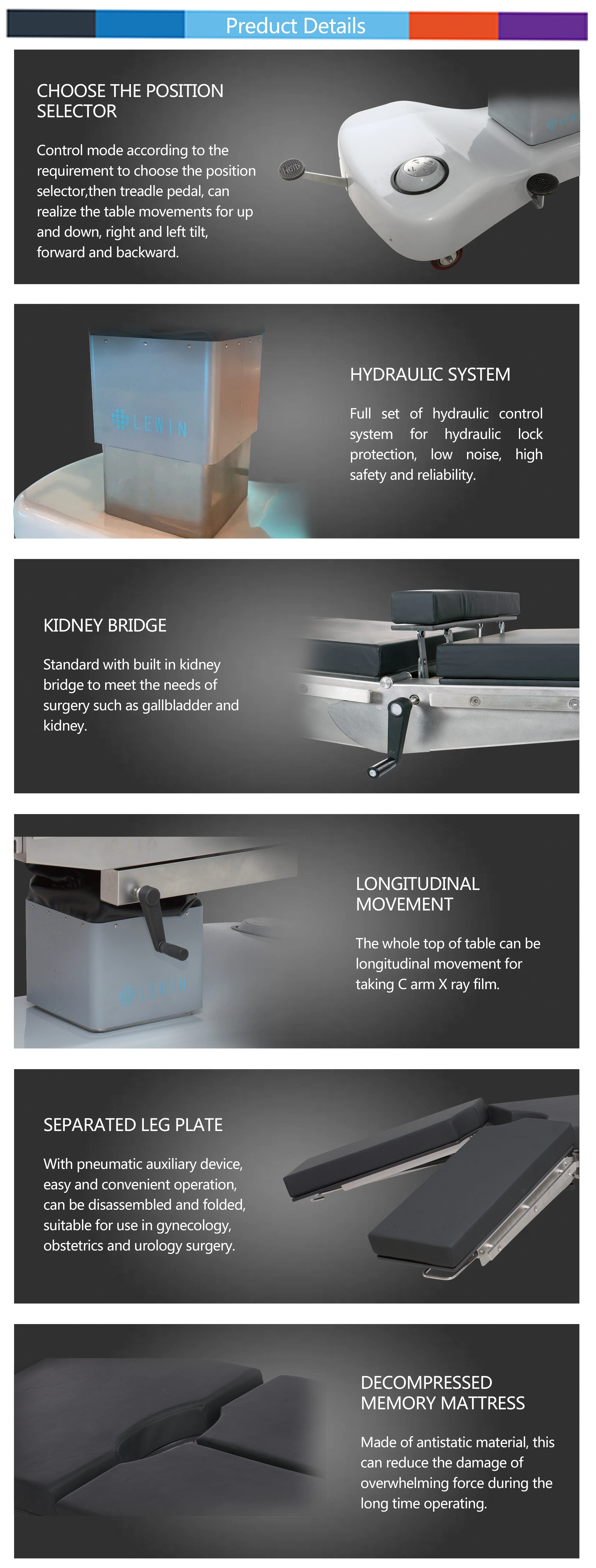

2.Full set of hydraulic control system for hydraulic lock protection, low noise, high safety and reliability.
2.Full set of hydraulic control system for hydraulic lock protection, low noise, high safety and reliability.
3.The whole operating table can forward and backward moving(option), to achieve full position C arm X-ray film.

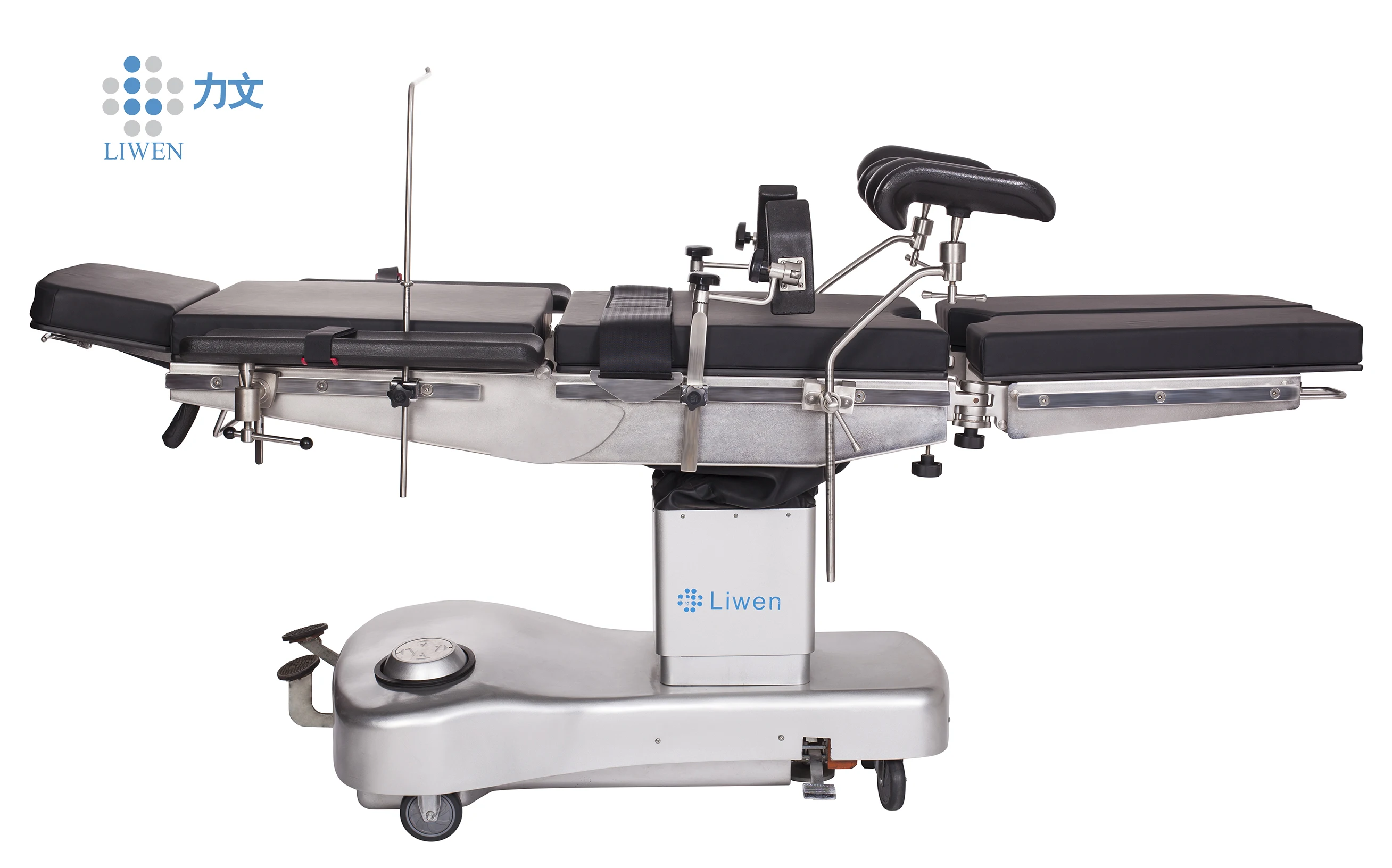

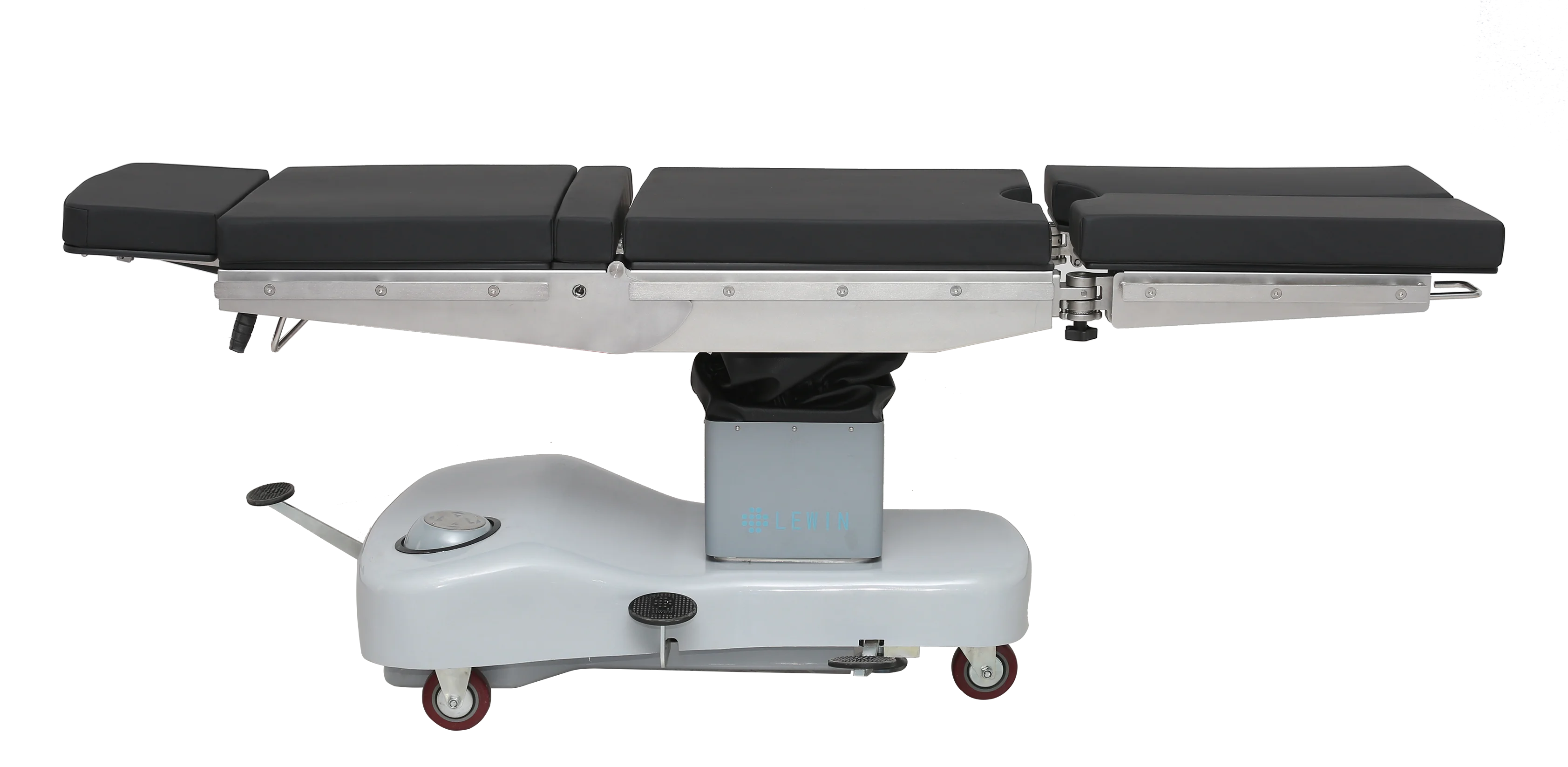

4.The table is divided into a plurality of movable segments, head plate, back plate, seat plate, leg plate. Back plate can be composed of shoulder and Kidney (optional). All section using transmissive X ray material, the board below have a cassette guide, can the cassette radiography.
5.Kidney bridge(optional) provides the convenience for the gallbladder, kidney operation.
6.Operation table base with fixed or mobile, mobile and flexible, reliable fixation.
7.Equipped with various functions accessories, for different operation use, expand the coverage of clinical.
8.This table has the advantages of simple operation, reasonable structure, novel modeling.
4.The table is divided into a plurality of movable segments, head plate, back plate, seat plate, leg plate. Back plate can be composed of shoulder and Kidney (optional). All section using transmissive X ray material, the board below have a cassette guide, can the cassette radiography.
5.Kidney bridge(optional) provides the convenience for the gallbladder, kidney operation.
6.Operation table base with fixed or mobile, mobile and flexible, reliable fixation.
7.Equipped with various functions accessories, for different operation use, expand the coverage of clinical.
8.This table has the advantages of simple operation, reasonable structure, novel modeling.
Product Paramenters
Parameter | Category |
Length | 2100mm |
Width | 520mm |
Height Of Table Top | 700-1000 mm |
Height Adjustment Range | 300 mm |
Longitudinal Shift Range | 300 mm |
Head and Foot Tilt | -20°~25° |
Lateral Tilt | -20°~20° |
Back Plate | -15°~75° |
Leg Plate | -90°~0° |
Head Plate | -25°~40° |
Built-in Kidney Bridge | ≥120mm |
Patient Weight Capacity | 180kg |

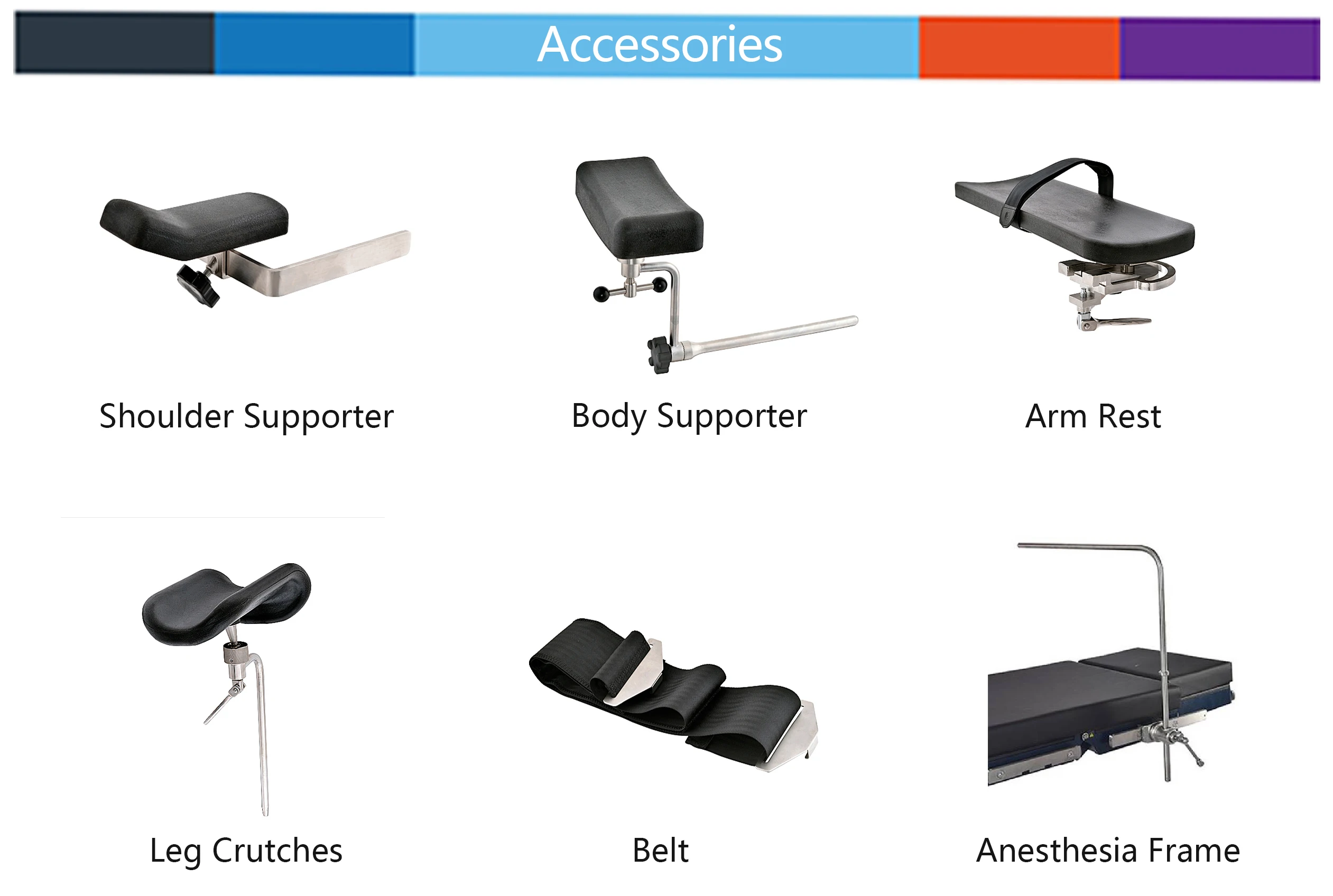

Square Clamp I | 5pcs |
Square Clamp II | 2pcs |
Arm Rest | 2pcs |
Body Supporter | 2pcs |
Leg-Crutches | 2pcs |
Anesthesia screen frame | 2pcs |
body bind belt | 1pc |

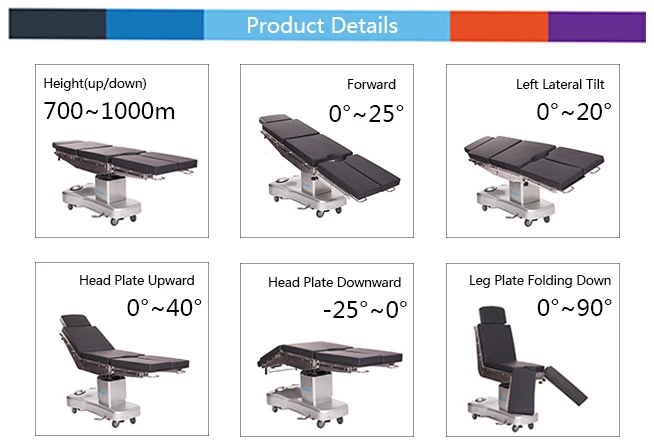

Details Images
