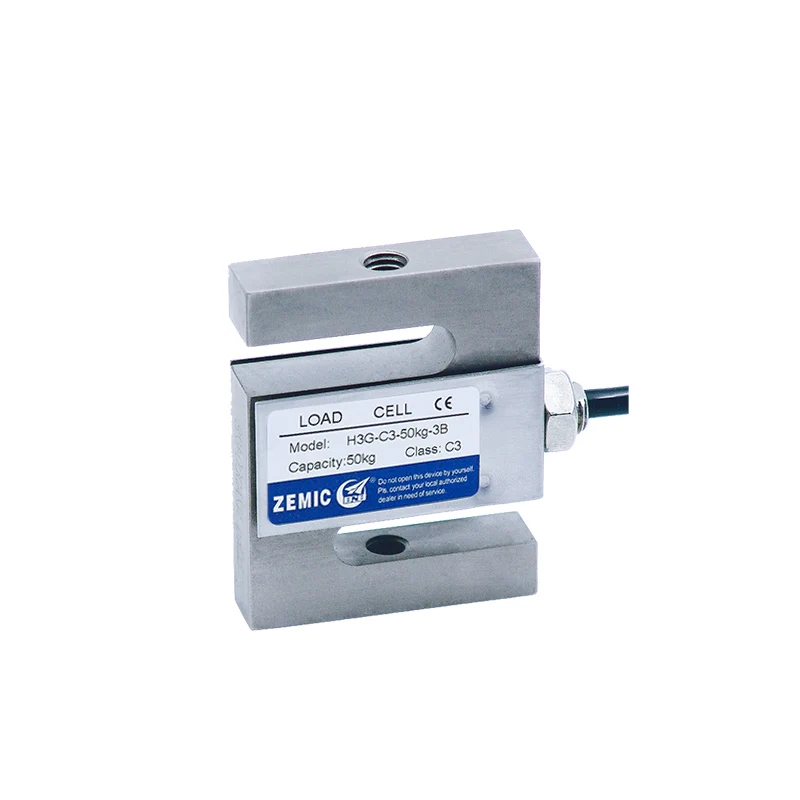

ZEMIC S Type 30t capacity Alloy Steel Load Cell

Product Overview

Description

ZEMIC S Type 30t capacity Alloy Steel Load Cell



Products Description

ZEMIC S SERIES LOAD CELL, which is S TYPE LOAD CELL element.

With IP67 protection, and NTEP, OIML, ATEX approved

Suitable for hanging,hopper and other weighing devices,etc.





Details Specification



Item	Technical Parameter

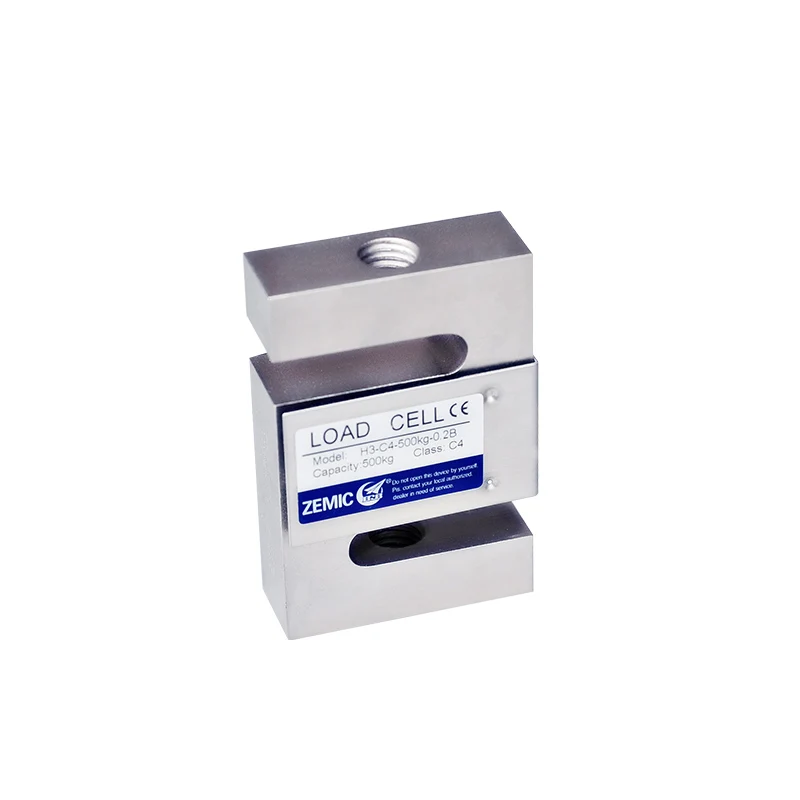

Model	H3-C3/C4-25kg...30T-20B
Accuracy class	OIML R60 C3/PTB C3/C4
Output Sensitivity,mV	2.0±0.004
Maxium Capacity, Emax,t	10,20,30
Maxium number of load cell intervals (nLC)	3000
Ratio of Minimum LC verification interval Y=Emax/Vmin	10000
Combined error, %FS	±0.02
Minimum Dead Load, of Emax	0%
Safe overload, of Emax	150%
Ultimate Overload, of Emax	300%
Zero Balance,%FS	<±1.5
Excitation, recommended voltage,V	5-12Vdc
Excitation Max., V	18Vdc
Input resistance,Ω	350±3.5
Output resistance,Ω	351±2.0
Insulation Resistance, MΩ	>=5000(50Vdc)
Compensated Temp., ℃	-10 to 40
Operating Temp., ℃	-35 to 65
Protection Class	IP67

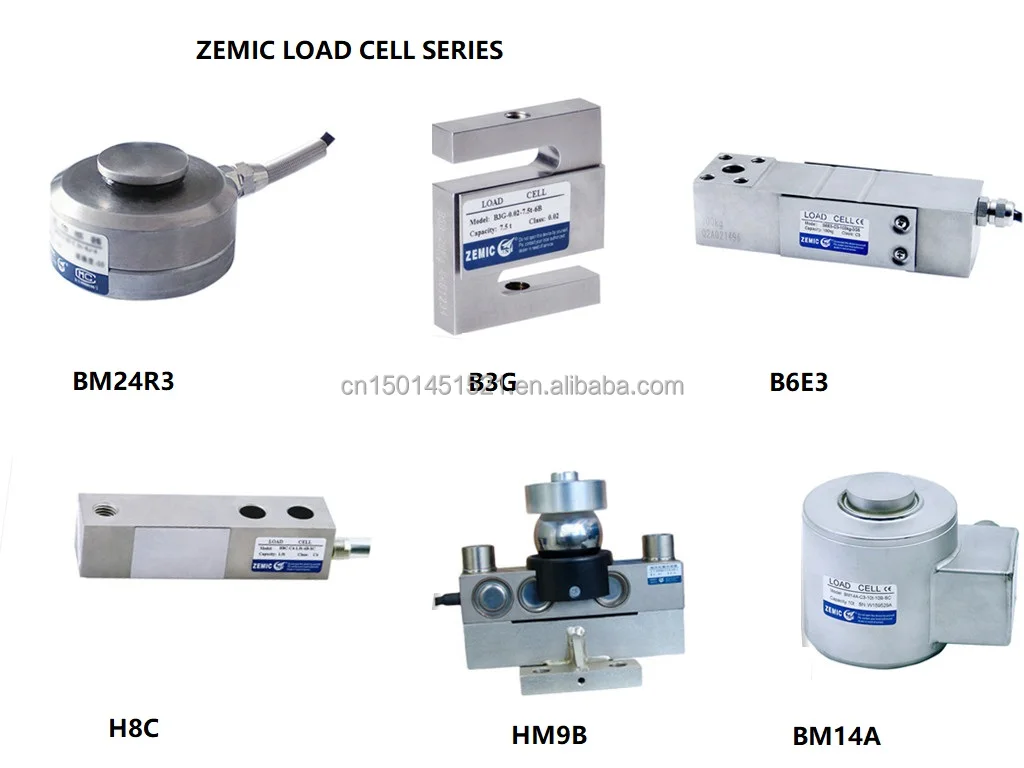

Other Series of our Load cell

2 Series, Spoke Type Load Cell

3 Series, S-Beam Load cell

6 Series, Single Point Load cell

8 Series, Single Shear Beam Load cell

9 Series, Dual Shear Beam Load cell

11 Series, Single Point With Bellow

14 Series, Column Type Load cell

16 Series, Dual Paraelle Beam
