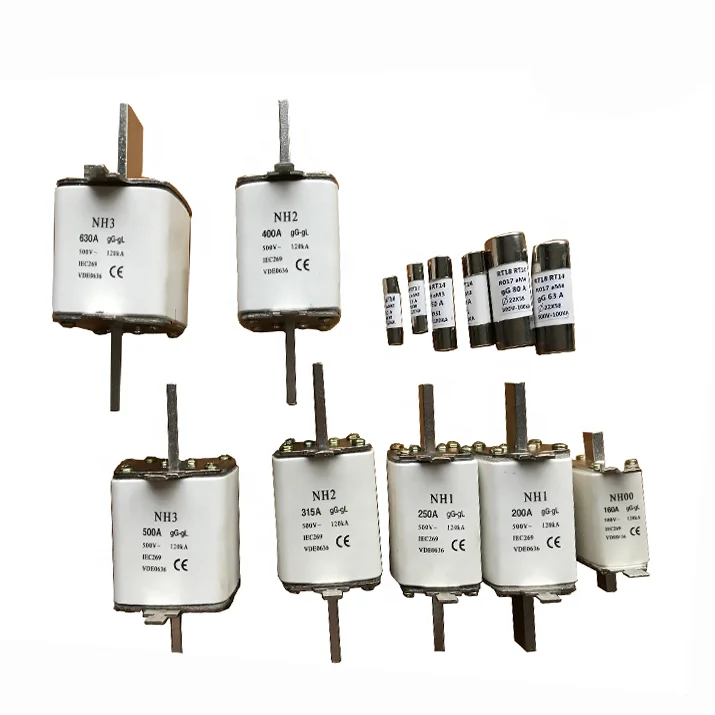

NT FUSE SPECIFICATIONS:


Model
Rated Voltage(V)
Current Level(A)
Size
A
B
C
D
F
G
NT00C
AC500/690,DC250
4-100
78
49
21
6
52.5
15
NT00
AC500/690,DC250
4-160
78
49
30
6
55.5
15
NT0
AC500/690,DC440
4-160
125
65
30
6
55.5
15
NT1
AC500/690,DC440
80-250
135
68
48
6
60
20
NT2
AC500/690,DC440
125-400
150
68
58
6
70
25

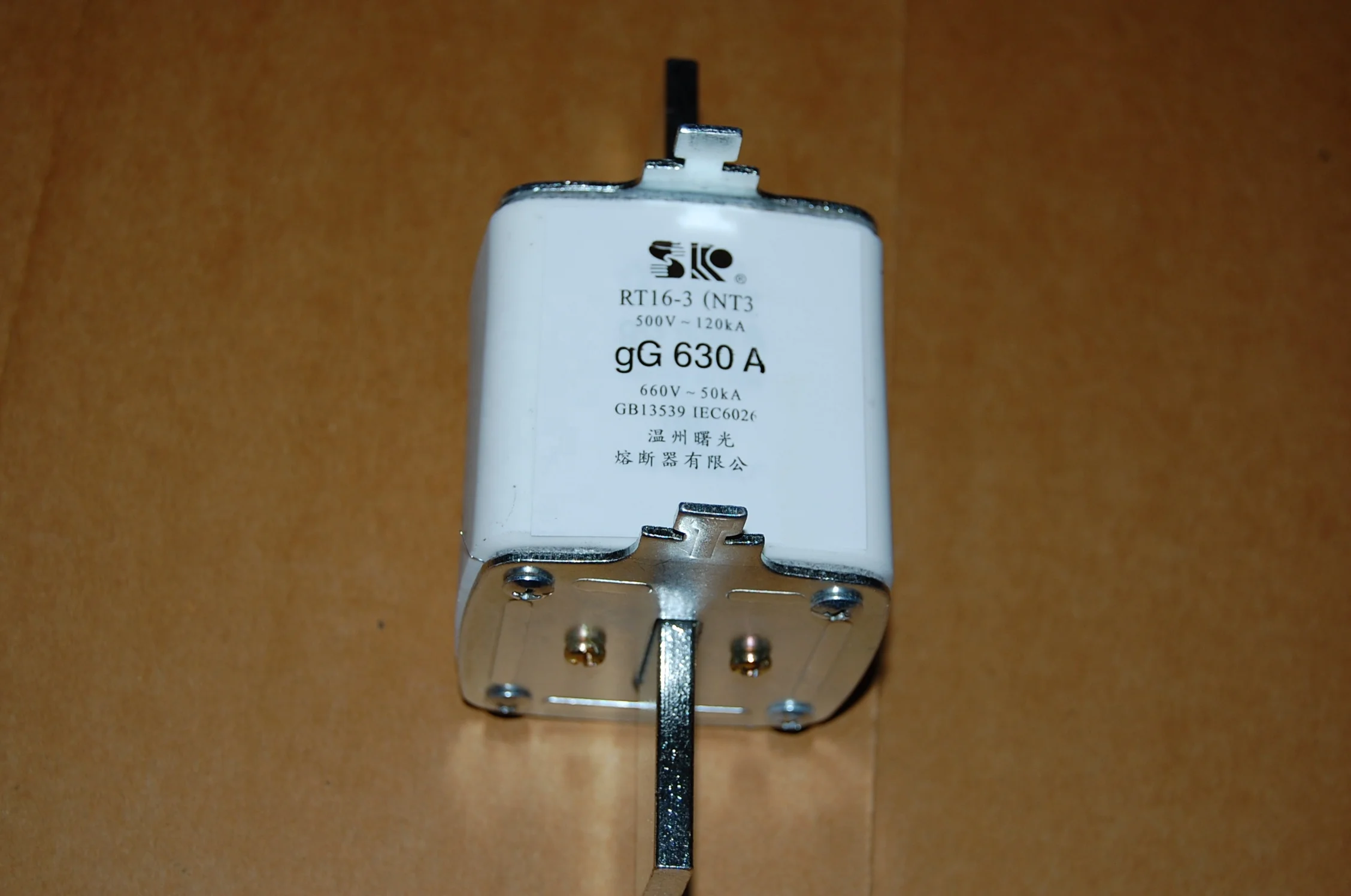

NT3
AC500/690,DC440
315-630
150
68
67
6
82
32
NT4
AC400/500,DC440
800-1250
200
90
90
8
113
50


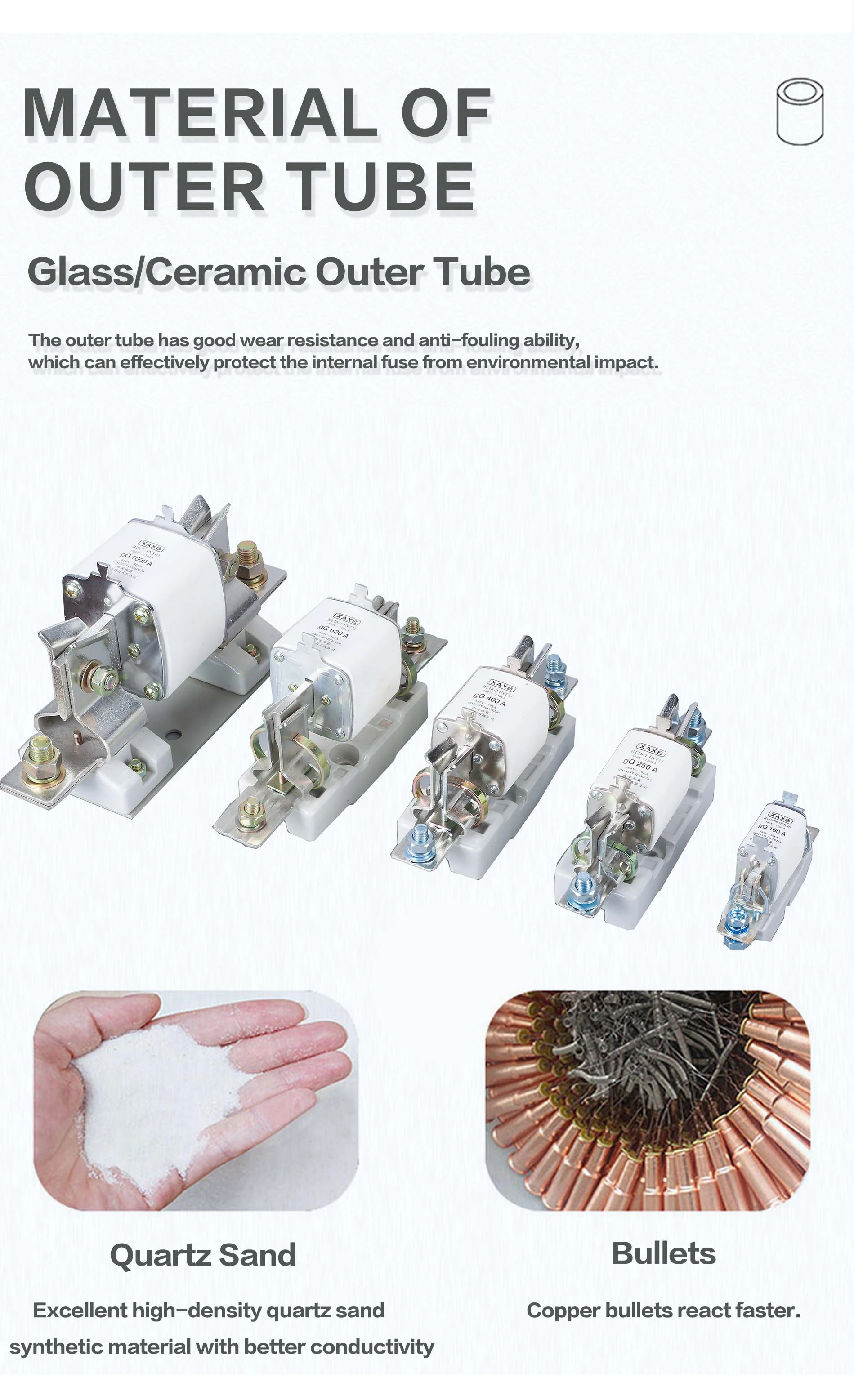

NT FUSE BASE SPECIFICATIONS:


TYPE
RATED CURRENT(A)
                                                                               SIZE (mm)
A
B
C
Φd
E
F
G
H
NH00C,
NT00,
RT16-00
160
121
100
25
7.5
24
60
25
NT0,
RT16-0
160
166
146
30
7.5
35
75
25
NT1,
RT16-1
250
197
171
58
10.5
35
80
25
30
NT2,
RT16-2
400
223
200
61
10.5
35
96.5
25
30
NT3,
RT16-3
630
257
228
61
10.5
35
105
25
30
NT4,
RT17
1250
300
264
71
8.5
34
137
24
30

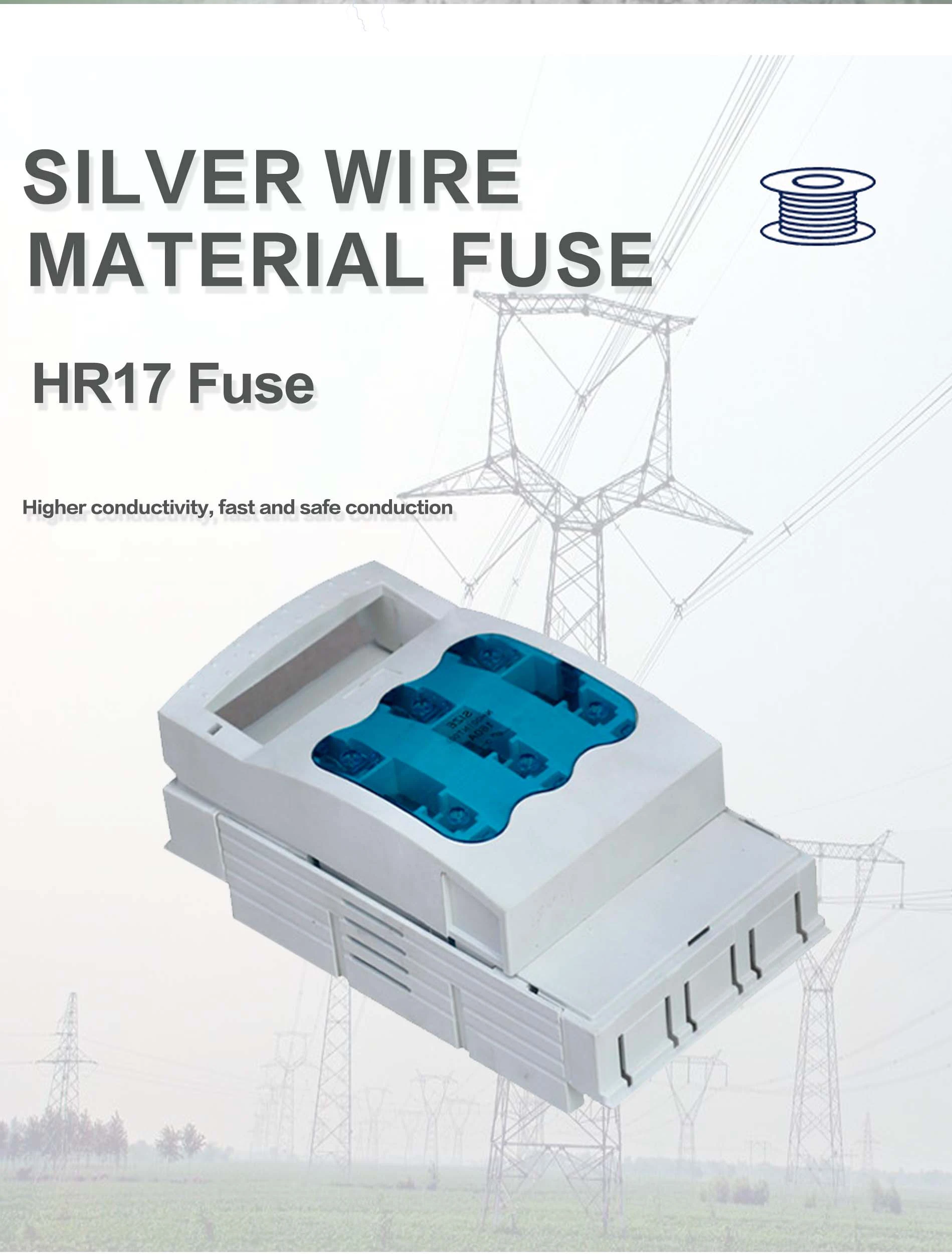

HR17/18 Series Top Quality fuse switch disconnector used for rated current 160A-630A, can be bus type or fixed type, provide upper or lower end connection, with integrated auxiliary closing, arc extinguishing equipment and touch protection parts, with fuse matched inside. and self-closing test hole in the switch cover. Providing the most safty using.




Switch rating heat current: 160A, 250A, 400A and 630A
Number of poles: 3P,
Assorted fuse links: NH00 for 160A, NH1 for 250A, NH2 for 400A and NH3 for 630A
Rated currents: 4, 6, 10, 16, 20, 25, 32, 35, 40, 50, 63, 80, 100, 125, 160, 200, 224, 250, 300, 315, 355, 400, 425, 500 and 630
Rated insulation voltage: 690V
Rated voltage: 400V
Rated limit short-circuit current: 50kA


Model
Assorted Fuse
Switch Rating heat Current (A
Rated Current (A)
HR17-160
NT00
160
4, 6, 10, 16 ....... 100, 125, 160
HR17-250
NT1
250
80, 100, 125, 160, 200, 224,250
HR17-400
NT2
400
125, 160, 200, 224, 250, 300, 315, 355, 400
HR17-630
NT3
630
315, 335, 400, 425, 500, 630




Type
Rated voltage
Rated cuttent
Rated breaking capacity
Rated power dissipation of fuse-link
Weight of Holder
Weight of fuse-link
Holder
Fuse-link
l1 kA
COSφ
RT18-32
500V
32
2,4,6,8,10,12,16,20,25,32
63 100
0.1~0.2
≤3
82
8
RT18-63
63
2,4,6,8,10,12,16,
20,25,32,40,50,63
≤5
206
20
RT18A-32
32
2,4,6,8,10,12,16,20,25,32
≤3
82
8












1600580228155
0.0163 s.
