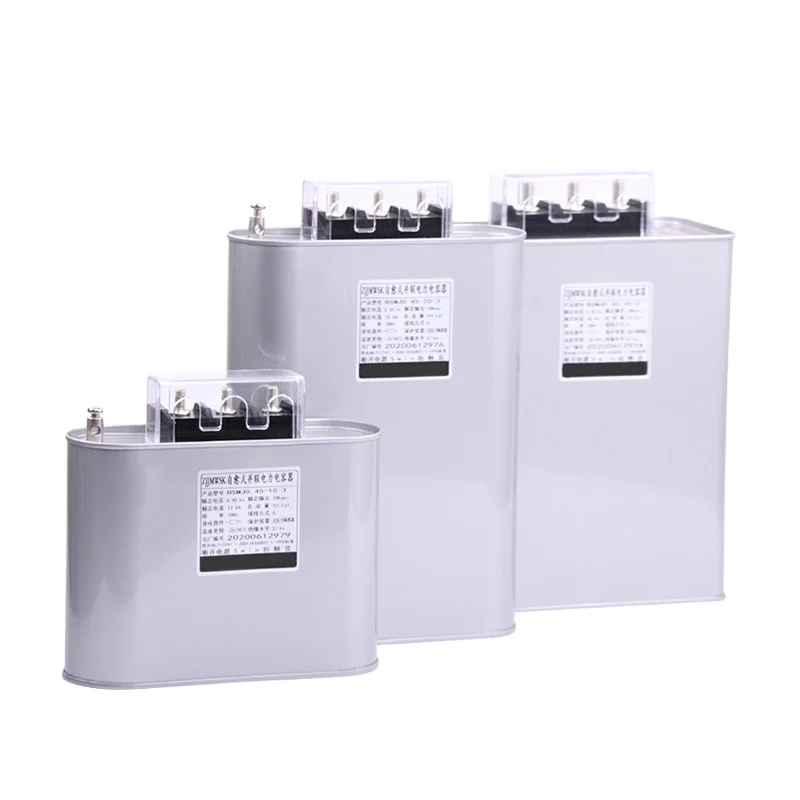

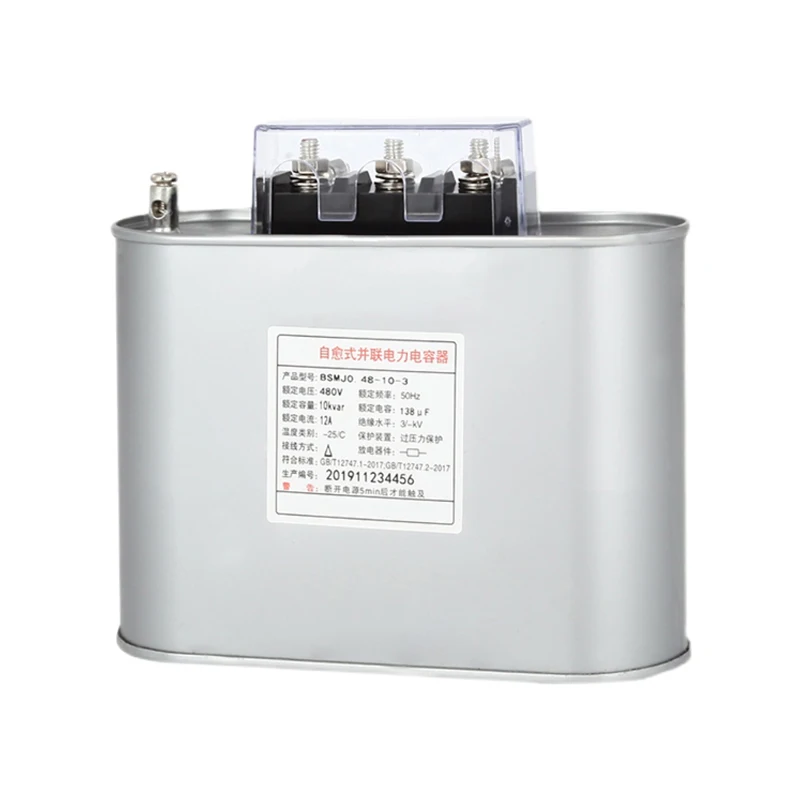

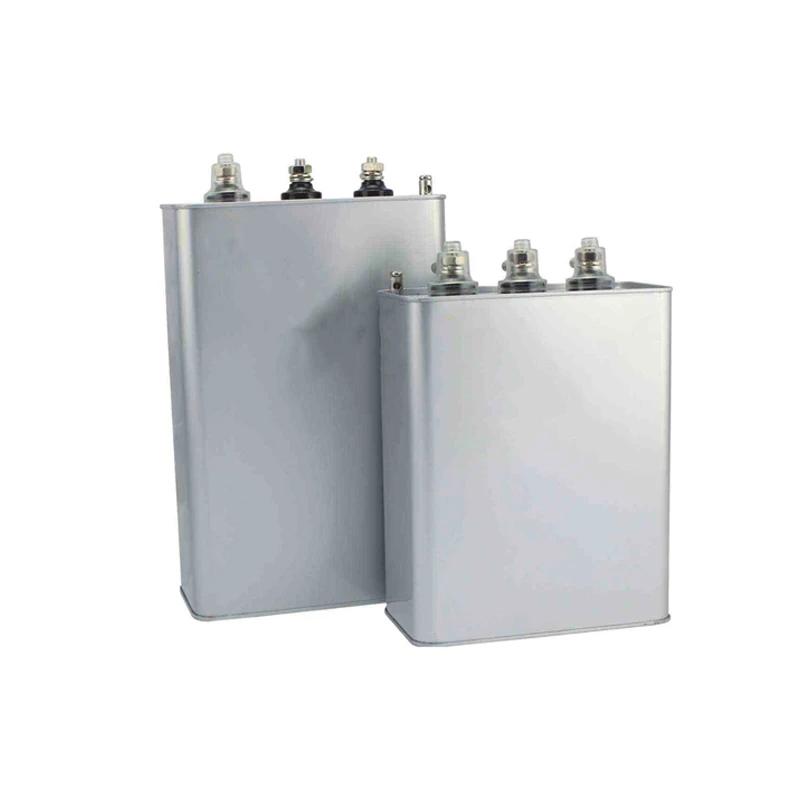

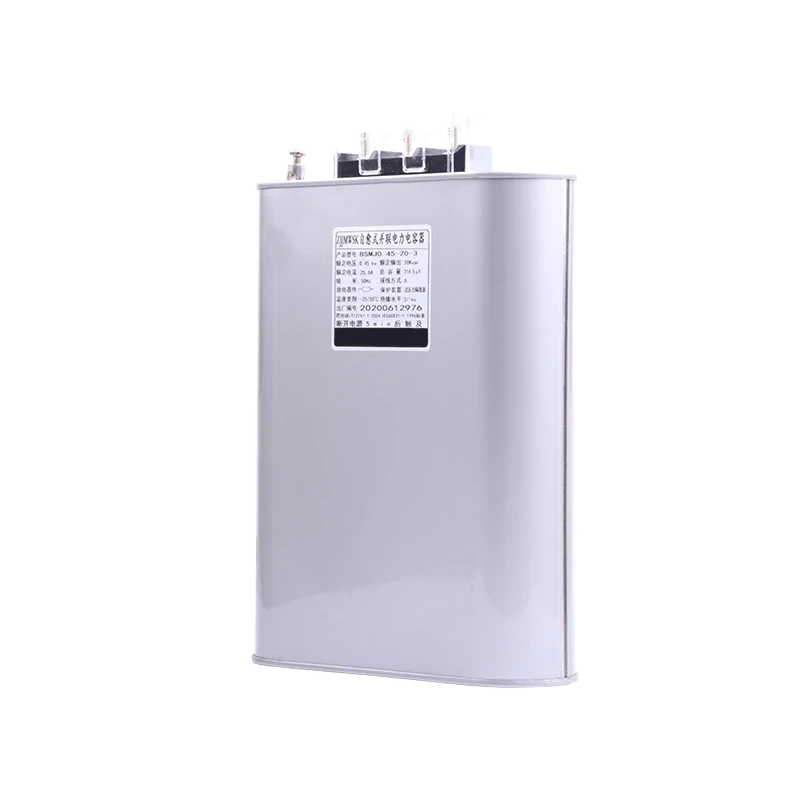

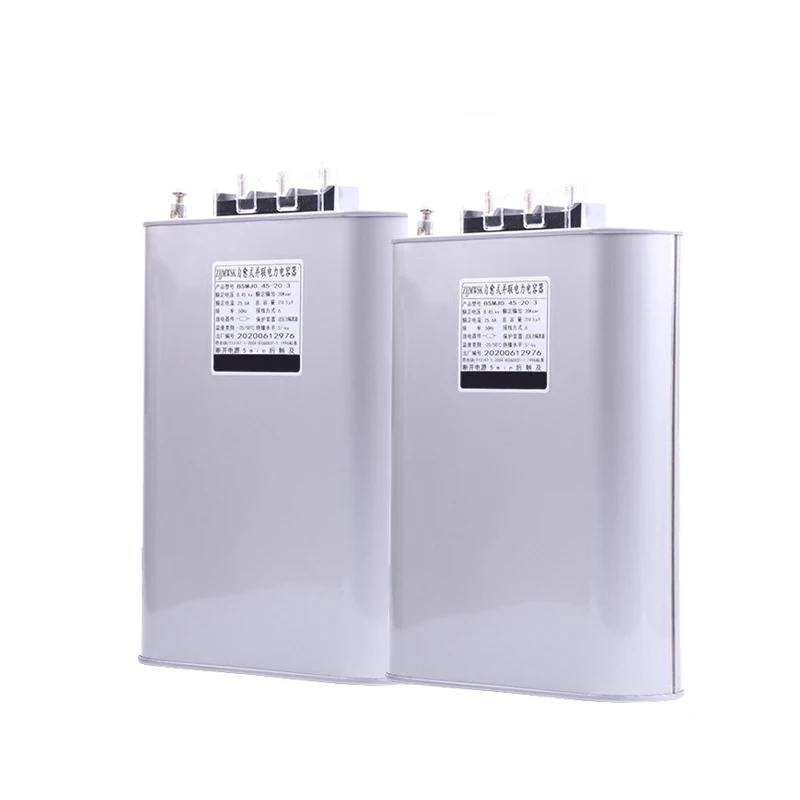

BSMJ Low Voltage Three Phase Shunt Power Capacitor 30kvar 40kvar 50kvar Capacitor
- Category: >>>
- Supplier: Zhejiang Zhegui Electric Co. Ltd.
Share on (1600580235678):
Product Overview
Description
Product Description
Customized products can consult online customer service!
Low Voltage Shunt Power Capacitor of the self-healing type
Description:
Self-healing low voltage shunt power capacitor was used in 50Hz and 6oHz power system it mainly improver power factor, reduce reactive power loss, improve voltage quality. Excavate transformer quantity and so on. It is the best saving power product which company strongly recommend and work. GB/T 12747-2004, IEC60831-1996

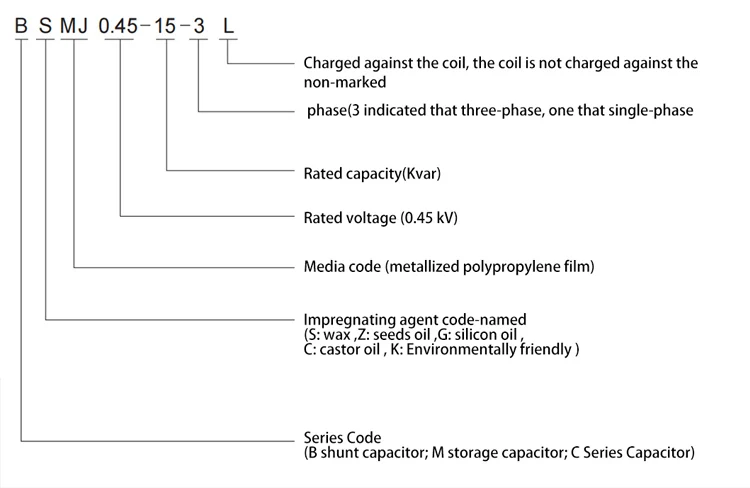

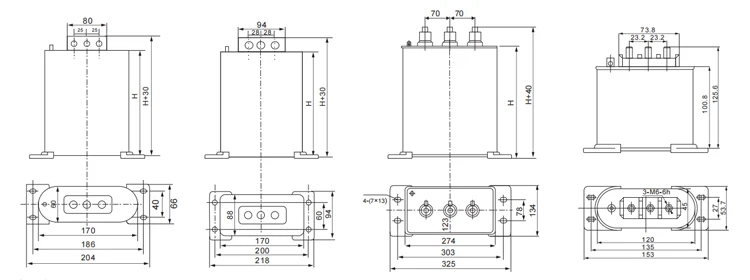

| Model BSMJ,BCMJ,BZMJ | Rated Volt. (KV) | Rated Capacity (Kvar) | Rated Capacity (μF) | Outgoing terminal | Drawing No. | H (mm) | Rated Current (A) |
| 0.4-4-3 | 0.4 | 4 | 79.6 | 5.8 | 105 | M6 | 5.8 |
| 0.4-5-3 | 0.4 | 5 | 99.5 | 7.2 | 105 | M6 | 7.2 |
| 0.4-8-3 | 0.4 | 8 | 159.2 | 11.6 | 125 | M6 | 11.6 |
| 0.4-10-3 | 0.4 | 10 | 198.9 | 14.4 | 180 | M6 | 14.4 |
| 0.4-25-3 | 0.4 | 25 | 497.4 | 36.1 | 210 | M8 | 36.1 |
| 0.4-40-3 | 0.4 | 40 | 796.2 | 57.7 | 330 | M8 | 57.7 |
| 0.4-50-3 | 0.4 | 50 | 995.2 | 72.2 | 345 | M10 | 72.2 |
| 0.4-55-3 | 0.4 | 55 | 1094.2 | 79.4 | 220 | M10 | 79.4 |
| 0.45-5-3 | 0.45 | 5 | 78.6 | 6.4 | 105 | M5 | 6.4 |
| 0.45-10-3 | 0.45 | 10 | 157.2 | 12.8 | 125 | M6 | 12.8 |
| 0.45-16-3 | 0.45 | 16 | 251.5 | 20.5 | 210 | M6 | 20.5 |
| 0.45-18-3 | 0.45 | 18 | 282.9 | 23.1 | 210 | M6 | 23.1 |
| 0.45-45-3 | 0.45 | 45 | 707.7 | 57.7 | 330 | M10 | 57.7 |
| 0.525-30-3 | 0.525 | 30 | 346.6 | 33 | 260 | M8 | 33 |
| 0.69-15-3 | 0.69 | 15 | 100.3 | 12.6 | 210 | M6 | 12.6 |
| 0.69-30-3 | 0.69 | 30 | 200.7 | 25.1 | 260 | M8 | 25.1 |
| 0.69-40-3 | 0.69 | 40 | 267.4 | 33.5 | 330 | M8 | 33.5 |
| 0.69-60-3 | 0.69 | 60 | 401.4 | 50.2 | 220 | M10 | 50.2 |
| 1.2-10-3 | 1.2 | 10 | 22 | 4.8 | 210 | M6 | 4.8 |
| 1.2-15-3 | 1.2 | 15 | 33.2 | 7.2 | 220 | M6 | 7.2 |
| 1.2-20-3 | 1.2 | 20 | 44.2 | 9.6 | 260 | M6 | 9.6 |
| 1.2-25-3 | 1.2 | 25 | 55.3 | 12 | 260 | M6 | 12 |
