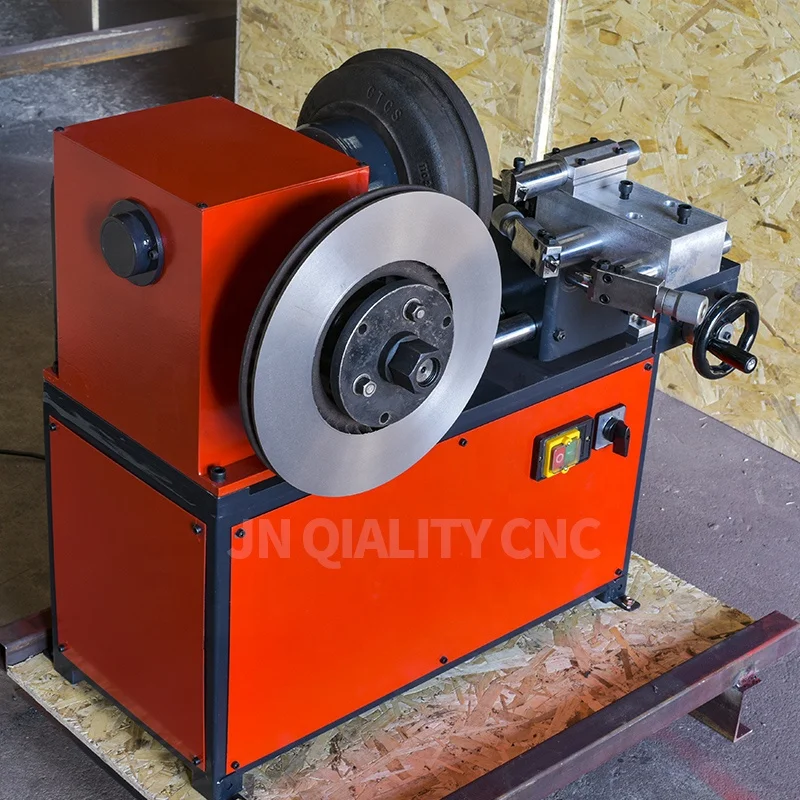

Hot Sale Brake Discs Drums Cutting Grinding Lathe Machine C9335 C9335A with CE
- Category: >>>
- Supplier: Jinan Quality CNC Machinery & Equipment Co. Ltd.
Share on (1600580237726):
Product Overview
Description

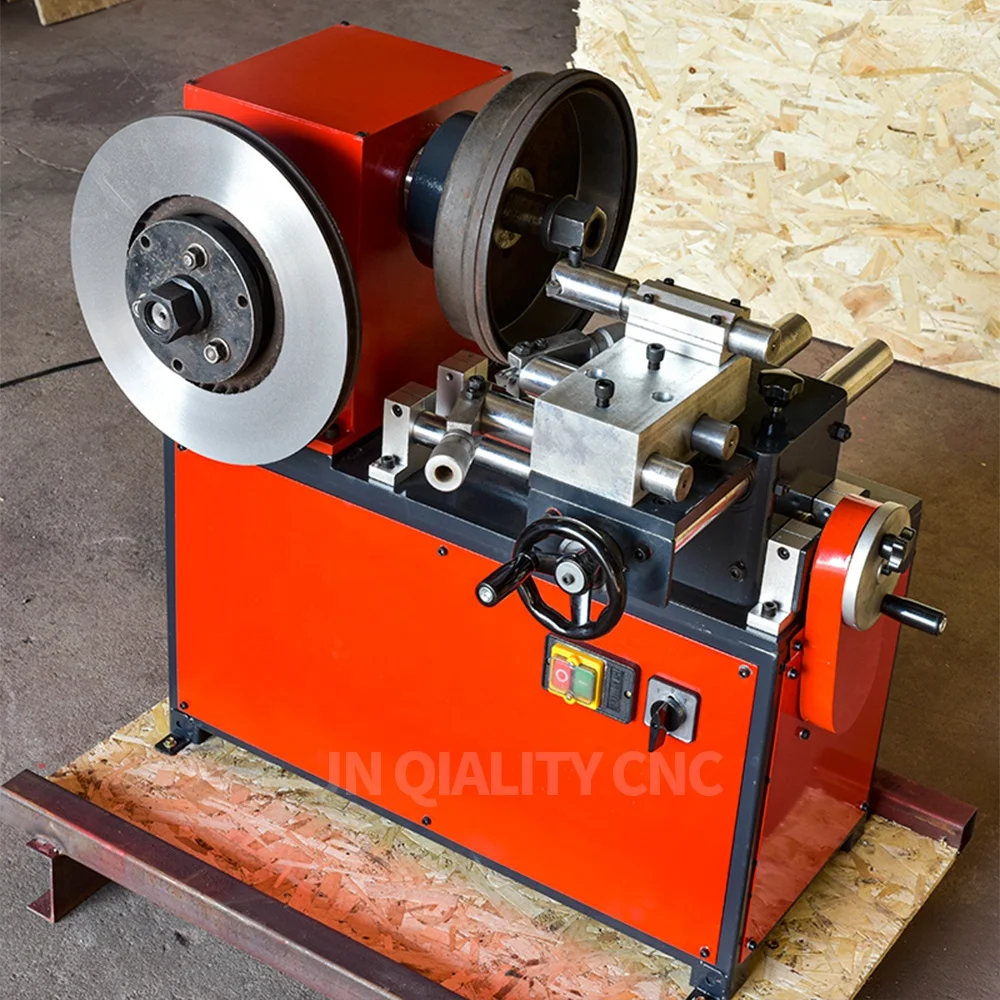

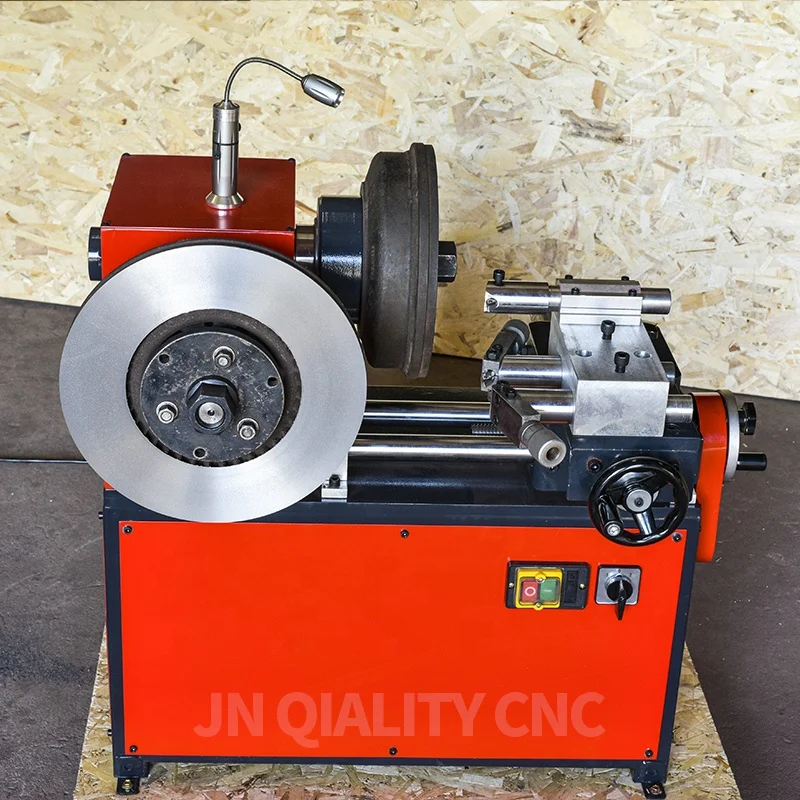

Hot Sale Brake Discs Drums Cutting Grinding Lathe Machine C9335 C9335A with CE
C9335A applications and performance:
1. This machine tool is a metal cutting machine tool used in the cars brake drum and brake disc of vehicle repair industry . This machine is provided for almost all cars including Audi ,Santana and other brands;
2. The machine is with simple structure, complete performance, good machine rigidity, fast cutting speed and high processing efficiency.

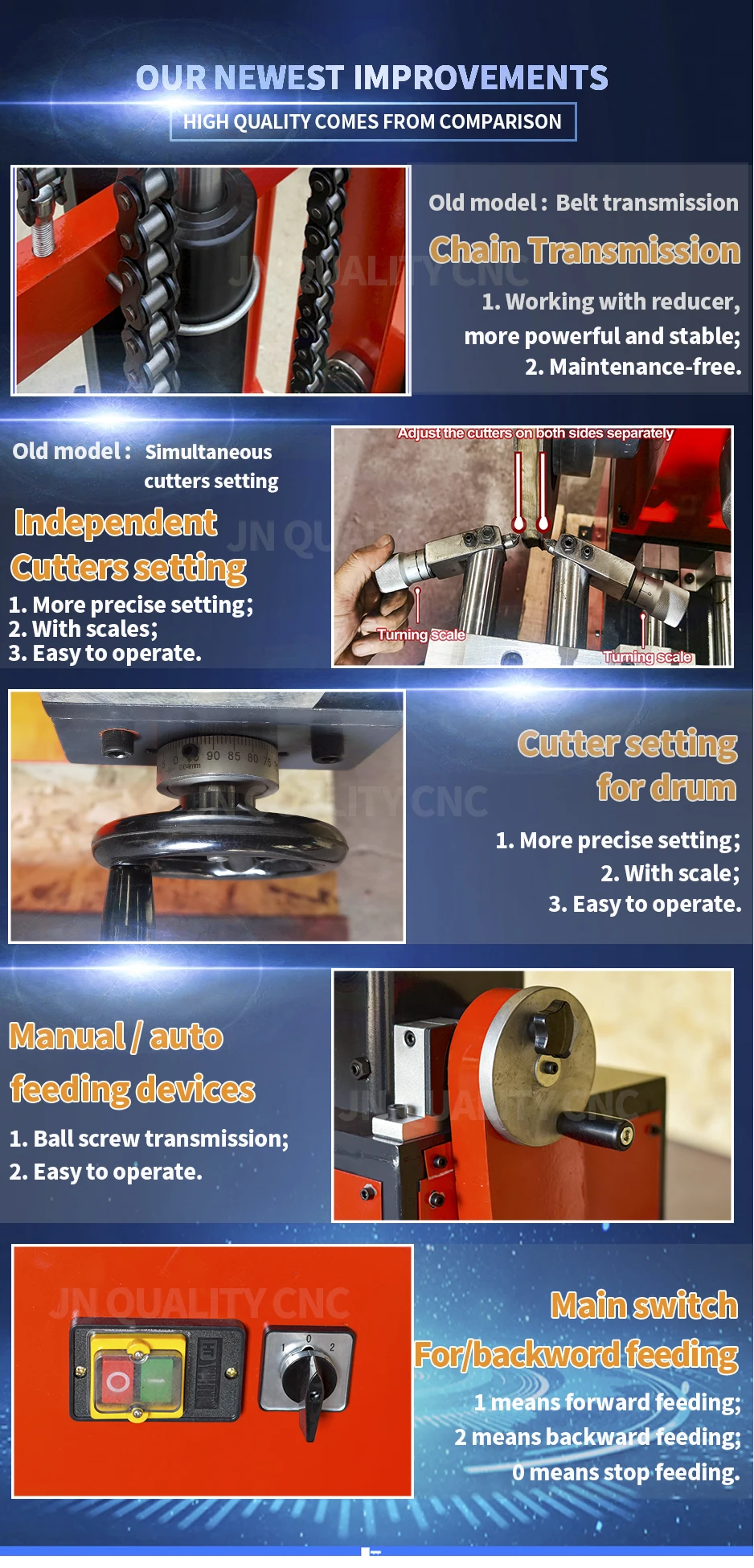

C9335A 's new improvements from the old model C9335:

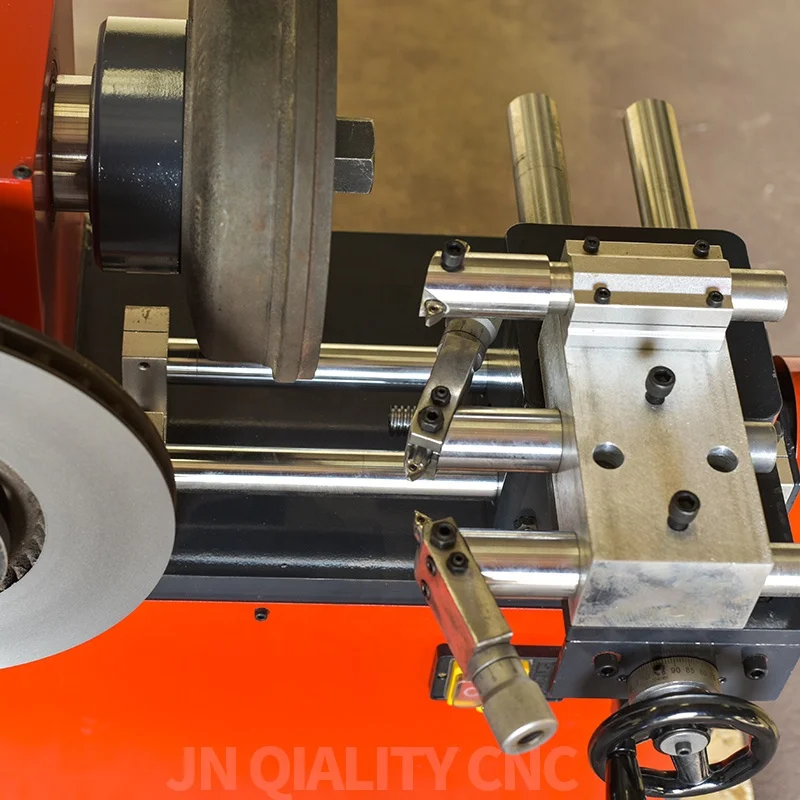

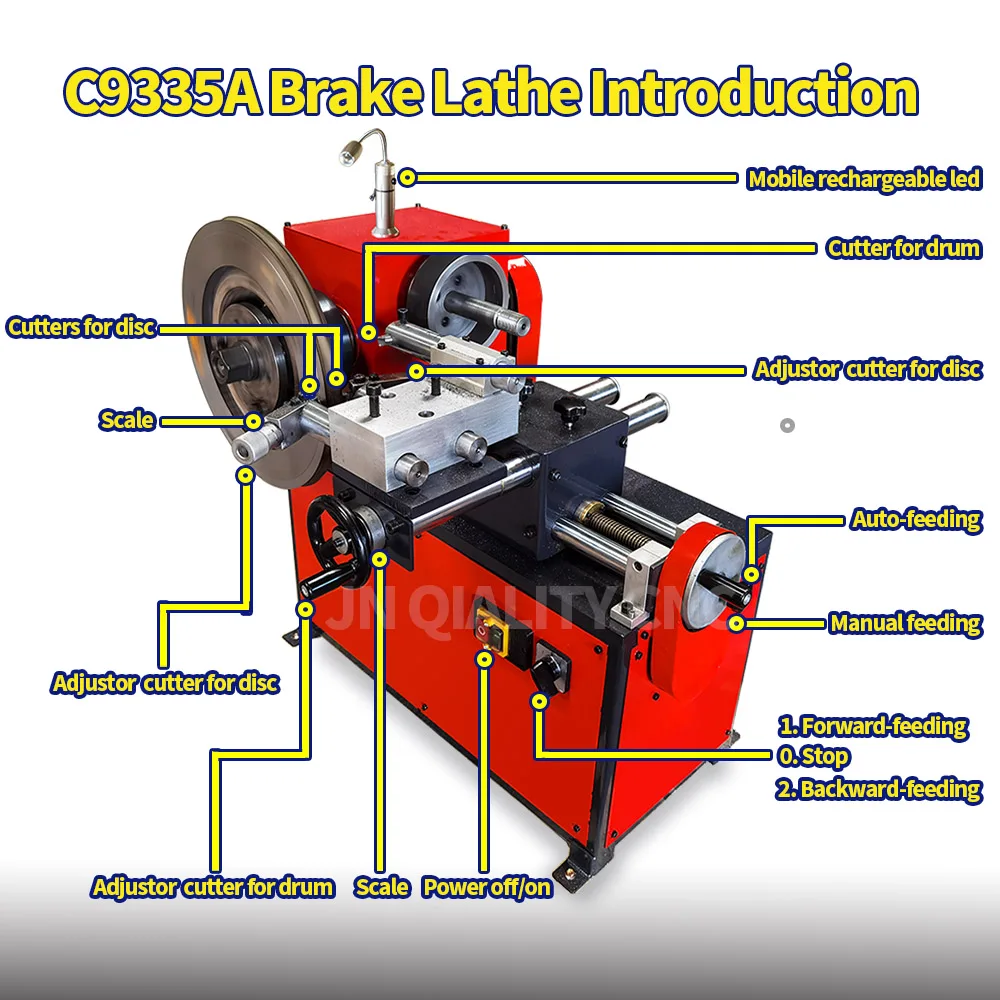

1. Adopts double cutters - feeding with self - locking, when cutting brake disc, the 2 cutters can be adjusted to move the surface of the disc respectively, easy and saving - time operating, high cutting efficiency and stable cutting speed;
2. Adopts professional 220v ± 10%, 1 ph, 50hz motor 750w with reducer as our standard motor, more powerful and stable; also we customize 110v ± 10%, 1 ph, 60hz motor for your local voltage;
3. Adopts industrial chain transmission instead of belt transmission, no need to change belt timely;
4. Adopts fixed rotating speed, 93r/min is our standard speed for different sizes of brake disc and drum with good cutting effect.
1 | Name | Brake Disc Brake Drum Skimming Cutting Lathe Machine for All Cars Repair |
2 | Model | C9335A （updated version C9335) |
3 | Range cutting diameter | Brake disc: 160mm (Min diameter) - 400mm (Max diameter); Brake drum: 180mm (Min diameter) - 350mm (Max diameter). |
4 | Rotational speed | 93r/min |
5 | Axial travel of tool (max.) | For brake disc: 130mm; For brake drum: 100mm |
6 | Infinitely variable speed feed /feeding capacity | 0.075mm/r |
7 | Motor | 750w with reducer |
8 | Machine / Package size (L*W*H) | 775*575*770 mm / 810*610*810 mm |
9 | Net / Gross weight | 155 kg / 180 kg |
10 | Electrical voltage | 220v±10% / 1 phase, 50hz (110V ±10% / 1 phase, 60hz optional); Specify your local voltage and hz when ordering. |
11 | Leading time | 1-20 days |
12 | Warranty | 2 years (no man-made damages) |

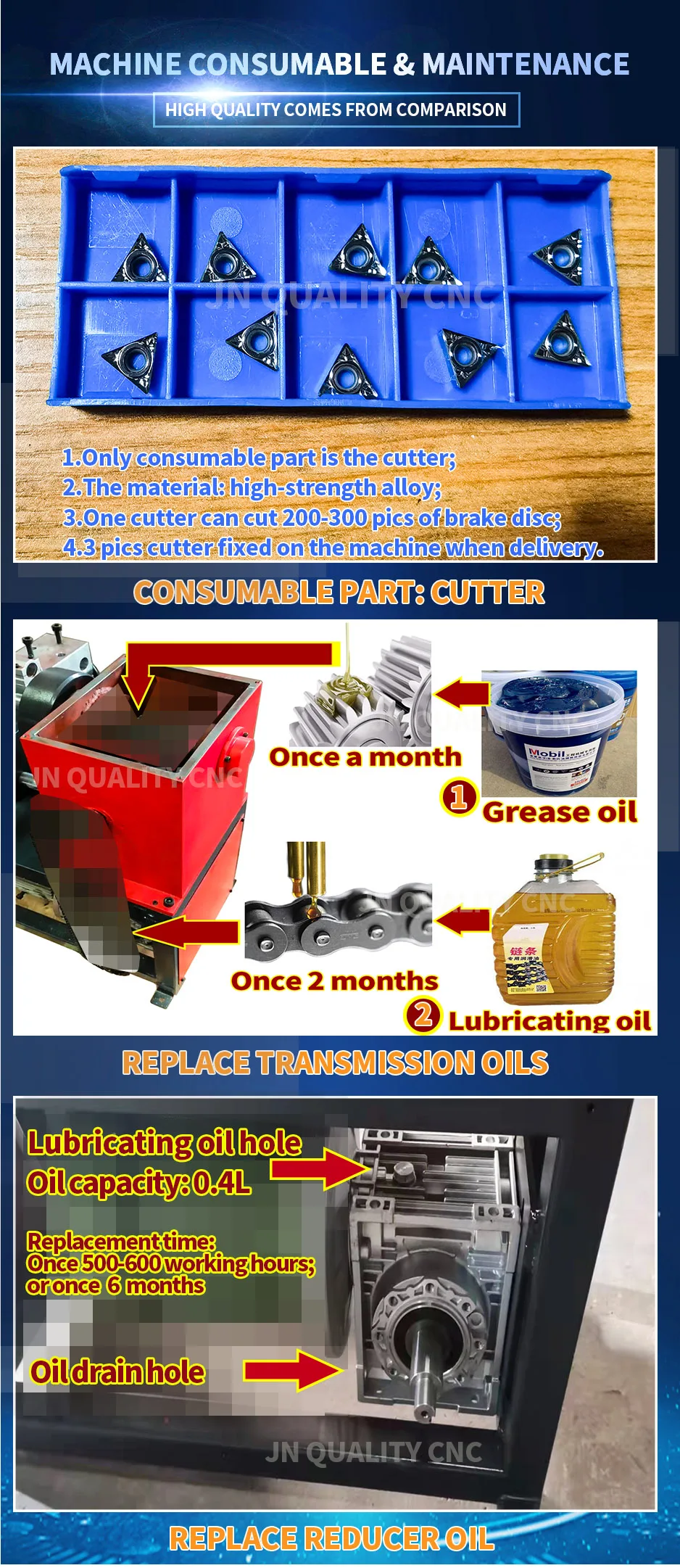

13 | Machine consumable / wear part | Cutter (one cutter can cut 200-300 brake discs); We have fixed 3 cutters on the machine, and we recommend to order more cutters (4 usd /one) as spare parts when ordering. |
14 | Machine maintenance recommended | 1. Lubricating grease for main shaft gear: once every month; 2. Lubricating oil for transmission industrial chain: once every 2 months; 3. Change reducer gear lubricating oil 0.4L: once every 6-8 months; 4. Voltage regulator 1500w recommended if your local voltage is unstable. |
