Motorized Four Axis Stretching Linear Stage Optics Slide Displacement Stage
- Category: >>>
- Supplier: Beijing Pdv Instrument Co. Ltd.
Share on (1600580279082):
Product Overview
Description
The product does not include controller and optical board, which need to be ordered separately.

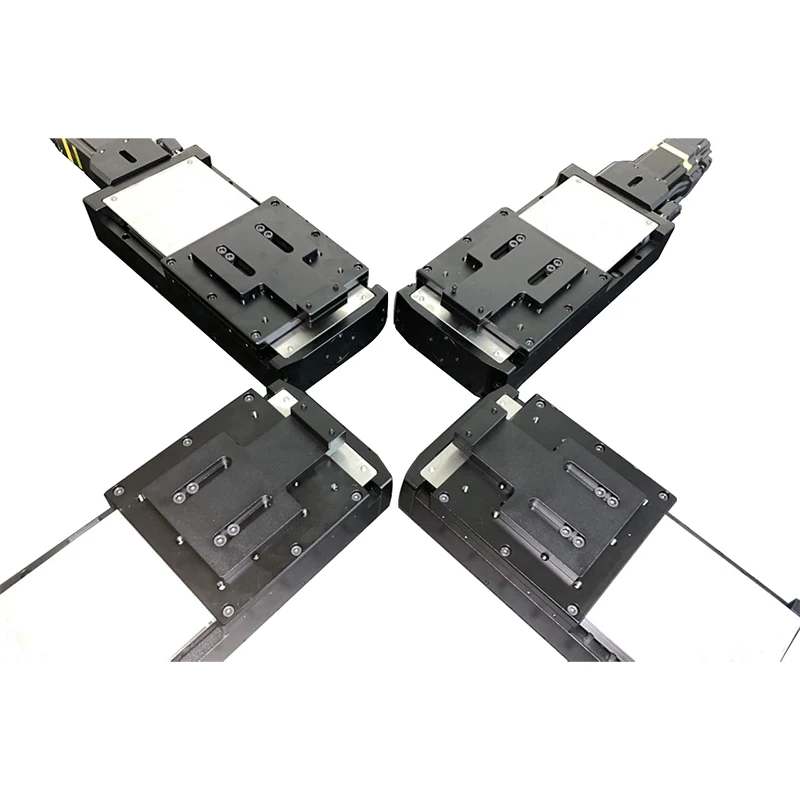

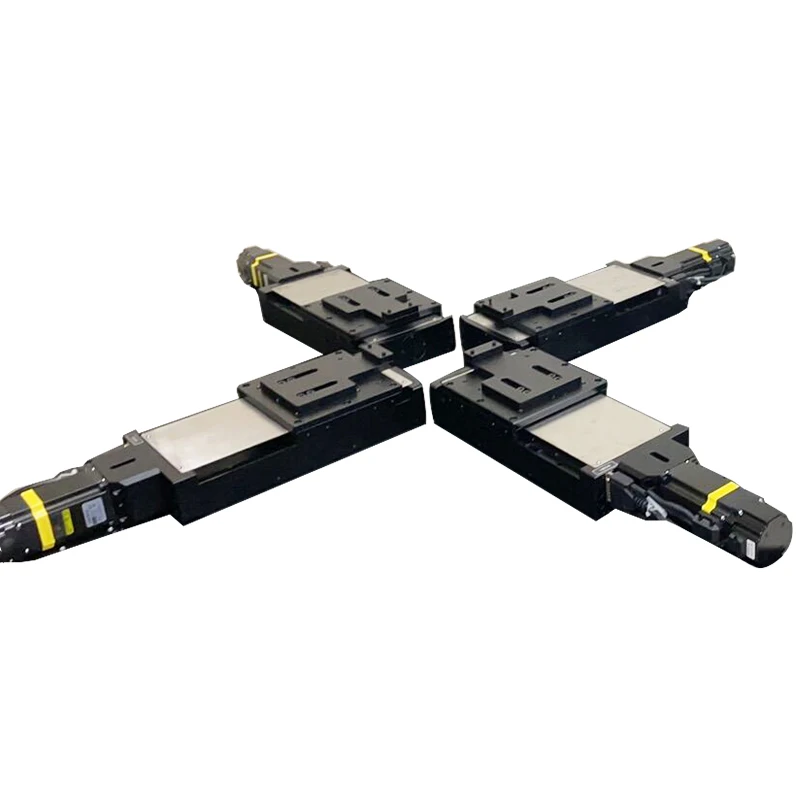

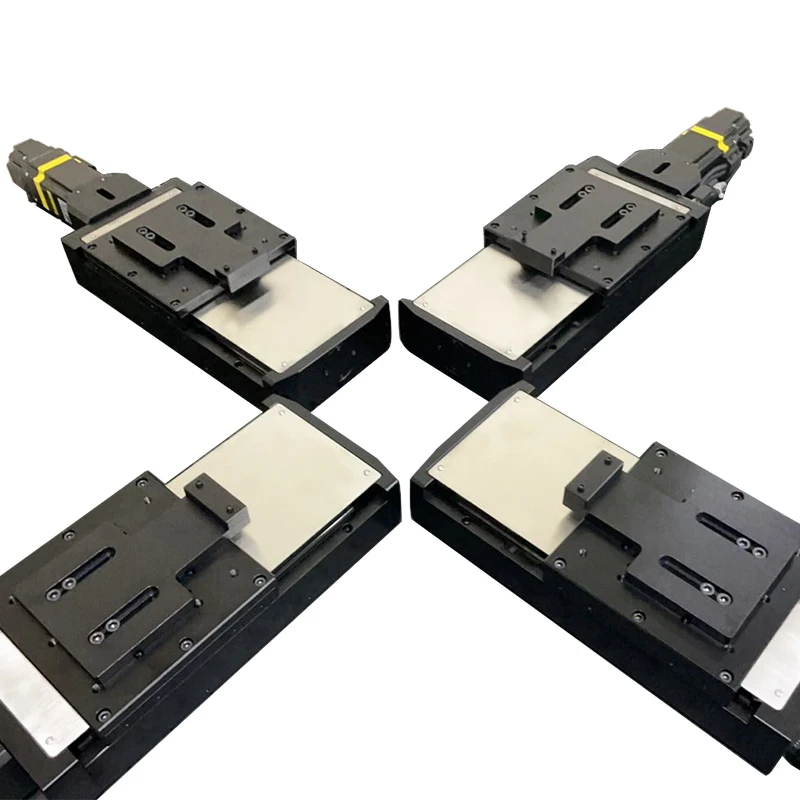

The motorized four axis stretching linear stage can realize the simultaneous stretching in four directions, and a variety of stroke specifications are optional.

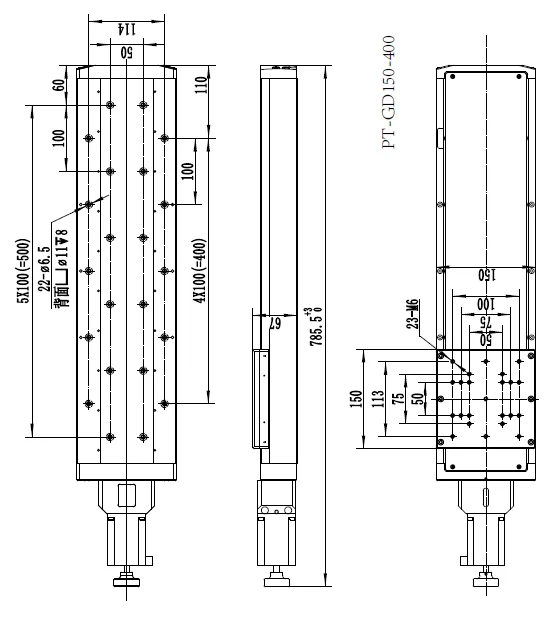

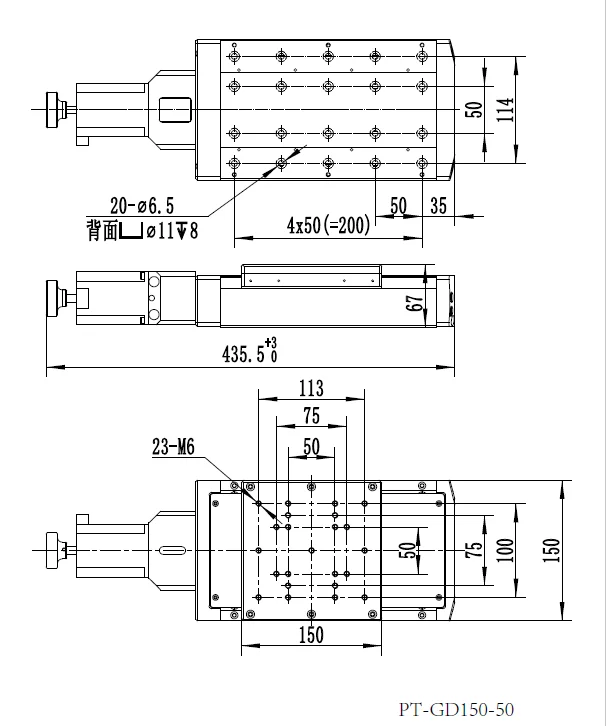

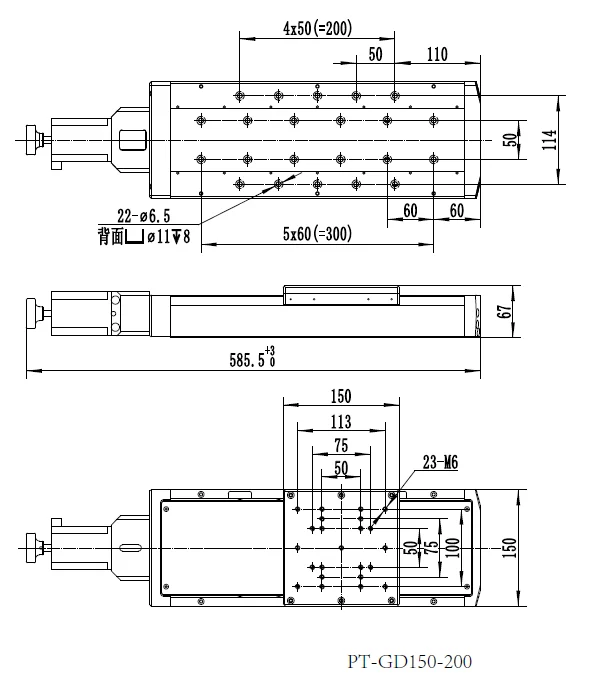

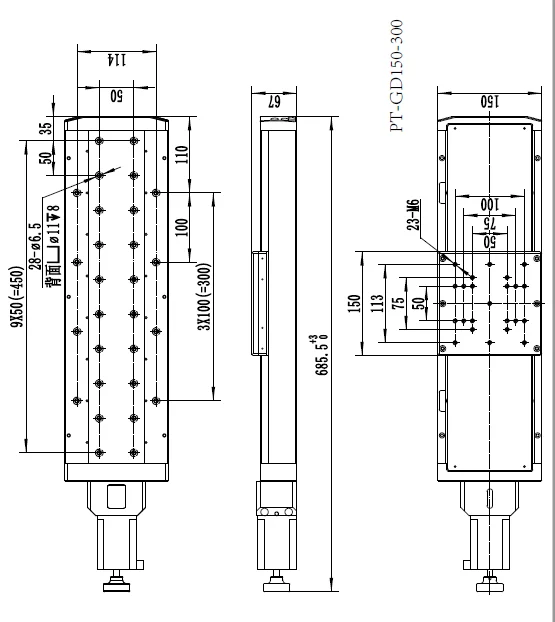

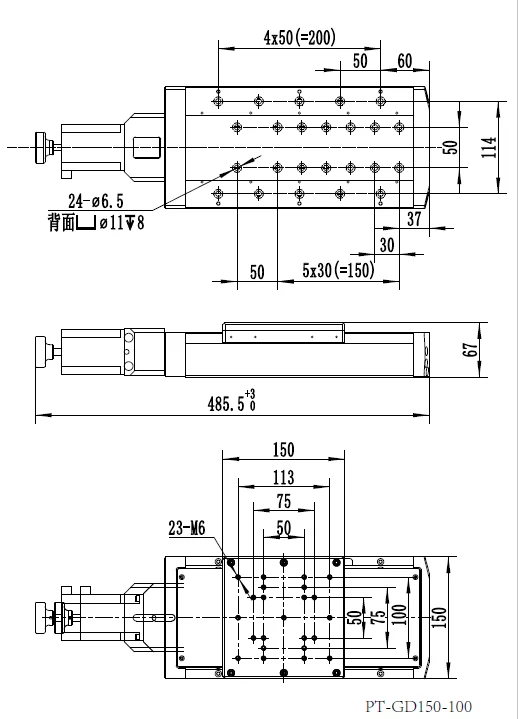

Model Number | PT-GD150(50) | PT-GD150(100) | PT-GD150(150) | PT-GD150(200) | PT-GD150(300) | PT-GD150(400) | PT-GD150(500) | PT-GD150(600) | |
Structure | Travel Range | 50 mm | 100 mm | 150 mm | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm |
Platform Size | 150×150mm | 150×150mm | 150×150mm | 150×150mm | 150×150mm | 150×150mm | 150×150mm | 150×150mm | |
Bearing Construction | HighPrecisionBallScrew(5mm of leading) | HighPrecisionBallScrew(5mm of leading) | |||||||
Travel Guide | High Precision Linear Slider Guide | ||||||||
Stepper Motor (1.8°) | STP-57D3016 | ||||||||
Material | AluminumAlloy /StainlessSteel | ||||||||
SurfaceTreatment | AnodizingBlackening | ||||||||
Load Capacity | 20kg | 30kg | 50 kg | ||||||
Weight | 2.8kg | 3.4kg | 4.5kg | 5.2kg | 6.3kg | 7.2kg | 8.3kg | 10.3kg | |
Accuracy | Design Resolution | 20μ( Non-MS Driver) | 25μ/50μ( Non-MS Driver) | ||||||
1μ(20MS Driver) | 1.25μ/2.5μ(20MS Driver) | ||||||||
Max Velocity | 40mm/sec | 50mm/sec or 100mm/sec | |||||||
Repeatability | 1μ | 2μ | |||||||
Absolute Accuracy | 3μ | 5μ | |||||||
Straightness | 3μ | 4μ | 5μ | ||||||
Parallelization | 10μ | 15μ | 20μ | ||||||
Pitching | 25″ | 50″ | 60″ | ||||||
Yawing | 20″ | 25″ | 30″ | ||||||
Backlash | 2μ | ||||||||
Lost Motion | 1μ | 2μ | |||||||
Others | Brake Function (-Z) | ||||||||
Grating Scales (-G) | |||||||||
Servo Motor (-D) | |||||||||
Dust-proof Cover (-F) | |||||||||
