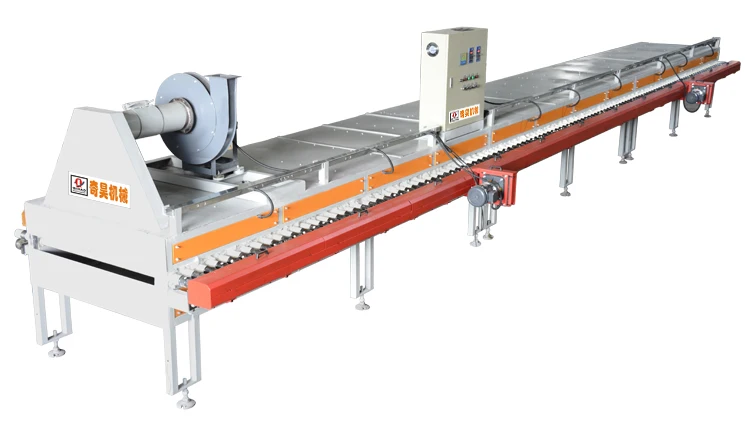

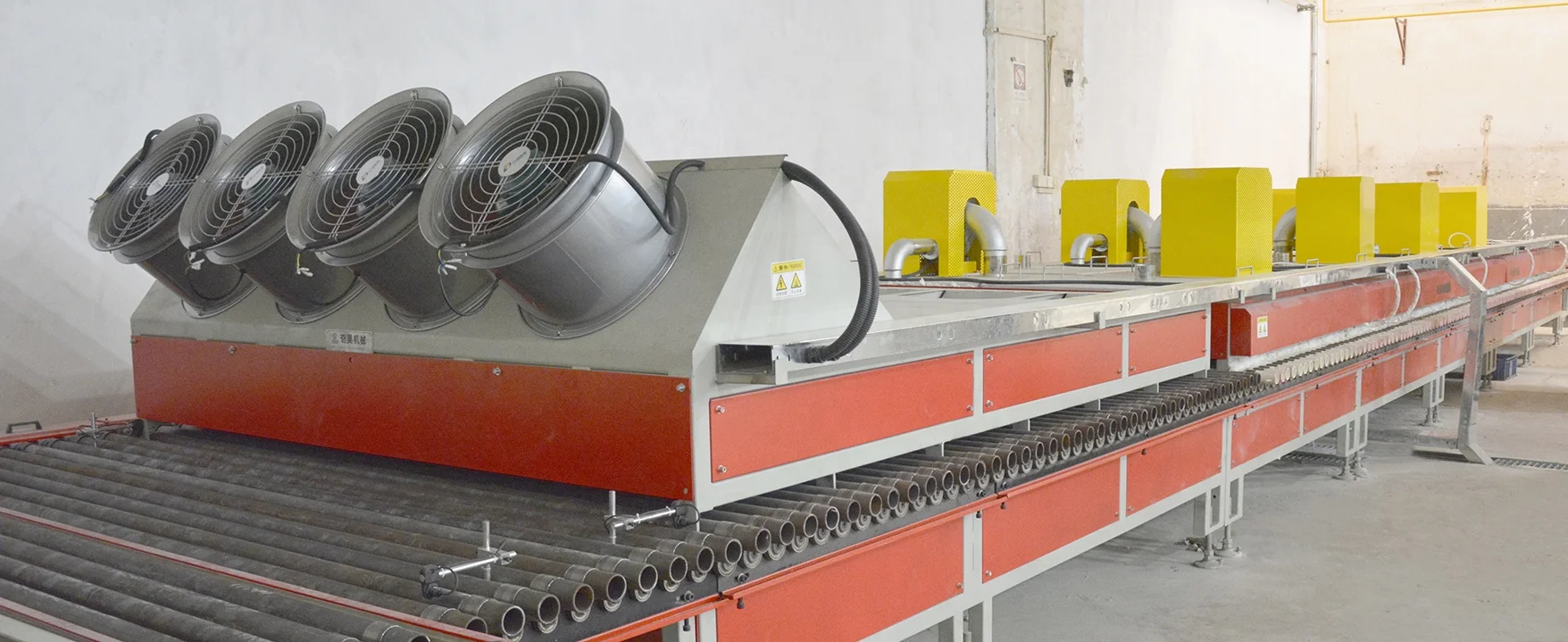

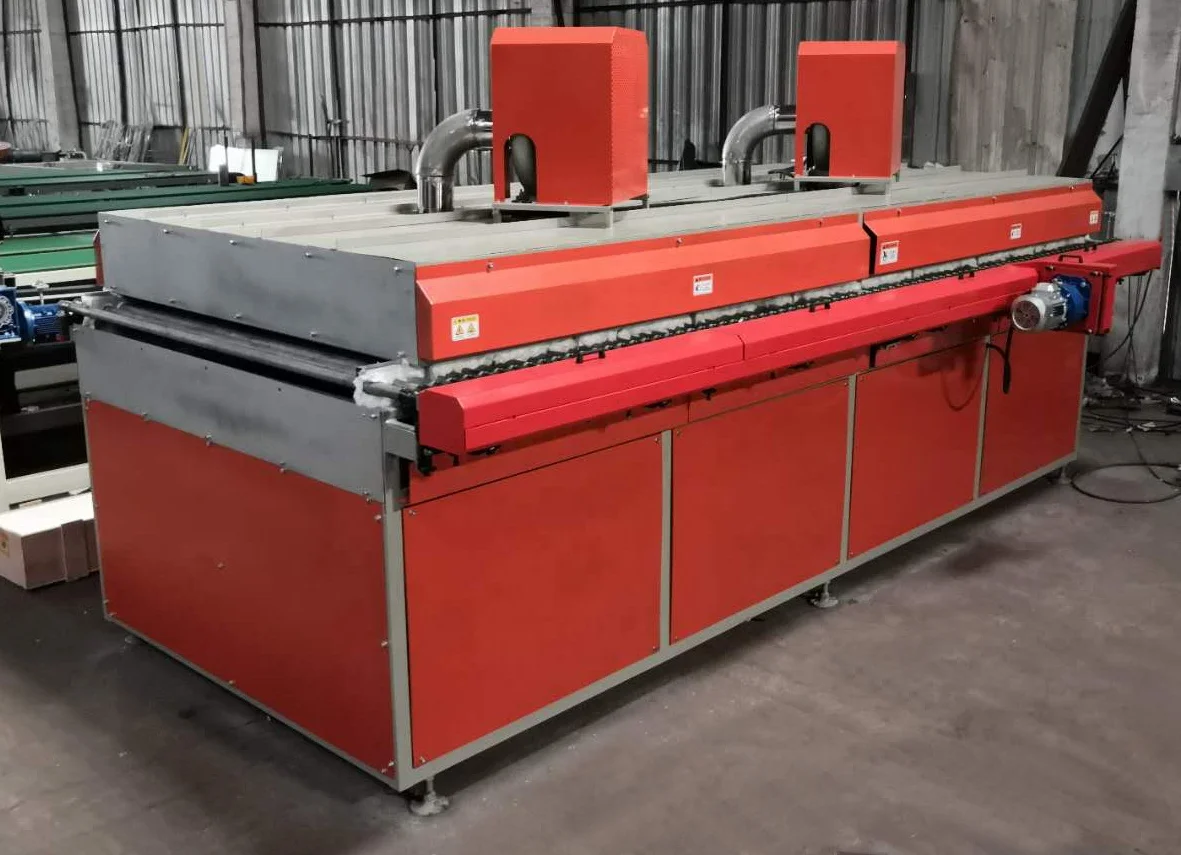

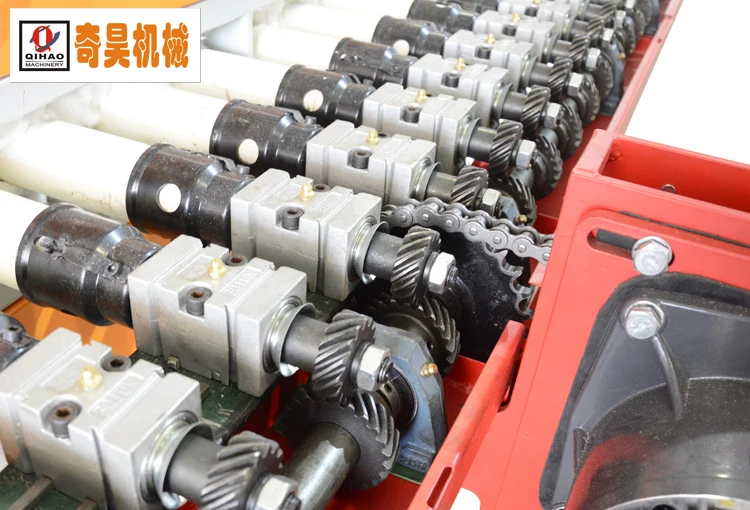

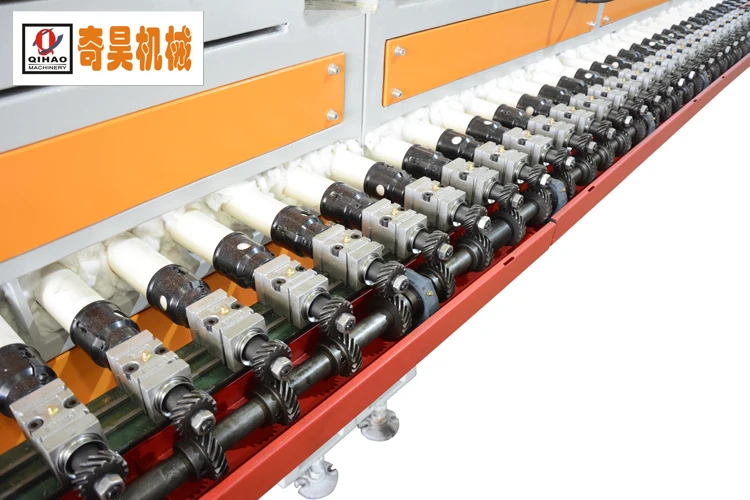

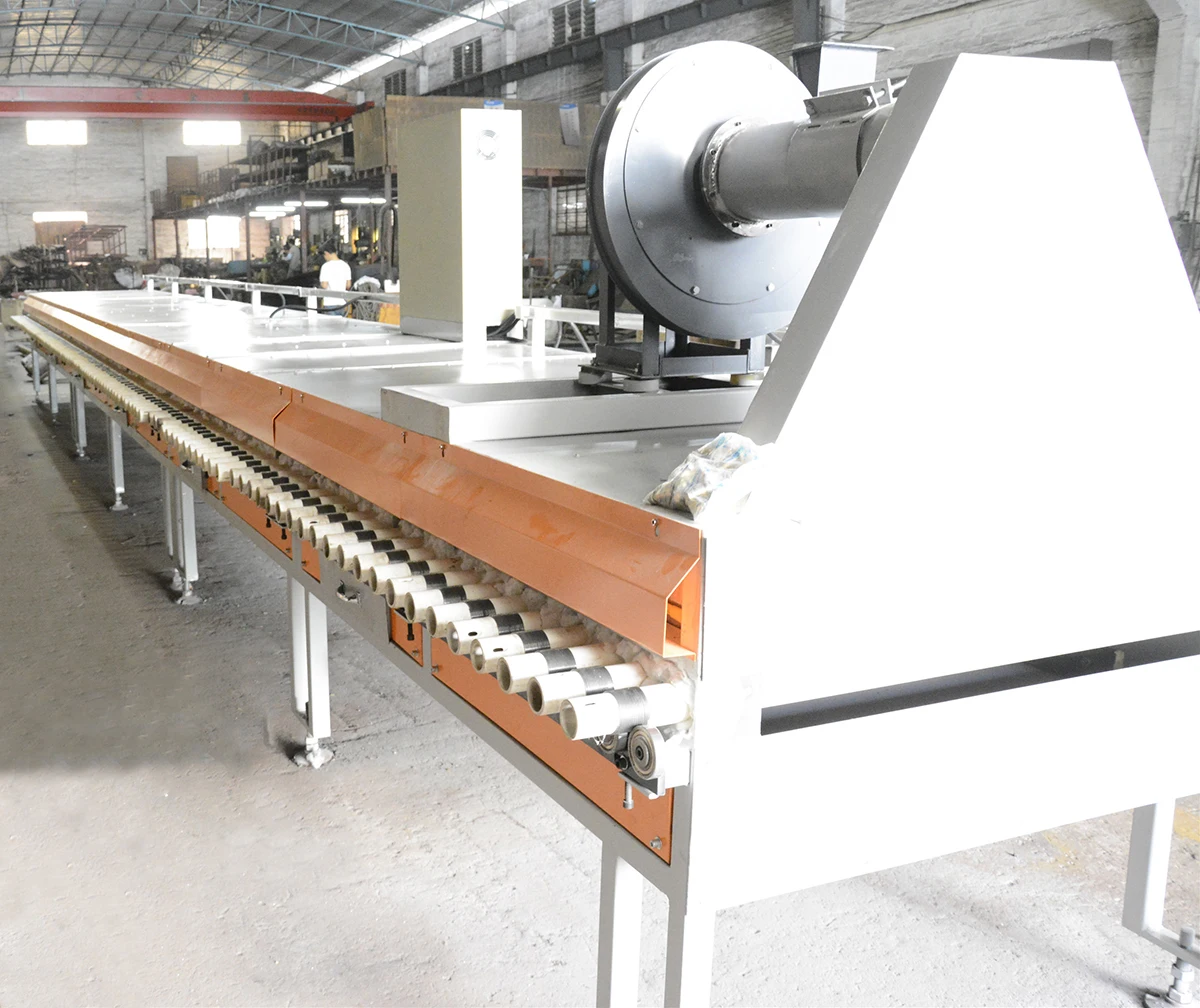

Factory Sale Helical Gear Drive Roller Infrared Lightwave Dryer Custom Size Drying Kiln
- Category: Brick Making Machinery >>>
- Supplier: Foshan Nanhai Qihao Machinery Co. Ltd.
Share on (1600580280600):
Product Overview
Description

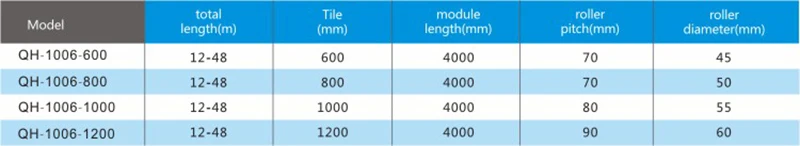

No. | ITEM | Parameter |
1 | Power Supply | 380V/50HZ |
2 | Single machine power | 21kw（21 1.0kw light wave tubes, customizable） |
3 | drying temperature | ≤250℃ |
4 | Effective length | 2000mm |
5 | Effective width | 888mm/1088mm/1288/1488/1788mm |
6 | Effective height | 30-60mm |
7 | energy consumption | 200℃≈5kw/h，250℃≈8kw/h，300℃≈12kw/h |

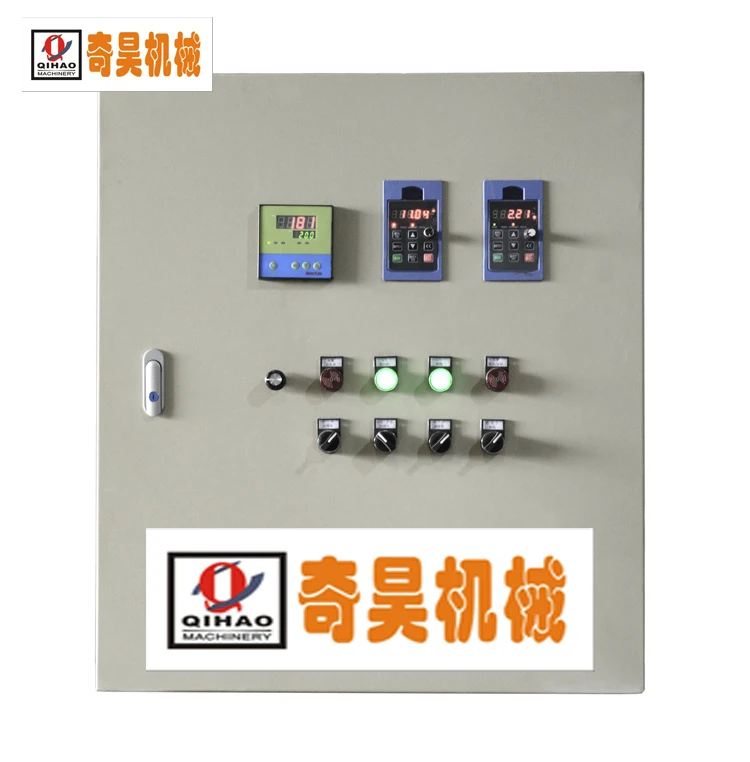

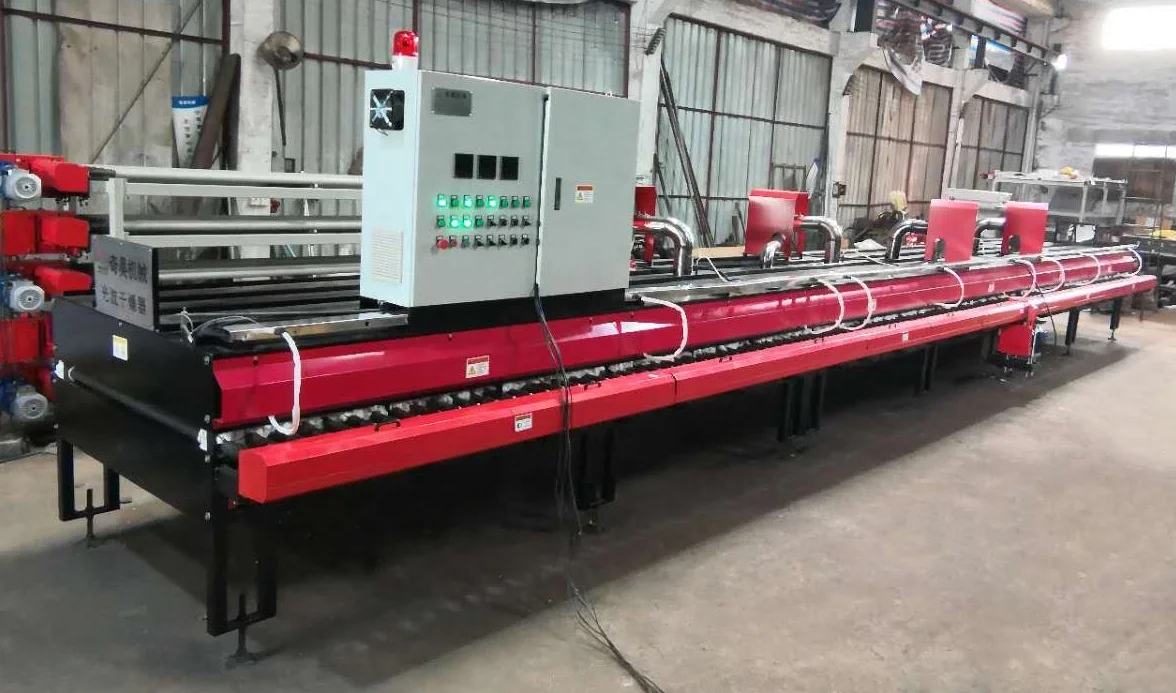

8 | Control system | Two sets of PID intelligent control system |
9 | Feature Function 1 | Intelligent interruption function, with glaze line stop dryer at the same time stop |
10 | Feature Function2 | 8.5kw+7.5kw Group control (one group is always bright, the other is energy supplement) |

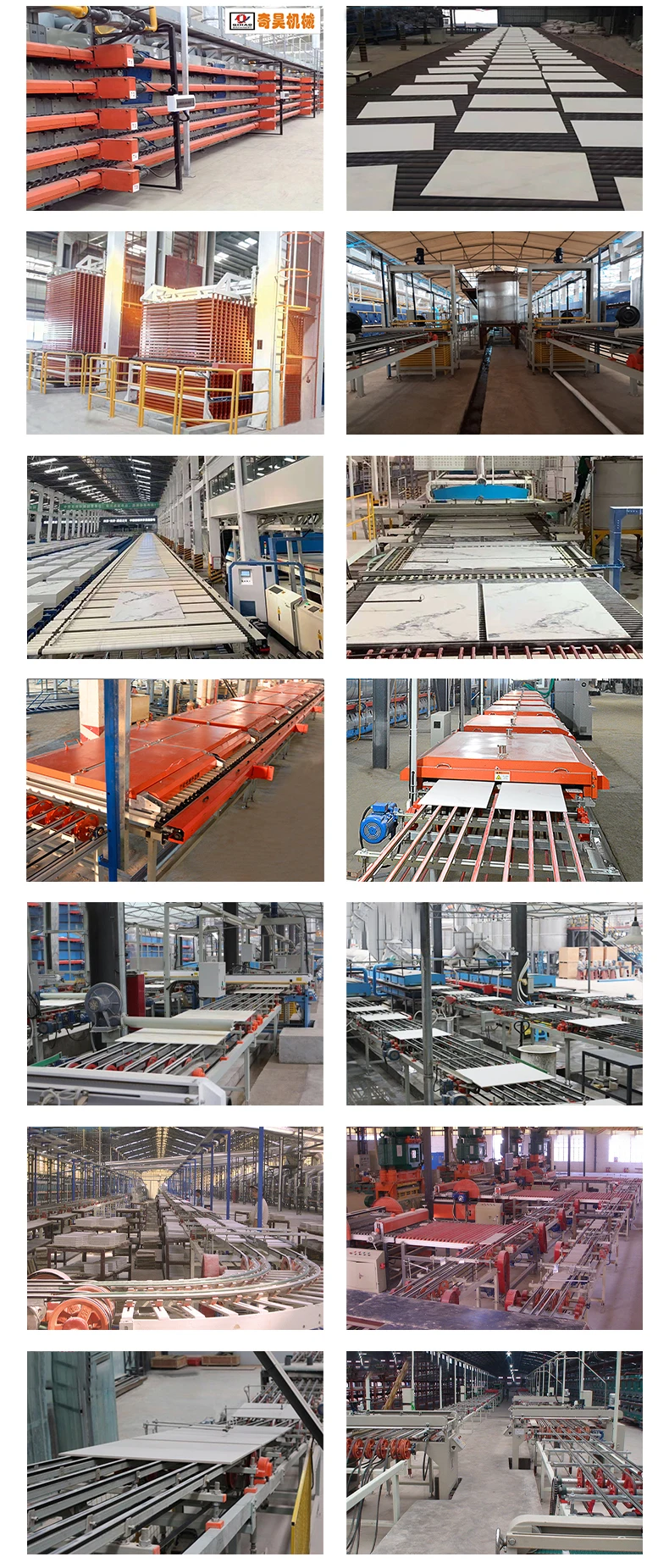

600*1200 Pu board polished glazed tile inkjet front/rear
300*300 secondary firing tile before/after inkjet
900*1800 large slab tiles before inkjet / after inkjet / after glaze
800*800 polished glazed tiles after edging
After the glass mosaic is formed
1200*2400 Super Puban tile inkjet front/rear
800*800 polished glazed tiles before/after inkjet
1200*2400 Qualified polished glazed tile after inkjet
After the honeycomb ceramic is formed
