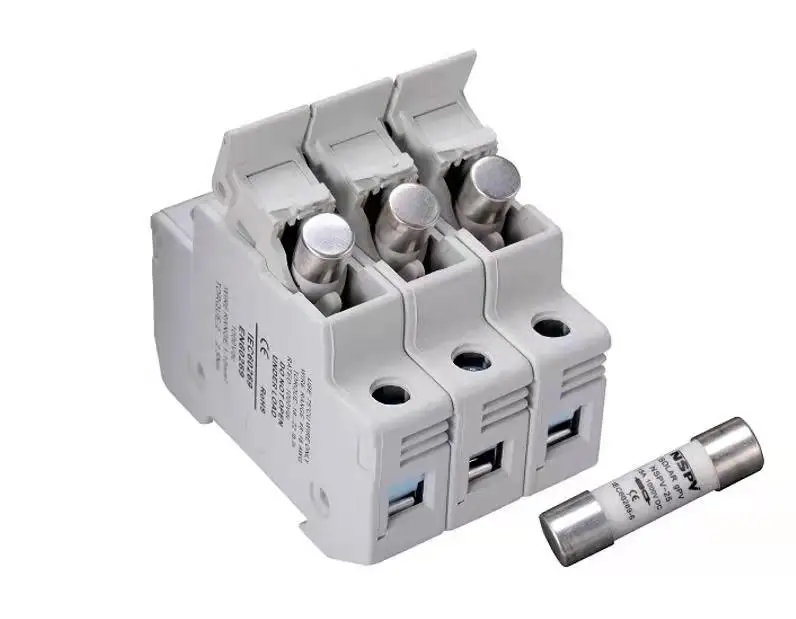

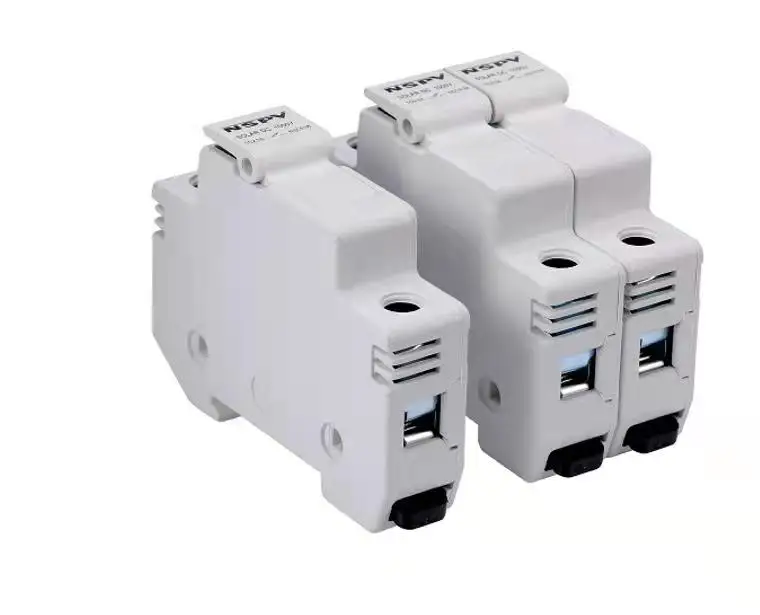

1000V DC 20A PV Solar Fuse with Fuse Holder

Product Overview

Description

Product Description
DC Solar Fuse Application:
A range of 10x38mm fuse links specifically designed for protectin photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
DC Solar Fuse Parameters:

Item	DC Solar Fuse
Code	ZCPV-32
Name	FUSE	FUSE HOLDER
Pole	1P	1P
Voltage	≤1000VDC
Current	1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,32A
Giggest block ability(KA)	33KA
Standard	IEC/EN60269
Commection(mm)	2.5-10
Power consumption(W)	3.5
Working Temperature	-5° to +40°
Protection Degree	IP20
Dimension(W)X(H)X(D)	10X38	18X60X78
Installation	35MM DIN RAIL
Installation Altitude	≤2000M



Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q5: What is your main products?
A5: Solar Power system accessories ,The wide range products under manufacturing covers such as AC&DC Surge Protective Device(SPD),AC&DC Miniature Circuit Breaker(MCB),AC&DC Moulded Case Circuit Breaker(MCCB),Voltage & Current Protector,DC FUSE,MC4 PV connector ,combiner box etc.


Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 1-2 days. Bulk order cost 12-15 days.
