Customize Multiple Sizes hubDacromet Boat Trailer Unbraked Hub axle part L68149 LM12749 Bearing
- Category: >>>
- Supplier: Weifang Airui (Axletek) Brake Systems Co. Ltd.
Share on (1600580286458):
Product Overview
Description

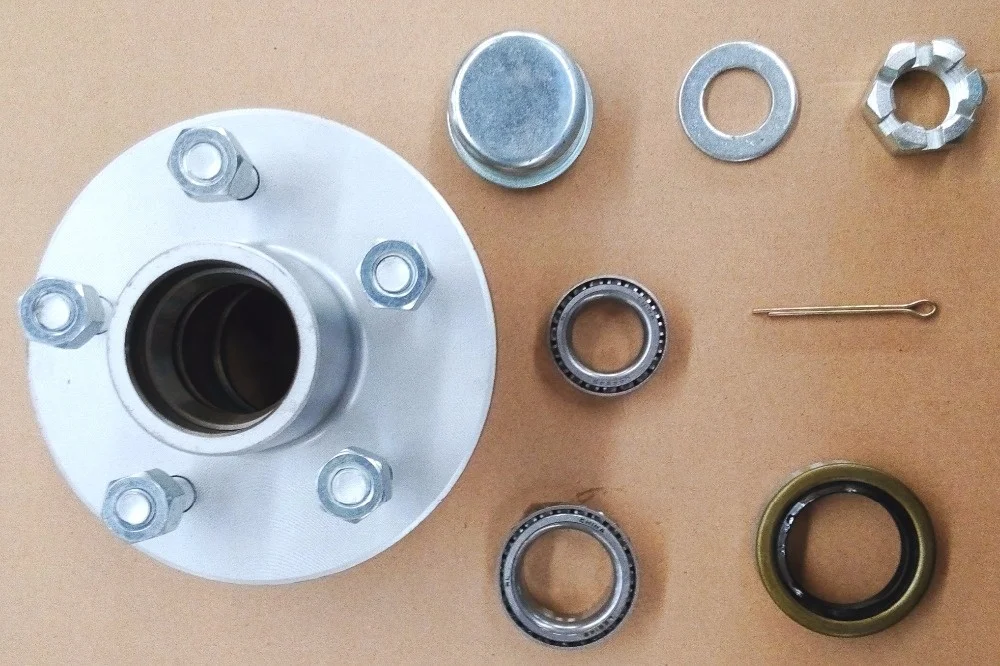

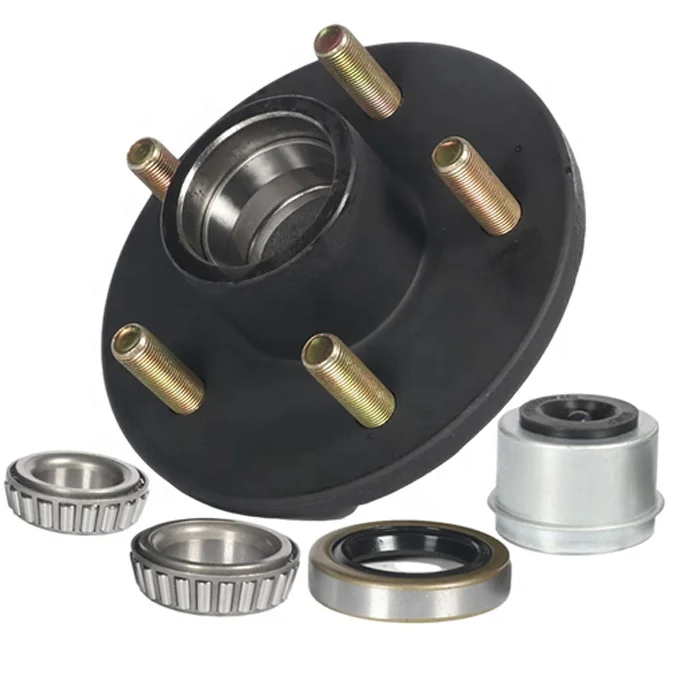

Dacromet Boat Trailer Unbraked Hub part
Specs:
Hub Material: HT250 / QT450
Surface Treatment: hot-dip galvanized / painted black / galvanized
Bolt: 4, 5, 6 stud
PCD: 4 , 4.25 , 4.5 , 4.75 , 5.5 inch
complete with axle, spindle, mech/elec/hydr brake disc, drum, shoe&liniing, oil seal, pin, lug nut etc
| Model | Dim(X) | PCD(Y) | Bolt | Bearing |
| AT01700102 | 192.4 | 139.7 | 6*1/2" | L67048/LM11949 |
| AT01700103 | 192.4 | 139.7 | 6*1/2" | L68149/LM12749 |
| AT01700104 | 138.8 | 108 | 5*7/16" | L67048/LM11949 |
| AT01700105 | 152.4 | 108 | 5*7/16" | L67048/LM11949 |
| AT01700106 | 152.4 | 120.65 | 5*7/16" | L67048/LM11949 |
| AT01700107 | 152.4 | 114.3 | 5*1/2" | L67048/LM11949 |
| AT01700108 | 152.4 | 108 | 5*7/16" | L68149/LM12749 |
| AT01700109 | 152.4 | 120.65 | 5*7/16" | L68149/LM12749 |
| AT01700110 | 152.4 | 114.3 | 5*1/2" | L68149/LM12749 |
| AT01700111 | 138.8 | 101.6 | 4*7/16" | L67048/LM11949 |
| AT01700112 | 183.5 | 139.7 | 6*1/2" | 25580/15123 |
| AT01700113 | 152.4 | X | 5*1/2" | L68149/LM12749 |
| Note: complete with bearing, race ,seal, lug nut, pin etc | ||||
| 101.6mm=4inch | 108mm=4.25inch | 114.3mm=4.5inch | ||
| 120.65mm=4.75inch | 139.7mm=5.5inch | |||
Dacromet Trailer Parts
Boat Trailers, Box Trailers, Car Trailers, Caravan, Mobile Home Axle Parts, No brake HUB Stud Assembly
