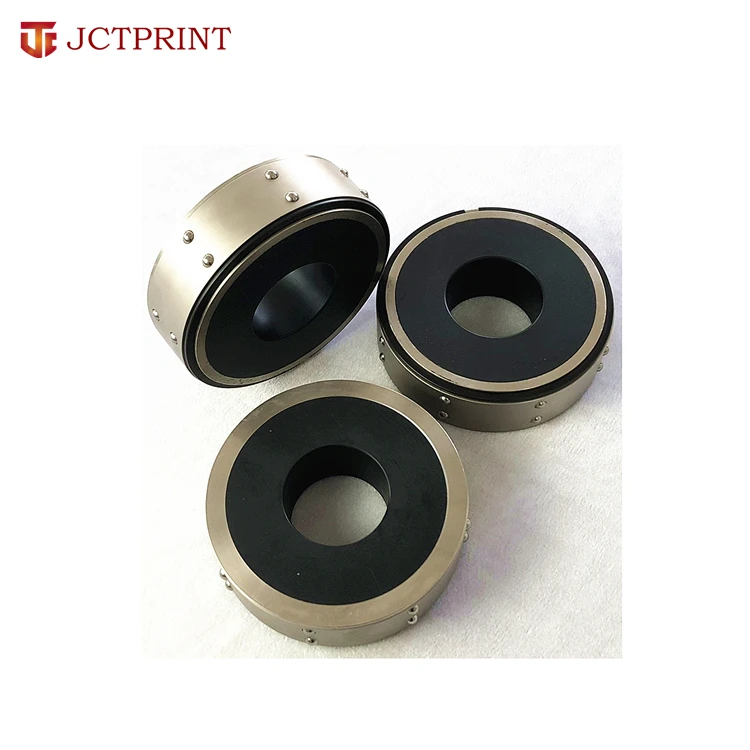

Widely Used 6 Inch Key Type Steel Ball Type Double Beads Axial Inflatable Differential Air Shaft Friction Ring

Product Overview

Description

Pneumatic  expanding air shaft friction ring 3 inch slip ring





 1.Description of differential shaft ring

The differential shaft ring consists of a plurality of slip rings, which can overcome the problem of unwinding and material damage. The slippage rings are controlled to slip at a certain slip torque (torque), and the amount of slip exactly compensate for the difference in speed, thus it can control the tension of each roll precisely, which ensure the winding quality.



2.The advantages of using differential shaft ring

The use of differential shaft ring improves the speed of the slitter, the accuracy of the winding and the degree of automation.At the same time,it shortens the preparation time and achieve the humanized operation. In particular for polyester thin materials which have poor tensile resistance and big difference in thickness.The use of differential shaft ring can reduce the difficulty of winding.

Besides, using differential shaft ring to wind or unwind precious materials, metal foil and special paper roll, can greatly improve the production yield, reducing the cost of production.



3.Types and Specifications of our differential shaft ring

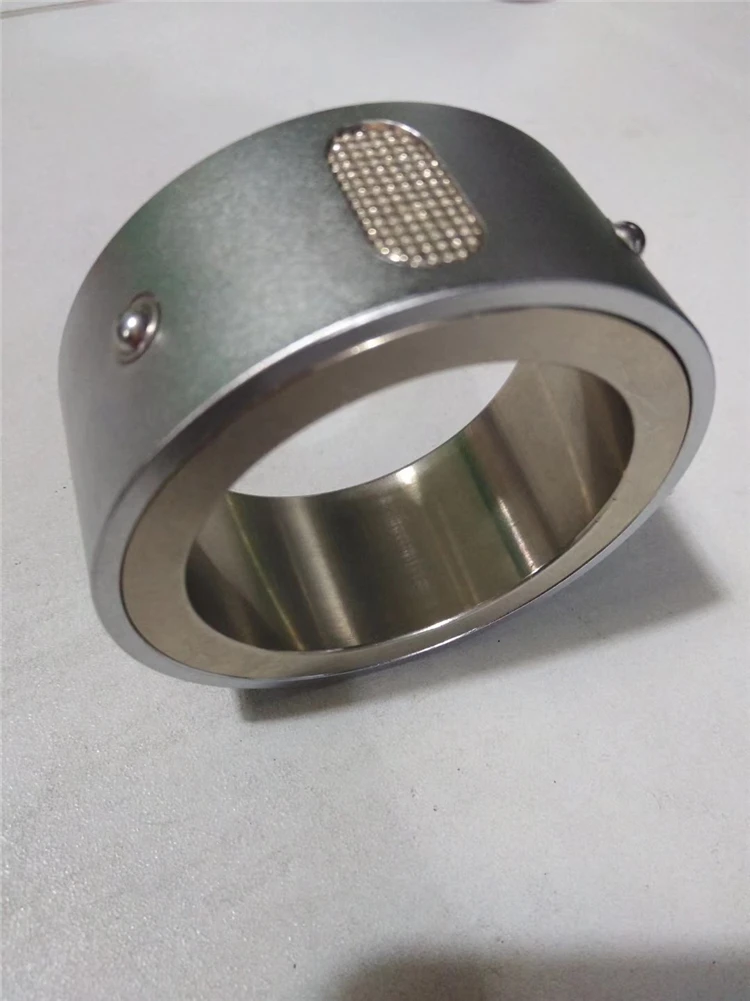

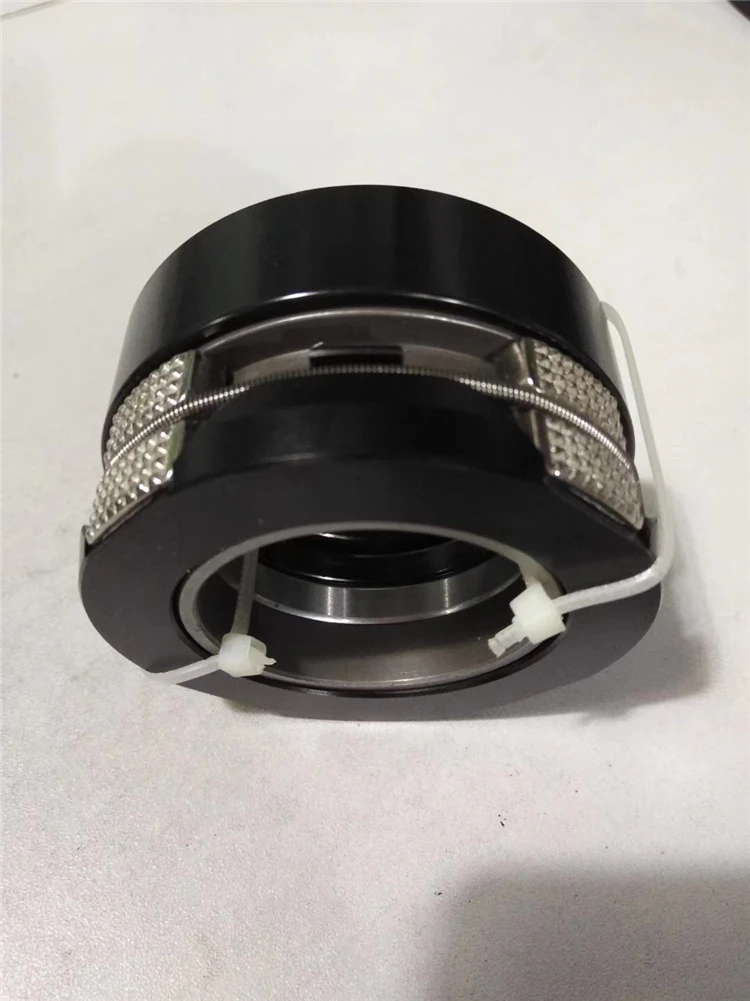

1) Key type(central air pressure and mechanical side pressure type)

A.3inch

3inch key type friction element
Outside diameter	Φ75.5mm
The maximum action diameter	Φ78mm
Standard width	15,20,25,30,35,40,50mm
Standard internal diamete	Φ45,Φ50,Φ55mm



B.6inch

6 inch key type friction element
Outside diameter	Φ151mm
The maximum action diameter	Φ156mm
Standard width	20,25,30,35,40,50mm
Standard internal diamete	Φ60,Φ75,Φ80mm

C.120mm

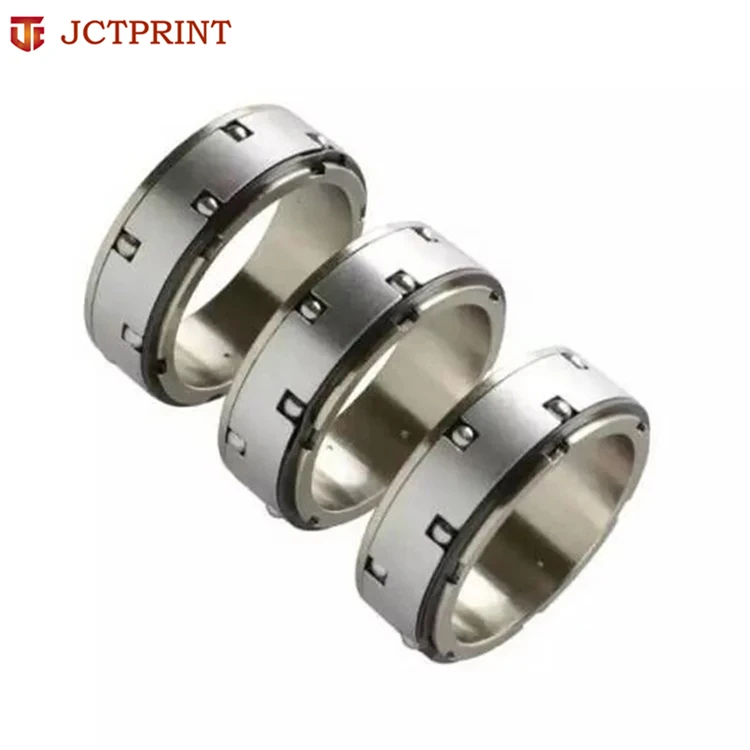

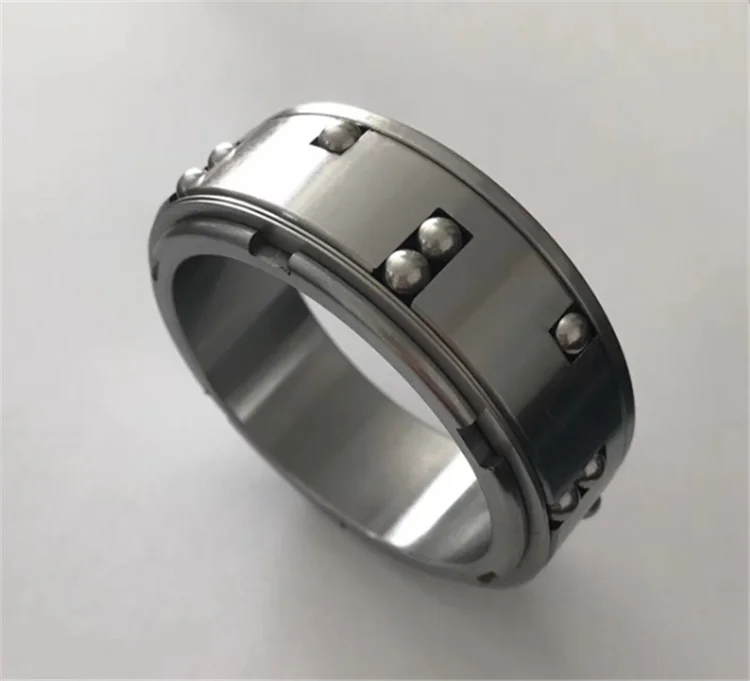

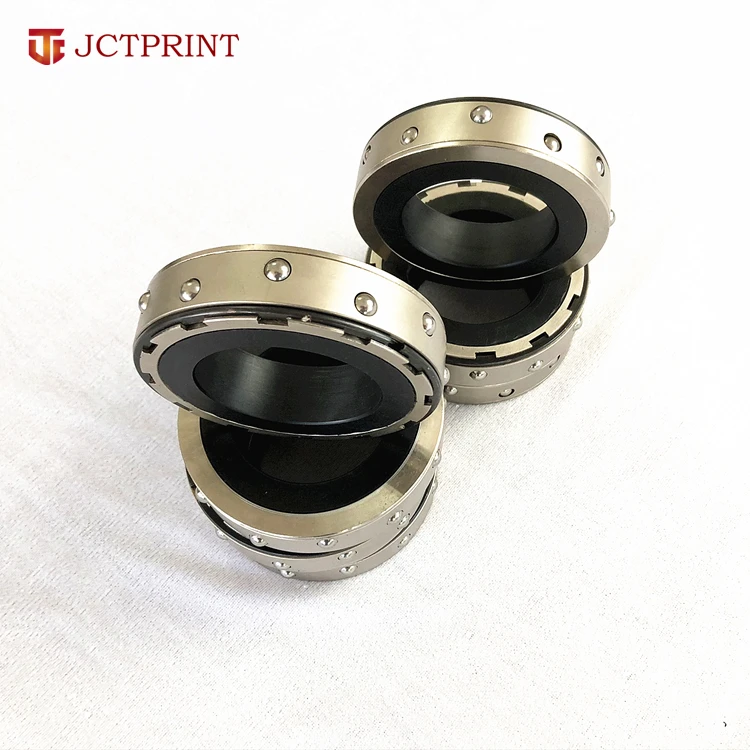

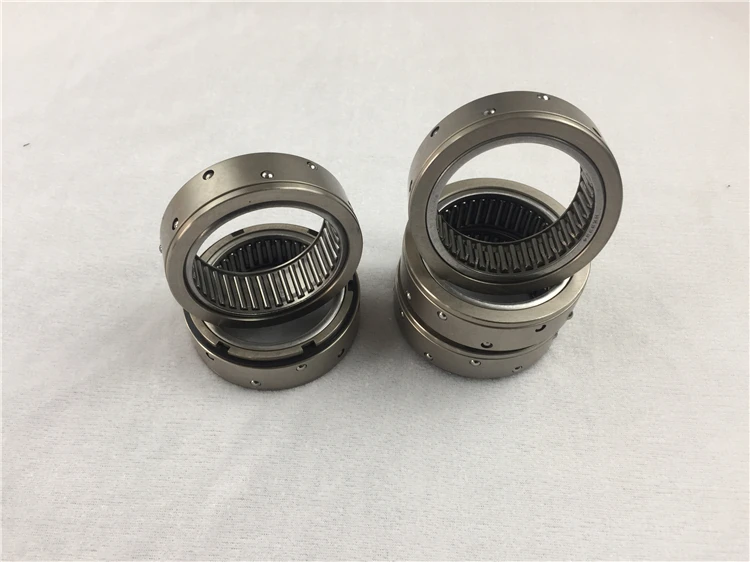

2) Steel ball type

A.8 balls































B.12balls



Type	Outside diameter	The maximum action diameter	Standard width	Standard internal diameter
3 inch  Double row ball	Φ75.5mm	Φ78mm	15,20,25,30,35,40,50mm	Φ50,Φ55,Φ60mm
6 inch  Double row ball	Φ75.5	Φ78mm	15,20,25,30,35,40,50mm	Φ50,Φ55,Φ60





















C. 24balls

10 inch  Steel ball type friction elementDouble row ball (24 beads)
Outside diameter	Φ253mm
The maximum action diameter	Φ258mm
Standard width	40,50,60,75mm
Standard internal diamete	Φ100,Φ120,Φ140mm

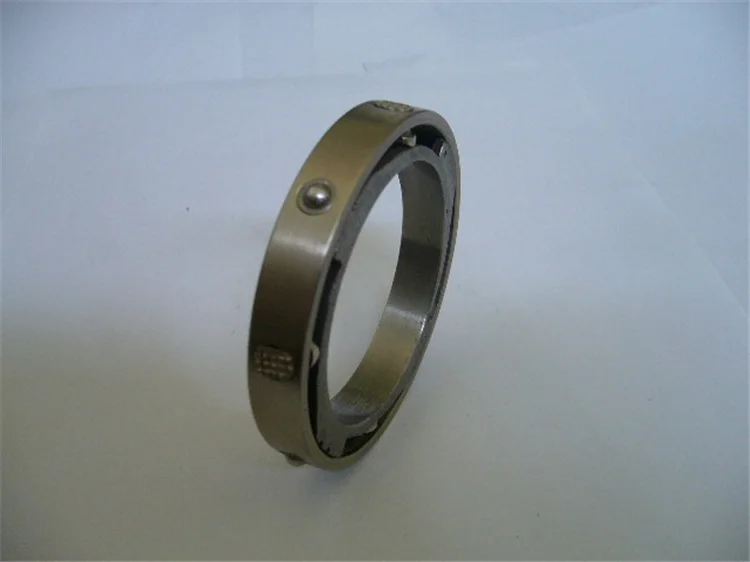

3)New design type(Double balls double keys)

3 inch double balls double keys
Outside diameter	Φ75.5mm
The maximum action diameter	Φ78mm
Standard width	15,20,25,30,35,40,50mm
Standard internal diamete	Φ60mm
