Harxon Manufacture UHF Radio Multi Operating Mode Identify High Performance Radio Modem
- Category: >>>
- Supplier: Harxon Corporation
Share on (1600580300820):
Product Overview
Description
Product Description
Specification
GENERAL | |
Frequency | 410MHz~470MHz |
Operating Mode | Transceiver, Transmitter, Radio Repeater, Network Repeater |
Channel Width | 12.5KHz/25KHz |
Channels | Up to 200 programmable channels (user selectable) |
Operating Voltage | 9V~16V |
Power Consumption（Typical） | Transmit Output Power H:(35W) 85W@12V DC Transmit Output Power M:(22W) 60W@12V DC Transmit Output Power L: (5W) 35W@12V DC Sleep State 2W@12V DC |
Frequency Stability | ＜±1ppm |

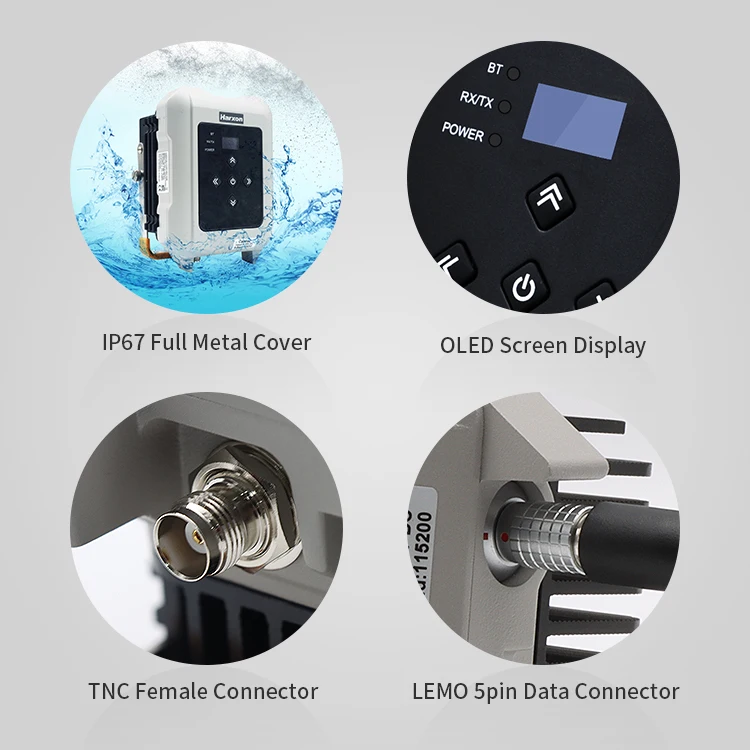

Ingress Protection Rating | IP67 |

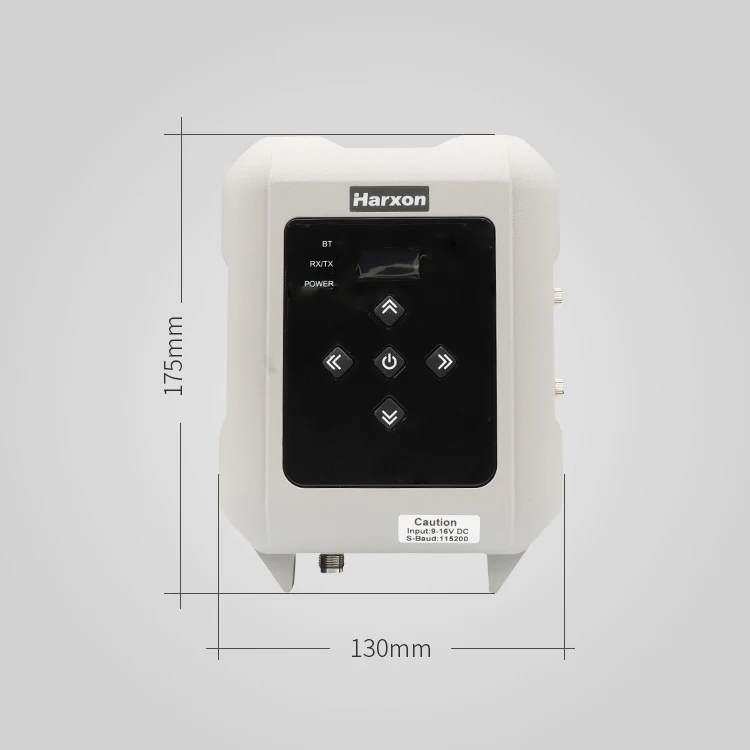

Dimension | 175(H)×130(W)×86.5(D)mm |
Weight | 2kg |
Operating Temperature | -40℃ to +65℃ |
Storage Temperature | -50℃ to +85℃ |
Connector | TNC female |
Data Connector | LEMO 5pin |
TRANSMITTER | |
RF Output Power | H:35W 45.4±0.5dBm @DC 12V M:22W 43.4±0.5dBm @DC 12V L:5W 37±1dBm @DC12V |
RF Power Stability | ±1dB |
RECEIVER | |
Sensitivity | ＜-114dBm@BER 10-3，9600bps |
DATA MODEM | |
Data Rate | 4800bps/9600bps/19200bps |
Data Speed of Serial Interface | 9600、19200、38400、57600、115200bps |
Modulation | GMSK/4FSK |
BLUETOOTH | |
Bluetooth Version | 2.0/4.0 |
Bluetooth Antenna | Built-in |
4G | |
Bluetooth Antenna | 4G bands[MHz]: B1(2100), B3(1800), B7(2600), B8(900), B20(800) 3G bands[MHz]: B2(2100), B8(900) 2G bands[MHz]: B3(1800), B8(900) |
Selectable eRadio Series | |
Transmitter | √ |
Receiver | |
Radio Repeater | |
Network Repeater | |
OLED | √ |
32 Channels | √ |
200 Channels | |
Bluetooth | |
4G | |
GPS Module | |
CSMA | |
Call Sign |
