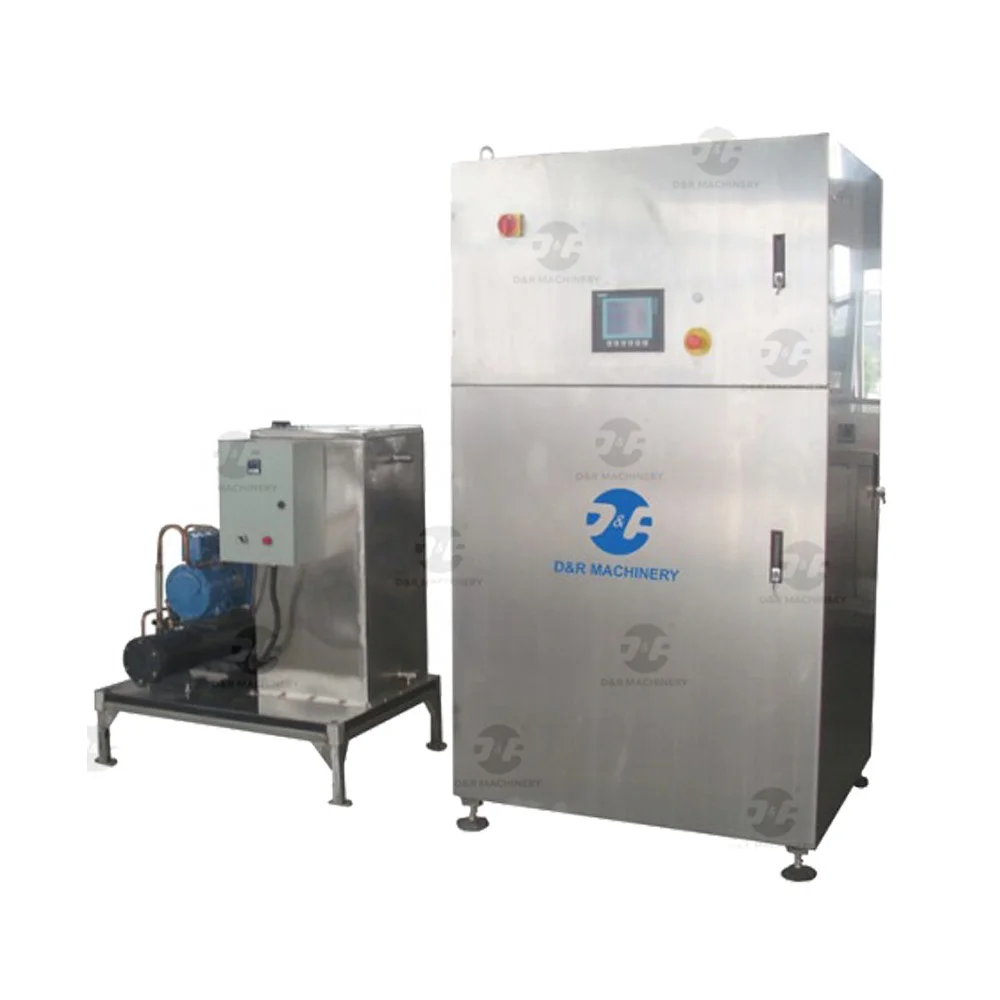

One Shot Chocolate Depositor Making Machine Decoration Chocolate Making Moulding Line for Chocolate Manufacturing Plant

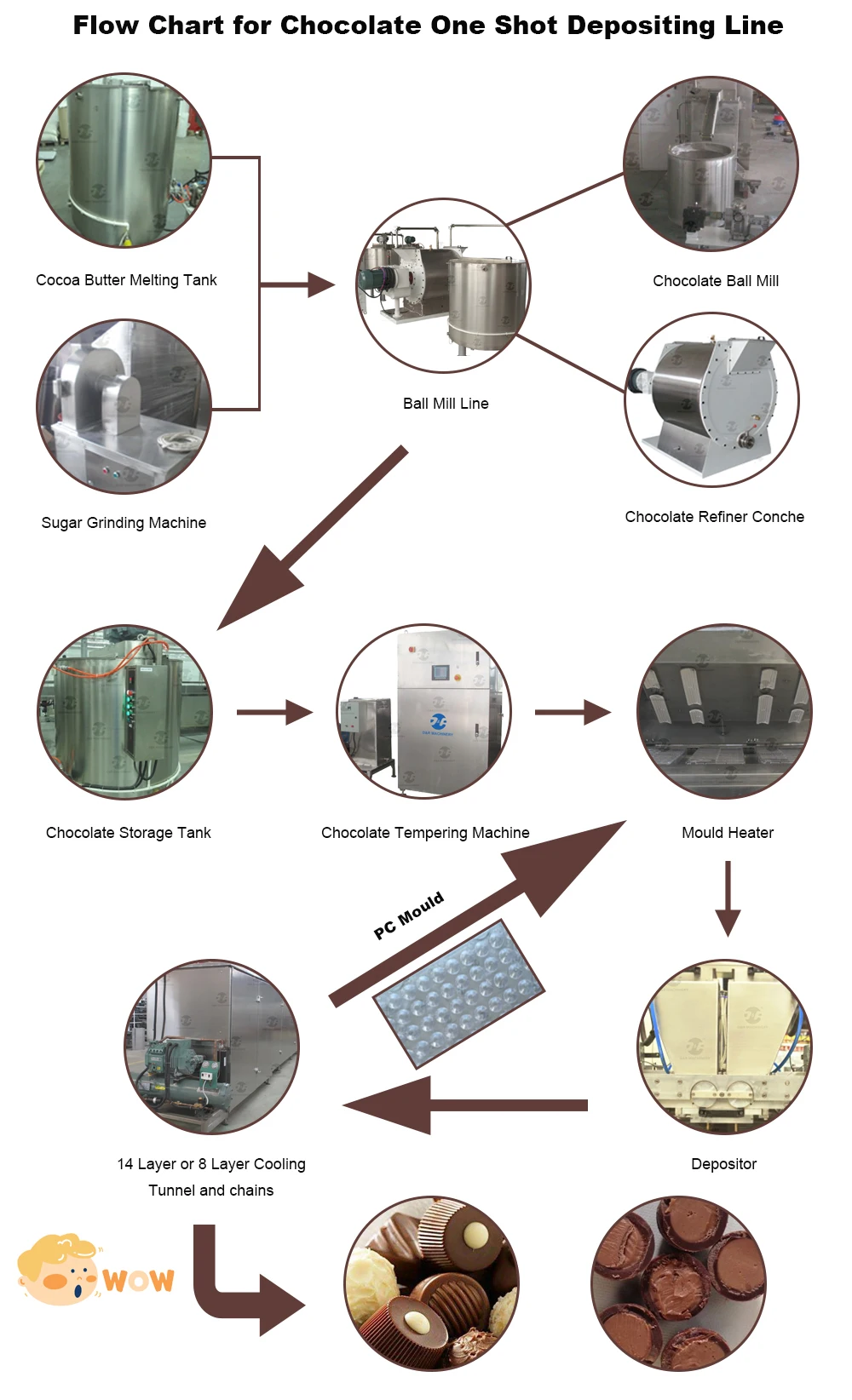

The chocolate one shot depositing line is the most popular type of chocolate production line.This whole chocolate one shot depositing lineis fully automatic including mould heater,depositing,mould vibrating,cooling,demoulding system,discharging conveyor of products.It has tight construction,easy operation and stable control.

You can also choose from flexible options like semi-automatic or full automatic, one head ,two heads or three heads moulding line for different products.The line is suitable for ball chocolate,ball chocolate with center filled,decoration chocolate also can be done.

SPECIFICATION

Product Details

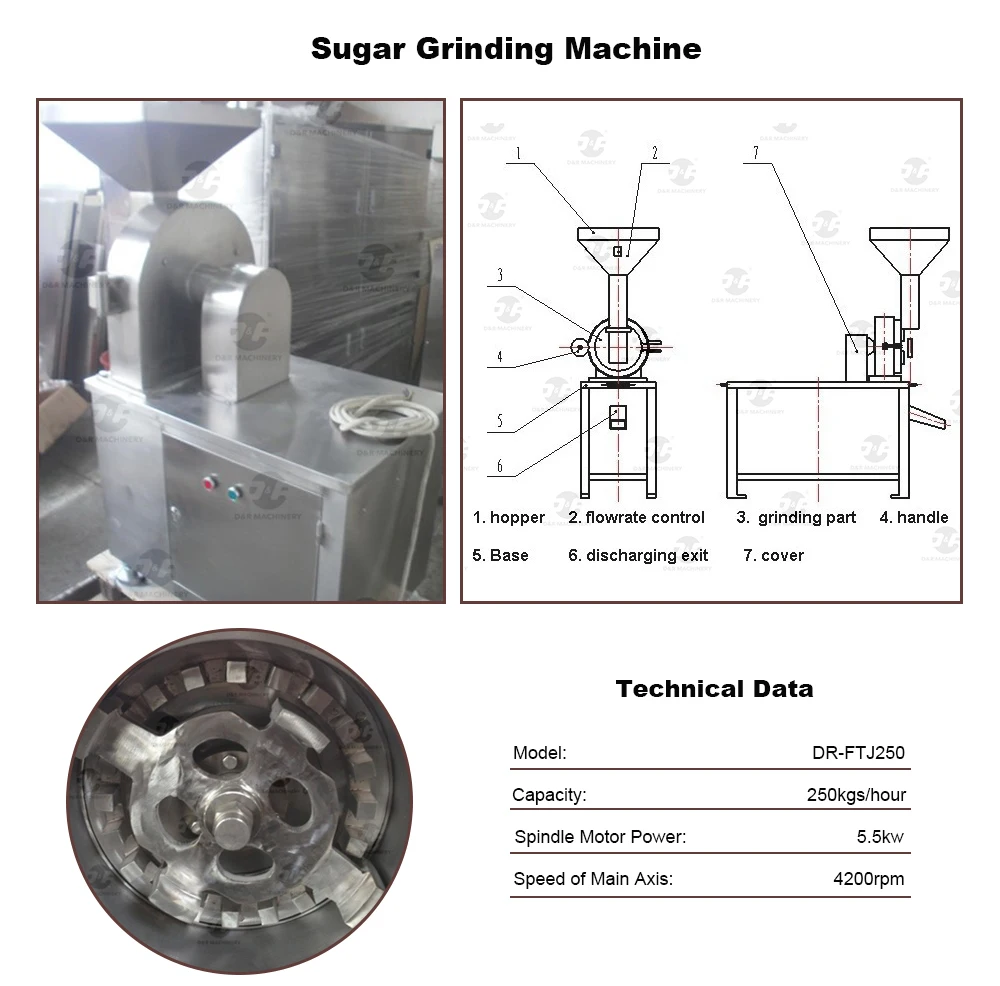

This machine is for grinding sugar to be sugar powder as required. The max. capacity is 250kg/hour. To put one bag of sugar in hopper.There are screws under the hopper which will send sugar to the grinding device,after grinding, there will be a filter and the sugar powder will flow to the bag and the big grains will be ground again. Fineness degree before grinding is 0.5-2mm and after grinding is 20-120 mesh.

All are ss304.Siemens main motor(company in China).

The main material of chocolate is cocoa butter, and it is usually in solid.Before the chocolate material is put into the refiner/conche,the melting process is needed.Further more the coco fat melting tank can extend the life of refiner/conche.

Our cocoa butter melting tank is water jacket. The jacket tank and top cover are ss304.

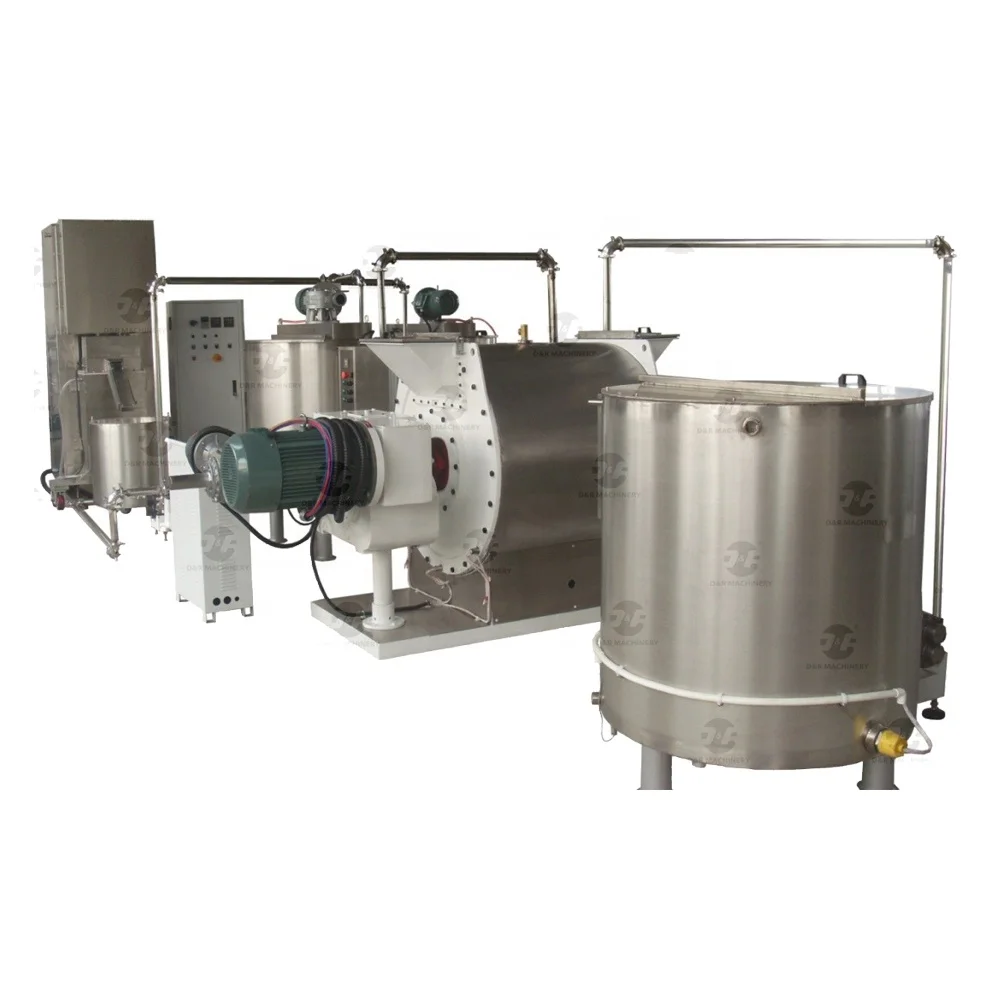

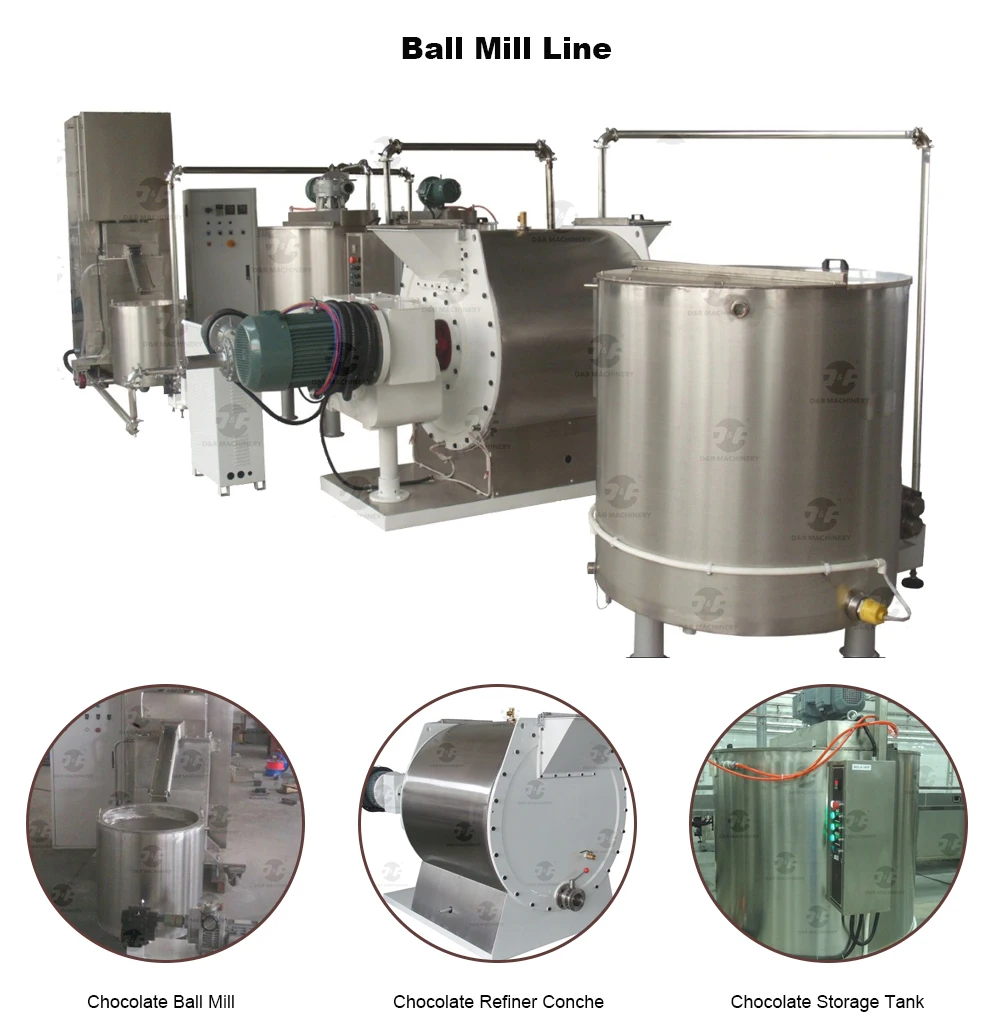

1.Chocolate Ball Mill:

This machine is used for fine grinding the chocolate paste material.It is a special machine for fine milling chocolate mass and its admixture. Through the impact and friction between the material and the steel balls inside the vertical cylinder, the mass is fine milled into the required fineness.

The frame of the main machine is iron with paint, covers are ss304, ,tank is stainless steel 304.The impellers are Gcr15 steel and balls are bearing steel after heat treatment,the balls are 5mm,it is about 180kg balls in each machine. The shaft is Cr40 carbon steel.

The power of gear motor is 15kw and heater of hot water is 8kw.

Main motor and gearbox is SEW brand(made in China)

2.Chocolate Refiner/Conche:

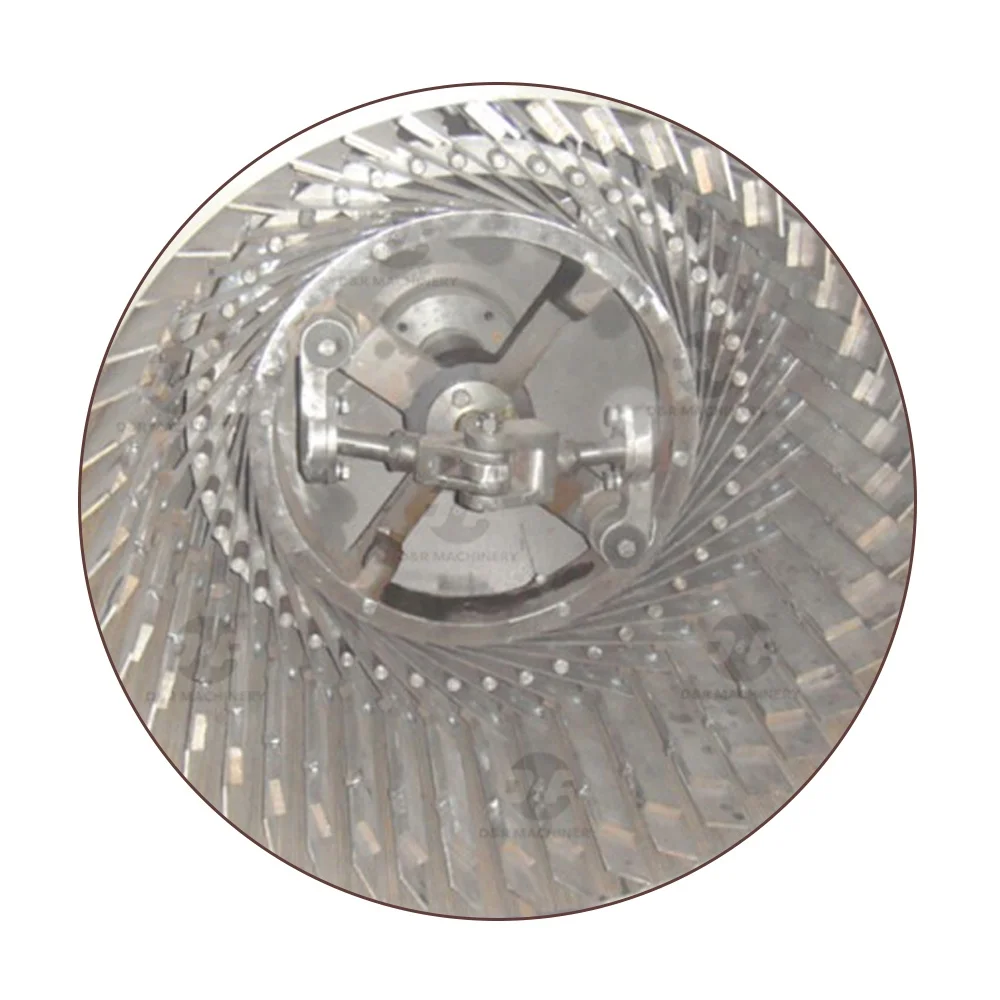

There is ventilating fan or a hopper on the top of tank , surface cover is carbon steel with paint or ss304 shell.The material of the lining bars, scrapers are 65Mn after heating treatment, it can prolong their lives. The base and gearbox are cast iron, so it will be more stable. The jacket tank is iron and heated by electricity.The electric components are Siemens, main motor is also Siemens, but gearbox is the brand of China. the small motor which controls the distance between scrapers and lining bars are also Chinese brand.Temperature controller is Omron.

3.Chocolate Storage Tank:

The tank with adoption of rated temperature(temperature adjustable) for retaining of fine ground chocolate paste material,via agitating makes chocolate have function of degassing,eliminating smell  and preventing the paste from the separation of oil and grease,etc.The jacket tank is stainless steel 304.

The electric components are Siemens, Schneider or Omron. Motor and gearbox is SEW(company in China)

You may like:

Jelly Candy Depositing Machine	Lollipop Making Machine	Toffee Depositing Machine	Chocolate Making Machine
Cake Production Line	Moulds	Automatic Feeding Packing Line	Starch Wooden Trays
Click to contact us.

1.Q:Where are your company?
    A:The company is located at F12, Shanshan Plaza, Yinzhou District, Ningbo, China.

2.Q:Are you direct factory?
    A:We are both manufacturer and technical trading company. We are professional confectionery machine manufacturers with over 20 years in the business operating at the highest industry standards. We’ve built a reputation on engineering, designing and delivering high-performance total-solution confectionery machinery to clients with absolute precision around the world. Certainly,we welcome you to come visit our factory.

3.Q:What are your main products?
   A:All kinds of Chocolate making machines, Candy making machines,Swiss roll and layer cake production line, Cadny bar production line and Packing machines.

4.Q:Do you have gurantee for your product?
   A:We have a full quality control system.Every hardware part must be checked by the quality inspector before the products enter to the warehouse.Our electric elements are all famous brands, most of them are imported. When each machine is finished, we will invite customers to test and run the machine in our factory to ensure the high quality of our machines. Besides, we have CE, and SGS certification.
