100/125/160/200/225/250/400/500/630amp 3 phase wenzhou mccb electrical molded case circuit breaker 1500V
- Category: >>>
- Supplier: Wenzhou Xinchi International Trade Co. Ltd.
Share on (1600580325672):
Product Overview
Description
Product Description

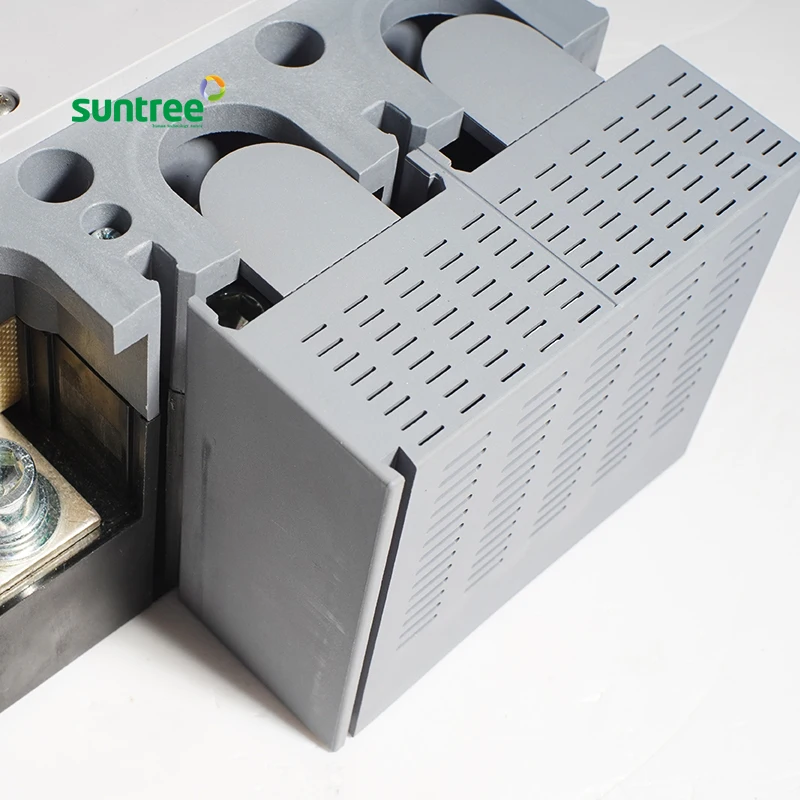

SM8 series photovoltaic special DC molded case circuit breaker is suitable for DC grid circuit with rated voltage up to DC1500V.
DC circuit breaker has overload long delay protection, short circuit instantaneous protection
function , used to distribute electric energy and protect circuit and the power supply equipment is protected from the danger of overload, short circuit, etc.
The operating mechanism of the DC circuit breaker has the functions of quick closing and fast reading segmentation, compact structure, small size and convenient use.
DC circuit breaker has overload long delay protection, short circuit instantaneous protection
function , used to distribute electric energy and protect circuit and the power supply equipment is protected from the danger of overload, short circuit, etc.
The operating mechanism of the DC circuit breaker has the functions of quick closing and fast reading segmentation, compact structure, small size and convenient use.
Advantage

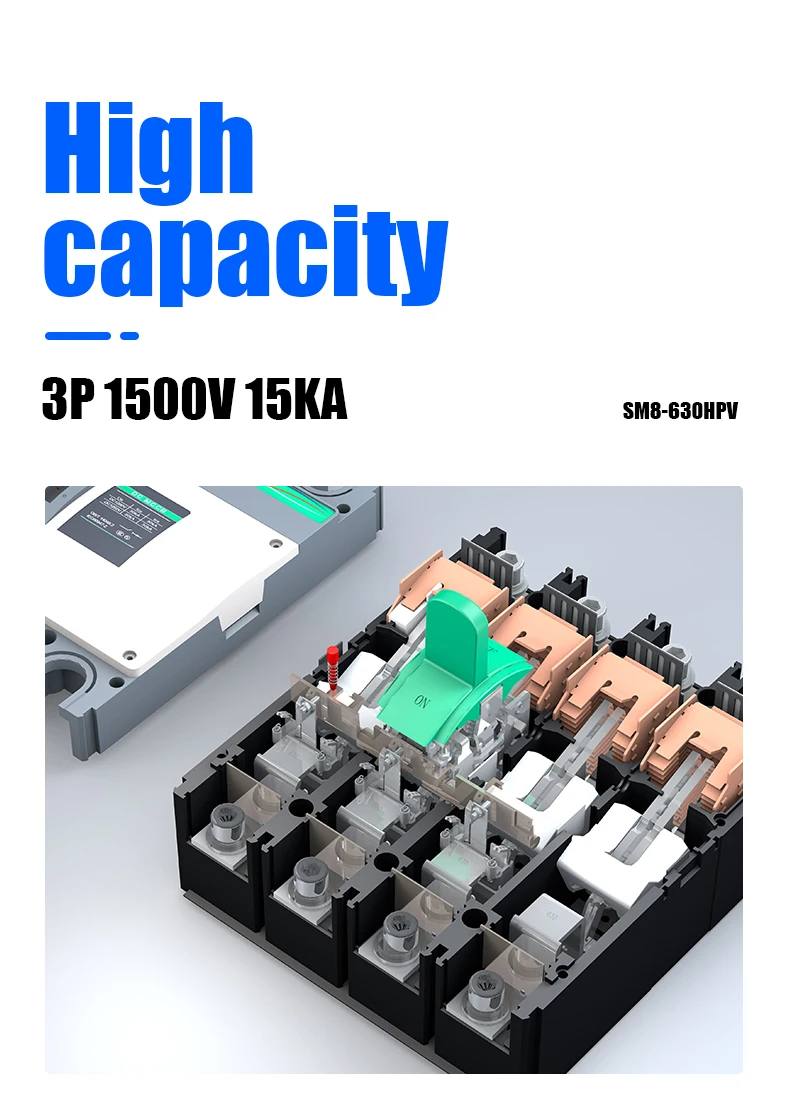

Model Number:SM1-250HPV/SM1-630HPV
Certification：TVU、CE、CB
Rated voltage：DC1500V
Short-circuit breaking capacity：3P:15KA 4P:30KA
Poles: 3P/4P
Rated current: 3P:100/125/160/200/225/250A 4P:400/500/630
Model Number:SM1-250HPV/SM1-630HPV
Certification：TVU、CE、CB
Rated voltage：DC1500V
Short-circuit breaking capacity：3P:15KA 4P:30KA
Poles: 3P/4P
Rated current: 3P:100/125/160/200/225/250A 4P:400/500/630
Model | SM8-250HPV /3P 1500V | SM8-630HPV / 4P 1500V | |
Product name | PV DC MCCB | PV DC MCCB | |
Rated operational voltage | DC1500V | DC1500V | |
Nominal insulation voltage | 1500V | 1500V | |
Rated impulse voltage | 12kV | 12kV | |
Pole | 3 | 4 | |
Type of release | Thermal magnetic type (thermal magnetic not adjustable) | ||
Executive standard | GB14048.2, IEC / EN 60947-2 | ||
Use category | A (PV-1) | ||
Case grade current | 250A | 630A | |
Rated operational current | 100/125/160/200/225/250A | 400/500/630A | |
Breaking capacity | H | ||
Rated ultimate short-circuit breaking capacity | Ue1500v 15kA | Ue1500v 30kA Ue1500v 30kA | |
Operation breaking capacity | Ue1500v 15kA | Ue1500v 30kA Ue1500v 30kA | |
Long delay protection | 1 In | ||
lnstantaneous protection | 6ln ( Min1000A ) | ||
Mechanical life | 10000times | ||
Electrical life | 2000times | ||
Dimensions | 135×200 x 86mm | Type H:310×240×155mm Type G:350×240×155mm | |
Installation method | Fixed | Fixed | |
Protection level | Wiring port: lP20 / all sides: IP40 | ||
Relative humidity | +50°C not more than 95% | ||
Whether there are wiring polarity requirements | No | ||
Pollution level | Level 3 | ||
Operating temperature | -40°℃ -+75°℃ | ||
Operation instructions | With ON / OFF indication | ||
Whether the release is adjustable | No | ||
Electrical accessories | Optional: shunt/auxiliary/alarm (note: only one set can be installed on the left and right sides of auxiliary, alarm and shunt) 2P only on the left | ||
lsolation function | yes | ||
