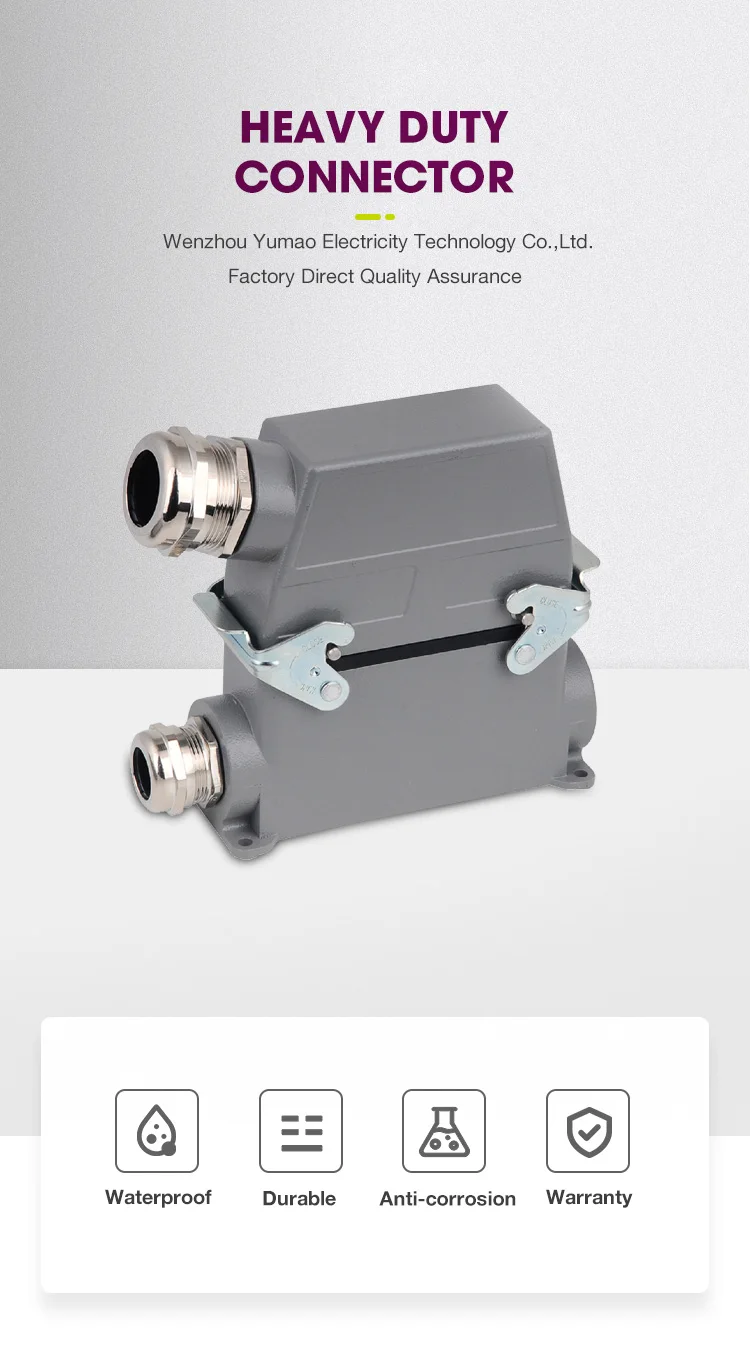

WZUMER HE 24 Pin Heavy Duty Industrial Connector For Automotive
- Category: >>>
- Supplier: Wenzhou Yumao Electricity Technology Co. Ltd.
Share on (1600580339050):
Product Overview
Description
MODEL - HA, HE, HEE, HD, HDD, HSB, HK Series.
WIDE RANGE OF APPLICATIONS - Working together with cable gland, convenient to use to provide a easy use and safeguard to the machinery equipment when transportation, installation, maintain or repairing.
WATERPROOF - IP65 Tested Certificate HDC come with gaskets for the bulkhead mounting. It makes the seal against the inside of the surface you're installing them on. thus they are waterproof.
EASY APPLICATION - Wiring possible with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.
HIGH QUALITY - With strong price competitiveness, while ensuring product quality, maintaining the highest cost performance ratio and striving to provide customers with an excellent service experience.
WIDE RANGE OF APPLICATIONS - Working together with cable gland, convenient to use to provide a easy use and safeguard to the machinery equipment when transportation, installation, maintain or repairing.
WATERPROOF - IP65 Tested Certificate HDC come with gaskets for the bulkhead mounting. It makes the seal against the inside of the surface you're installing them on. thus they are waterproof.
EASY APPLICATION - Wiring possible with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.
HIGH QUALITY - With strong price competitiveness, while ensuring product quality, maintaining the highest cost performance ratio and striving to provide customers with an excellent service experience.

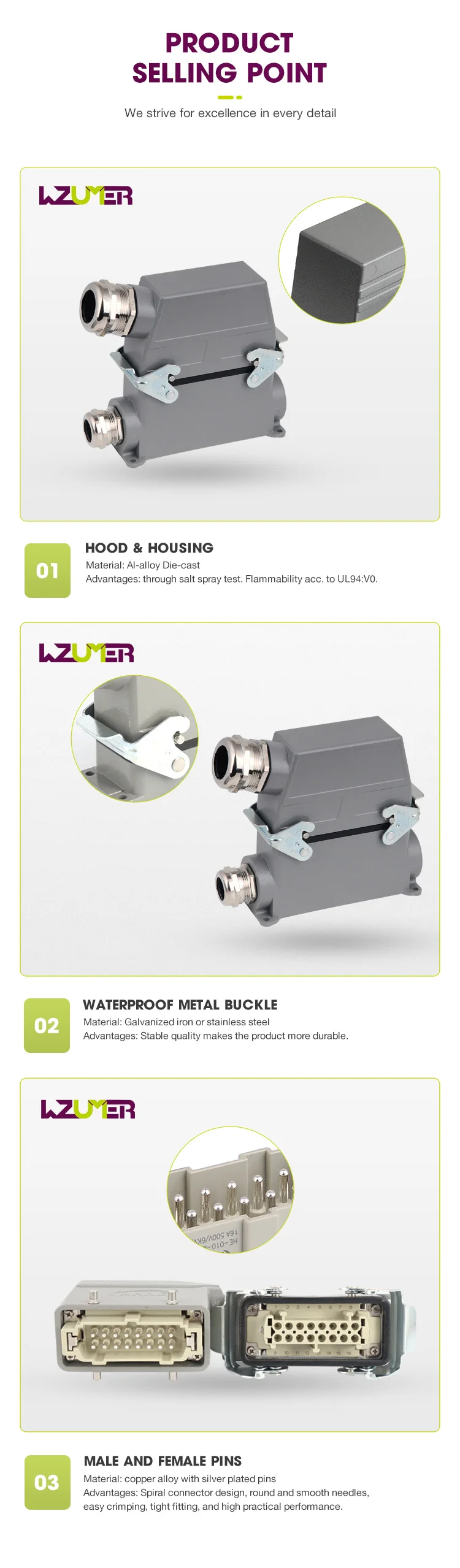

Details Images
Products Description
Number of Contacts | 24 |
Electrical Data Acc.to | DIN EN60664 EN61984 |
Rated Current | 16A |
Rated Voltage | 500V |
Rated Impulse Voltage | 6KV |
Pollution Degree | 3 |
Flammability Acc.to (UL94) | V0 |
Insulation Resistance | ≥10 10Ω |
Material | Polycarbonate |
Limiting Temperature | -40℃~+125℃ |
Mechanical Working Life | ≥500 |
Rated Voltage Acc.To UL/CSA | 600V |
Material | Copper Alloy |
Surface | Hard-silver,Hard Gold Plated |
Contact Resistance | ≤1mΩ |
Crimp Teminal | |
- mm2 | 0.14-4.00mm2 |
-AWG | 26-12 |
Screw Teminal -Wire Gauge -AWG -Hexagonal Driver -Stripping Length | 1.0-2.5mm2 18-14 SW 5 16mm |
Tightening Torque | 0.5Nm |

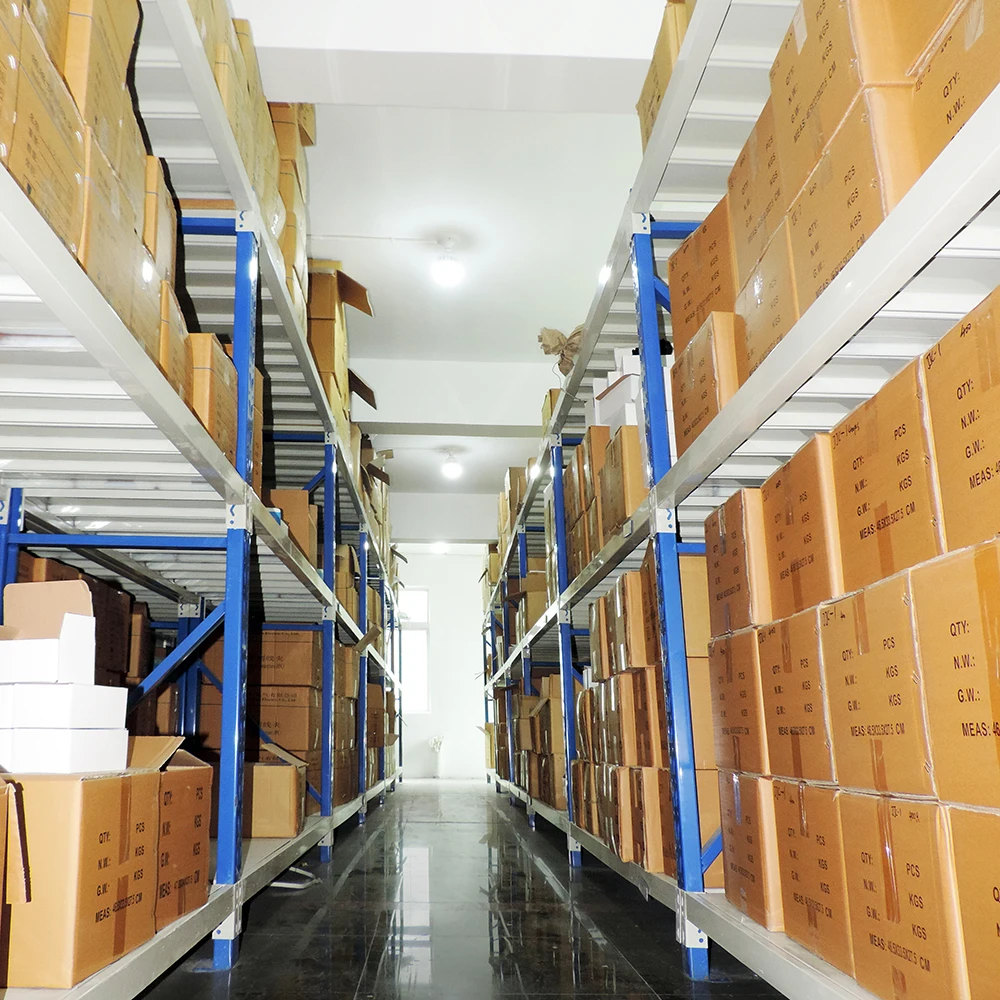

Workshop & Packing
