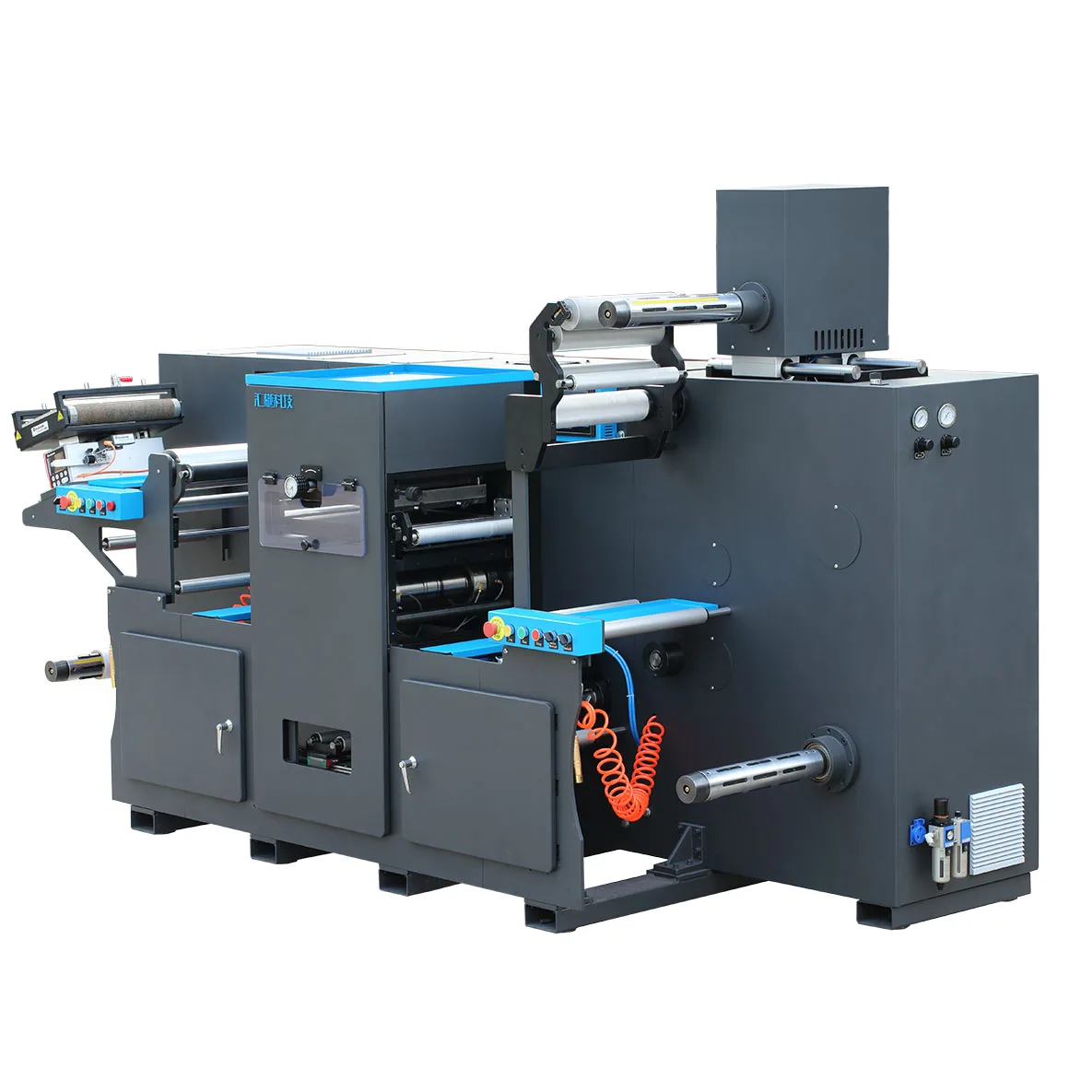

HONTEC FDA 350 High speed flat bed die cutting machine with correcting deviation and controlling paper path
- Category: >>>
- Supplier: Hontec Industries Co. Ltd.
Share on (1600580341414):
Product Overview
Description
Product Overview
FDA-350 Semi-high speed flat -bed die cutting machine
Features:
Constan tension,full servo control web feeding,ultra-silent operation,automatic web guide control web path,higher registration accuracy,no mechanical side guide,reduce the glue bleeding,the maximum speed achieves 100 meters per minute.
FEATURES AT A GLANCE
Specifications:
Maximum web width:350mm/13.7"
Maximum web diameter:800mm/31.5"
Maximum web speed:100M/minute
Main machine size:3050mm(L)×1300mm(W)×2000mm(H)
weight:3200KG
PRODUCT DETAILS

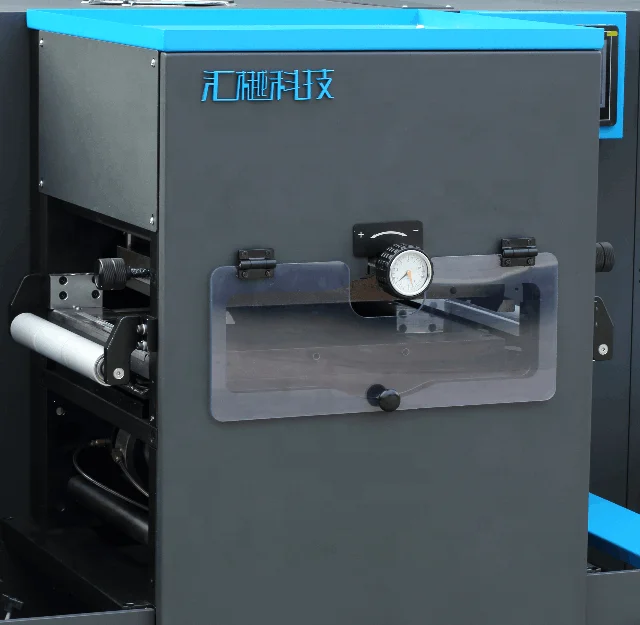

die cut station
Semi-flat die cut station

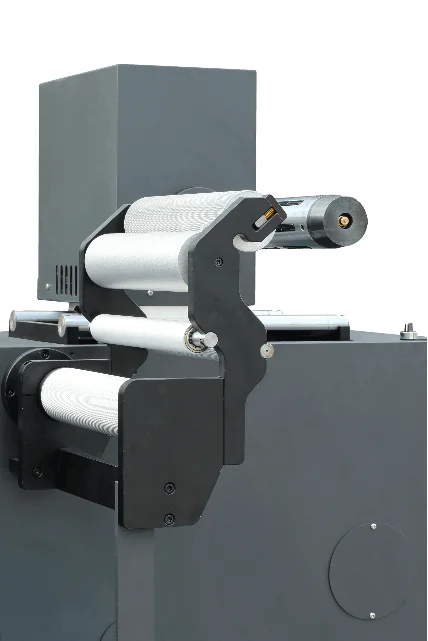

snow ball
Snowball type automatic waste collection

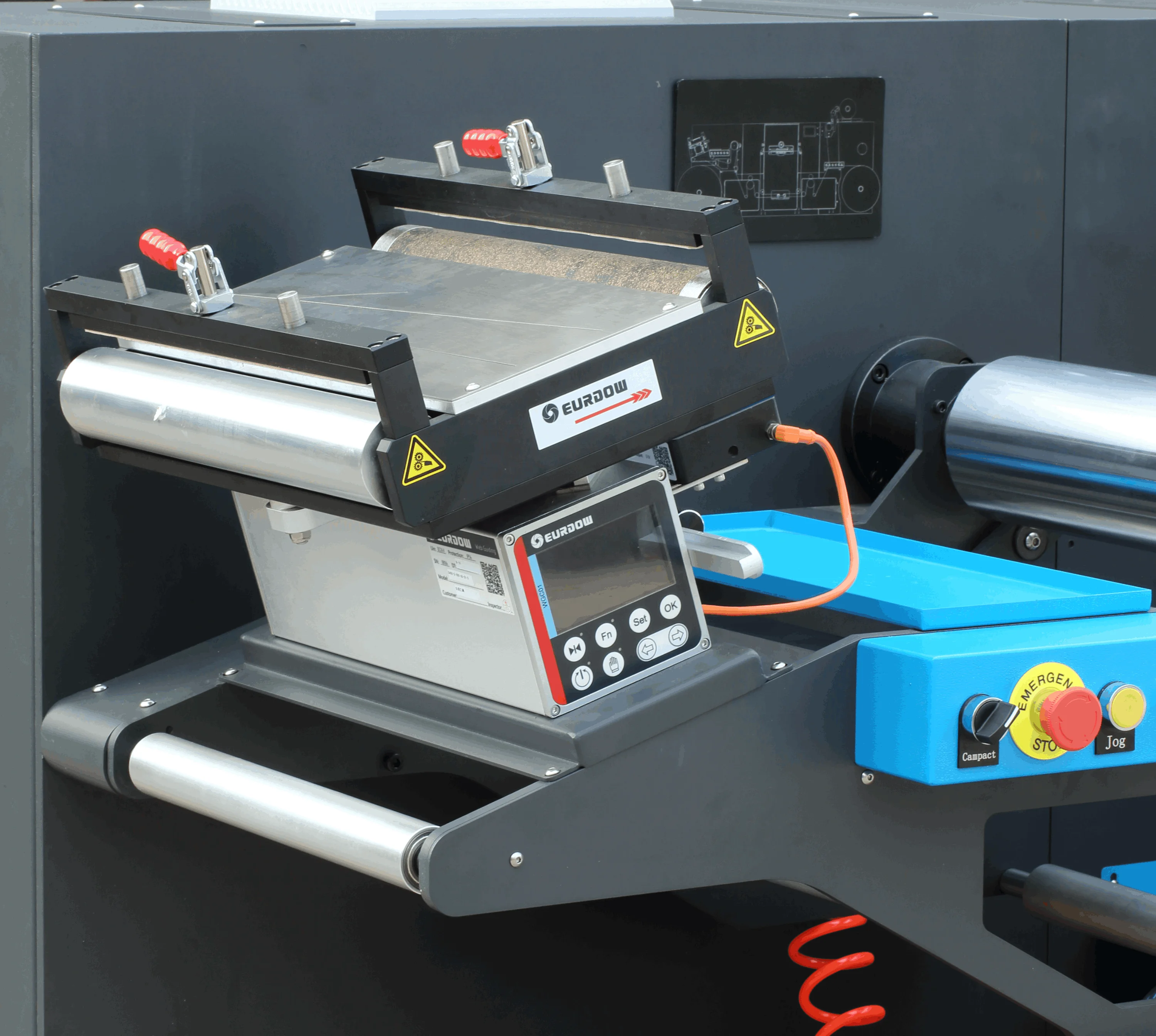

web guide
Automatic deviation correction system
left elevation
right elevation

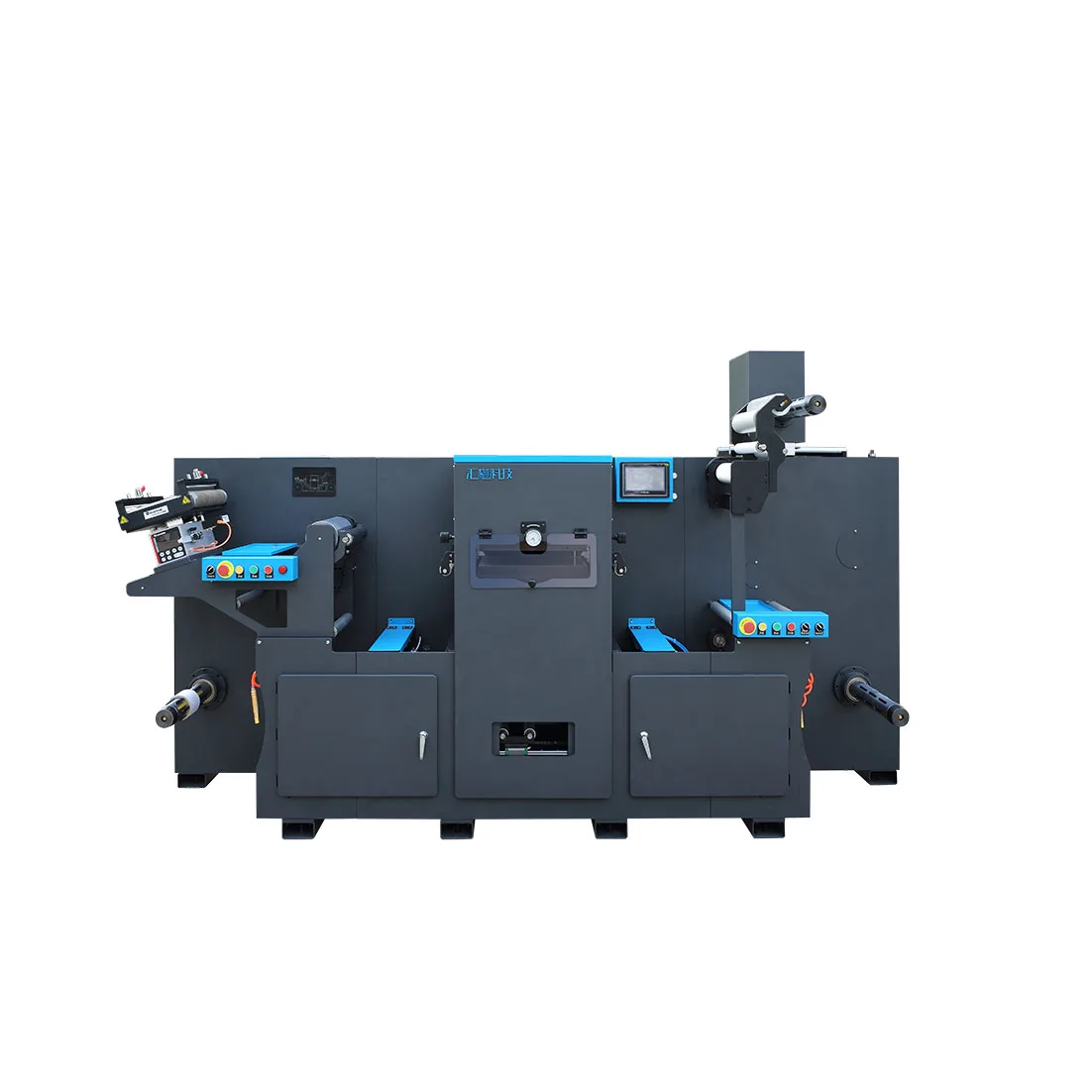

Front elevation
PRODUCT SPECIFICATIONS
Unwinder | ||
3 inch air expanding shaft | included as standard | |
Automatic tension controlled unwinder | included as standard | |
Automatic Web guide with splice table | included as standard | |
Automatic stop by master web end | included as standard | |
UV Varnish unit | option | |
Advanced Flexo UV varnish unit can be added at unwider section | option | |
7KW UV dryer | option | |
Flat-bed die cutting station | included as standard | |
Servo driven actuating unit | included as standard | |
High precision servo feeding roller | included as standard | |
Electromagnetic anvil block | included as standard | |
Thickness 1MM steel anvil | included as standard | |
Lightweight die fixed block | included as standard | |
Adjustment device for the die rotating | included as standard | |
Electric oil pump | included as standard | |
HMI | included as standard | |
Mark registering photocell | included as standard | |
Anti-static device at the input and output for plastic materials | option | |
Waste Rewind | included as standard | |
Servo driven nip roller | included as standard | |
negative pressure buffer | included as standard | |
3 inch tension controlled waste rewind shaft with compact arm | included as standard | |
Snow -ball type waste rewind system | option | |
Rewind | ||
3 inch air expanding shaft | included as standard | |
Automatic tension controlled master web rewind | included as standard | |
Sheet cutting unit | option | |
Servo driven Rotary cutting unit | option | |
Mark sensor for registration | option | |
Vacuum carriage with wheels for the conveyor belt | option | |
Moveable conveyor | option | |
DIE CUT PRODUCTS
COMPANY PROFILE
HONTEC was founded in 2003,and its technical team is composed of many senio professional engineers and overseas engineers,We are decicated to the development, production and sales of narrow-web printing equipment.Mechanical core parts warranty: 1 year.We can provide customers with;high speed flat bed die cutting,slitting,printing,cold foil,hot stamping,laser die cutting,flat die cutting,semi-rotary die cutting,slitting,glue killing and cutting sheets and other complete set of label finishing production lines,Especially suitable for intermittent PS/letterpress printing and label digital finishing.
Production workshop
50 workshop employees
Core R&D team
Professional R&D team，Average industry experience of 10 years
Office staff
20 employees responsible for business and after-sales service
Drupa Label Exhibition
Reception desk in exhibition hall
Drupa Label Exhibition
Appearance of exhibition hall
Drupa Label Exhibition
Machine display
Project in korea
Project in korea
Project in korea
SIMILAR PRODUCTS
LOGISTICS
It can be transported by sea or by air. We will first dismantle the machine unit, then wrap it with film, and then pack it separately. The package will not be damaged during transportation, and then it can be loaded
FAQ
Q1：What is the price?
A1：For an accurate quote, please provide us with more details like logo or packaging customization requirements, quantity preference, shipping address, etc.
Q2：Can I customize products?
A2:Yes, we have been committed to providing customized services for overseas customers. From early product communication, to medium-term machinery manufacturing, and finally to the molding and delivery of machinery, we will have special personnel to provide services for you。Click this link to see our customized products https://hontec68.en.alibaba.com/product/1600542576946-916713780/Multi_function_combined_Postpre_for_cold_foil_glue_Killing_flat_bed_die_cutting_rotary_die_cutting_dlitting_and_sheet_cutting_.html
Q3：What is your minimum order quantity?
A3：1 set
Q4 ：How long is the warranty?
A4：It's 1 year. If there is any problem with the machine in the future, you can call us at any time, and we will have professional after-sales personnel to solve it for you.
Q5：Can you provide your certifications?
A5：You can contact me for any certification you need
Q6：How long will it take to ship to my country?
A6：For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide these details so that I can quote the most cost-effective option.
A6：For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide these details so that I can quote the most cost-effective option.
Q7：How long has your company been engaged in these industries?
A7：With 17 years of industry experience, our company has participated in many overseas label machine exhibitions to provide pre-sales and after-sales support for overseas customers.
Q8：Product features？
A8：Our company's product philosophy: higher speed, more durable, more reliable, modular design, high positioning accuracy, accurate and stable pressure, intelligent design, magnetic suction knife mold base plate never deforms, high efficiency and energy saving, in line with the ergonomic design concept, greatly reducing the labor intensity of the operator.
