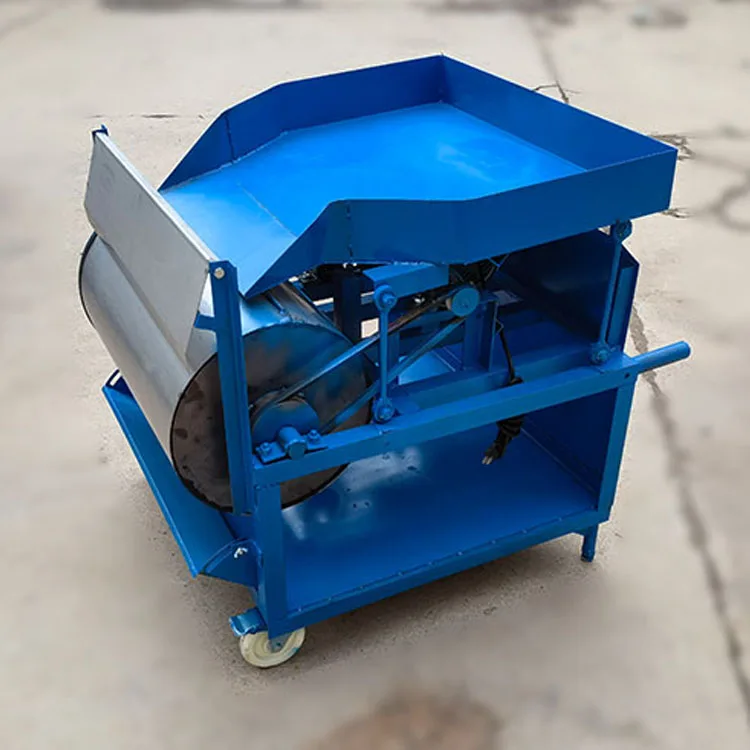

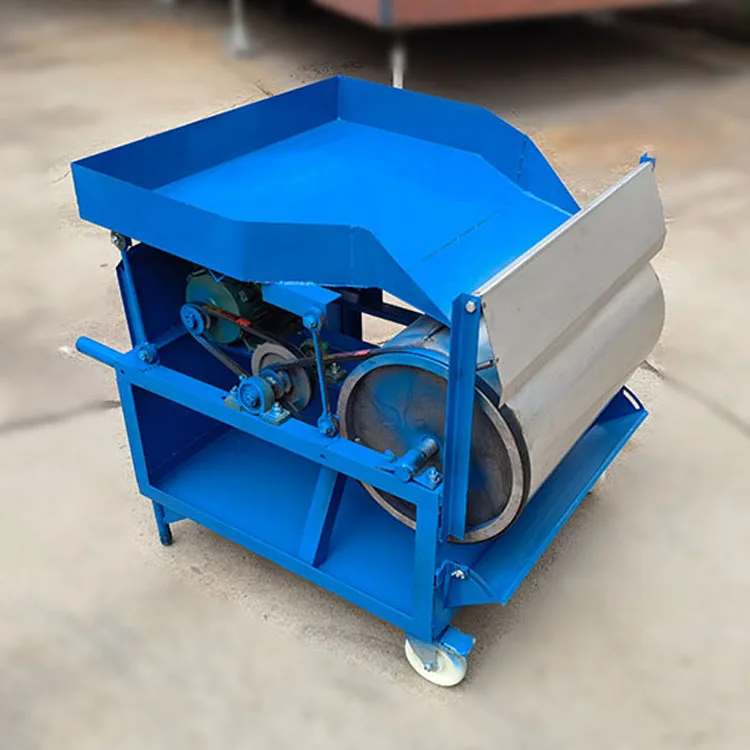

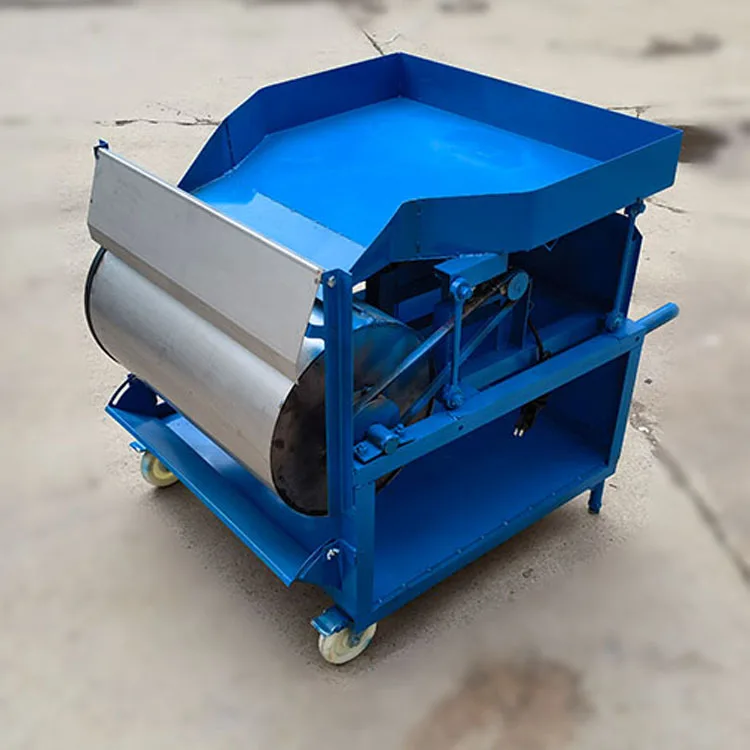

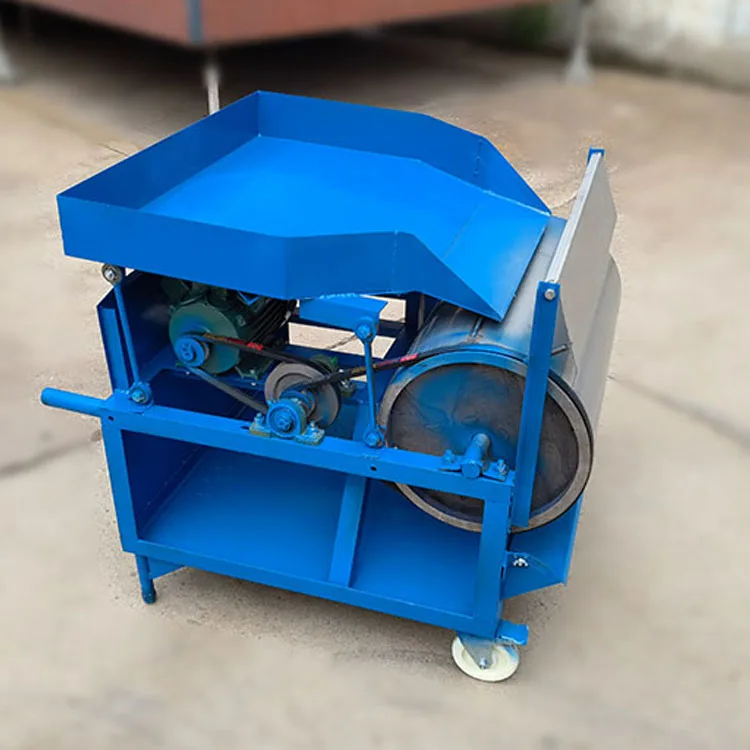

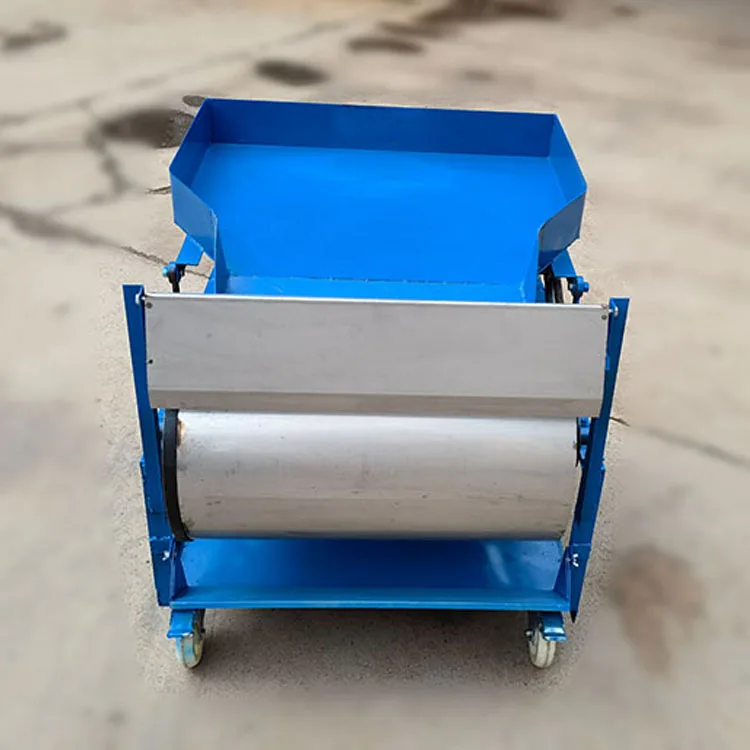

dry roller magnetic separator iron sand magnetic separator machine Source manufacturer

Share on (1600580348414):


Price:$1,580.00

Quantity:


Product Overview

Description



Product Description

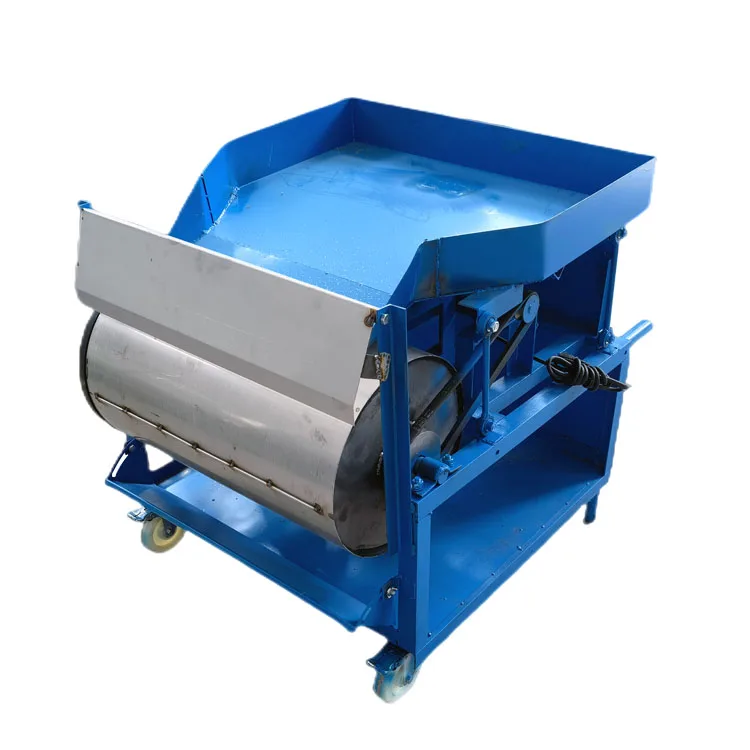

A type of iron absorption machine
Single roll drum magnetic separator, also known as type b new iron suction machine, aluminum pin iron pin separator, aluminum pin iron separator, copper rice iron suction machine and iron powder magnetic separator, is developed by Tengbo machinery factory to separate aluminum pin, aluminum powder, aluminum scrap, aluminum powder, aluminum shaving, copper powder, copper rice, plastic packing belt, iron slag, iron sand, stainless steel, steel slag, zinc powder, aluminum ash and iron scrap, iron slag and iron powder in garbage. It is a trusted product of non-ferrous metal manufacturers.


Our Advantages


Product advantage

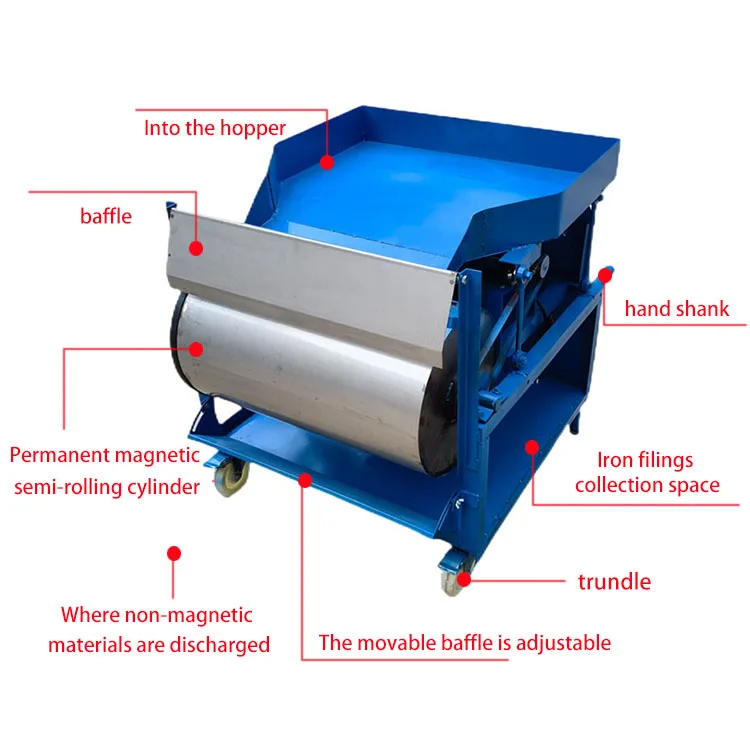

Semi magnetic drum
Built in semi magnetic drum, the outer cylinder rotates, the inner magnet does not move, and the sorting efficiency is good.
Uniform feeding
Large feeding hopper is adopted for feeding, which is convenient for feeding and improves efficiency.
Clean sorting
Non magnetic materials are produced in front of the drum and magnetic materials are produced behind the drum


Specification




model
Single stick drum magnetic separator
Drum specification
350*600mm

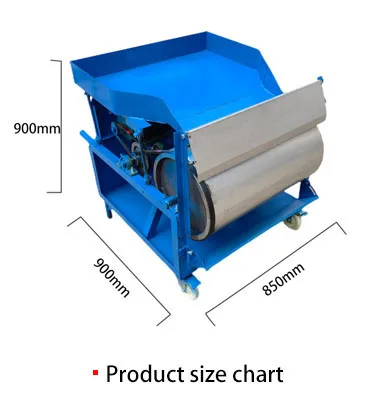

Appearance dimension
850*900*900mm
Full magnetic / semi magnetic
Semimagnetic
Magnetic range
1000-2500gs
Motor power
1.5kw 220v or380v Motors in different countries to be determined
weight
148kg
Drum speed
0.8r/s
Deceleration device
Pulley deceleration
Feed inlet
450*250mm Adjustable




working principle:
The material is evenly fed to the upper magnetic field area of the rotating semi-magnetic drum through the mechanical swing feeding device, and the magnetic material is adsorbed on the drum surface and rotates with the drum. Because magnetic materials and non-magnetic materials have different magnetic force in the magnetic field, magnetic particles are adsorbed on the surface of the drum by magnetic force in the magnetic field, and are thrown off when they are brought to the non-magnetic field area.
Due to the different magnetic force, non-magnetic and weak magnetic particles have different throwing trajectories. The stronger the magnetism is, the closer it is to the drum when it is thrown away. The surrounding direction adopts alternating magnetic field and swings with a certain angle and period, so as to achieve the function of separation.






Separable Materials:
Aluminum pins, aluminum chips, aluminum powder, aluminum shavings, electronic feet, copper powder, copper rice and other metal iron separation and iron removal debris, abrasives, refractories, non-metallic beneficiation, carbon black, grain, feed, chemical raw materials, etc.
















Certifications




Packing & Delivery






Scope of delivery
Our main market is southeast Asia, Africa, America, Europe, Asia, etc., we can cooperate customers covering India, Canada, Australia, Indonesia, Mongolia, Philippines, etc.


About us

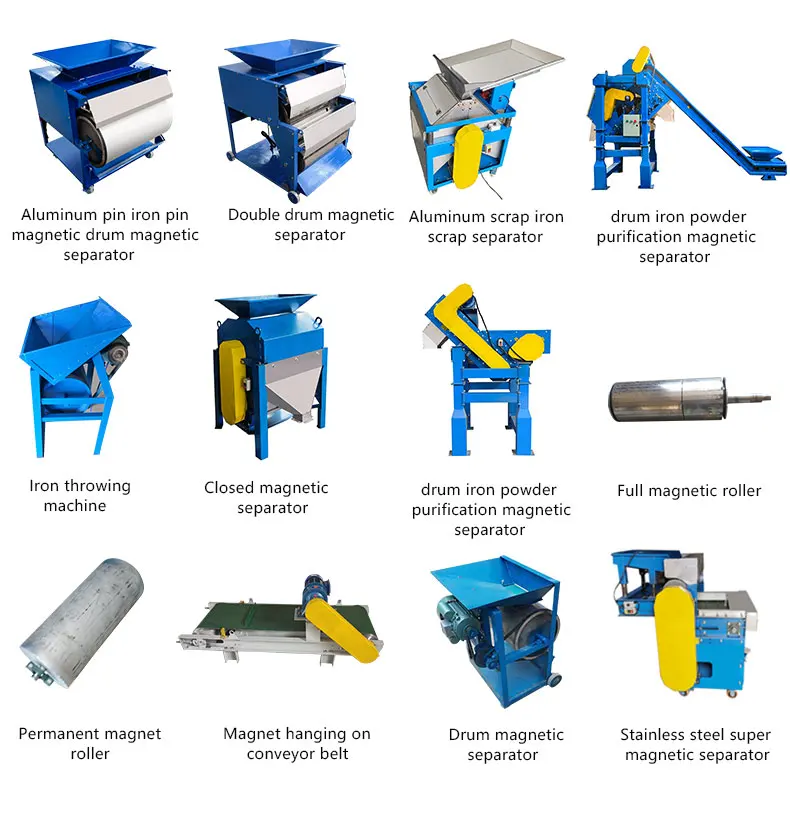

Recommend Products




FAQ


Q1: are you a factory or a trading company?
A1: we are a factory.

Q2: where have your products been exported before?
A2: our products have been sold to Southeast Asia, Africa, South America, the Middle East and other places.

Q3: what is the iron removal rate of your magnetic separator?
A3: above 98%

Q4: what is your delivery date?
A4: 15-25 days

Q5: how can you establish a long-term cooperative relationship with our business?
A5: we guarantee the quality and price advantage of products to ensure that customers can earn more. We regard each customer as our friend and sincerely do business with each customer and make friends.

Q6: how can I get the quotation in time?
A6: please tell us the material you need to deal with, the diameter and length of the drum? Or belt width and thickness? Drum shaft length and other information.
