1T Si Mn alloy Melting Electric Induction Melting Furnace
- Category: >>>
- Supplier: Henan Rongke Electrical Manufacturing Co. Ltd.
Share on (1600580348963):
Product Overview
Description
Product Description

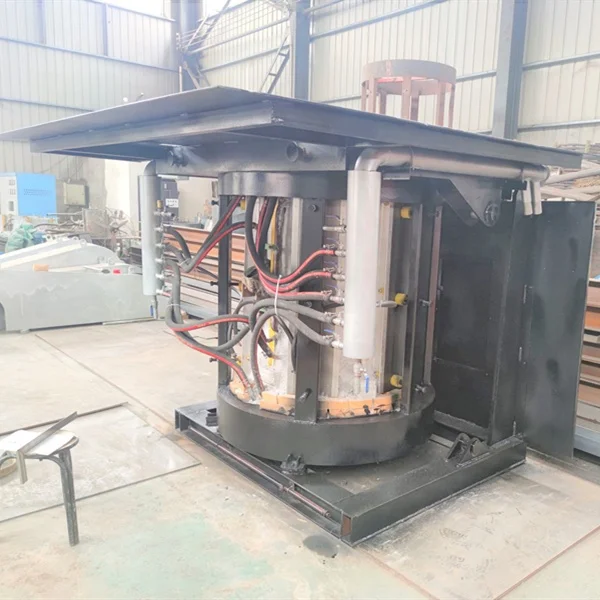

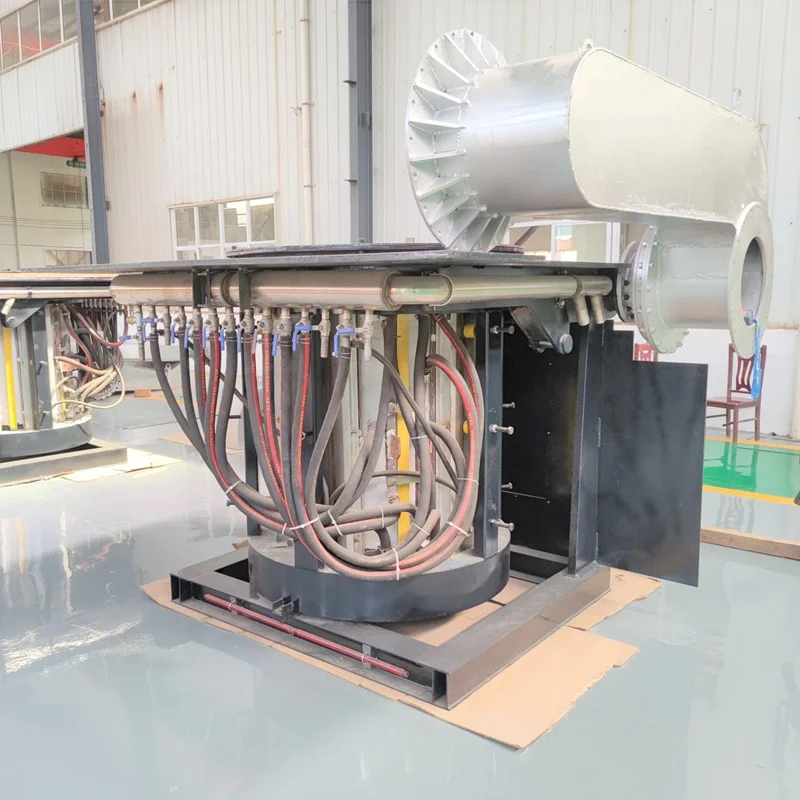

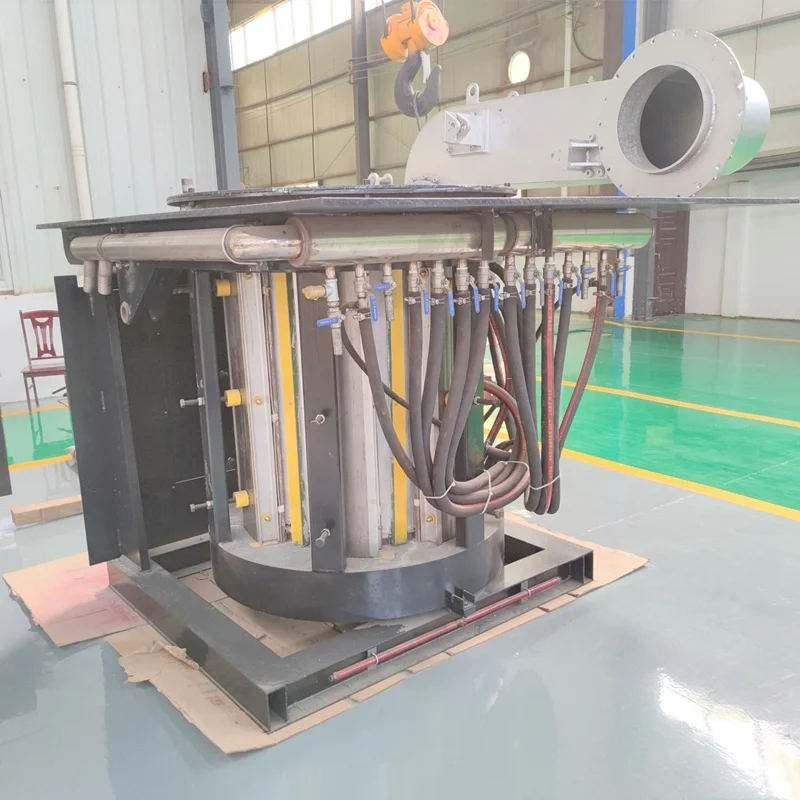

Open type steel framed induction furnace:
Full items includes: steel shell furnace body, furnace frame, furnace cover, tilting furnace oil cylinder, dust cover with furnace cover and hydraulic cylinder, inductor, yoke, high-pressure carbon-free rubber pipe, furnace mouth and bottom pouring fixed material, a complete set of stainless steel water inlet distributor, backwater collector and clamp, etc., including wall-mounted water inlet and outlet. The cylinder is designed to use hydraulic oil and hydraulic medium. All hydraulic seals are suitable for hydraulic fluids.
Description
steel frame structure, easy for routine maintenance, maintenance, large size H-beam, or square steel pipes constitute the basic structure of the furnace frame, the overall structure is simple, strong, maximum inclination 95 degrees.
The refractory on the surface of the platform can protect the furnace and platform will not be deformed when in foundry.
Welded steel structure, equipped with appropriate support and clamping parts to fix induction furnace coil and yoke; induction furnace upper end parts can be removed, the replacement of coil more convenient.
Pillars - both sides of the load section steel components, become the furnace's most solid support, providing a hydraulic tilt axis, and the axis moved out, up. Ensure minimum tapping trajectory and reduce energy loss of tapping.
Induction copper coil
It is assembled from solid, durable and highly conductive T2 copper tube. Water-cooled coil and the effective coil are integrally formed by a copper tube without segmentation. Two adjacent copper tubes of the induction coil are strictly insulated and adopt advanced segmentation technology. An insulating sheet is implanted between adjacent induction coils. After the insulating varnish is sprayed, it becomes a complete structure, and is pressed by the upper and lower steel structures in the furnace body, the overall structure is firmed has no deformation problem. The coil turns are appropriate to achieve maximum electrical efficiency. The coil is supplied with cooling water from a plurality of water paths and evenly distributed. Outside of the coil tightly wound with an insulating material. The inter-turn arc-shaped insulating spacers ensure uniform coil spacing and facilitate moisture removal.
Yoke
Uses South Korea's Pohang, or WISCO, Baosteel's silicon steel sheet. Uniformly applied to the brace bolts and provide maximum pressure to the coil to ensure a long working life of the lining. The yoke is made of high-quality cold-rolled silicon steel sheet. The tolerance of the shearing edge of the silicon steel sheet after processing <±0.1mm. The bending degree after assembly meets the requirements of TB/T4280-93 to ensure the coil and the yoke arc shape precision fit. At the same time, multiple sets of yoke fastening devices are firm and reliable, easy to assemble, disassemble, adjust and repair, and evenly distributed along the circumference; the liner between the yoke and the coil is made of multi-layer high-quality insulation material, including multi-layer mica board, multi-layer Ceramic fiberboard. The yoke don't need cooled by water.
Formed insulation panels and shorting rings are placed on the top and bottom of the furnace.
The composite leak-proof probe is safe and reliable. When metal liquids invades or is about to penetrate the refractory material and the coil, it automatically cuts off the power and alarms. The composite leak proof probe is an important part of the overall leak protection system. At the same time, it also ensures that the molten iron is grounded to ensure the safety of the operator.
The bottom structure satisfies the requirement of removing the furnace lining by using the lining pushing mechanism. Easy to install and easy to operate.
The composite leak-proof probe is safe and reliable. When metal liquids invades or is about to penetrate the refractory material and the coil, it automatically cuts off the power and alarms. The composite leak proof probe is an important part of the overall leak protection system. At the same time, it also ensures that the molten iron is grounded to ensure the safety of the operator.
The bottom structure satisfies the requirement of removing the furnace lining by using the lining pushing mechanism. Easy to install and easy to operate.
Power Supply Unit
single output intermediate frequency power supply, all devices are installed in closed cabinet. The incoming line power supply is 380V ,660V or 1000V.
The frequency conversion power supply adopts the international advanced technical level control technology, all its components and components are all internationally renowned brands.
In copper output, in close proximity to the position of the coil arrangement of the earthing switch. When to carry out maintenance on the furnace body part, the side of the stove body and the copper coil on the short circuit, to ensure the personal safety of the operator.
The frequency conversion power supply adopts the international advanced technical level control technology, all its components and components are all internationally renowned brands.
In copper output, in close proximity to the position of the coil arrangement of the earthing switch. When to carry out maintenance on the furnace body part, the side of the stove body and the copper coil on the short circuit, to ensure the personal safety of the operator.

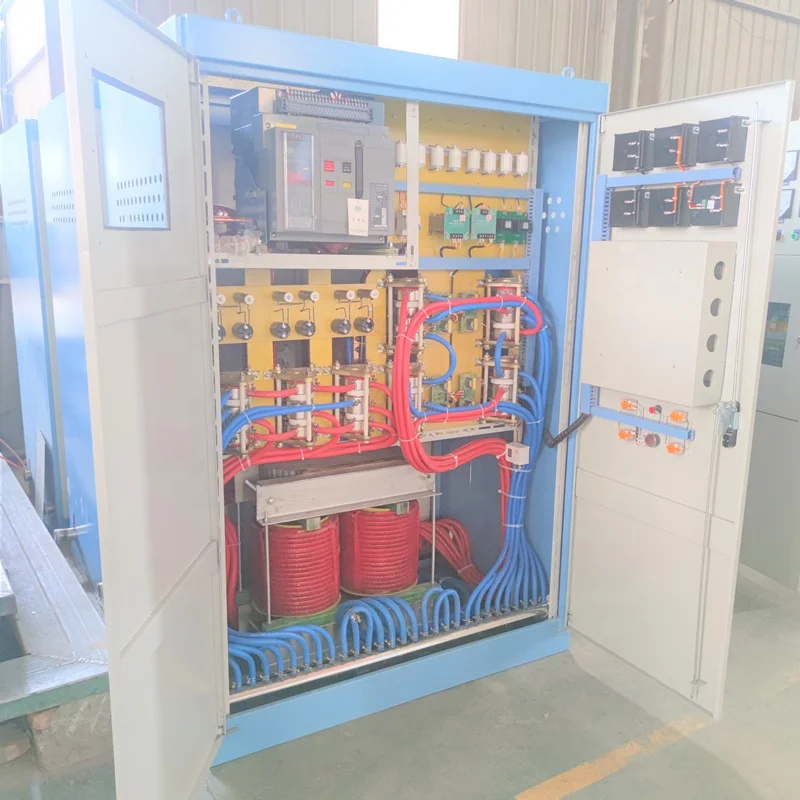

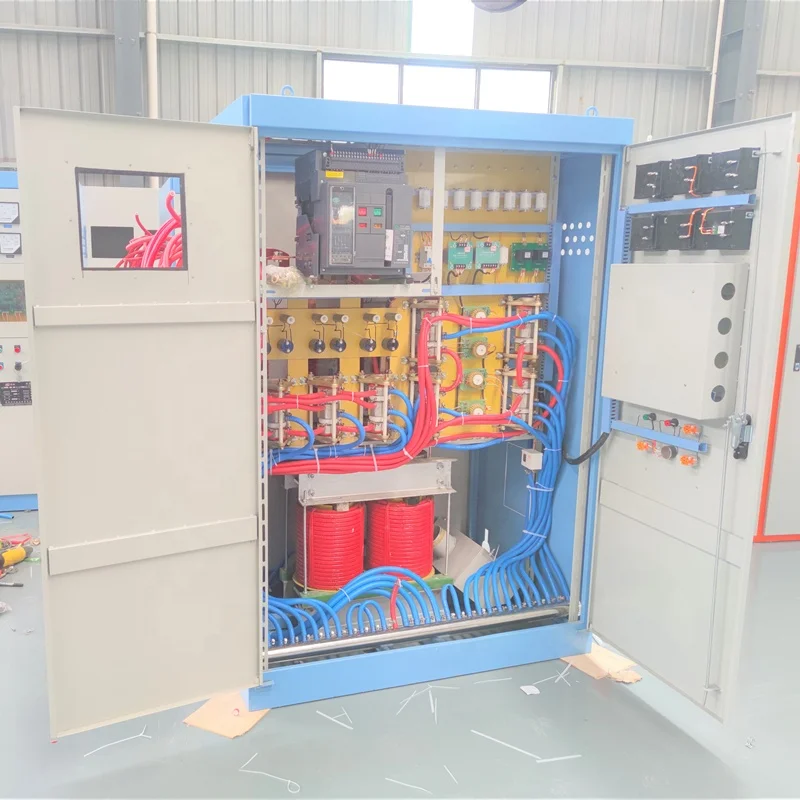

Cabinet
In the cabinet all thyristors and diodes are TECHSEM brans products. Including rectifier and inverter.
The power cabinet is made of high strength cold rolled steel sheet, 2 mm thick. Can easily access the rectifier and inverter parts. Domestic brands use copper and copper power cabinet, copper oxidized production specification. The layout of power supply cabinet is reasonable, easy to maintain, line running and wiring specification (with drawings). The maintenance personnel can easily access all the maintenance points.
Inlet air switch protection system.
a.The quick action circuit breaker installed on the front of the power supply and separates the power supply line from the transformer and the power supply cabinet. Switch to delixis switch plant products. When a fault occurs, immediately trip to protect the power cabinet from further damage. It is operated by an electric operating mechanism and has a coil that serves as an interlocking protection.
b. With over-current protection, when the over-current occurs, it trips the protection action, cut off the power supply to the power supply cabinet.
c. Isolation control room:
A closed isolation control room is arranged on the upper part of the front door, which is equipped with the main control board, feedback board, control power and other control components, so that the signal of the main control board can be conveniently observed. The isolation control room does not require additional cooling. The main power electronic components of the power cabinet are water-cooled, and the temperature rise during the operation of the cabinet will not affect the isolation control room. At the same time, the selection of all electronic components on all electronic control circuit boards in the isolation control room is carried out according to the high temperature level. (basically all components on PCB are internationally famous brands).
The power cabinet is made of high strength cold rolled steel sheet, 2 mm thick. Can easily access the rectifier and inverter parts. Domestic brands use copper and copper power cabinet, copper oxidized production specification. The layout of power supply cabinet is reasonable, easy to maintain, line running and wiring specification (with drawings). The maintenance personnel can easily access all the maintenance points.
Inlet air switch protection system.
a.The quick action circuit breaker installed on the front of the power supply and separates the power supply line from the transformer and the power supply cabinet. Switch to delixis switch plant products. When a fault occurs, immediately trip to protect the power cabinet from further damage. It is operated by an electric operating mechanism and has a coil that serves as an interlocking protection.
b. With over-current protection, when the over-current occurs, it trips the protection action, cut off the power supply to the power supply cabinet.
c. Isolation control room:
A closed isolation control room is arranged on the upper part of the front door, which is equipped with the main control board, feedback board, control power and other control components, so that the signal of the main control board can be conveniently observed. The isolation control room does not require additional cooling. The main power electronic components of the power cabinet are water-cooled, and the temperature rise during the operation of the cabinet will not affect the isolation control room. At the same time, the selection of all electronic components on all electronic control circuit boards in the isolation control room is carried out according to the high temperature level. (basically all components on PCB are internationally famous brands).
Power Supply Features
1. Advanced electronic circuit control, with over-voltage, over-current, limiting pressure, current limiting, lack of phase,
undervoltage, underwater pressure, phase sequence automatic identification, cooling water temperature alarm protection and many
other protection features. Power factor automatic adjustment function. From the cold charge to the heating temperature during the
cycle regardless of how the furnace conditions change, automatically maintain full power to the furnace, so the maximum amount of
molten metal per kilowatt, the shortest same power heating time, increasing the profits of manufacturers, increased labor productivity.
undervoltage, underwater pressure, phase sequence automatic identification, cooling water temperature alarm protection and many
other protection features. Power factor automatic adjustment function. From the cold charge to the heating temperature during the
cycle regardless of how the furnace conditions change, automatically maintain full power to the furnace, so the maximum amount of
molten metal per kilowatt, the shortest same power heating time, increasing the profits of manufacturers, increased labor productivity.
2. Control line dedicated integrated box and high pressure area are fully isolated, keep the control room clean and cool. Greatly improve the control circuit board life and system reliability.
3.High-power converter parts preferred from international and domestic well-known manufacturers, and parts design to run at 50%
rated capacity, so with 100% design safety factor, increase the overall system reliability.
rated capacity, so with 100% design safety factor, increase the overall system reliability.
4.The equipment uses large air cooling copper bars, compared with the water-cooled copper, more energy for heating, increased efficiency, don't need maintenance.
5.Power start using zero voltage sweep start, no impact, in the state of no-load, heavy load, cold steel and others can be reliable start, stable and reliable, no breakdown for long time and facilitate to maintenance.
5.Power start using zero voltage sweep start, no impact, in the state of no-load, heavy load, cold steel and others can be reliable start, stable and reliable, no breakdown for long time and facilitate to maintenance.
Detailed Images
Product Items:
1 | one set | 800KW(One set), 1000HZ output power supply cabinet |
2 | Two | Induction melting Furnace body with hydraulic tilting system |
3 | One set | Capacitor Assembly bank(Water cooling) |
4 | one set | Water cooled cables |
5 | one set | Technical documents, drawings and operation manuals |
6 | one set | Necessary spare parts for power supply cabinet |
Packing&Shipping
The whole equipment finished full and completely covered by container to delivery. The equipment will fixed by our factory in container to prevent damaged by crash in the delivery process.
Small capacity furnace packaged by Plywood Case or as customers' request.
Small capacity furnace packaged by Plywood Case or as customers' request.
After Sales Service
Installation and commissioning:
We send engineers to guide equipment installation, and responsible for Commissioning, When training and installation
need pay wage to engineers.The user should first according to our foundation for the building, in accordance with the drawings and
use the instructions to install the furnace and prepare the power supply in place, water, circuit materials prepared completely.
need pay wage to engineers.The user should first according to our foundation for the building, in accordance with the drawings and
use the instructions to install the furnace and prepare the power supply in place, water, circuit materials prepared completely.

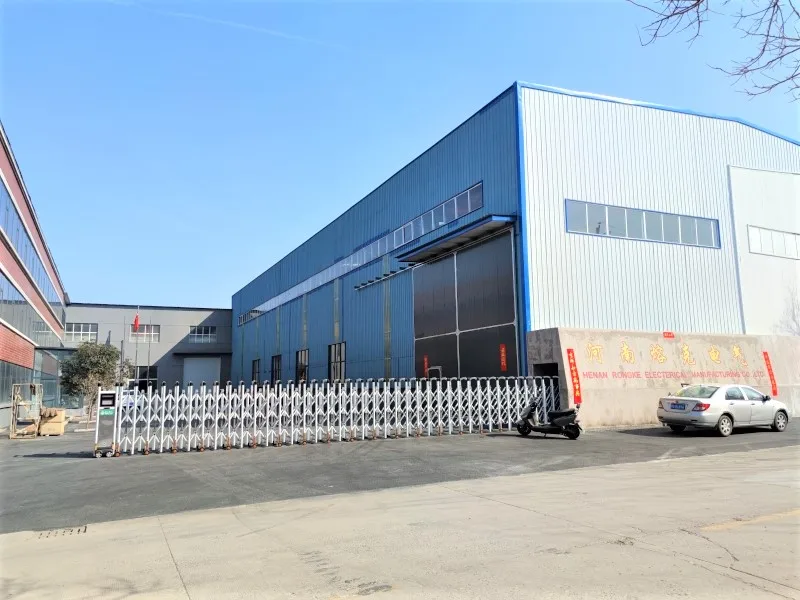

Company Introduction
Our factory products Intermediate frequency electric furnace(heating equipment and smelting equipment). Capacity from 0.15 ton to 50 ton.
The company established in 1992 year. Twin furnace body working simultaneously 20 minutes once molten with our highest efficiency and have the patent of Mixed Hertz induction stirring melting furnace for alloy casting.
Series inverter steel melting 550KWH per ton. New design billet induction heating equipment can be less than 300KWH per ton.
Graphene new materials manufacturing furnace with technology can be supplied.
After thirty years development, upgraded to Henan Rongke Electrical Manufacturing CO., LTD with new factory more than 7000 square meters.
FAQ
1. How many sets induction furnace your factory have produced?
After thirty years passed, produced more than 7000 sets induction furnace sets installations in the worldwide. Tremendous experiences was accumulated.
2. Do you have engineer overseas service?
Engineer overseas service available.
3. Where are your factory located?
Our factory located in Luoyang city, Henan Province.
2. Do you have engineer overseas service?
Engineer overseas service available.
3. Where are your factory located?
Our factory located in Luoyang city, Henan Province.
