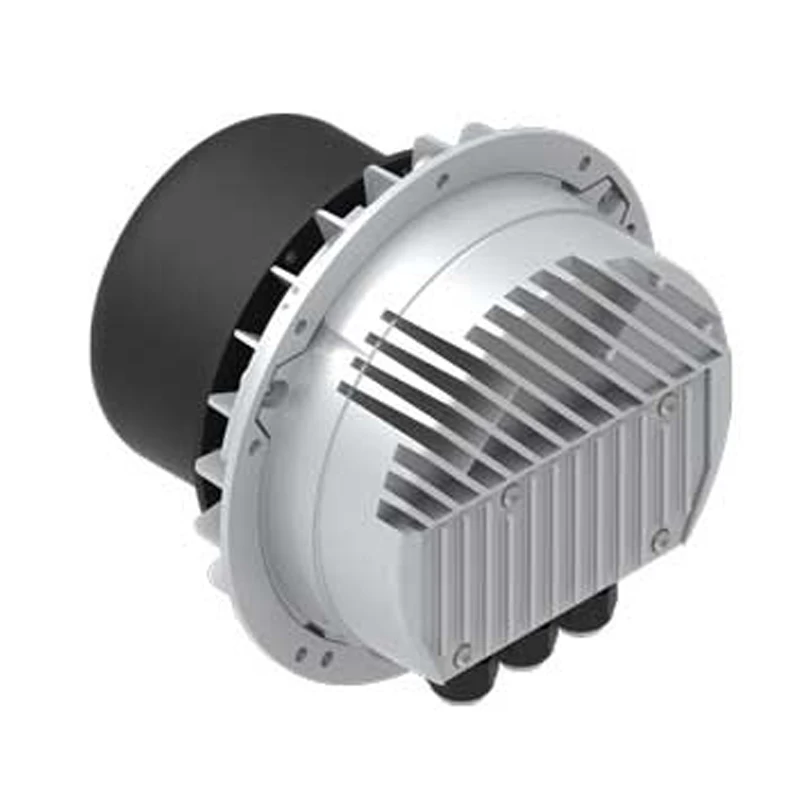

Radipac 250 EC Centrifugal fans , backward curved R3G250PR04H1 R3G250PR17I1 R3G250PR02J1 K3G250PR04H2 K3G250PR17I2 K3G250PR02J2
Radipac 250 EC Centrifugal fans , backward curved R3G250PR04H1 R3G250PR17I1 R3G250PR02J1 K3G250PR04H2 K3G250PR17I2 K3G250PR02J2
Radipac 250 EC Centrifugal fans , backward curved R3G250PR04H1 R3G250PR17I1 R3G250PR02J1 K3G250PR04H2 K3G250PR17I2 K3G250PR02J2
Radipac 250 EC Centrifugal fans , backward curved R3G250PR04H1 R3G250PR17I1 R3G250PR02J1 K3G250PR04H2 K3G250PR17I2 K3G250PR02J2
Radipac 250 EC Centrifugal fans , backward curved R3G250PR04H1 R3G250PR17I1 R3G250PR02J1 K3G250PR04H2 K3G250PR17I2 K3G250PR02J2
Radipac 250 EC Centrifugal fans , backward curved R3G250PR04H1 R3G250PR17I1 R3G250PR02J1 K3G250PR04H2 K3G250PR17I2 K3G250PR02J2
Radipac 250 EC Centrifugal fans , backward curved R3G250PR04H1 R3G250PR17I1 R3G250PR02J1 K3G250PR04H2 K3G250PR17I2 K3G250PR02J2

Radipac 250 EC Centrifugal fans , backward curved R3G250PR04H1 R3G250PR17I1 R3G250PR02J1 K3G250PR04H2 K3G250PR17I2 K3G250PR02J2

Share on (1600580356533):


Price:$50.00

Quantity:


Product Overview

Description

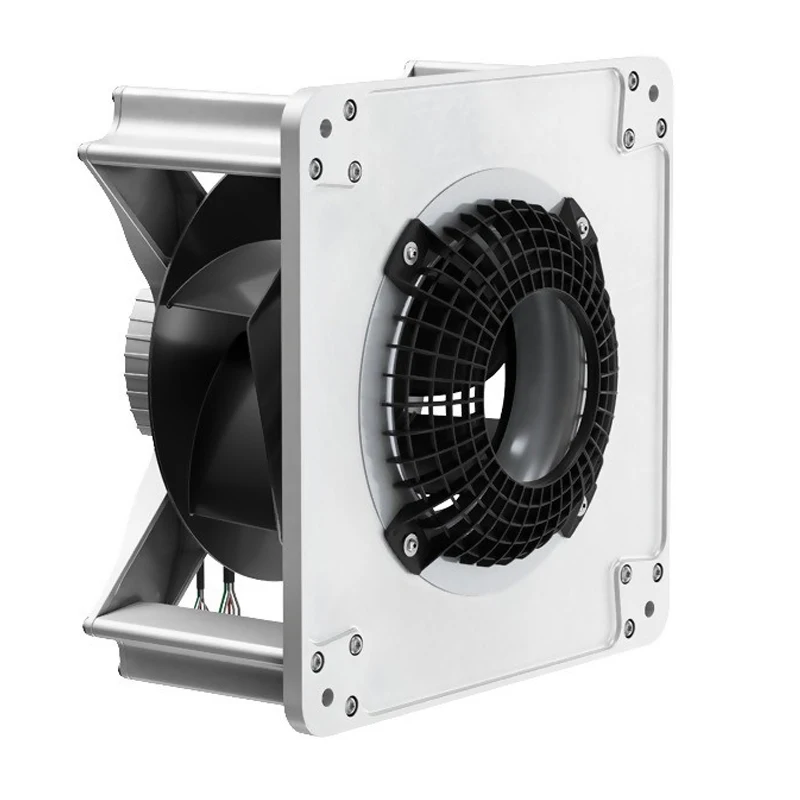

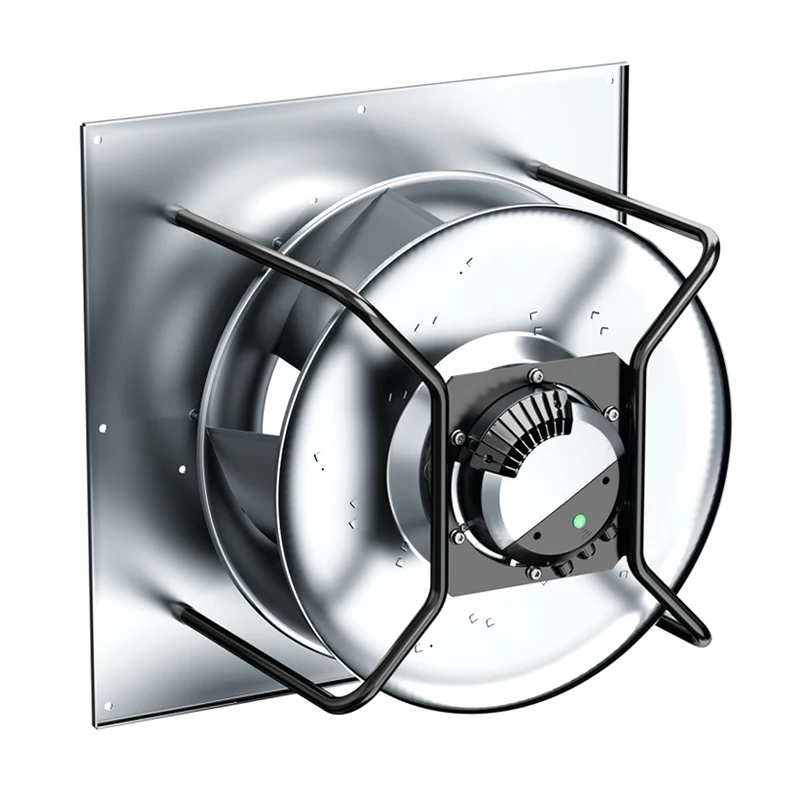

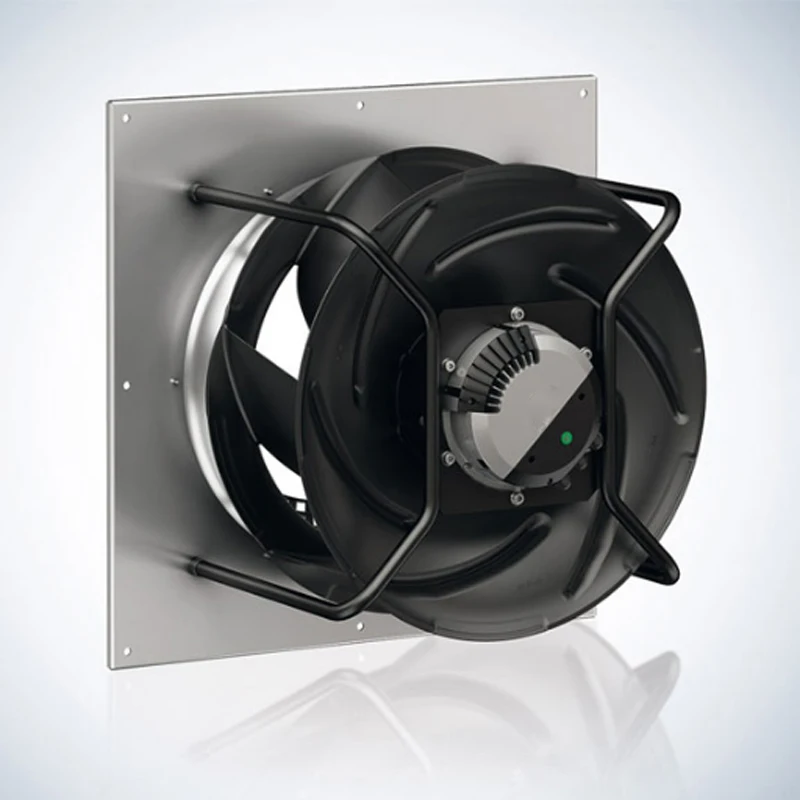

R3G / K3G 250mm backward ec plug fans




Material / Surface
Support bracket: Steel, painted black ;
Support plate: Sheet steel, galvanized ;
Inlet ring: Sheet steel, galvanized ;
Impeller: PP plastic ;
Electronics housing: Die-cast aluminum
Mechanical characteristics
Number of blades:6
Direction of rotation: Clockwise viewed toward rotor

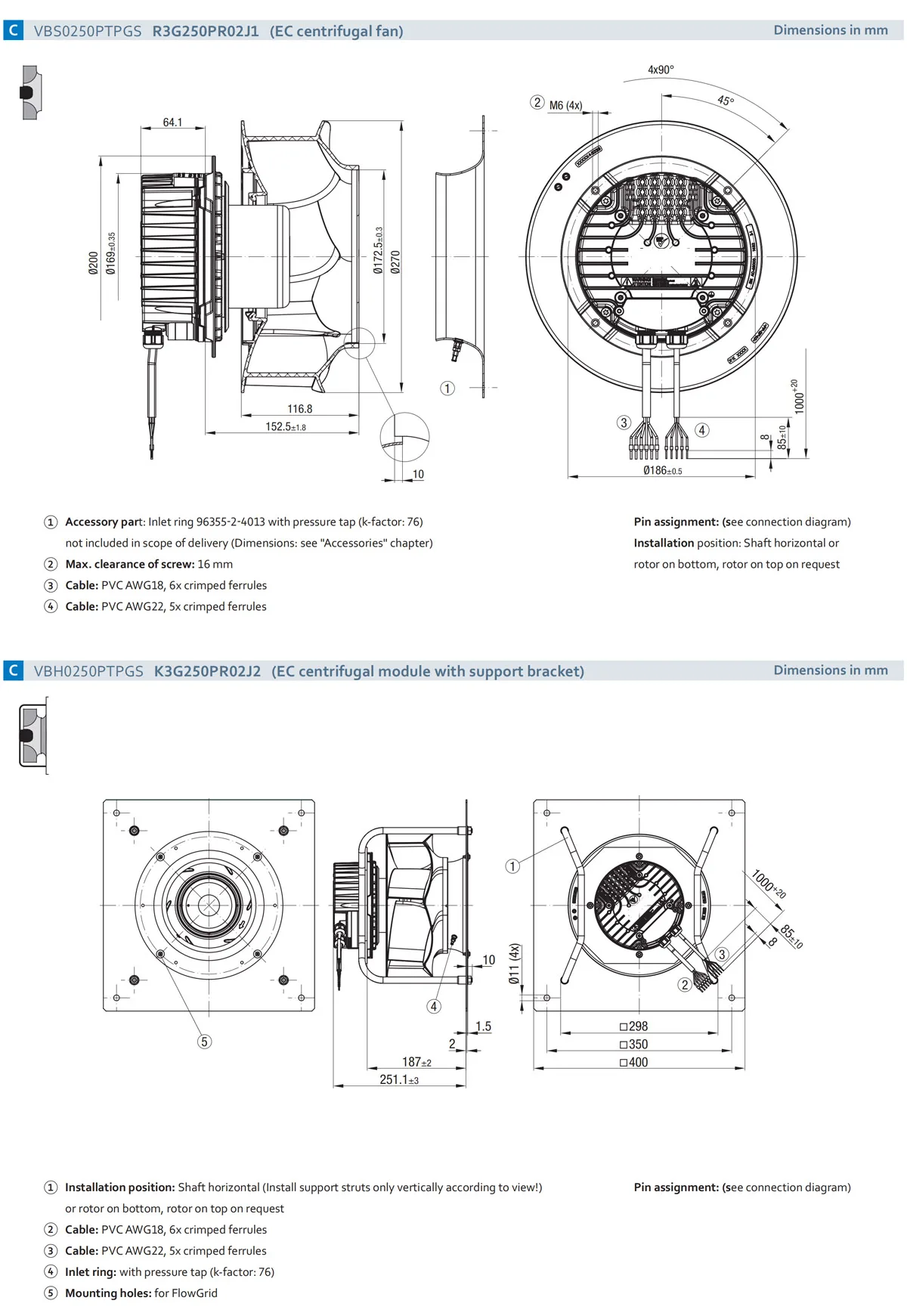

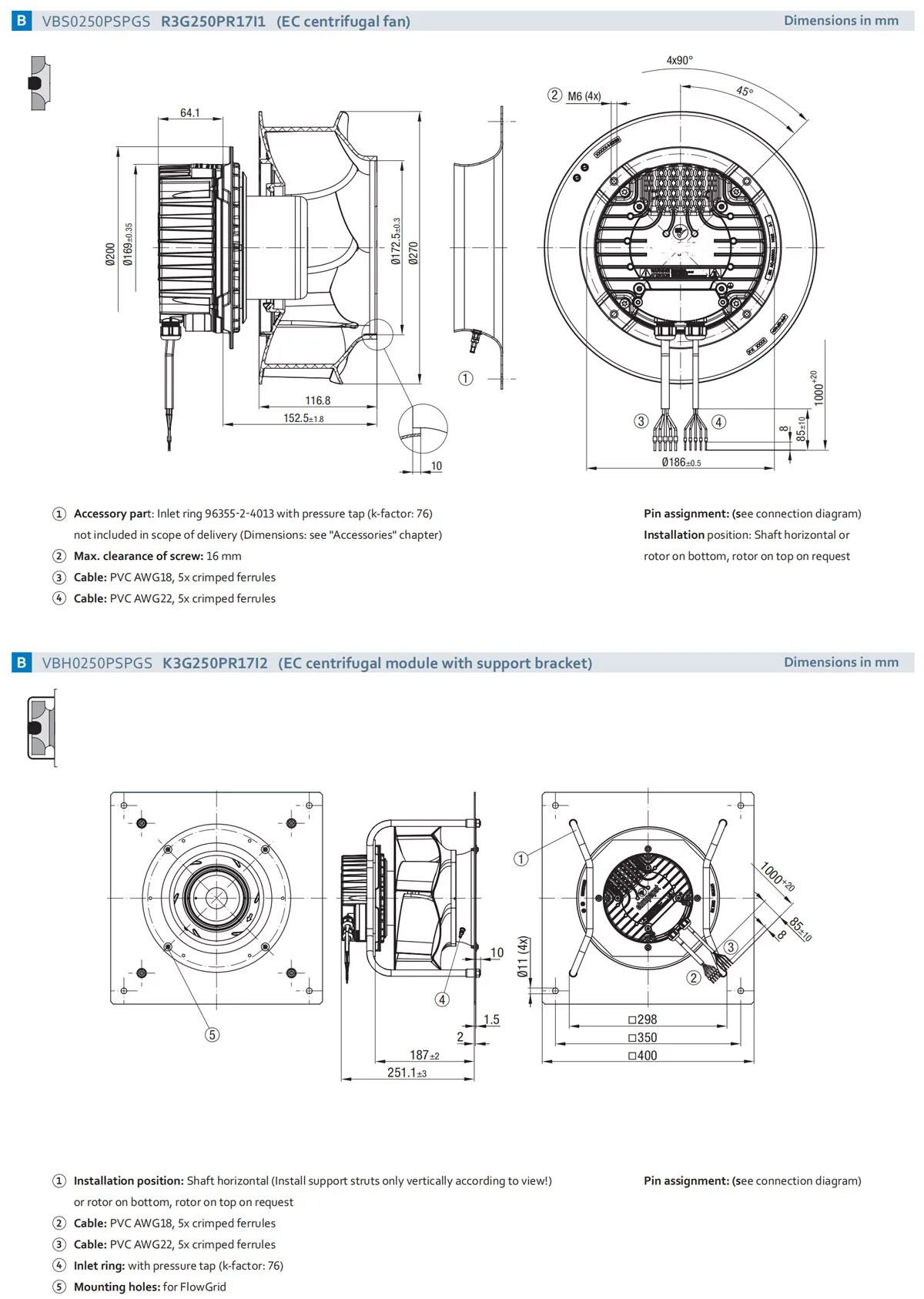

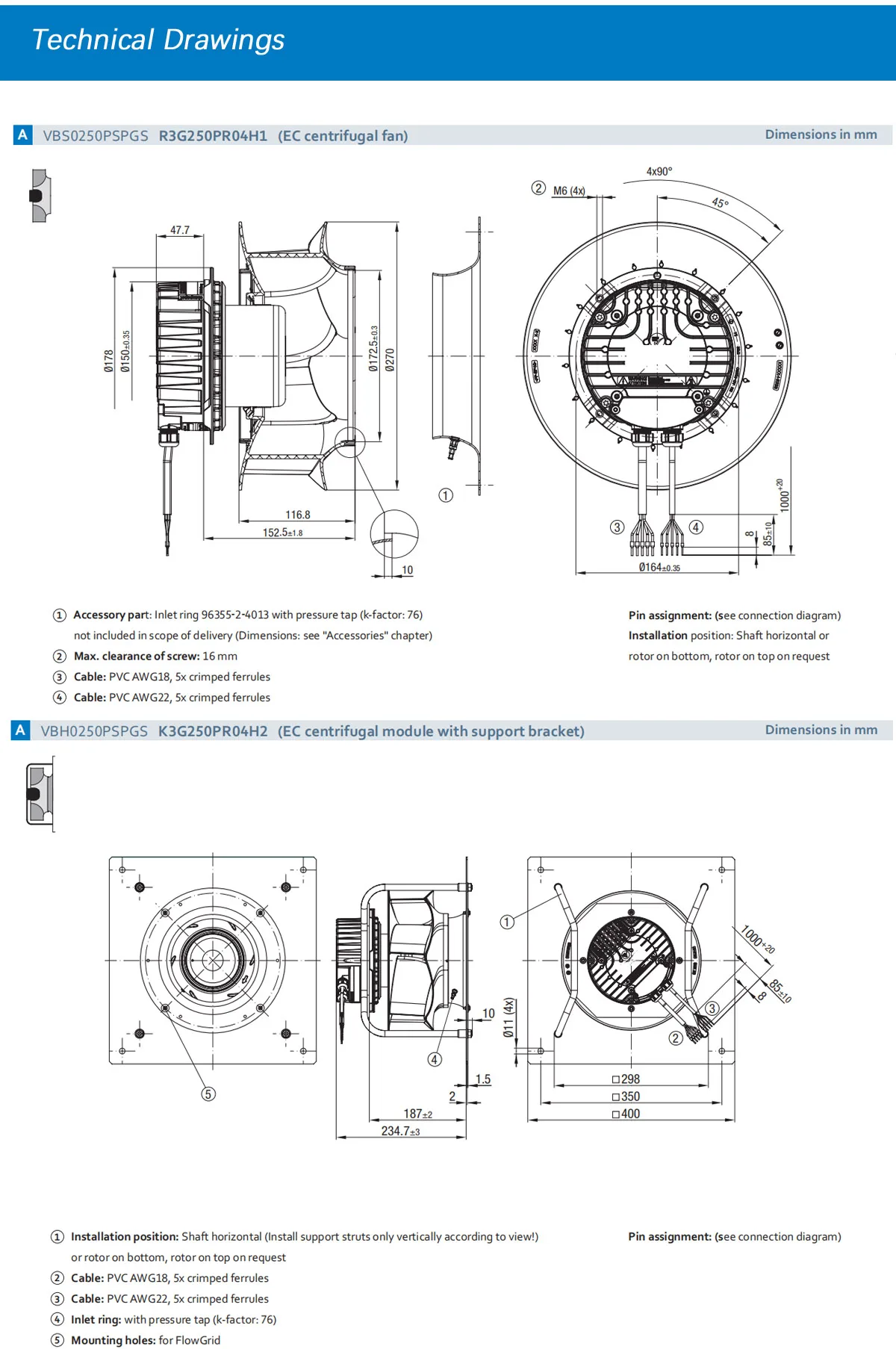

Installation position: See product drawing
Condensation drainage holes: Rotor side
Mode:Continuous operation (S1)
Mounting: Maintenance-free ball bearings
High Efficiency ：
IP55 waterproof and dust-proof protection, F class insulation,ultra-efficient motor with 85% efficiency to save breeding costs and increase profits.
