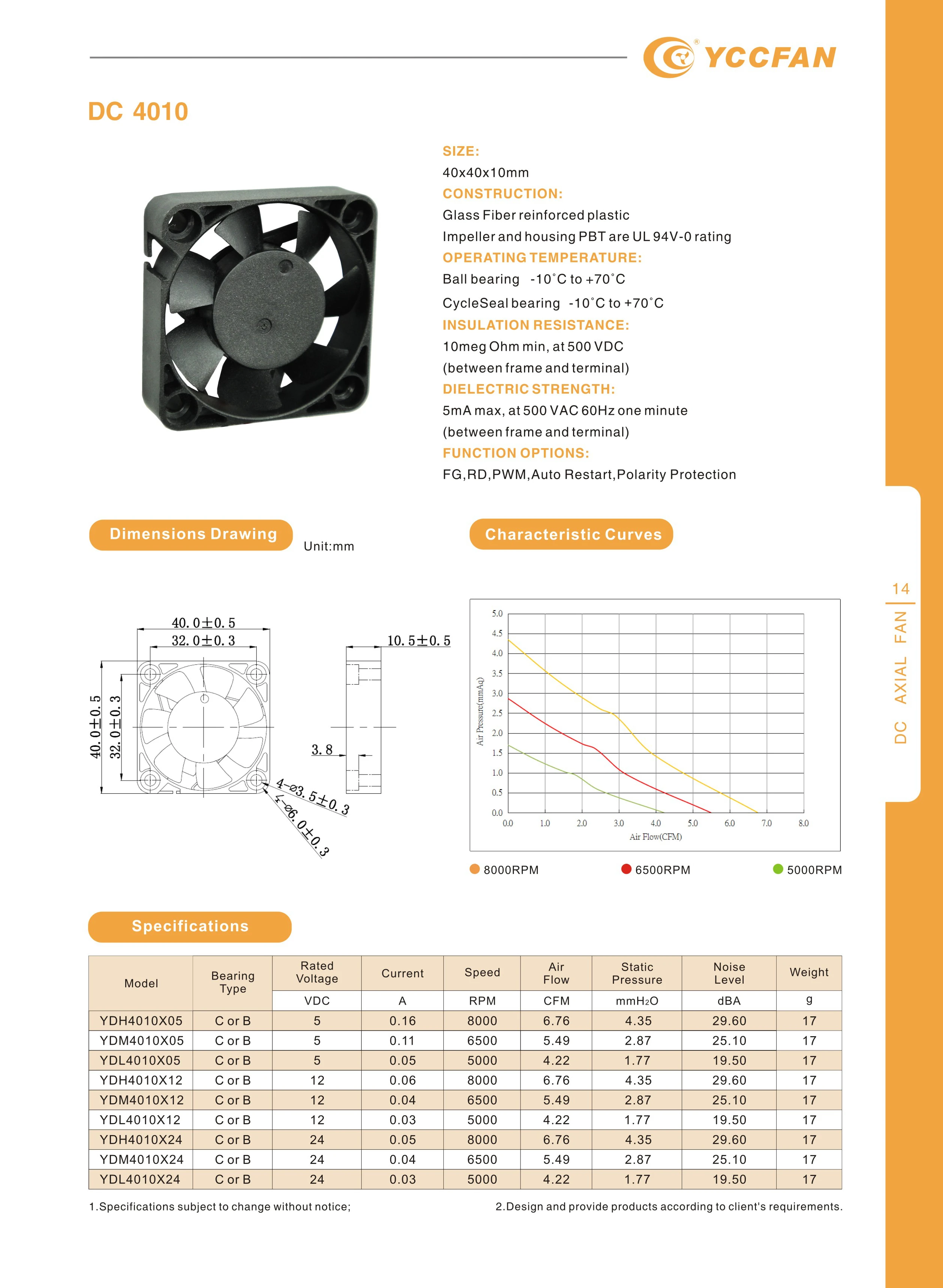

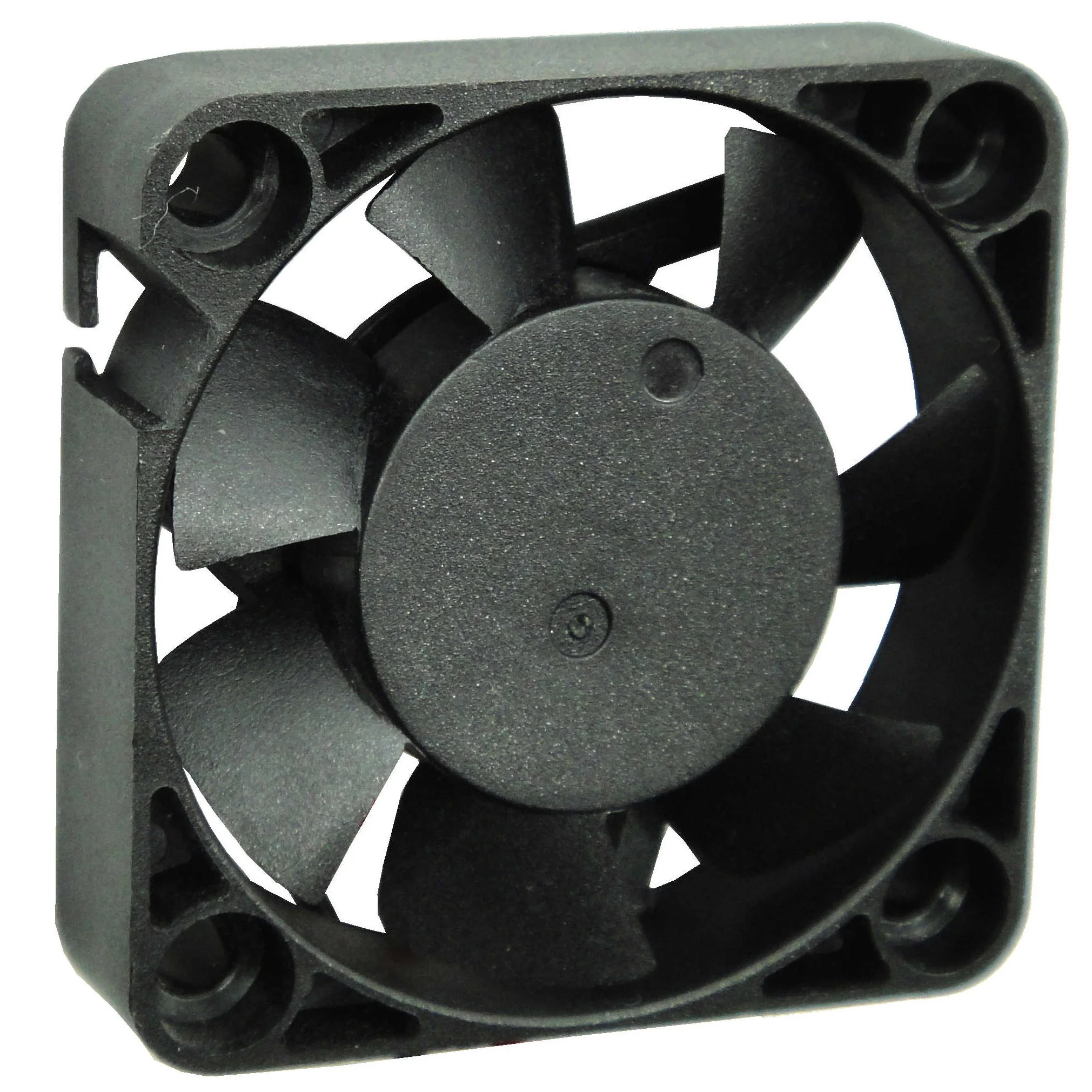

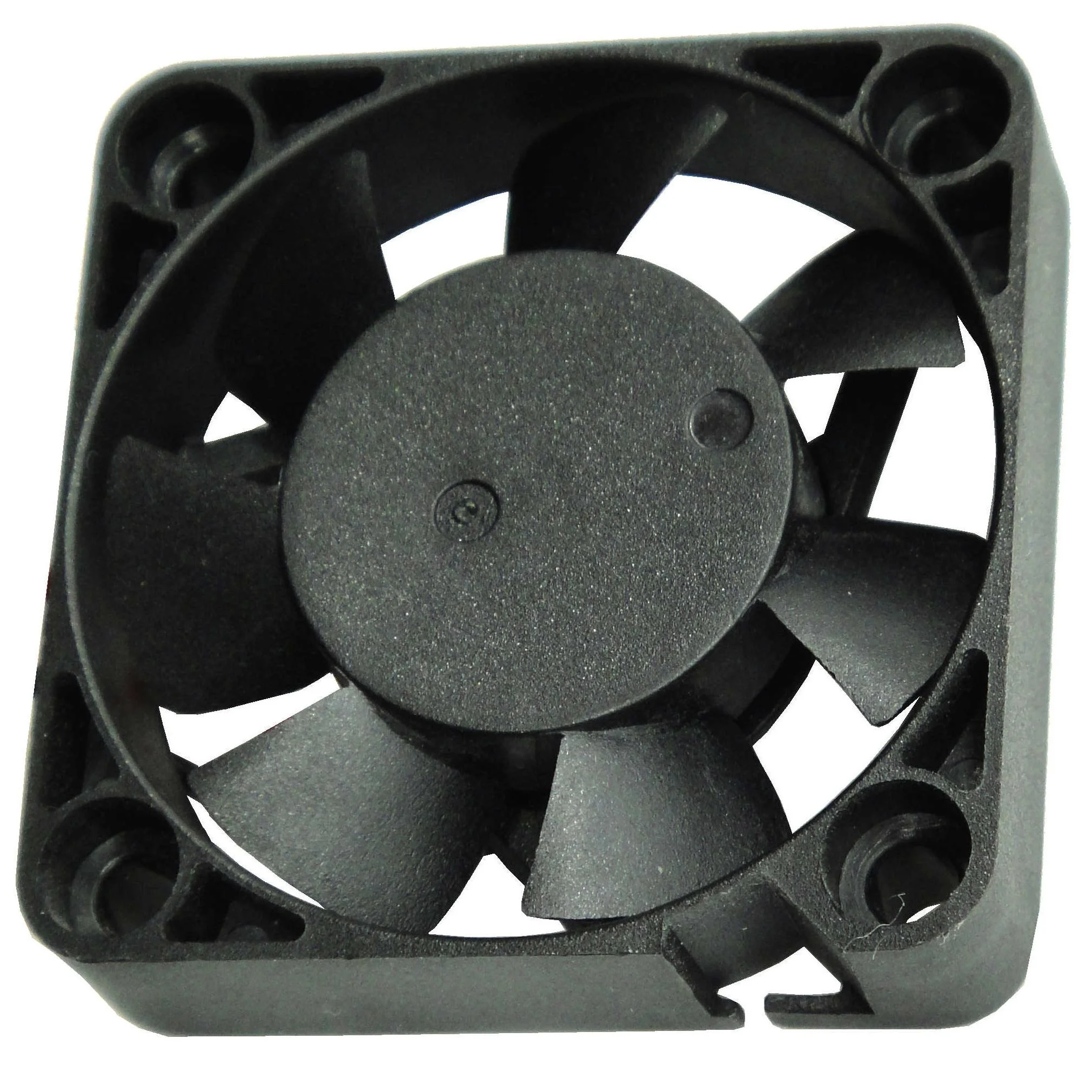

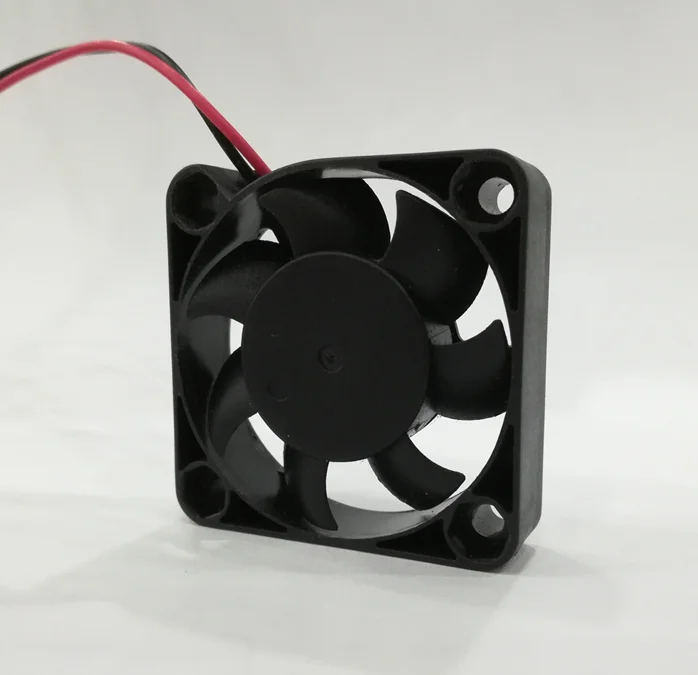

40x40x10mm Yccfan DC 4010 mini fan for air purifier

                                 Shenzhen YCCFAN Technology Co., Ltd                                           Founded in 2011, 7000 square meters plant , 300+ staff  , 50000pcs daily capacity.

AC Cooling Fan ( 60mm - 220mm )

DC Cooling Fan ( 20mm - 172mm )

1.Super Mini Model ( 20×20mm-50×50mm)

2.Normal Models ( 60×60mm-200×200mm)

3.Special Models: customize the products as the client’s requirements

EC  Cooling Fan: (60mm - 120mm)

High efficiency, Low Consumption, Energy Saving, 110v - 220v widen usage volatge

R&D equipment  & Work shop & Prodution equipment

 4CM micro small fan 40x40x10mm 4010 dc 5v 12v axial flow cooling fans

DC FAN is powered by 3.3v 5v 12v 18v 24v 48v,AC FAN powered by 110v 125v 220v 240v 380v,

YCCFAN manufacture DC/AC fan from 20mm - 254mm.

For more information,pls check below lists to find you need, feel free to e-mail me questions.

4CM micro small fan 40x40x10mm 4010 dc 5v 12v axial flow cooling fans

1 : Customized Fan

YCCFAN provide cooling solution for cusomter's special product and requirement.

Application industry :

Thanks for all customers support,we will always focus on your requirement and do better.

Panasonic , Sony , Mitsubishi , Fuji , Midea, HYUNDRI,SENSICA, PLANTOWER, KSTAR , INVT ,INFY POWER etc.

2 : Quality Assurance

a : 100 %  testing before the fan leave our factory

b. Good after services to every customer

c. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.

d.Warranty : Two-year for ball bearing fan, one-year for sleeve bearing fan

Q1 : Provide preferably product fan for you:
1    Fan Type, DC/AC
2    Case Size (Dimensions)
3    Speed
4    Air Flow
5    Noise Level if situation needs
6    Rating Voltage, 3v/3.3v/5v/9v/12v/48v/115v/220-240v/380v
7    Bearing, Sleeve/2Ball/VAPO
8    Wire, 2 lead wires/3 lead wires/4 lead wires (PWM control/FG signal output/RD Alarm)
9    Wire Length
10   Connector or not
11   Just contact me freely if any request,I will get back to you soon.

Q2: Can you tell me the normal DC Cooling Fan Model?

20*20*6mm  20*20*10mm  25*25*10mm  30*30*7mm

30*30*10mm 40*40*10mm  40*40*20mm 40*40*28mm

50*50*10mm  50*50*15mm 50*50*20mm

60*60*15mm  60*60*25mm  60*60*38mm  70*70*15mm

80*80*15mm 80*80*25mm  80*80*38mm  92*92*25mm  92*92*38mm

120*120*25mm  120*120*38mm

150*150*51mm  172*150*51mm  172*51mm

We have more model,just e-mail me to get details...
