Jacketed Stainless Steel Crystallization Reactor for C B D Distillate
- Category: >>>
- Supplier: Gongyi Jinghua Instrument Co. Ltd.
Share on (1600580371540):
Product Overview
Description

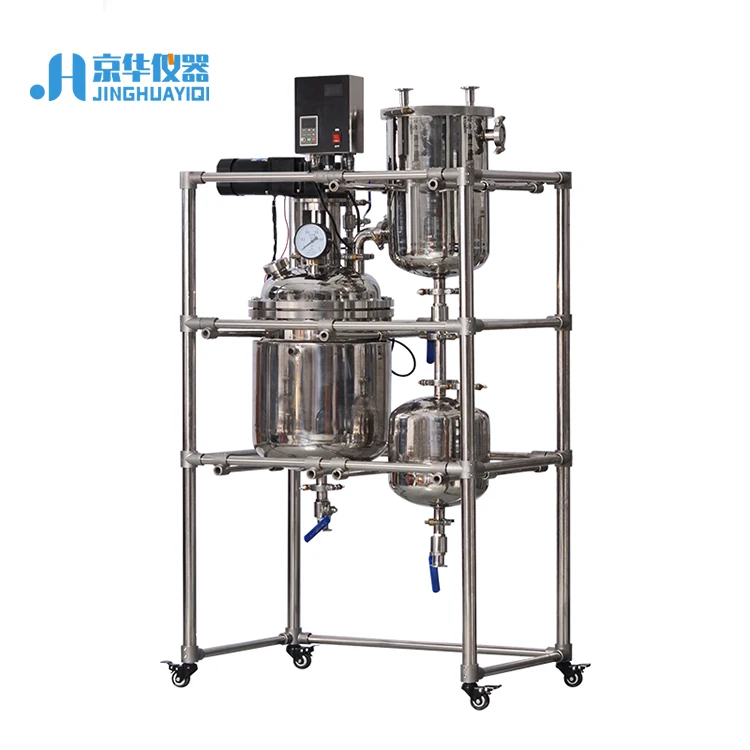

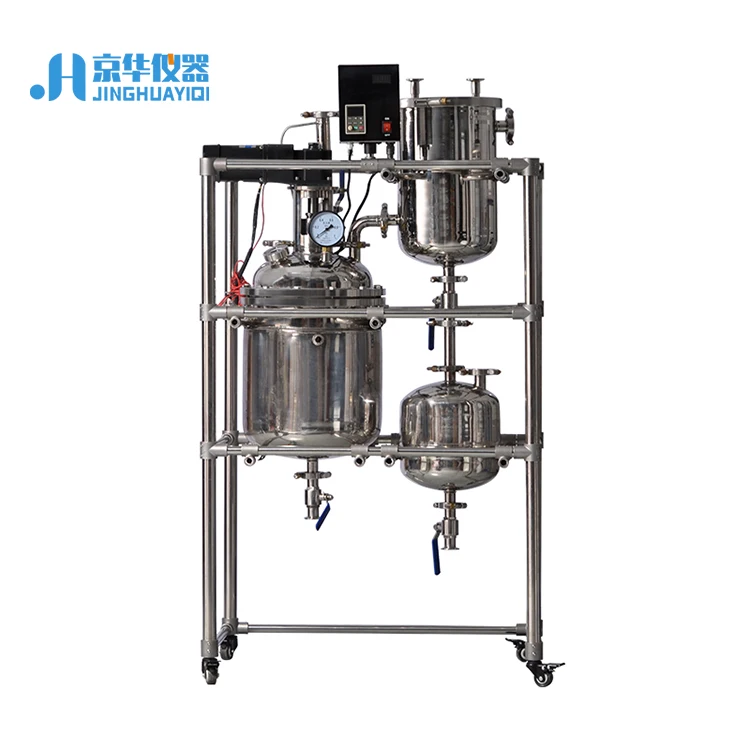

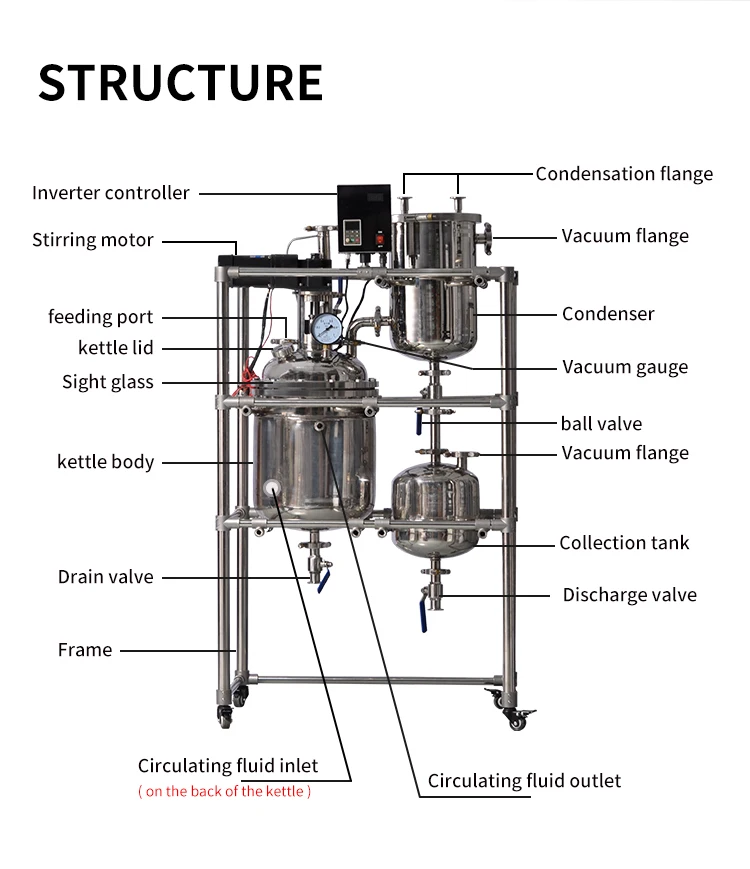

Jacketed Stainless Steel Crystallization Reactor for C B D Distillate
Product Description

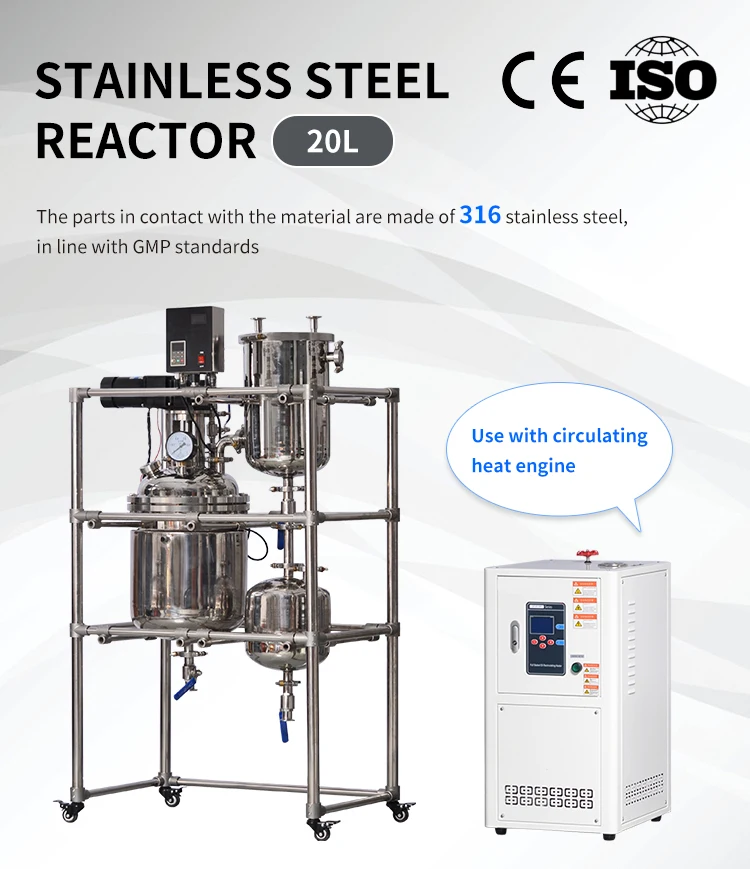

| Model | SSR-20L | SSR-50L | SSR-100L | SSR-200L | SSR-500L |
| Volume(L) | 20L | 50L | 100L | 200L | 500L |
| Material | 304/316 stainless steel | ||||
| Steel thickness(mm) | 2/3/4 | ||||
| Inner diameter | 300 | 400 | 500 | 600 | 800 |
| Jacket diameter | 400 | 500 | 600 | 700 | 900 |
| Jacket volume(L) | 10L | 20L | 35L | 58L | 120L |

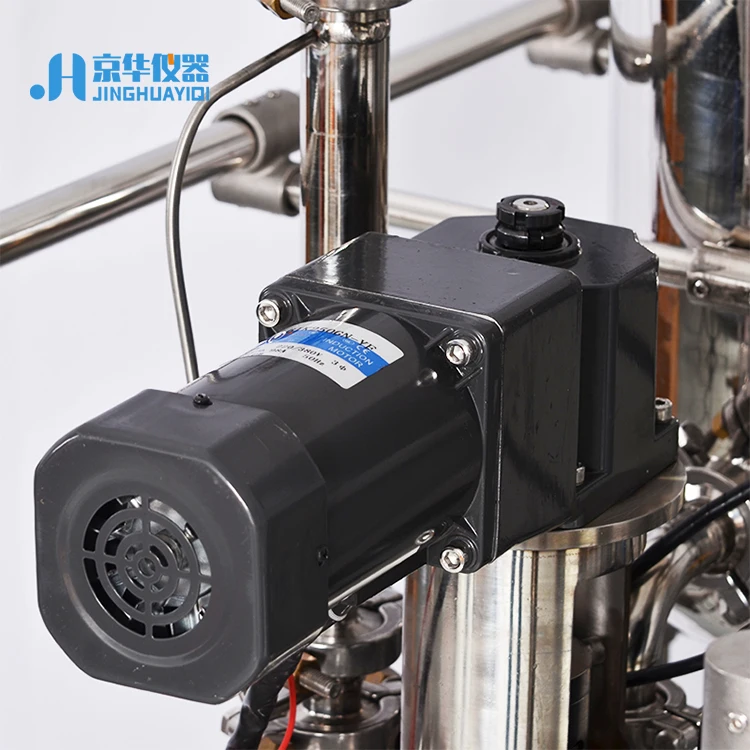

| Motor power(kW) | 0.25/ 0.55 | 0.55/ 0.75 | 0.75 | 0.75/ 1.5 | 2.2 |
| Speed adjustment range(rpm) | 30~140 | ||||
| Design temperature | -120~180 | ||||
| Design pressure | Atmospheric pressure | ||||
| Net size(length * width * heightmm) | 450*450*1150 | 550*550*1200 | 650*650*1300 | 800*800*1970 | 1000*1000*2200 |
| Net weight(kg) | 90 | 120 | 130 | 230 | 430 |
| Packaging size(length * width * heightmm) | 500*650*1250 | 650*800*1300 | 700*850*1400 | 950*1050*2050 | 1100*1250*2350 |
| Packaging weight(kg) | 130 | 150 | 170 | 250 | 580 |

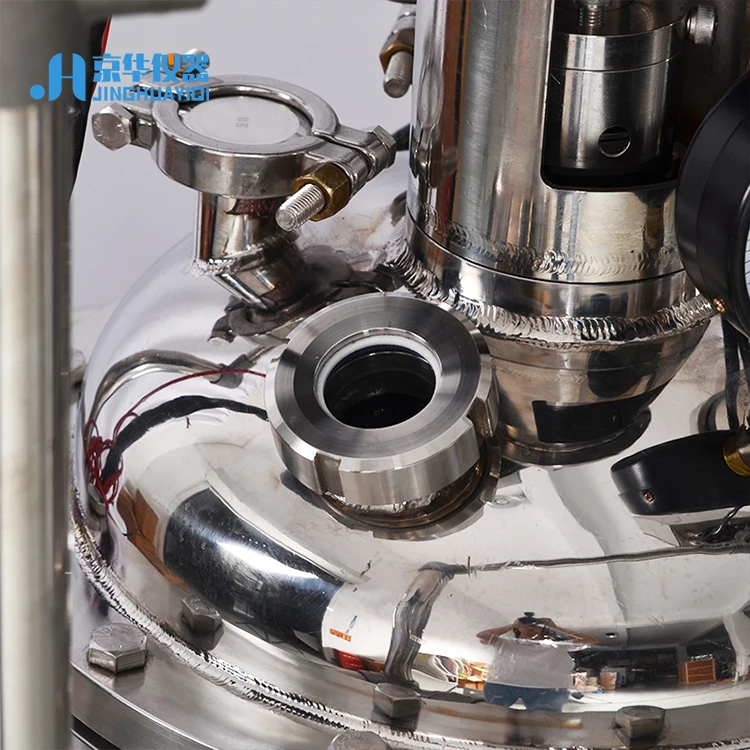

| Kettle cover | Vacuum gauge/ pressure gauge, thermometer/ probe Liquid inlet, solid inlet Vacuum port, spare port, mirror *2 (with lamp and scraper) The interface size is φ 50.5 quick loading chuck (customizable) | ||||
