2022 China YULIN pivot irrigation system center pivot sprinkler system
- Category: >>>
- Supplier: Dalian Huaxing Yulin Technology Co. Ltd.
Share on (1600580396042):
Product Overview
Description
Product Overview

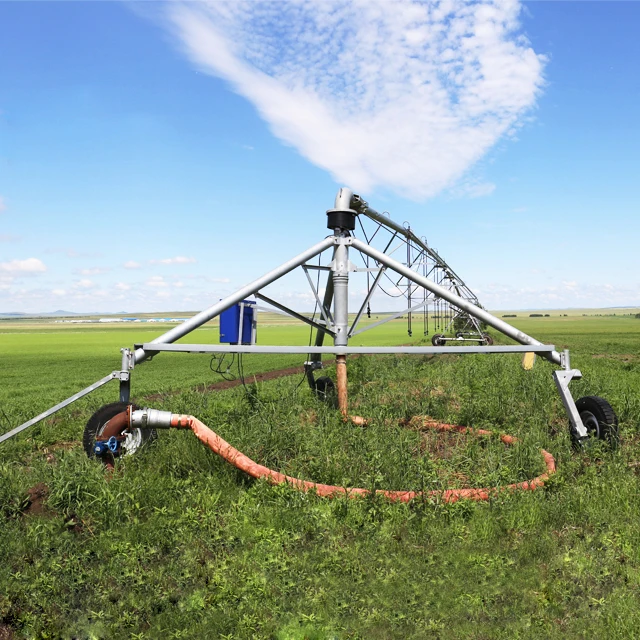

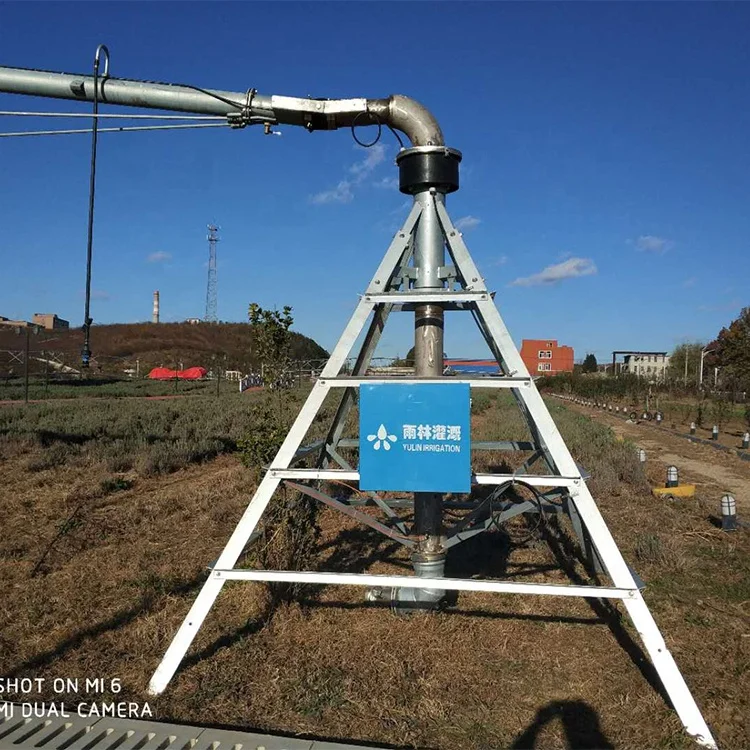

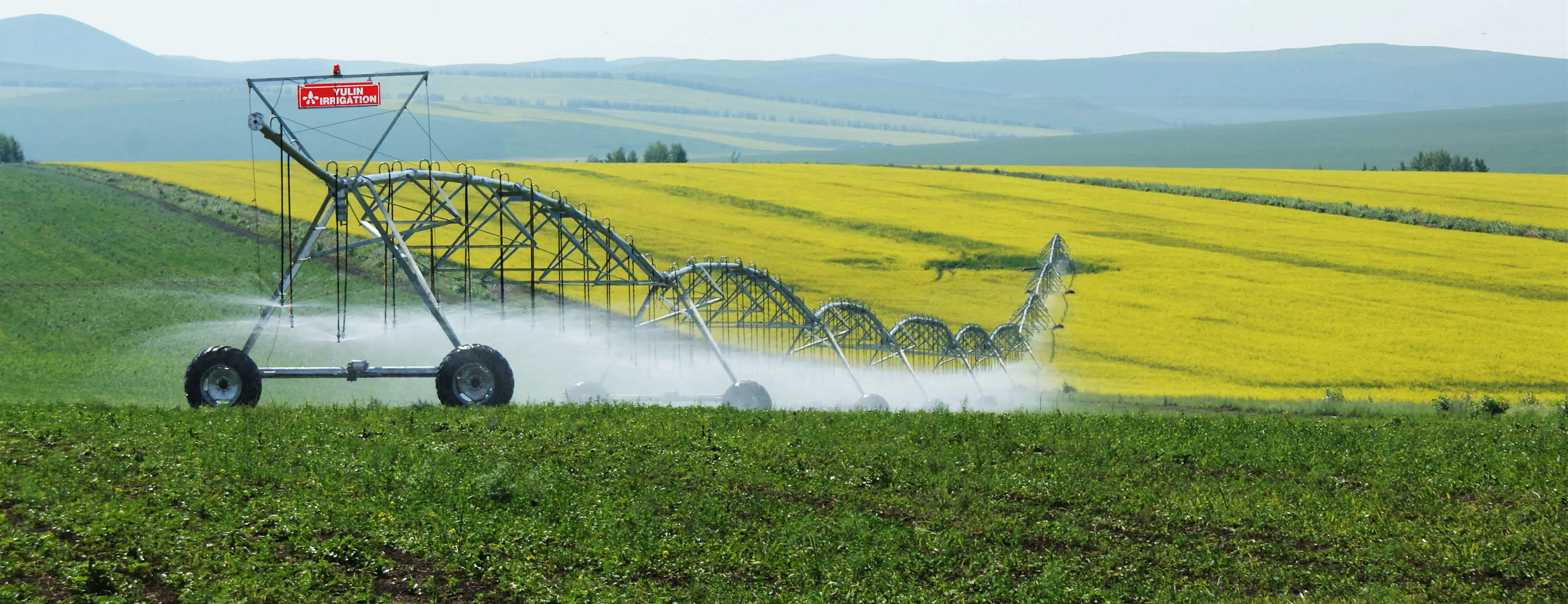

Center Pivot Irrigation System
Huaxing Yulin provides incredible value for your operation with a field-proven design and high-strength materials. It delivers a consistent, reliable and long-lasting irrigation solution—backed by the complete Warranty.
Why Choose Us
Hot-dipped galvanized steel legs and heavy-duty cross-members form a rugged foundation.
Mini, standard, medium and high clearance options fit virtually every type of field.
Smart design that's externally mounted to eliminate water flow restrictions,a distinct advantage and features.Tested to ensure quality, multiple span length options with no restrictions on machine length.
Mini, standard, medium and high clearance options fit virtually every type of field.
Smart design that's externally mounted to eliminate water flow restrictions,a distinct advantage and features.Tested to ensure quality, multiple span length options with no restrictions on machine length.
Tight seal to avoid leakage and rusting, which is key for eliminating waste and extending the life of your pivot.
Positive position encoder
Heavy- duty Span
Standard/PLC Control Pannel
PRODUCT SPECIFICATIONS
No | Item | Data |

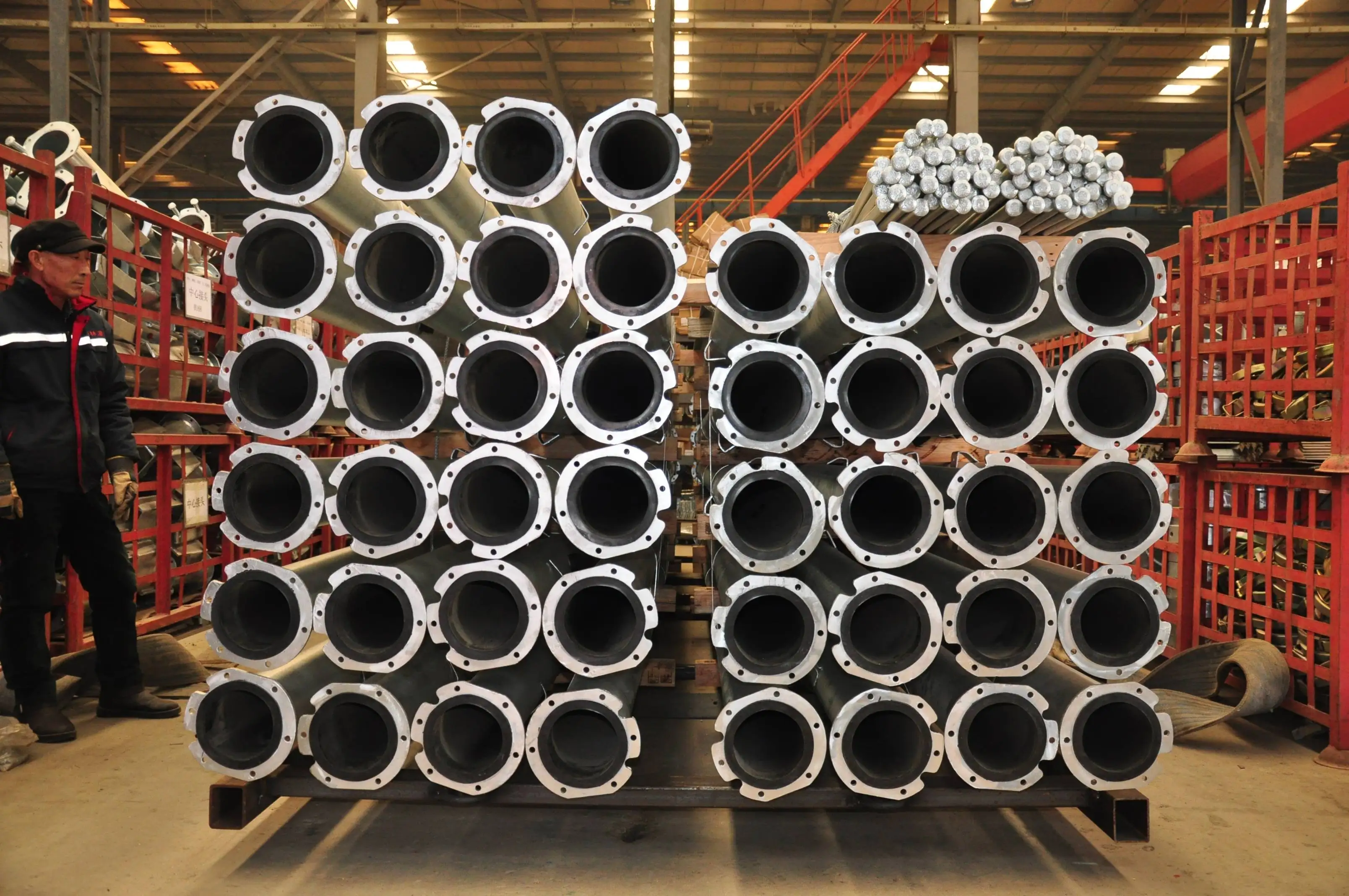

1 | Standard Main Pipe Diameter | 6 5/8" (168mm) x 22ft (6.7mtrs) |
2 | Standard Span | 54.5 mtrs (8 pcs pipes) |
3 | Overhang | 22ft (6.7mtrs) |
4 | Flange Thickness | 10mm ( Double welded joint with pipes) |
5 | Regulator | 10/15/20 psi |
6 | Sprinkler | American original or made in China |
7 | Spray Spacing | 2.2-4mtrs (2-3 pcs sprayers per pipe) |
8 | Standard Truss Height to Ground | 3.2m |
9 | Motor Model | 0.75HP/ 1.5HP |
10 | Gearbox Model | 50:1/ 52:1 |
11 | Working power | 380-480V/50-60HZ |
12 | Main Cable | 4*4mm²+6*1.5mm²(resisting ultra violet and aging) |
13 | Power Supply | Power grid / Diesel generator |
14 | Intake Pressure | 0.2-0.35 mpa |
15 | End of Pivot | LED working status instruction light |
PRODUCT CONFIGURATION

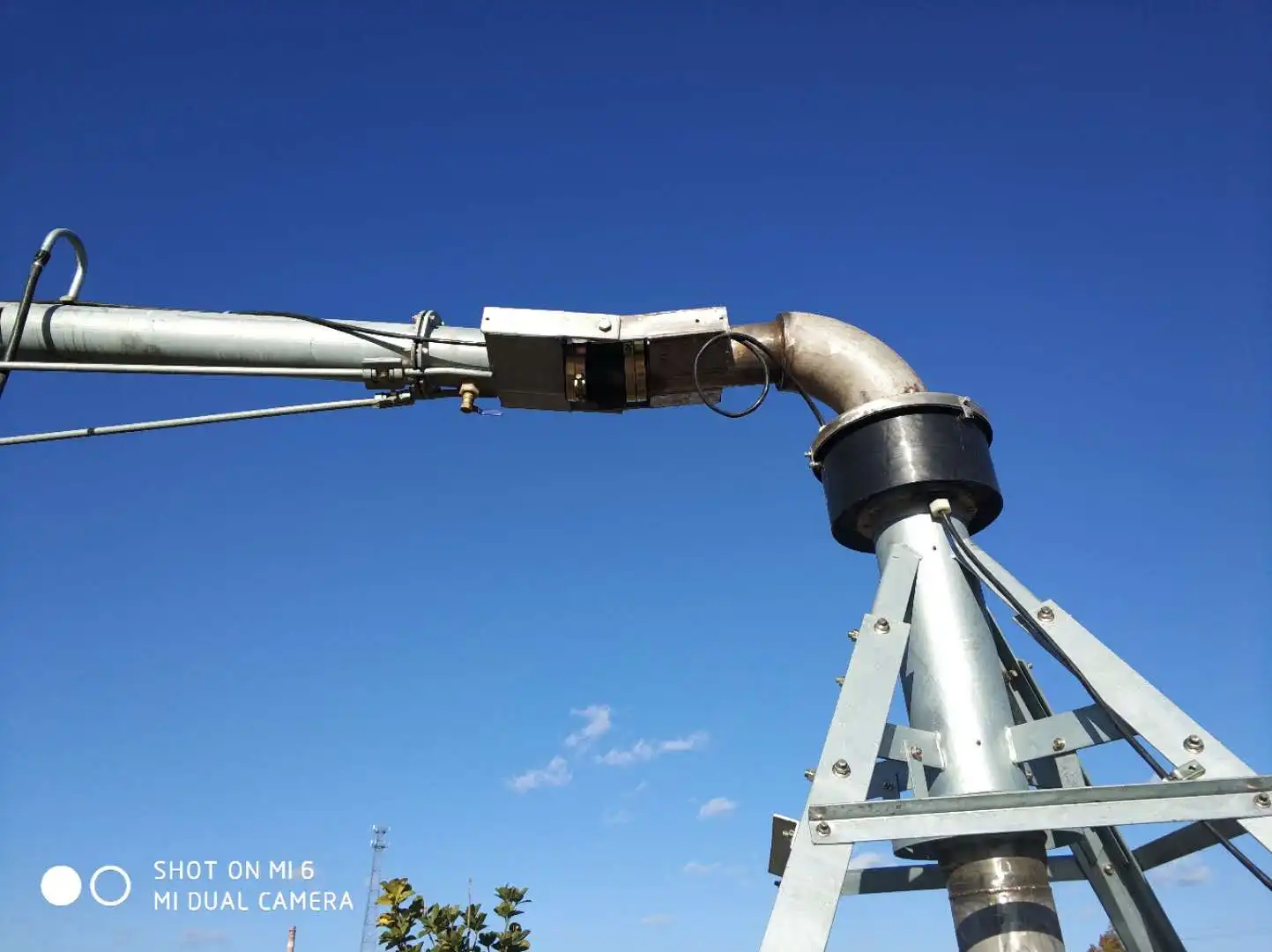

External Collector Ring

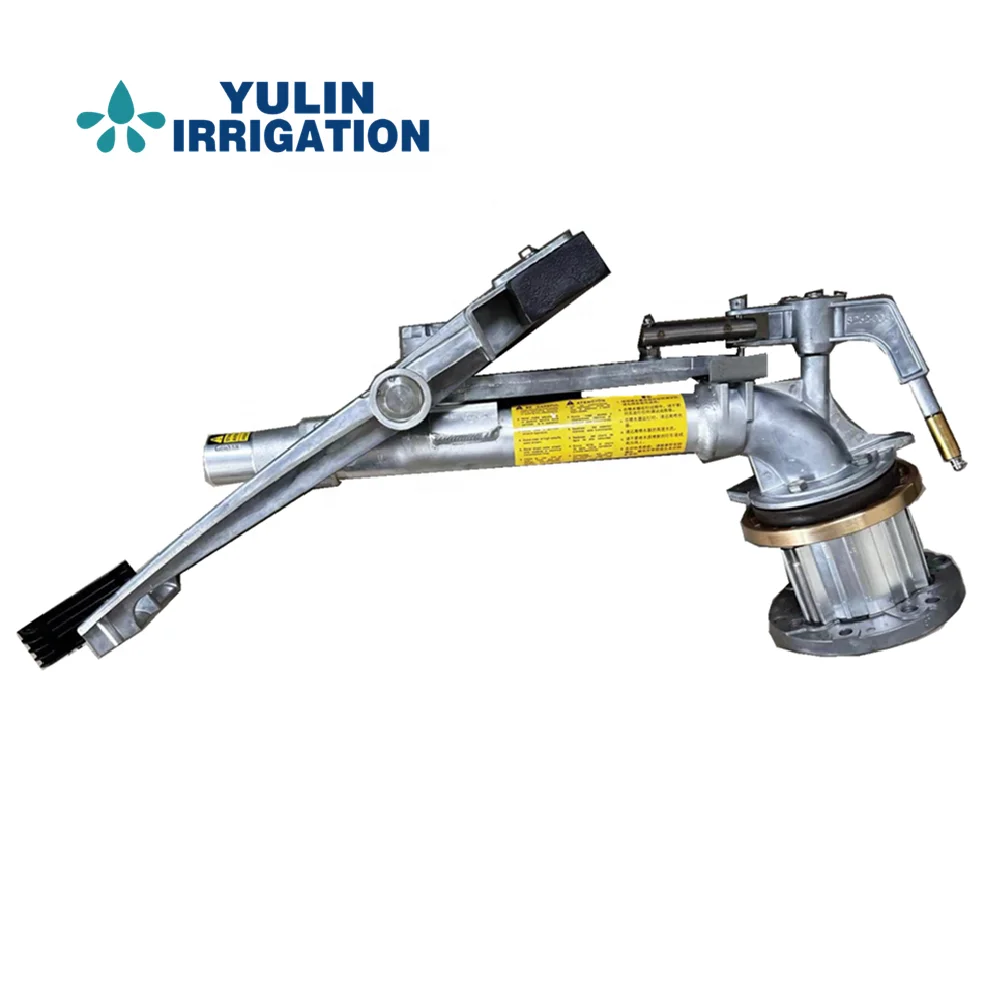

Eng Gun System

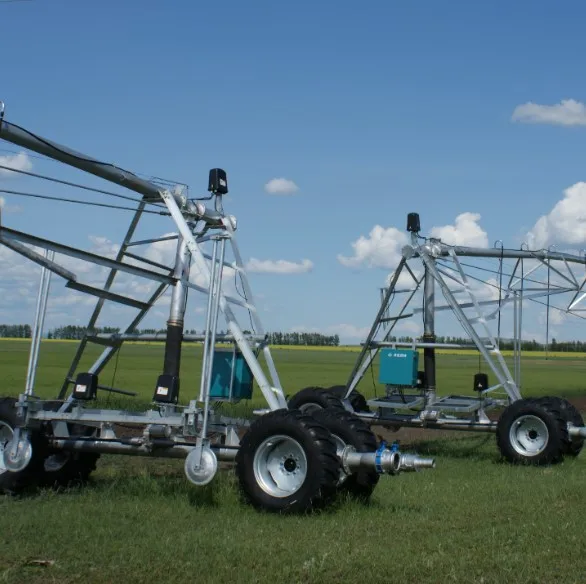

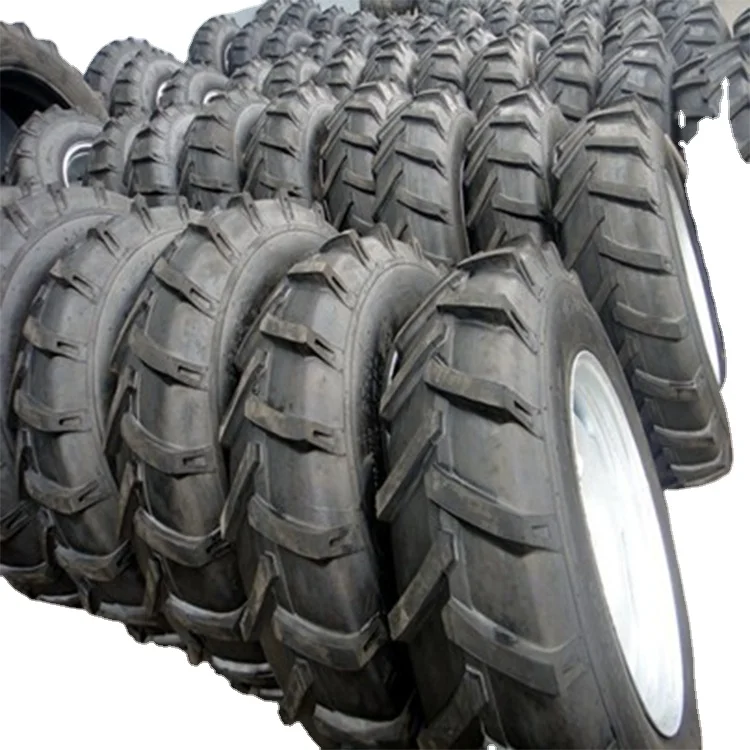

Irrigation Tires

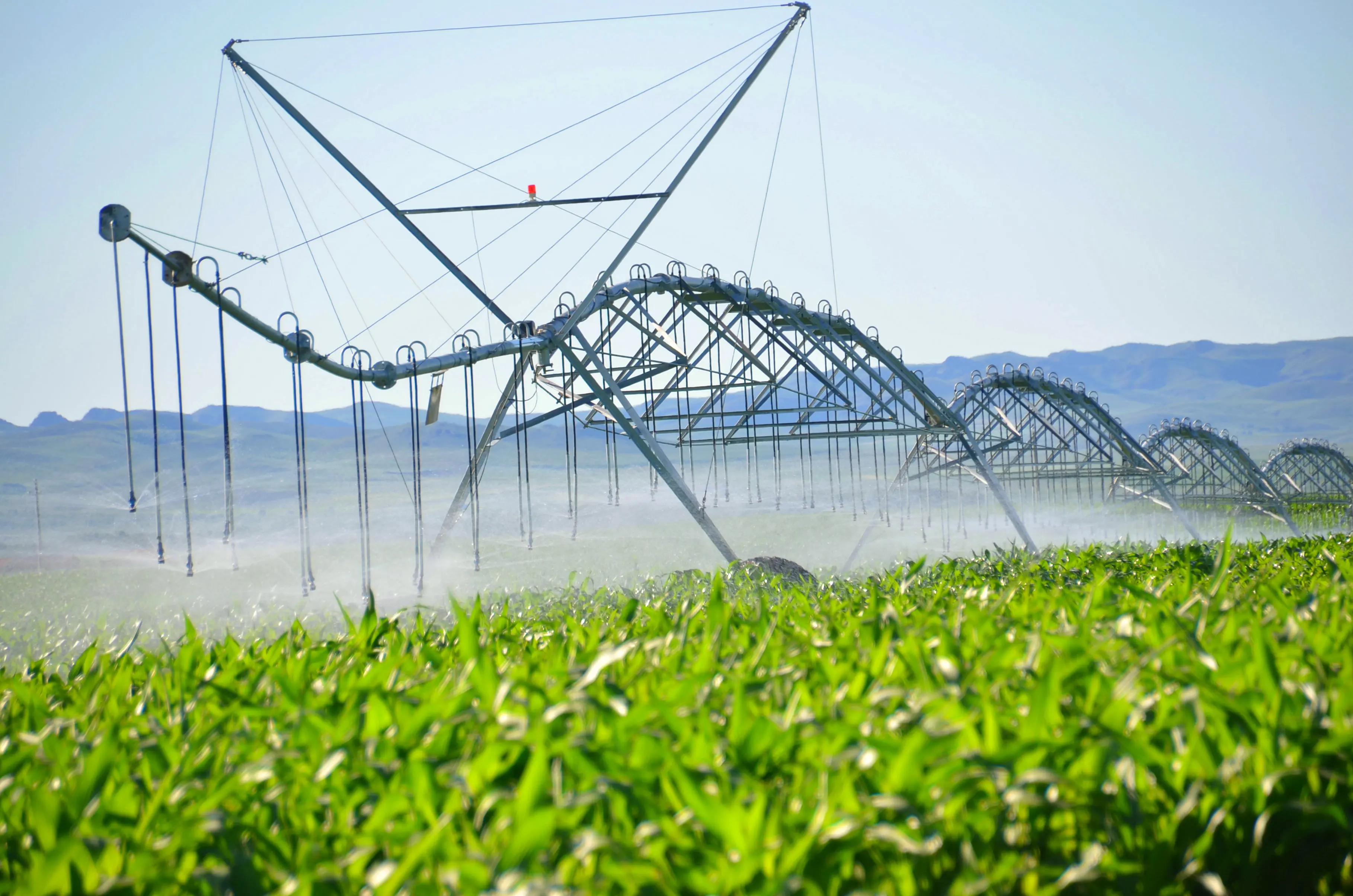

Successful Project
Project in New Zealand
Project in Russia
Project in Australia
ON-SITE LOADING
Company Profile
Short Brief for Us
As an international manufacturer of irrigation equipment, China Yulin Irrigation has been committed to the development of water-saving agriculture technologies for 23 years.
We have world renowned advanced technology in the production of center pivots, and we implement strict quality control standards.
China Yulin Irrigation has state of the art production equipment for example the German laser cutting machine, Automatic welding robotic arm， CNC machining center ..etc to ensure advanced mechanical processing.
All parts of products adopt automatic fixture welding assembly technology, Integral disposable hot-dip galvanizing process after welding which are well-known all over the world in terms of quality and technology.

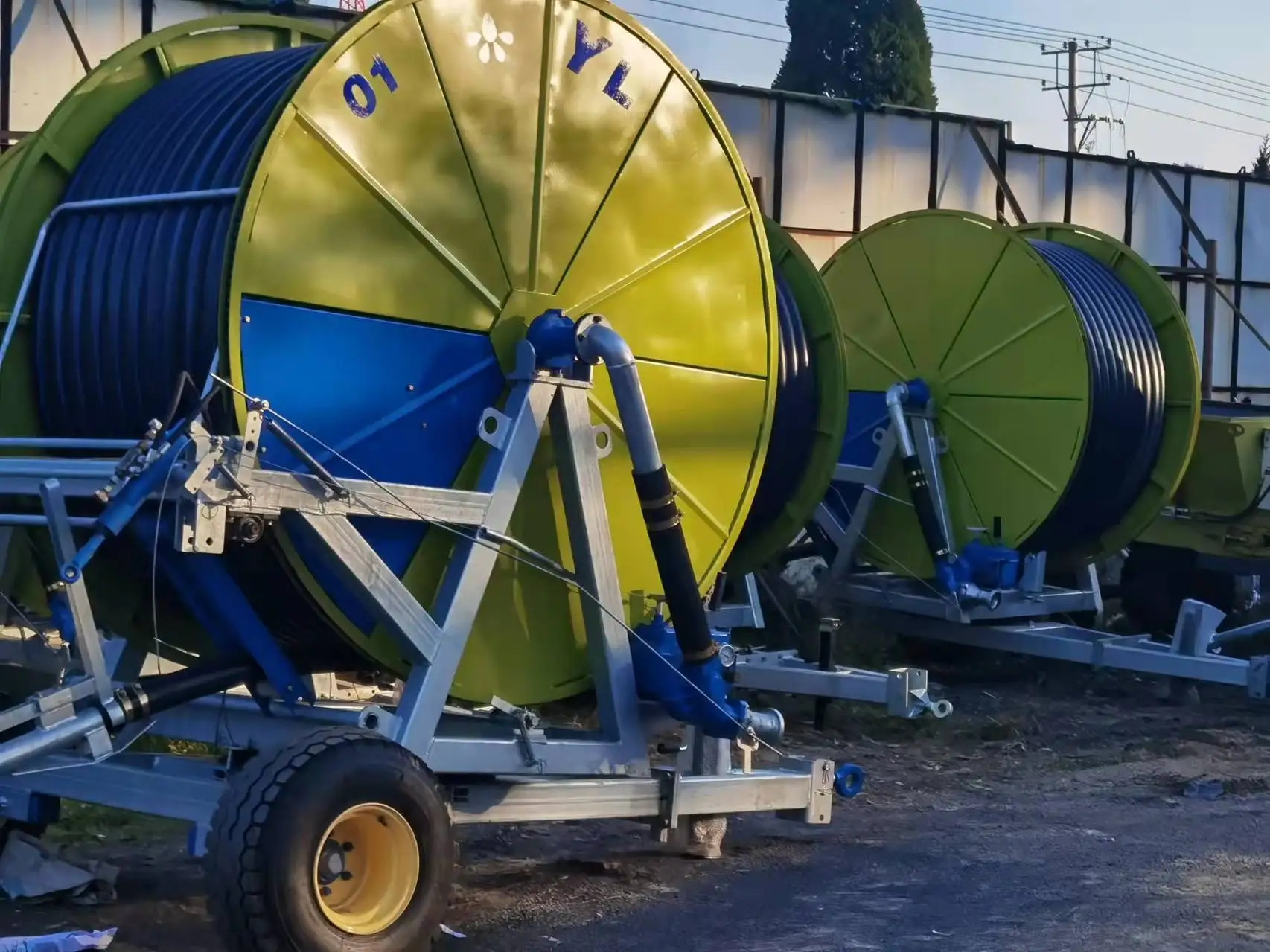

At present our popular irrigation innovations include Center Pivot Irrigation Machines, Linear Move Irrigation Machines, Hose Reel Irrigation Machines and Agricultural Machinery as well as spares.
China Yulin Irrigation is willing to join hands with friends all over the world to achieve agricultural modernization together, to build a better future for the generations to come.
We have world renowned advanced technology in the production of center pivots, and we implement strict quality control standards.
China Yulin Irrigation has state of the art production equipment for example the German laser cutting machine, Automatic welding robotic arm， CNC machining center ..etc to ensure advanced mechanical processing.
All parts of products adopt automatic fixture welding assembly technology, Integral disposable hot-dip galvanizing process after welding which are well-known all over the world in terms of quality and technology.
At present our popular irrigation innovations include Center Pivot Irrigation Machines, Linear Move Irrigation Machines, Hose Reel Irrigation Machines and Agricultural Machinery as well as spares.
China Yulin Irrigation is willing to join hands with friends all over the world to achieve agricultural modernization together, to build a better future for the generations to come.
Related products
FAQ
1.How many meters machine can be loaded into 1x40HQ?
- About 520m center pivot /whole set.
2.What's the delivery date
-6-8 weeks after payment
3. What's the payment terms?
-30% down by T/T (wire) or 70% by L/C or T/T before shipment.
4. Warranty policy?
-1 year concerning electrical equipment
- About 520m center pivot /whole set.
2.What's the delivery date
-6-8 weeks after payment
3. What's the payment terms?
-30% down by T/T (wire) or 70% by L/C or T/T before shipment.
4. Warranty policy?
-1 year concerning electrical equipment
-3 years tires and rims
-10 years or 10,000 working hours for gearboxes and gear motors—whichever expires first.
-15year use concerning our galvanized parts
